Steren SHOME-120 Instruction Manual

Steren SHOME-120 Instruction Manual

Led wi-fi smart light bulb

Advertisement

Available languages

Available languages

Quick Links

SHOME-120
Manual de instrucciones
LÁMPARA LED RGB WI-FI
V1.0
0818m

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHOME-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steren SHOME-120

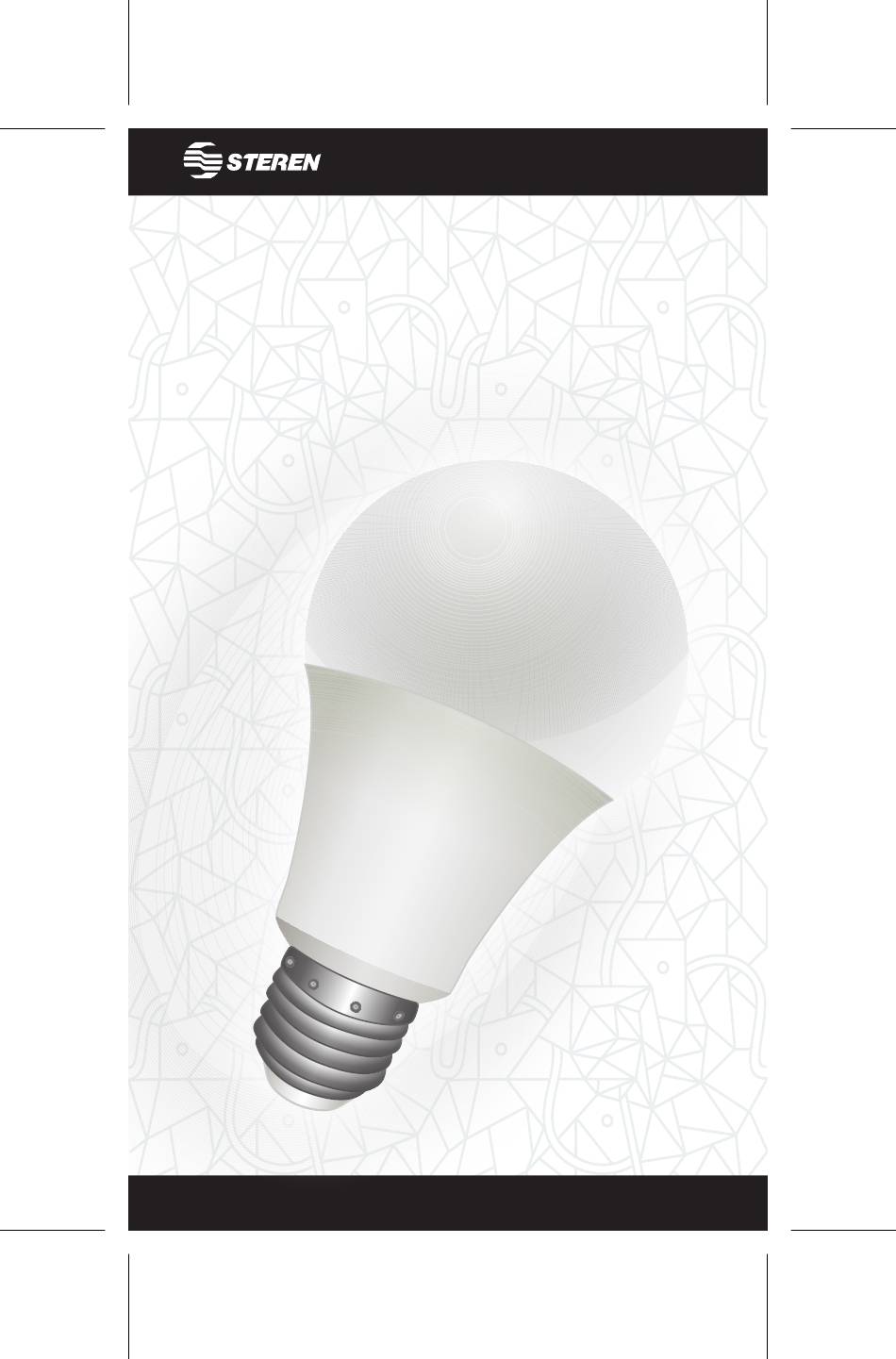

  • Page 1 SHOME-120 Manual de instrucciones LÁMPARA LED RGB WI-FI V1.0 0818m...
  • Page 2 La información que se muestra en este manual sirve únicamente como referencia sobre el producto. Debido a actualizaciones pueden existir diferencias. Por favor, consulte nuestra página web www.steren.com para obtener la versión más reciente de este manual. PRECAUCIONES • Este aparato no se destina para utilizarse por personas (incluyendo niños), cuyas capacidades físicas, sensoriales...
  • Page 3: Instalación

    Smart Life en su Smartphone. INSTALAR LA APLICACIÓN Descargue la aplicación Smart Life. Esta aplicación no es propiedad de Steren; la empresa no se hace responsable por su funcionamiento ni actualizaciones. Las instrucciones y el funcionamiento pueden variar si existen actualizaciones...
  • Page 4 CONFIGURACIÓN WI-FI Este manual fue realizado con pruebas en dispositivos con sistema operativo iOS. El procedimiento de configuración puede variar para Android. Abra la aplicación Smart Life. Seleccione Crear nueva cuenta. Seleccione Acordar.
  • Page 5 Introduzca un correo lmendez@hotmail.com electrónico o número telefónico. Seleccione Obtener código. En breve recibirá un código de verificación al correo electrónico o número teléfonico que registró. 7 7 3 1 8 2 Introduzca el código de verificación recibido. Introduzca una contraseña. pa5Sword Seleccione Terminar.
  • Page 6 Seleccione Crear familia. Seleccione Introduzca Terminar. un nombre. Seleccione Terminar.
  • Page 7 Seleccione Iluminación Aparato. Seleccione Añadir equipo. Con el interruptor encienda el foco. Después de 10 segundos apáguelo. Con el interruptor encienda y apague el foco cinco veces. El foco comenzará a parpadear rápidamente*. ENCENDER APAGAR * Es necesario que el foco parpadee rápidamente; si observa que destella lentamente, realice otra vez los pasos 15 y 16.
  • Page 8 Seleccione Confirmado en la lámpara de flash. Introduzca la contraseña. Seleccione Confirmar. Espere hasta que finalice la conexión. Mantenga los dispositivos lo más cerca posible. Cuando el foco deje de parpadear significa que ya está vinculado con su smartphone.
  • Page 9 Seleccione Seleccione el ícono. Terminar. ¡Listo! Aparecerá el menú principal para comenzar a manipular el modo de iluminación del foco: Lámpara st... Atrás Encender / Apagar Luz Blanca Temporizador White Color Scene Schedule Color de Escena iluminación...
  • Page 10 Lámpara st... Atrás White Ajuste la intensidad de brillo. Lámpara st... Atrás Seleccione el color que desee Color Brillo Calidez Ajuste la intensidad...
  • Page 11 Scene Presione sobre los iconos para seleccionar el color de escena. Schedule Si desea agregar el temporizador seleccione Añadir Temporizador y ajuste.
  • Page 12 AÑADIR A OTRO MIEMBRO Esta función sirve para agregar a otra persona, quien tambien podrá controlar el foco. Antes de empezar, debe tomar en cuenta que la persona añadida tendrá que descargar la aplicación Smart Life en su smartphone y seguir los pasos anteriores de instalación (1-14).
  • Page 13 lmendez@hotmail.com Seleccione Gestión de familia. Seleccione el nombre de la familia. Seleccione Compartir equipo. leonardo.mendez lmendez@hotmail.com...
  • Page 14 Seleccione Compartir equipo. Seleccione la casilla. Introduzca el número sramírez@ hotmail. telefónico o correo electrónico de la persona Aparecerá la siguiente que va a agregar y pantalla: seleccione Terminar. Seleccione Compartir equipo Compartir equipo.
  • Page 15: Especificaciones

    Aparecerá la siguiente pantalla: ¡Listo! lmendez@ hotmail.com La persona agregada, sramírez@ hotmail.com podrá controlar el equipo. ESPECIFICACIONES Las especificaciones pueden variar sin aviso previo. Voltaje de operación: 100 - 240 V ~ 50/60 Hz 0,08 A Potencia: 7 W Flujo luminoso: 480 lm (luz de día) Tiempo de vida: 20 000 h Frecuencia Wi-Fi: 2,4 GHz Estándar: IEEE 802.11 b/g/n...
  • Page 16 1.- Para hacer efectiva la garantía, presente esta póliza o factura, comprobante y el producto, en donde fue adquirido o en Electrónica Steren S.A. de C.V. 2.- Electrónica Steren S.A de C.V. se compromete a reparar el producto en caso de estar defectuoso sin ningún cargo al consumidor. Los gastos de transportación serán cubiertos por el proveedor.
  • Page 18 SHOME-120 Instruction manual LED WI-FI SMART LIGHT BULB V1.0 0818m...
  • Page 19 The instructions of these manual are for reference about the product. There may be differences due to update. Please check our web site www.steren.com to obtain the latest version of the instruction manual. CAUTIONS • This device is not intended for use by people (including...
  • Page 20: Installation

    Smartphone. INSTALLING THE APP Download the Smart Life app. This application is not owned by Steren; The company is not responsible for its operation or updates. Instructions and operating may vary if there are updates in the...
  • Page 21: Wifi Configuration

    WI-FI CONFIGURATION This manual was made with tests on devices with iOS operating system. The configuration procedure may vary for Android. Open the Smart Life app. Select Crear nueva cuenta. Select Acordar.
  • Page 22 Enter an email or lmendez@hotmail.com phone number. Select Obtener código. You will soon receive a verification code at the email or phone number that you registered. 7 7 3 1 8 2 Enter the verification code received. Enter a password. pa5Sword Select Terminar.
  • Page 23 Select Crear familia. Select Enter a name. Terminar. Select Terminar.
  • Page 24 Select Iluminación Aparato. Select Añadir equipo. With the switch, turn on the light bulb. After 10 seconds turn it off. With the switch turn on and off the light bulb for five times. The light bulb will begin to flash quickly*. ENCENDER APAGAR * It is necessary for the focus to flash rapidly;...
  • Page 25 Select Confirmado en la lámpara de flash. Enter the password. Select Confirmar. Wait until the connection ends. Keep the devices as near as possible. When the light bulb stops flashing, it means that it is already paired to your smartphone.
  • Page 26 Select Select the icon. Terminar. ¡Ready! The main menu will appear to start manipulating the bulb lighting mode: Lámpara st... Atrás Turn on/off White light Timer White Color Scene Schedule Lighting color Scene...
  • Page 27 Lámpara st... Atrás White Adjust the brightness intensity. Lámpara st... Atrás Select the color that you want Color Bright Cool Adjust the intensity...
  • Page 28 Scene Click on the icons to select the scene color. Schedule If you want to add the timer select Añadir Temporizador and set.
  • Page 29 ADD ANOTHER MEMBER This function is used to add another person, who can also control the bulb. Before you start, you must take into account that the added person must download the Smart Life application on your smartphone and follow the steps of previous installation (1-14).
  • Page 30 lmendez@hotmail.com Select Gestión de familia. Select el nombre de la familia. Select Compartir equipo. leonardo.mendez lmendez@hotmail.com...
  • Page 31 Select Compartir equipo. Check the box. Enter the phone number sramírez@ hotmail. or email address of the person that you are The following screen adding and select will appear: Terminar. Select Compartir equipo Compartir equipo.
  • Page 32: Specifications

    The following screen will appear: ¡Ready! lmendez@ hotmail.com The added person can sramírez@ hotmail.com control the device. SPECIFICATIONS Specifications may vary without previous notice. Operating voltage: 100 - 240 V~ 50/60 Hz 0.08 A Power output: 7 W Luminous flux: 480 lm (day light) Lifetime: 20 000 h Wi-Fi frequency: 2.4 GHz Standard: IEEE 802.11 b/g/n 13841...
  • Page 33: Warranty

    Product: LED Wi-Fi smart light bulb Part number: SHOME-120 Brand: Steren WARRANTY This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase. CONDITIONS 1. This warranty card with all the required information, invoice, product box or package, and product, must be presented when warranty service is required.
  • Page 35 www.steren.com...
