Summary of Contents for Selcom Security SEL IRCAM
- Page 1 Telescopic IR Search Camera SEL IRCAM Operation manual 2023 www.SELCOMSECURITY.com...
-
Page 2: Table Of Contents
Contents 1. Product Introduction ................. 1 2. Technical Parameter ................. 1 3. Parts Description ..................2 4. Kit Components List .................. 2 5. Operation Instruction ................3 6. System Operation ..................6 www.SELCOMSECURITY.com... -
Page 3: Product Introduction

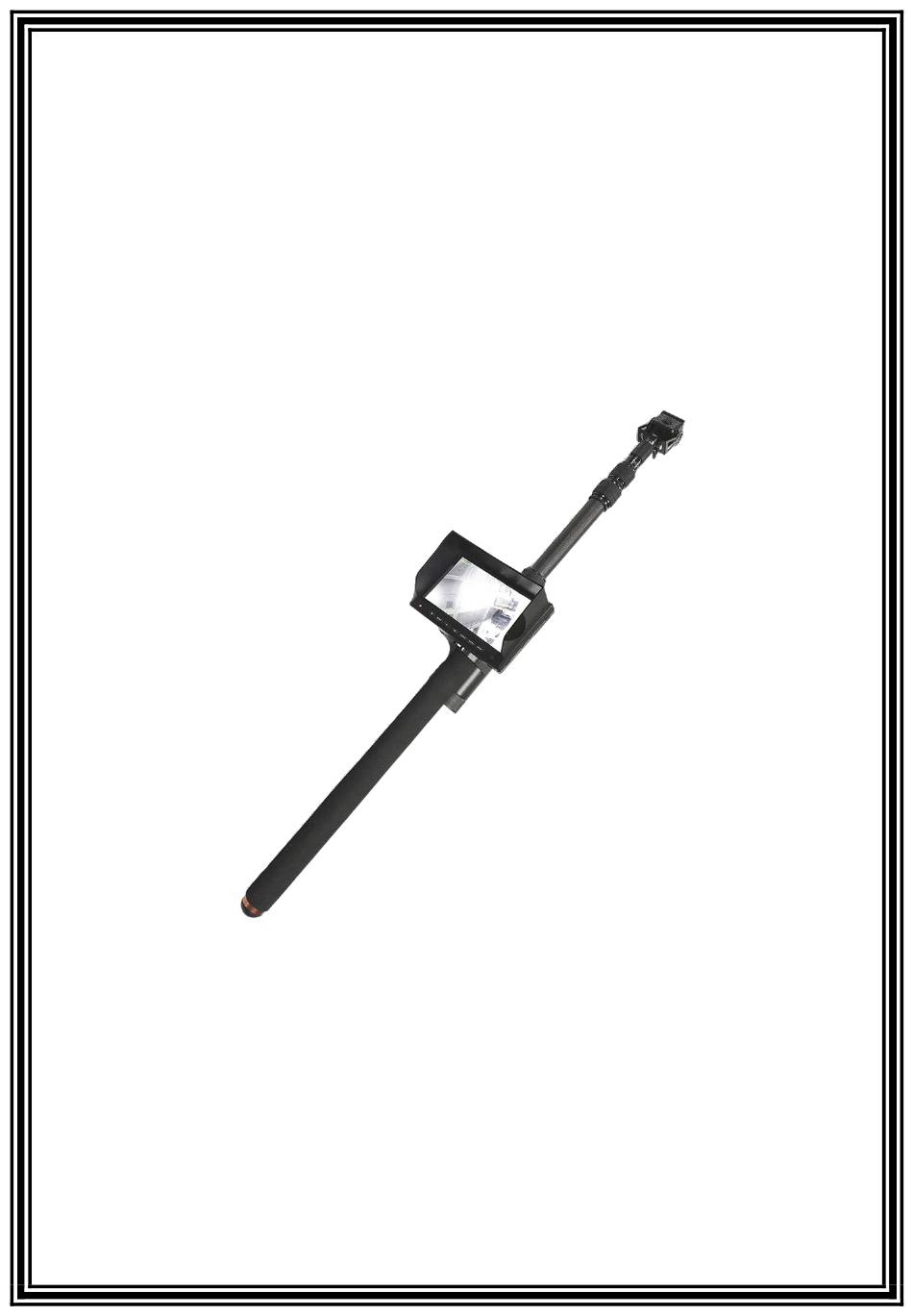

1. Product Introduction The telescopic IR search camera uses a telescopic rod and a high-resolution 1080P infrared camera lens mounted at the end of the rod and an infrared light source integrated in the camera to clearly reflect dark environments and those inaccessible areas (such as vehicles bottom, high objects, underground pipes, post-earthquake rescue etc.) on the 7-inch high-definition color LCD display. -
Page 4: Parts Description
3. Parts Description Camera Sun shield cover Screen display Battery box Telescopic rod 4. Kit Components List Kit Components Item No. Description Quantity (PC) Host (telescopic+camera+display) Sun shield cover Charger Charge Box Lithium battery User Manual ABS Case P a g e www.SELCOMSECURITY.com... -
Page 5: Operation Instruction
5. Operation Instruction (1) Press the power button on the battery box, the battery status lights will be on, and the display screen will display image. Battery Status Power Button (2) Pull out the telescopic rod to the appropriate length, the Fastening ring will be loosened by counterclockwise rotating and be locked by clockwise rotating. - Page 6 (3) Adjust the camera to the right Angle. (4) If used outdoors, the sunshade cover can be installed. For installment, point the cover at the screen slot and push it down; and push up to disassemble. Sun shield cover (5) To charge the battery, rotate the battery box cap to pour out the battery, load the battery into the charging box and charge with the dedicated charger.
-
Page 7: System Operation
6. System Operation 6.1 Screen Interface Image display Recording SD Card Time Function button “ ” “ ” :Select Key “MENU” : Menu key “ ” : Power Key “DVR/AV” : Photo / Up key “ENTER” : Recording / OK key “MODE”... - Page 8 6.2 Video Query Press “MODE” key to enter the video playback interface, then press key to select the video you want to play, Press "ENTER" to play the file. When playing, “ENTER” key is also the pause key , key is the quick search key to search the previous and next video.
- Page 9 6.4 Main Menu interface Press “MENU” key, go in through this key. And then press ”ENTER” key to select the item which needs to be adjusted. P a g e www.SELCOMSECURITY.com...
- Page 10 6.5 Image setting Enter the image setting interface, select and adjust corresponding values through "DVR / AV" and "MODE" keys. 6.6 Video setting P a g e www.SELCOMSECURITY.com...
- Page 11 Enter the video setting interface, select and adjust corresponding values through "DVR / AV" and "MODE" keys. 6.6.1 Playback: Press to enter video playback. Press "MODE" to switch the video and photo. Select a file through and press "ENTER" to play the file. When the file is playing video, press "ENTER" again to pause. 6.6.2 Auto recording: Open this function, it will record automatically after starting.
- Page 12 6.6.7 Format: Select “YES” through key, press “ENTER” to confirm. The confirmed option will be displayed again for a second confirmation. Press “ENTER” to key again to format all the contents in the memory card. Attention!!!!! Formatting will erase all files in the card. Once confirmed, all videos and pictures in the card will be cleared and cannot be restored.
