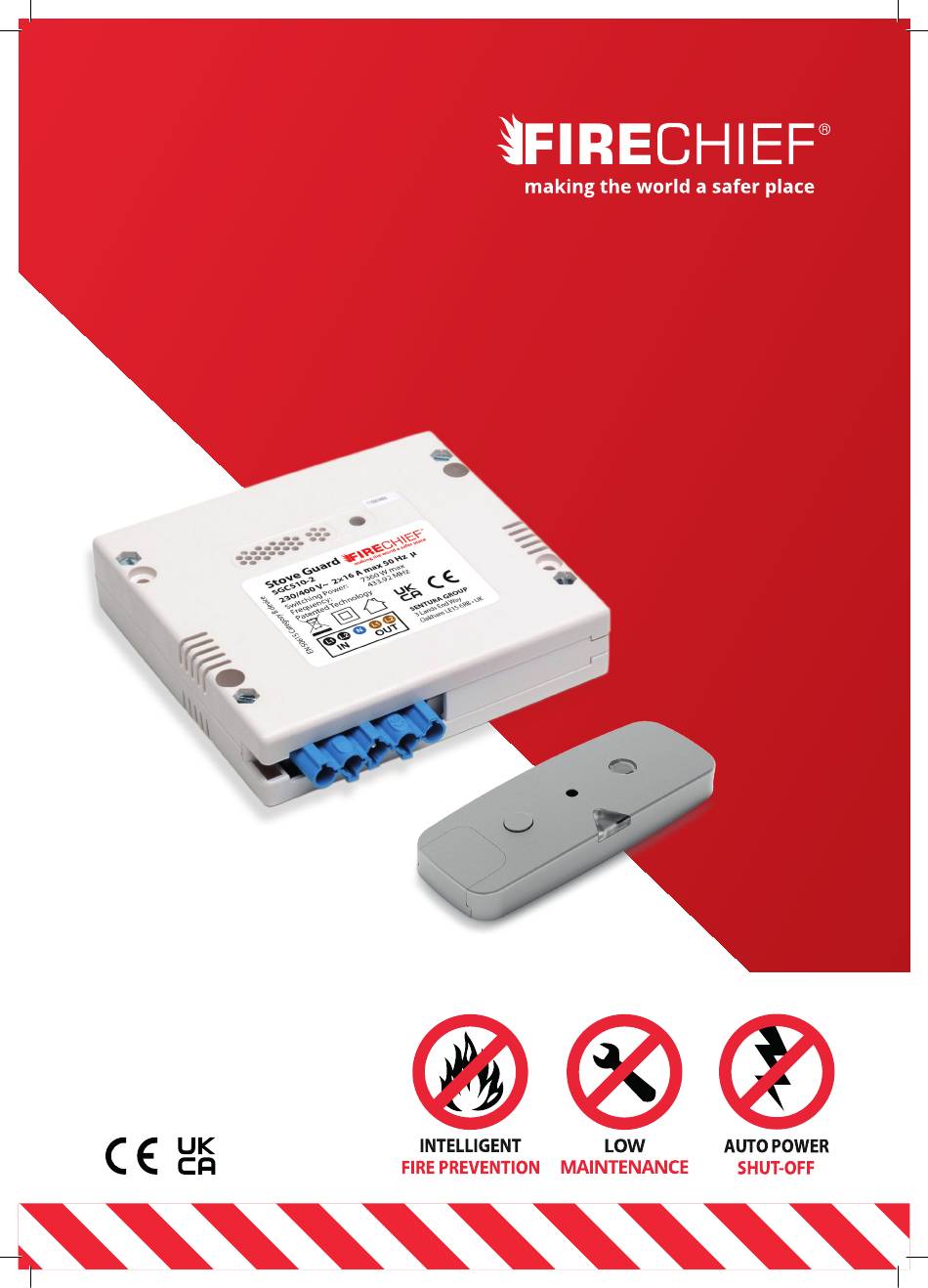

- Page 1 Kitchen S TOVE GUARD FSW1 INSTALLATION & OPERATING INSTRUCTIONS...
-
Page 2: Safety Rules
THANK YOU FOR CHOOSING THE FIRECHIEF KITCHEN STOVE GUARD Firechief Stove Guard is a safety product for domestic kitchens. The Stove Guard consists of a state-of-the-art Heat Sensor that monitors the cooker from above, and a Control Unit that cuts the power to the cooker if a dangerous situation occurs. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS • Alarm signal 80 dB(A) @ 1 m • RF 433 MHz • Patented technology • Fulfils BS EN 50615:2015 Standard for stove guards (Eurofins Expert Services Oy) THE HEAT SENSOR Signal LED should face towards user IR lens (Lens extension for ceiling installations) Button... -
Page 4: Control Unit
CONTROL UNIT It is a statutory requirement that the Junction Box is installed by an authorized electrician. The power to the cooker must be disconnected throughout the entire installation. POWER Disconnect the power Switch off the power at the consumer unit. Note! Do not turn on the Consumer unit before the Heat... -
Page 5: Cooker Connection
COOKER CONNECTION Alternative 1 Stove Guard's maximum supply current allowed is 32 A and the appropriate diversity factor is 100%. The diversity Alternative 2 factor applies to Stove Guard installations with parallel connected relays. Type 1, or equivalent circuit breaker (MCB) shall be used for protecting the Stove Guard supply. -
Page 6: Installation
1c Ceiling mounting 1a Installation under cooker hood 1b Wall mounting For ceiling installations, the Firechief Kitchen Stove Guard Wall supplied IR lens extension must Bracket 140-0003 (FSWB) required also be fitted. See page 11-12. for wall installations - available... -
Page 7: Cooker Hood
COOKER HOOD Allow the Heat Sensor to reach room temperature before starting the installation. The power to the cooker must be switched off (at the consumer unit). See table on page 8 for guidance on the appropriate mounting location and follow instructions 1–4. SELECTING THE MOUNTING LOCATION Measure the installation height. -
Page 8: Installation Under Cooker Hood
INSTALLATION UNDER COOKER HOOD P. 6-7 STARTING THE HEAT CHECK INSTALLATION HEIGHT SENSOR If the distance from cooker to Heat Sensor is more than 60 cm, the Heat Sensor's sensitivity level must be adjusted manually. Insert the battery and check step 4 before placing the Heat Sensor on Please refer to the table below together with the information on page 7 of the installation plate. - Page 9 WALL Allow the Heat Sensor to reach room temperature before starting the installation. The power to the cooker must be switched off (at the consumer unit). See table on page 10 for the mounting location and follow instructions 1–5. SELECT THE REQUIRED LOCATION AND MOUNT THE BRACKET Wall mounting requires a bracket 140-0003 (FSWB), sold separately.
- Page 10 WALL MOUNTING WITH BRACKET P. 8-9 STARTING THE SET THE SENSITIVITY LEVEL HEAT SENSOR Set the Heat Sensor's sensitivity level according to the mounting height Insert the battery and check step 5 (as described in the table below) by evenly pressing the Sensor's button. before placing the Heat Sensor on the The factory setting for the sensitivity level is 45–60 cm above the cooker.
- Page 11 CEILING Allow the Heat Sensor to reach room temperature before use. The power to the cooker must be switched off (at the consumer unit). See table on page 12 for the mounting location and follow instructions 1–5. REPLACE LENS Carefully lift the lens with a screwdriver. Insert the IR lens extension (included) as shown in the picture.
- Page 12 CEILING MOUNTING WITH IR LENS EXTENSION P. 6-7 STARTING THE HEAT SET SENSITIVITY LEVEL SENSOR Set the sensitivity level according to the mounting height (as described in the table below) by evenly pressing the Sensor's button. The Heat Sensor's Insert the battery and check step 5 sensitivity level must always be adjusted when installing it on the ceiling.
-
Page 13: Function Test
FUNCTION TEST The installation is completed when the function test has been passed. The Heat Sensor will then give an alarm in a dangerous situation. The user manual, accessories and stickers should be stored close to the Stove Guard for future reference. P. -
Page 14: Warranty
WARRANTY UK Declaration of Conformity The warranty applies from the date of purchase. This warranty does not affect your legal rights. The warranty covers the use of the product under normal As the product’s manufacturer, we declare under circumstances in private households and housing our sole responsibility, that this product SGK5010- associations. - Page 15 • Electromagnetic Compatibility (EMC) Standard for Radio Equipment and Services: ETSI EN 301 489-1 V2.1.1 (Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements) and ETSI EN 301 489-3 V2.1.1 (Part 3: Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 246 GHz) (the Sensor Unit)
- Page 16 REPLACING SENSOR AND CONTROL UNIT PAIRING DEVICES The units are already paired at the factory. When replacing the Heat Reset button Sensor or the Control Unit, the devices must be paired again. Note! The Heat Sensor must be seconds). Release the reset one "beep"...
