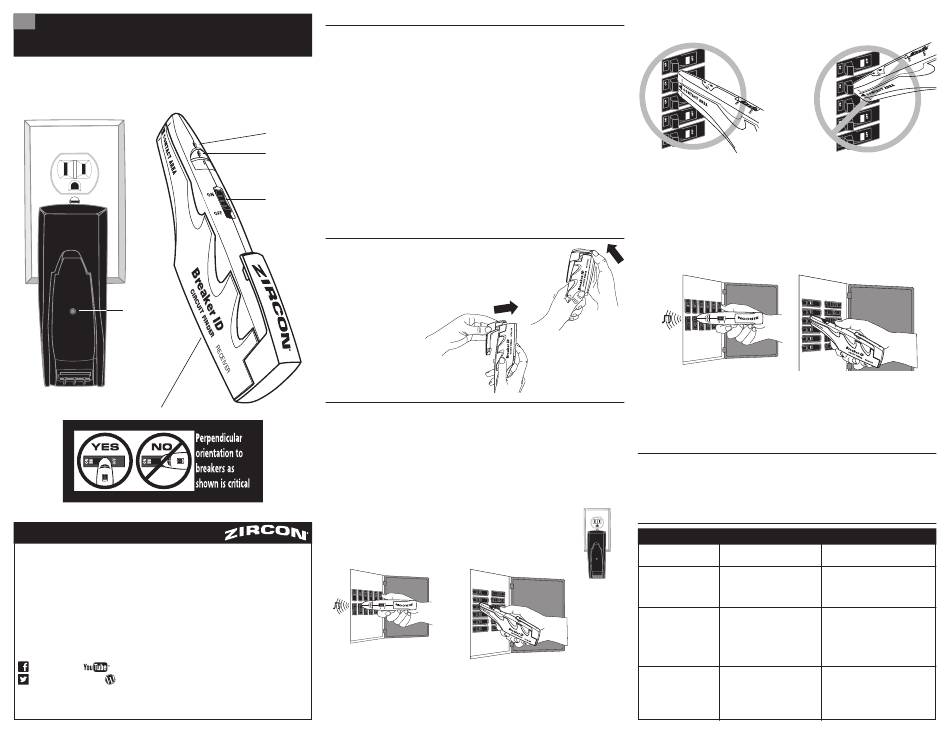

Zircon Breaker ID Quick Start Manual

Breaker ID
EN
Circuit Breaker Finder
Locating a breaker when you have to turn off a circuit can be a
real problem. Take the guess work out of finding the right breaker.
Transmitter Receiver
Red LED
Orientation Label Underside of Receiver
Zircon is a registered trademark of Zircon Corporation.
Visit www.zircon.com for the most current instructions.
Model: Breaker ID
Transmitter: 110-120 Vca 60 Hz 3 W
Receiver: 9 Vcc 14 mA
Manufacturer: ZIRCON DE MÉXICO, S.A. DE C.V.
AV. ITURBIDE # 424, COL. OBRERA, C.P. 22830, ENSENADA, Baja California
Tel.: 01 (800) 788-0233
Please read and follow these instructions prior to using the tool.
This product has been tested under NOM-001-SCFI-1993 safety regulation to operate at 127 Vca.
ZirconCorporation ZirconTV
|
ZirconTools ZirconToolPro ZirconTools
www.zircon.com • info@zircon.com
© 2017 Zircon Corporation • P/N 68714 • Rev B 04/17
1. EQUIPMENT RATINGS
• Transmitter: 110–120 Vca 60 Hz 3 W.
• Receiver: 9 Vcc 14 mA.
• This device posseses a single input/output connection designed
to plug into a standard U.S. outlet.
• This device is for indoor use only.
If the device is used in a manner not specified here, then the
Green LED
protection provided by the device may be impaired.
Red LED
No part of this device may be replaced or repaired by anyone
except the manufacturer.
Technical assistance: 01 (800) 788-0233, info@zircon.com,
ON/OFF
or www.zircon.com.
2. INSTALLING THE BATTERY
Lift tab on bottom end of clip to release end cap.
Slide 9 Vcc battery into compartment, terminal side
first, matching (+) and (-) terminals from battery
to case.
Slide the clip onto
the receiver, pressing
down on battery
until both pieces
snap together.
3. LOCATING A CIRCUIT
Note: A small percentage of circuit boxes are mounted
with breakers oriented vertically. See diagrams for
proper receiver orientation.
Warning: For indoor use only on standard
110–120 Vca outlets.
Plug the transmitter into the outlet that needs to be turned off.
Verify that the red LED glows, indicating a live circuit.
Go to the circuit panel. Turn on the receiver
and hold it against the breaker as shown.
Vertical Breakers
It is important to hold the receiver at an angle so that the entire
CONTACT AREA of the receiver touches each circuit breaker.
Slowly scan the receiver over all breakers. This calibrates the unit.
During this first pass while the unit is calibrating, the receiver
may indicate more than one breaker. This is normal. If you have
more than one panel, be sure to perform this step on each panel.
Do not turn off the receiver.
Perform a second pass over the breakers. When the green
LED glows and the buzzer sounds, you are directly over the
breaker connected to the transmitter.
Turn off the breaker.
Verify that the red LED on the transmitter is off, indicating a dead
circuit, before beginning work.
4. CLEANING AND STORING THE UNIT
Clean transmitter with dry cloth only. Do not expose product
to liquids.
Snap the transmitter and receiver together for storage.
5. HELPFUL HINTS
No indication, i.e., no
green LED and buzzer.
Multiple indications on
second scan.
Tracing circuit connected
to light fixture.
Horizontal Breakers
Receiver indicates
breaker above the
correct one.
YES NO
Vertical Breakers Horizontal Breakers
Situation Probable Causes
The breaker for that circuit is Scan the box that supplies
not in the box being scanned. that circuit.
The first scan was performed Scan again, moving the receiver
too quickly. slowly. Be sure to keep the nose of
the receiver close to the breaker
and maintain proper orientation.
Use an outlet adapter. Screw the
adapter into the socket, then plug
the transmitter into it. Or plug an
extension cord into the adapter,
then plug the transmitter into the
extension cord.
Receiver is held horizontally Hold the receiver at an angle so
with only the tip of the receiver the entire CONTACT AREA of
contacting the breaker and the receiver touches each circuit
not an angle (see illustration breaker (see illustration in Step 3).
in Step 3).
Solutions
