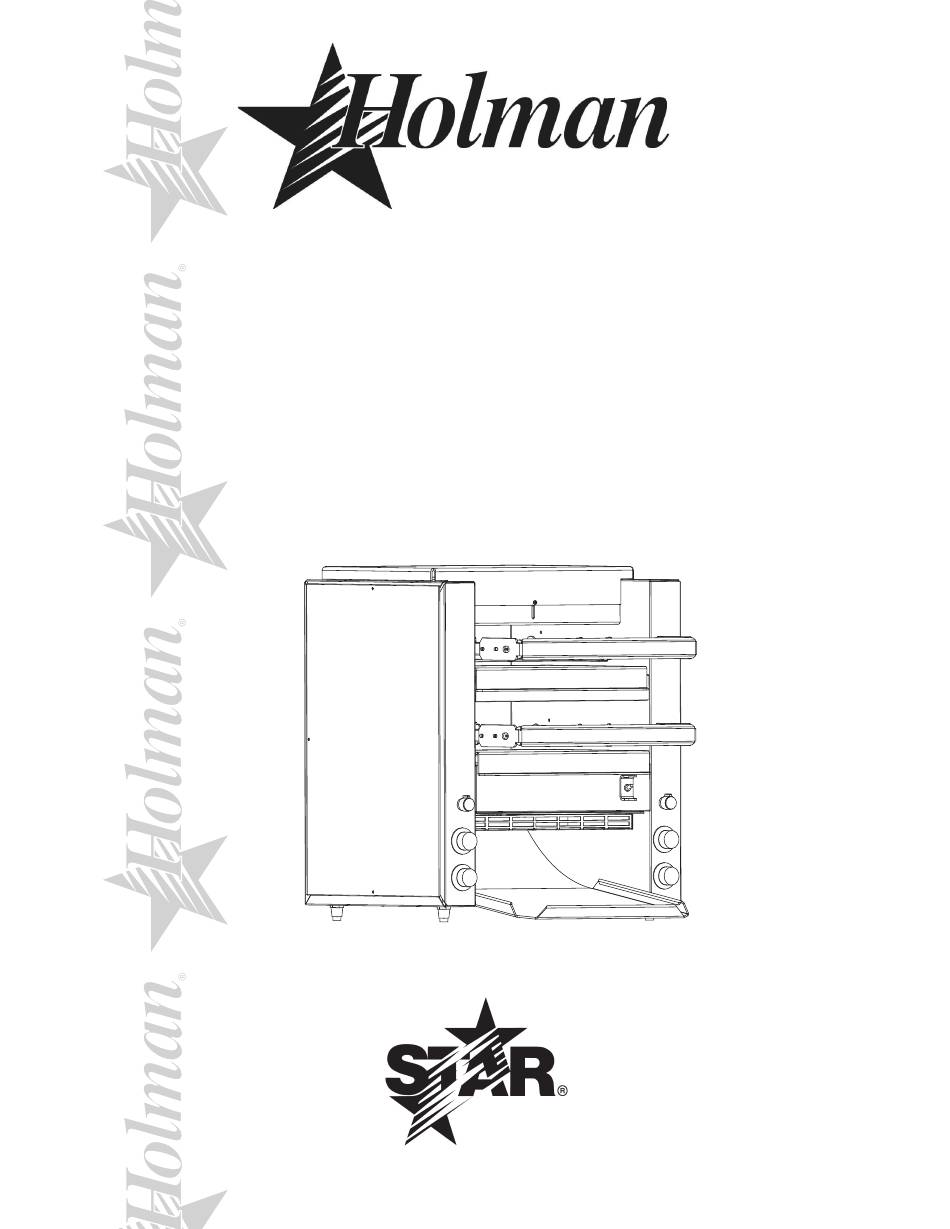

- Page 1 ® DOUBLE CONVEYOR TOASTER MODEL DT14 SERIES Installation and Operation Instructions 2M-HG0194 REV J (11-22) IL1517 DT14...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
SPECIFICATIONS: 9H-DT14 Type: Double Conveyor Toaster 208V, 4,800 watts, 60 hz, 23.6 amp, NEMA 6-30P 220V, 4,800 watts, 60 hz, 22.3 amp, NEMA 6-30P 240V, 4,800 watts, 60 hz, 20.5 amp, NEMA 6-30P 220V, 4,800 watts, 50 hz, 22.3 amp, not supplied with cord or plug 240V, 4,800 watts, 50 hz, 20.5 amp, not supplied with cord or plug Product Opening TOP = 1"... -
Page 4: Inspection & Assembly
INSPECTION & ASSEMBLY UNCRATING AND INSPECTING Unpack the unit and components from the shipping container. Remove all visible packing material and those from inside the cooking chamber. If damage is discovered, file a claim immediately with the carrier that handled the shipment. Do not operate the unit if it was damaged during shipping. ASSEMBLY AND INSTALLATION The unit was shipped fully assembled and ready to plug into a 6-30R receptacle. -
Page 5: Electrical Connection
CRUMB TRAYS The DT14 is equipped with two (2) crumb trays that are positioned under each conveyor. Operating the unit without the OPERATE crumb trays will cause it to operate at a higher temperature which will lead to unit shutting down. Be sure to wipe the crumb CLEAN trays clean using a damp cloth, each day. -
Page 6: Daily Operation
HIGH LIMIT RESET Your Holman Conveyor Toaster is equipped with a temperature activated heat limit switch that will interrupt the power to the heater tubes if the temperature inside the control box exceeds 190° F (88°C). The HIGH LIMIT/RESET can be manually reset by pushing the button located at the rear of the control box as shown below. - Page 7 CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE SHOULD BE TAKEN WHILE USING THIS UNIT. CAUTION COOKING PROCEDURES A. BREAD TOASTING 1) Turn the top and bottom heat controls to FULL POWER. 2) Set the conveyor speed to HIGH. 3) If your toaster is equipped with separate top and bottom heat controls set them both at HIGH.
- Page 8 CLEANING Preventive maintenance for your Holman toaster consists of the following recommended cleaning procedures. To keep your toaster in its top operating condition, these steps should be performed on a daily or weekly as indicated. A. Clean air intake on the front of the unit using a damp cloth. (Daily) B.
-
Page 9: Maintenance Procedures
MAINTENANCE PROCEDURES A. REPLACING HEATER TUBES 1) DISCONNECT UNIT FROM POWER SOURCE. 2) Remove the side panels. 3) Remove heater tube wire from terminal block connection, keeping top and bottom wires separate. 4) Lift heater tube retainers by loosening retaining screws and sliding the retainer plate up. Hand tighten the plate to hold it up so the heater tubes will slide out freely. -
Page 10: Troubleshooting Guide
D. HEAT LIMIT SWITCH (RESET) Your Holman conveyor toaster is equipped with an automatically activated heat limit switch that interrupts the heater tube connections if the ambient temperature in the control box exceeds 190°F (88C). This switch can be reset manually by pushing the red button located on the back side of the control box as shown in the Toaster Components Illustration on Page 6. - Page 11 5 years Cast iron grates, burners 1 year and burner shields Original Star, Toastmaster or Holman 90 days parts sold to repair equipment The foregoing warranty is in lieu of any, and all other warranties expressed or implied and constitutes the entire warranty.
- Page 12 MODEL NO. PART NO. DT14 SK2273 STAR MANUFACTURING INTERNATIONAL INC. #10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA TITLE WIRING DIAGRAM W/ FUSES DATE 7/13/07 REVISIONS DATE DESCRIPTION OF CHANGE DR CORRECTED COLORS TOLERANCES UNLESS NOTED ±.015 ANGLES ±1° 8/24/07 ADDED NOTE THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG.
- Page 13 MODEL NO. PART NO. DT14 SK2275 STAR MANUFACTURING INTERNATIONAL INC. #10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA TITLE WIRING DIAGRAM W/ FUSES 50Hz CE DATE 7/16/07 REVISIONS DATE DESCRIPTION OF CHANGE DR TOLERANCES UNLESS NOTED ±.015 ANGLES ±1° CHANGED TERM. BLOCKS 12/8/15 THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG.
- Page 14 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE ® This drawing contains information confidential to Star Manufacturing International, Inc. SK2136 REV. B 9/28/2015 No reproduction or disclosure of its contents is permitted. MODEL: DT14...
-
Page 15: Parts List
PARTS LIST REV H (11-22) DT14 Double Conveyor Toasters Number Part Description & Model Number Number Unit HM-401125 TOP COVER ASSY HM-400899 SHUTTER, HEAT 2C-200005 SCREW, 6-32 x 1/2 PHILLIPS, HEAT SHUTTER HM-401710 BAFFLE HM-100996 BACK PANEL ASSY HM-150027 CHAIN, DRIVE 24 IN. 2P-200645 SPROCKET, 25B17X5/16 2P-200645... - Page 16 PARTS LIST December 10, 2015, Rev. G DT14 Double Conveyor Toasters Number Part Number Unit Number Description 2C-2553 NUT 6-32 HEX STL NP 2E-Z5680 FUSE, 5A - CLASS G 2E-Z5681 FUSEHOLDER, CLASS G 2E-200555 TERM BLOCK BEU SP-115403 ASSY, TERM BLOCK 3 POS. SM BUCH 2E-200757 LABEL, ON/OFF 2E-200468...
