Lexivon LX-771 Operating Instruction

Butane micro torch
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

LX-771 OPERATING INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX-771 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lexivon LX-771

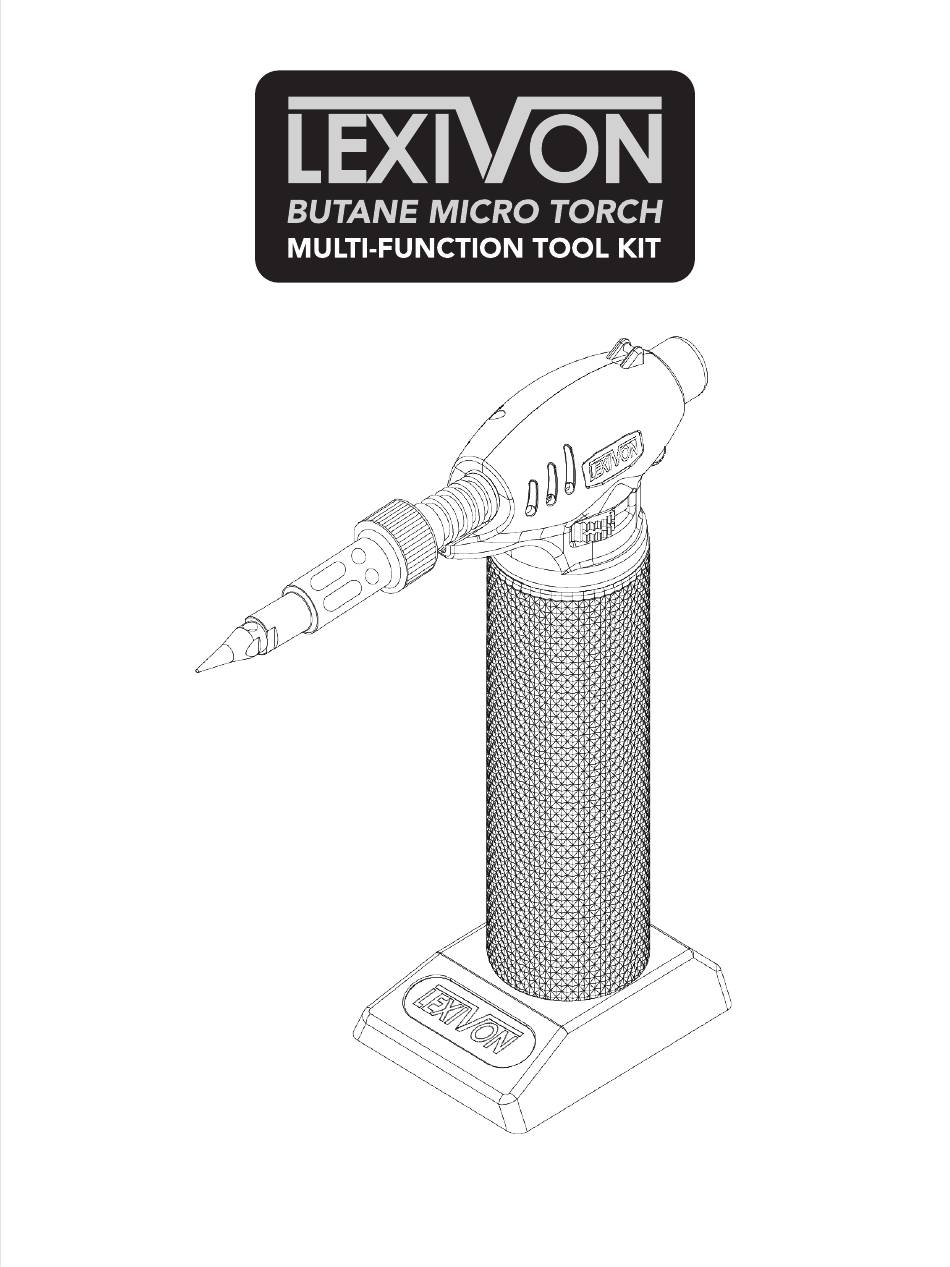

  • Page 1 LX-771 OPERATING INSTRUCTION...
  • Page 2 ATTENTION The LX-771 BUTANE MICRO TORCH does not contain any butane gas when purchase. USE HIGH-QUALITY REFINED BUTANE FUEL ONLY. If the wrong butane is used, the torch can clog and sputter. Make sure to use only butane that was refined at-least 3 times.
  • Page 3 PRESENTATION Flame Guard Ignition Button Continuous Flame Lock Tank Flame Adjusting Lever Safety Lever 7mm & 8mm Wrench Sponge And Tray Head Blower Catalyst Knife Standard Diagonal Chisel Deflector Tip - 3mm Tip - 3mm...
  • Page 4 1 GAS FILLING AND REFILLING Figure 1 Ensure the Continuous Flame Lock is turned to ”OFF” position before refilling. (Please see Figure 1) Figure 2 Continuous Flame Lock Filling Valve Insert the butane container nozzle vertically down into the FILLING VALVE. For best results, with pump-action several times. (Please see Figure 2) When the gas starts to overflow, remove the container nozzle from FILLING VALVE immediately to stop the filling operation.
  • Page 5 3 CONTINUOUS FLAME WORKING While the flame is on, move the CONTINUOUS FLAME LOCK (on the left of Torch, When the muzzle points away from your body) toward the direction of IGNITION BUTTON to lock the flame. (Please see Figure 5). Figure 5 Continuous Flame Lock...
  • Page 6 5 HOW TO FIT OR REPLACE DIFFERENT ACCESSORIES NOTE - ALWAYS ALLOW UNIT TO COOL BEFORE REMOVING OR REPLACING TIPS. Use of the Soldering Tips, Hot Knife, Hot Blower, and Deflector requires the Head Catalyst to be installed. Unscrew the Flame Guard nut and remove the Flame Guard. Slide the Head Catalyst into the Flame Guard by inserting the narrow end of the Head Catalyst into the Flame Guard first.
  • Page 7 THREADED ATTACHMENT INSTALLATION: Thread the desired tip into the Head Catalyst and tighten using the 7mm wrench while using the 8mm wrench to hold the Head Catalyst in place. To remove, follow the installation steps in reverse order. 7mm Wrench 8mm Wrench DEFLECTOR INSTALLATION: Slide the Deflector over the Head Catalyst and make sure it attached firmly.
  • Page 8 THE LX-771 BUTANE MICRO TORCH MULTI-FUNCTION TOOL KIT COMES WITH A 1 YEAR WARRANTY FOR ANY HELP YOU MIGHT NEED PLEASE DON’T HESITATE TO CONTACT US...
