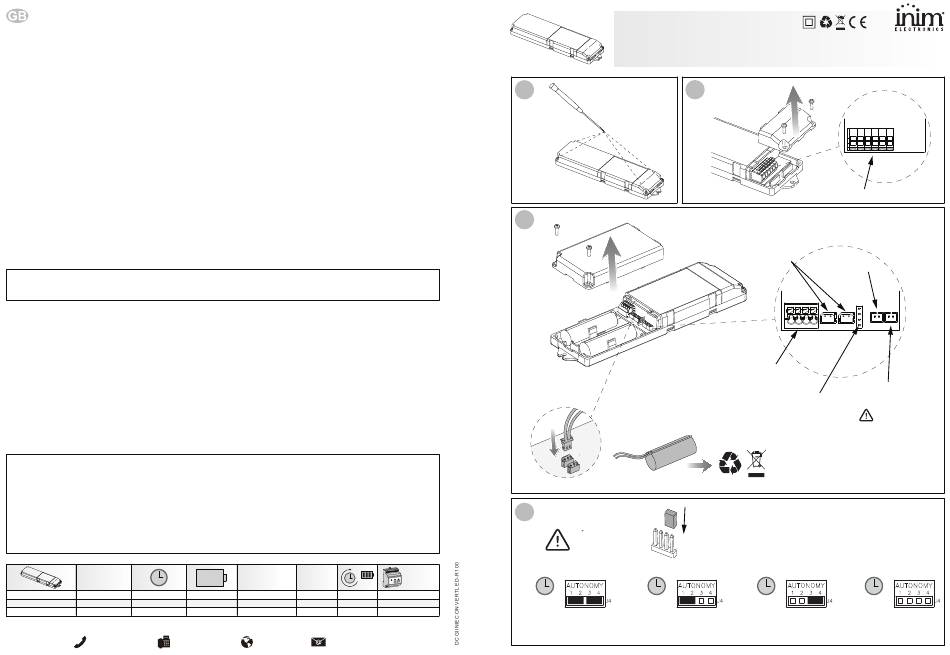

INIM Electronics CNSA01 Quick Start Manual

WARNING
Connect FIRST the led, the external driver, and THEN connect the batteries and activate
the mains voltage supply.
Do not disconnect and connect again the leds during the emergency state.
Output voltage: from 6V to 60V (self-regulating)
Output power: from 4W to 1.5W based on the duration set.
IP rating: IP30
Charging time: 12H
Two-color signaling LED: YES
Test button: accessory (order code OHCNTB).
Operating temperature: from 0°C to 50°C
Installation: false-ceiling or inside light fixtures.
Compatibility: LED light fixtures equipped with drivers with max output voltage 60Vdc and max output current 2A.
CONVERTLED output voltage: from 6Vdc to 60Vdc.
- There is a double insulation between the power supply terminals (230 Vac) and the control terminals (R C I, + - -).
- Replace the battery when the nominal autonomy is not reached after the corresponding recharging period.
- For any replacement of batteries or other repairs, contact an authorized technical assistance center and request the use of
original spare parts. Failure to comply with the above may compromise the safety of the appliance.
- The product contains LiFePO4 rechargeable batteries which must be disposed of in the appropriate bins.
LED SIGNALS
SOLID GREEN: mains present, no anomaly.
FLASHING GREEN: test in progress.
SOLID RED: lamp fault or battery disconnected.
FLASHING RED: battery fault.
Only for supervised devices connected to the BUS
GREEN-RED ALTERNATING TO SLOW: bus monitor active.
GREEN-RED ALTERNATING TO FAST: localization activated.
TEST BUTTON for STANDARD version
- With 230Vac mains present:
Keep the button pressed to test the switching on of the device from battery.
- In emergency mode:
PRESS AND RELEASE: activates/deactivates the rest mode.
TEST BUTTON for AUTO-TEST and BUS-SUPERVISED versions
- With 230Vac mains present:
PRESS AND RELEASE: starts a functional test.
PRESS FOR 6 SECONDS AND RELEASE: start an autonomy test.
- In emergency mode:
PRESS AND RELEASE: activates / deactivates the rest mode.
PERIODICITY OF THE AUTOMATIC TESTS (code CNAA01 - CNBA01)
FUNCTIONAL TEST (20 sec): every 14 days
AUTONOMY TEST (battery life): every 28 days
For self-testing devices only
SYNC PROCEDURE FOR FUNCTIONAL AND AUTONOMY TESTS
- Check that the appliances are powered by a 230Vac power supply.
- Disable the tests by opening the inhibition switch or by using the OFF command with INICOM.
- Wait 10 seconds.
- Re-enable the tests by closing the inhibition switch or by using the ON command with INICOM.
Note: this procedure must be carried out on each lamp.
Example: if you want the lamp to perform the tests on Monday mornings, the operation should be done on Monday
during the day time (e.g. 09:00).
VERSION
CNSA01 STANDARD 1H - 1.5H - 2H - 3H
CNAA01 SELF-TEST 1H - 1.5H - 2H - 3H
CNBA01 BUS-SUPERVISED 1H - 1.5H - 2H - 3H
INIM ELECTRONICS srl - Via dei Lavoratori,10 (Fraz. Centobuchi) 63076 Monteprandone (AP) ITALY
+39 0735 705007 +39 0735 704912
OUTPUT
LiFePO
POWER
VOLTAGE
4
100%
2 x 3,2 V - 1,5 Ah 4W - 3W - 2W - 1.5W 6Vdc / 60Vdc 12 h
2 x 3,2 V - 1,5 Ah 4W - 3W - 2W - 1.5W 6Vdc / 60Vdc 12 h
2 x 3,2 V - 1,5 Ah 4W - 3W - 2W - 1.5W 6Vdc / 60Vdc 12 h
www.inim.biz info@inim.biz
1
3
4
AUTONOMIA
AUTONOMY
INICOM
a)
√
1H
√
-
CONVERT LED
IP30
EN 60598-1, EN 60598-2-22, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 61347-1, EN 61347-2-7
cod. CNSA01 - CNAA01 - CNBA01
2
BATTERIA
BATTERY
DRIVER LED / SORGENTE LED
LED DRIVER / LED SOURCE
AUTONOMIA
AUTONOMY
b) c)
1,5H 2H
BUS / 230V ~
LED DI STATO
LED STATUS
PULSANTE DI TEST
TEST BUTTON
OPTIONAL
( COD. OHCNTB )
d)
3H
