Summary of Contents for M2I UDJET MSR-B2MWA

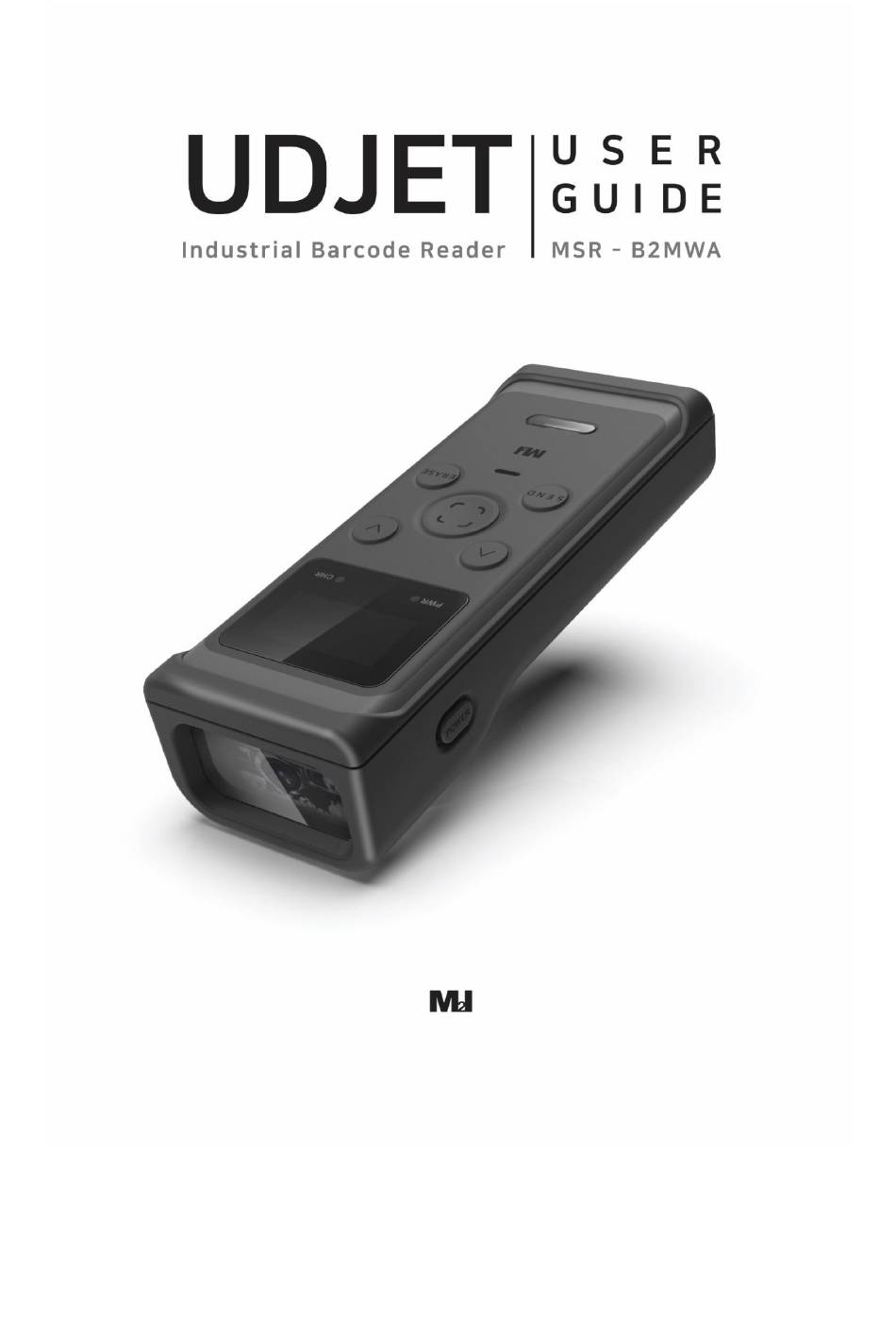

- Page 2 Industrial Barcode Reader MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual Thank you for purchasing the industrial Barcode reader of M2I corporation. Please read this manual carefully to know installing, operating this equipment for safe use of this product. I Corporation 2 / 17...
-
Page 3: Table Of Contents
Index Chapter 1. Safety Precautions ................................4 Before using the product ............................4 General Precautions ............................... 4 Installation Precautions ..............................4 Disposal Precautions ..............................5 Chapter 2. Overview ....................................5 2.1 Product Introduction ..............................5 2.2 Package Contents ................................5 Chapter 3. -
Page 4: Chapter 1. Safety Precautions
MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual Chapter 1. Safety Precautions Before using the product To use the product safely and effectively, please read the contents of this manual thoroughly before use. Please keep to the safety precaution, for it is to prevent accidents and potential danger from occurring. Safety precaution is classified into ‘Warning’... -
Page 5: Disposal Precautions
MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual Disposal Precautions When you dispose of product and battery, please treat it as industrial waste. It can create poisonous substances or explosion. Chapter 2. Overview 2.1 Product Introduction This industrial Barcode reader is an industrial control device required in industrial field. It is a device that is used for basic purposes to communicate with other devices (PC, HMI, etc.) using high durability and wired / wireless communication. -
Page 6: Chapter 3. General Specifications
MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual Chapter 3. General Specifications 3.1 Power Specifications Rated Input Voltage (Vin) DC 5.0V Battery Voltage Range DC 3.20V ~ 4.20V (Standard : 3.70V) Cell Type Lithium - ion (1S1P) Consumption 3.0W less Internal Operating time 13 Hours (*Low Voltage Warning) Battery Pack Charging time 5.5 Hours (*Full Charge) -
Page 7: Structure Specifications
MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual BARCODE LED Classification Exempt Risk Group LED product per IEC/EN 62471 Protection Classification Product body IP67 3.6 Structure Specifications MSR-B2MWA MSR-B2MWA-DONGLE Weight(g) Cooling System Natural air circulation Case Material PC(Flame Retardant) and Urethane Chapter 4. Part Names and General Specifications 4.1 MSR-B2MWA and MSR-B2MWA-DONGLE Item W (mm) -
Page 8: Part Names And Specifications
MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual 4.2 Part Names and Specifications Item Description ① Power Switch Power ON, OFF Switch ② Scanner window and IrDA barcode scanner window and IrDA ③ OLED 1.3" OLED Display ④ Power LED Display the System Power State ⑤... -
Page 9: Chapter 5. Interface
Connection distance 1.0 M (May vary depending on the use environment) Transfer Speed 115.2k bit/s Peak wavelength 900 nm Connection device (M2I) TOPRD□□30□ Dedicated Communication Port I Corporation 9 / 17 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055，Republic of Korea... -
Page 10: Chapter 6. Installation
A separate wireless dongle is provided for RF wireless communication between the main unit and the device. There is no need to install a separate driver using the Windows built-in driver. 6.4 Infrared Communication (IrDA) This device is for infrared communication with M2I Corporation TOPRD□□30□. I Corporation 10 / 17... -
Page 11: Chapter 7. Device Operating And Settings
MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual Chapter 7. Device operating and settings. 7.1 Base screen 7.1.1 The status bar provides the device's mode status, communication mode and battery status. Icon Description SCAN Successful reading of the data code is indicated with the data value. DATA Displayed when managing internal memory data. -
Page 12: Learn The Basics
MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual 7.2 Learn the basics 7.2.1 Power On and Off Press the "POWER" button located on the side of the device to turn on the power. Press again to turn off the power. When left for 10 minutes to optimize the usage time, the power is automatically turned off. 7.2.2 Scanning Barcodes Press the "SCAN"... - Page 13 MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual Do not point the scanner window at people or animals when scanning barcodes. May damage the retina and reduce vision. Minimum resolution and optimum distance for scanning are as follows. Symbology Resolution Near Code 39 0.127 mm 5.1 cm 16.2 cm Code 39...
- Page 14 MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual "Send OK" is displayed upon successful transmission. Data transmission supports 3 modes, and connection priority is as follows. The connection priority cannot be changed arbitrarily. 1st: Infrared Communication (IrDA) 2nd: USB cable connection 3rd: RF Wireless Communication (with Dongle) I Corporation 14 / 17 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055，Republic of Korea...
- Page 15 MSR-B2MWA, MSR-B2MWA-DONGLE Hardware Manual 7.2.5 Deleting data You can delete the saved data by pressing the "ERASE" button. 1) You can select and delete the data saved internally with "UP" and "DOWN" button. 2) When pressed, "ERASE?" A confirmation window will appear. Press again to delete. 3) To delete the saved data at once, press the "ERASE"...
-
Page 16: Chapter 8. Maintenance
2) Only authorized workers authorized by M2I Corporation can inspect and repair problems related to malfunction of this equipment. 3) If the problem cannot be solved at the installation site, the equipment can be collected and moved to M2I Corporation. -
Page 17: Chapter 9. Products Label
Copyright: M2I Corporation 2020.12 www.m2i.co.kr - When using M2I equipment, thoroughly read this datasheet and associated manuals introduced in this datasheet, also pay careful attention to safety and handle the module properly. - Store this datasheet in a safe place so that you can take it out read it whenever necessary.
