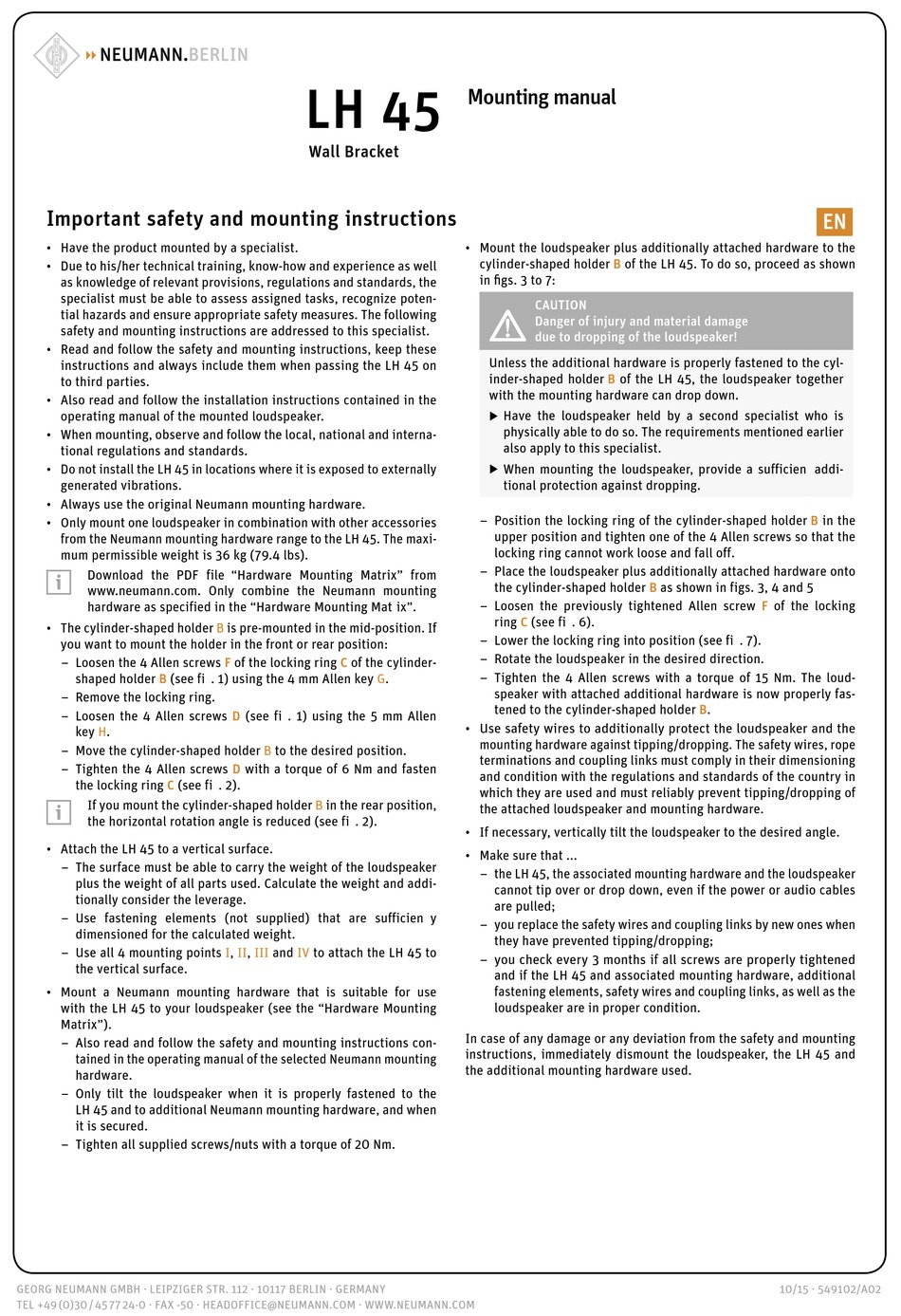

Neumann.Berlin LH 45 Mounting Manual

Important safety and mounting instructions

• Have the product mounted by a specialist.
• Due to his/her technical training, know-how and experience as well
as knowledge of relevant provisions, regulations and standards, the
specialist must be able to assess assigned tasks, recognize poten-
tial hazards and ensure appropriate safety measures. The following
safety and mounting instructions are addressed to this specialist.
• Read and follow the safety and mounting instructions, keep these
instructions and always include them when passing the LH 45 on
to third parties.
• Also read and follow the installation instructions contained in the
operating manual of the mounted loudspeaker.
• When mounting, observe and follow the local, national and interna-
tional regulations and standards.
• Do not install the LH 45 in locations where it is exposed to externally
generated vibrations.
• Always use the original Neumann mounting hardware.
• Only mount one loudspeaker in combination with other accessories
from the Neumann mounting hardware range to the LH 45. The maxi-
mum permissible weight is 36 kg (79.4 lbs).
Download the PDF file "Hardware Mounting Matrix" from
www.neumann.com. Only combine the Neumann mounting
hardware as specified in the "Hardware Mounting Mat ix".
• The cylinder-shaped holder
you want to mount the holder in the front or rear position:
– Loosen the 4 Allen screws F
shaped holder B (see fi . 1) using the 4 mm Allen key G.
– Remove the locking ring.
– Loosen the 4 Allen screws
key H.
– Move the cylinder-shaped holder
– Tighten the 4 Allen screws
the locking ring C (see fi . 2).
If you mount the cylinder-shaped holder
the horizontal rotation angle is reduced (see fi . 2).
• Attach the LH 45 to a vertical surface.
– The surface must be able to carry the weight of the loudspeaker
plus the weight of all parts used. Calculate the weight and addi-
tionally consider the leverage.
– Use fastening elements (not supplied) that are sufficien y
dimensioned for the calculated weight.
– Use all 4 mounting points I, II,
the vertical surface.
• Mount a Neumann mounting hardware that is suitable for use
with the LH 45 to your loudspeaker (see the "Hardware Mounting
Matrix").
– Also read and follow the safety and mounting instructions con-
tained in the operating manual of the selected Neumann mounting
hardware.
– Only tilt the loudspeaker when it is properly fastened to the
LH 45 and to additional Neumann mounting hardware, and when
it is secured.
– Tighten all supplied screws/nuts with a torque of 20 Nm.
GEORG NEUMANN GMBH · LEIPZIGER STR. 112 · 10117 BERLIN · GERMANY
TEL +49 (0)30 / 45 77 24-0 · FAX -50 · HEADOFFICE@NEUMANN.COM · WWW.NEUMANN.COM
LH 45
Wall Bracket
B is pre-mounted in the mid-position. If
of the locking ring C of the cylinder-
D (see fi . 1) using the 5 mm Allen
B to the desired position.
D with a torque of 6 Nm and fasten
B in the rear position,
III and IV to attach the LH 45 to
Mounting manual
• Mount the loudspeaker plus additionally attached hardware to the
cylinder-shaped holder B of the LH 45. To do so, proceed as shown
in figs. 3 to 7:
CAUTION
Danger of injury and material damage
due to dropping of the loudspeaker!
Unless the additional hardware is properly fastened to the cyl-
inder-shaped holder B of the LH 45, the loudspeaker together
with the mounting hardware can drop down.
Have the loudspeaker held by a second specialist who is
X
physically able to do so. The requirements mentioned earlier
also apply to this specialist.
When mounting the loudspeaker, provide a sufficien addi-
X
tional protection against dropping.
– Position the locking ring of the cylinder-shaped holder
upper position and tighten one of the 4 Allen screws so that the
locking ring cannot work loose and fall off.
– Place the loudspeaker plus additionally attached hardware onto
the cylinder-shaped holder
– Loosen the previously tightened Allen screw
ring C (see fi . 6).
– Lower the locking ring into position (see fi . 7).
– Rotate the loudspeaker in the desired direction.
– Tighten the 4 Allen screws with a torque of 15 Nm. The loud-
speaker with attached additional hardware is now properly fas-
tened to the cylinder-shaped holder B.
• Use safety wires to additionally protect the loudspeaker and the
mounting hardware against tipping/dropping. The safety wires, rope
terminations and coupling links must comply in their dimensioning
and condition with the regulations and standards of the country in
which they are used and must reliably prevent tipping/dropping of
the attached loudspeaker and mounting hardware.
• If necessary, vertically tilt the loudspeaker to the desired angle.
• Make sure that ...
– the LH 45, the associated mounting hardware and the loudspeaker
cannot tip over or drop down, even if the power or audio cables
are pulled;
– you replace the safety wires and coupling links by new ones when
they have prevented tipping/dropping;
– you check every 3 months if all screws are properly tightened
and if the LH 45 and associated mounting hardware, additional
fastening elements, safety wires and coupling links, as well as the
loudspeaker are in proper condition.
In case of any damage or any deviation from the safety and mounting
instructions, immediately dismount the loudspeaker, the LH 45 and
the additional mounting hardware used.
B
B as shown in figs. 3, 4 and 5
F of the locking
10/15 · 549102/A02
EN
in the
