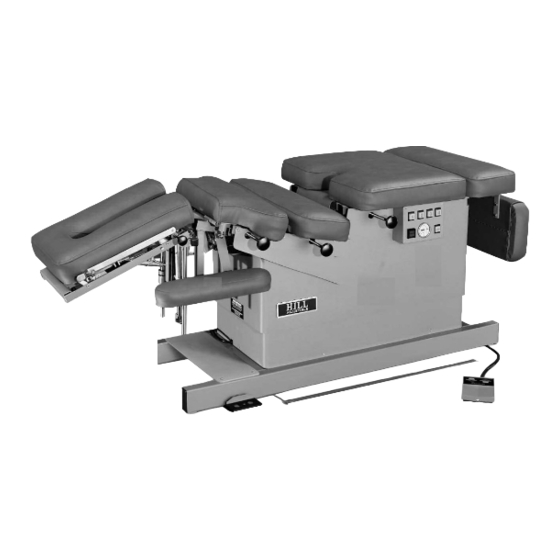

  • Page 1 Hill 90C/Air90C Table Owner’s Manual Quality and Innovation Since 1945.
  • Page 2 Hill Laboratories family. Hill Laboratories Company has been making quality a family business since 1945. Your Hill 90C Table is built in a tradition of innovation and value that Hill Laboratories products have become known for. Our good name rests on the confidence that your Hill Table will provide you with solid, reliable service for many years to come.
  • Page 3 All correspondence should be directed to your local dealer, or when this is not possible, to Hill Laboratories directly. We appreciate your business and your confidence in our products.

  • Page 4: Table Of Contents

    Basic Table Components _________________________________________________1.1 Specifications __________________________________________________________1.2 Table Care Cleaning your Table______________________________________________________2.1 Caution and Symbol Explanation __________________________________________2.2 Basic Table Operation Preparing the 90C for Your Patient _________________________________________3.1 Height Pedal ___________________________________________________________3.2 Function Control Panel ___________________________________________________3.3 Thoracic Release/Thoracic Breakaway______________________________________3.4 Raised Pelvic ___________________________________________________________3.5 Using Drops Manual Drops __________________________________________________________4.1...

  • Page 5: Product Features

    ® • Height Range - 90C: 22” - 35” / AirC: 21 1 / 2 ”-29” or 22 1 / 2 ”-31” • Length - 90C: 5' 10"; with drop-away foot - 5' 1"...

  • Page 6: Cleaning Your Table

    Table Care 2.1 Cleaning your Table Hill table upholstery may be cleaned with Hill Laboratories' Vinyl and Leather Cleaner or any household dishwashing liquid mixed with water. Hill also offers Protex Disinfectant Spray and wipes to protect against ™ pathogens, such as MRSA, HIV, Staph and the H1N1 Swine Flu Virus. Many...

  • Page 7: Basic Table Operation

    3.2 Height Pedal The basic 90C is equipped with a corded foot pedal which controls the height. The Air90C features a dual Rocker Foot Pedal (#9 under “Product Features”) which controls the table height from either side of the base. Press the right side of either pedal to elevate;...

  • Page 8: Thoracic Release/Thoracic Breakaway

    4. Lock the cushion at any point by pushing the thoracic lock switch towards the table until it clicks. photo 6 3.5 Raised Pelvic Both the 90C and the AirC may be equipped with an optional raised pelvic section. To operate, locate the lever under the cushion (photo 6, A).

  • Page 9: Using Drops

    5.2 Dual-Drop Headpiece The Dual-Drop headpiece contains two drops—a drop-forward motion and a straight-down drop. Important Note: Before changing any of the settings described in the following section, be sure the headpiece drop is discharged. © Copyright 2011, Hill Laboratories...

  • Page 10: Raised Headpiece

    Use the Tiller Bar to apply flexion. Cervical Distraction To use Manual Cervical Distraction you must first unlock the cushion for axial motion by releasing the red lock pin (photo 12). Pull and turn the lever to the left. © Copyright 2011, Hill Laboratories...
  • Page 11 To use the translation headpiece, loosen the black knob in front of the headpiece by turning it counterclock- wise. Push the cushion left or right to the desired position; turn clockwise to tighten the knob. photo 14 © Copyright 2011, Hill Laboratories...
  • Page 12 Maintenance Regular Maintenance Your Hill 90C is practically maintenance free. There is no lubrication of parts needed. Trouble Shooting Problem The Cervical Cushion cocks up but does not stay up. The drop pin has come out of it’s L-bracket. To Fix: 1.

  • Page 13: Wiring Diagrams

    Wiring Diagram wire 3 - 90C, 24VDC, Part 1 Air System for all 90C Models. © Copyright 2011, Hill Laboratories...
  • Page 14 Wiring Diagram - 90C, 24VDC, Part 2 Air System for all 90C Models. Important: Air functions on this table are controlled by a circuit board and low voltage valves. Since electrical spikes, surges and undervolt- age can be detrimental to electronic components, we recom- mend protecting your table with an automatic voltage regulator.
  • Page 15 Wiring Diagram - 90C, 24VDC, Part 3 Height System for all 90C Models. © Copyright 2011, Hill Laboratories...
  • Page 16 - Air-Pressure 2, 5 - Auto-Touch 4 Power Button 4, 9 Foot Strips 2, 6 Pressure Pedal 5 Function Control Panel (See Control Panel) Problems (See Trouble Shooting) Headpieces 2, 6-8 Raised Headpiece (See Headpieces) - CBP/Translation 8 © Copyright 2011, Hill Laboratories...
  • Page 17 Table Components 2 Tension Control Knobs 2, 6, 8 Thoracic Breakaway 2, 5 Thoracic Drop (see “Drops”) Thoracic Release 2, 5 Translation Headpiece 8 Trouble Shooting 9 Warranty See intro, “At Your Service” Wiring Diagrams 10-12 © Copyright 2011, Hill Laboratories...
  • Page 18 3 N. Bacton Hill Road, Frazer, PA 19355 • www.HillLabs.com 610-644-2867 • 1-877-445-5020 • Fax 610-647-6297...
