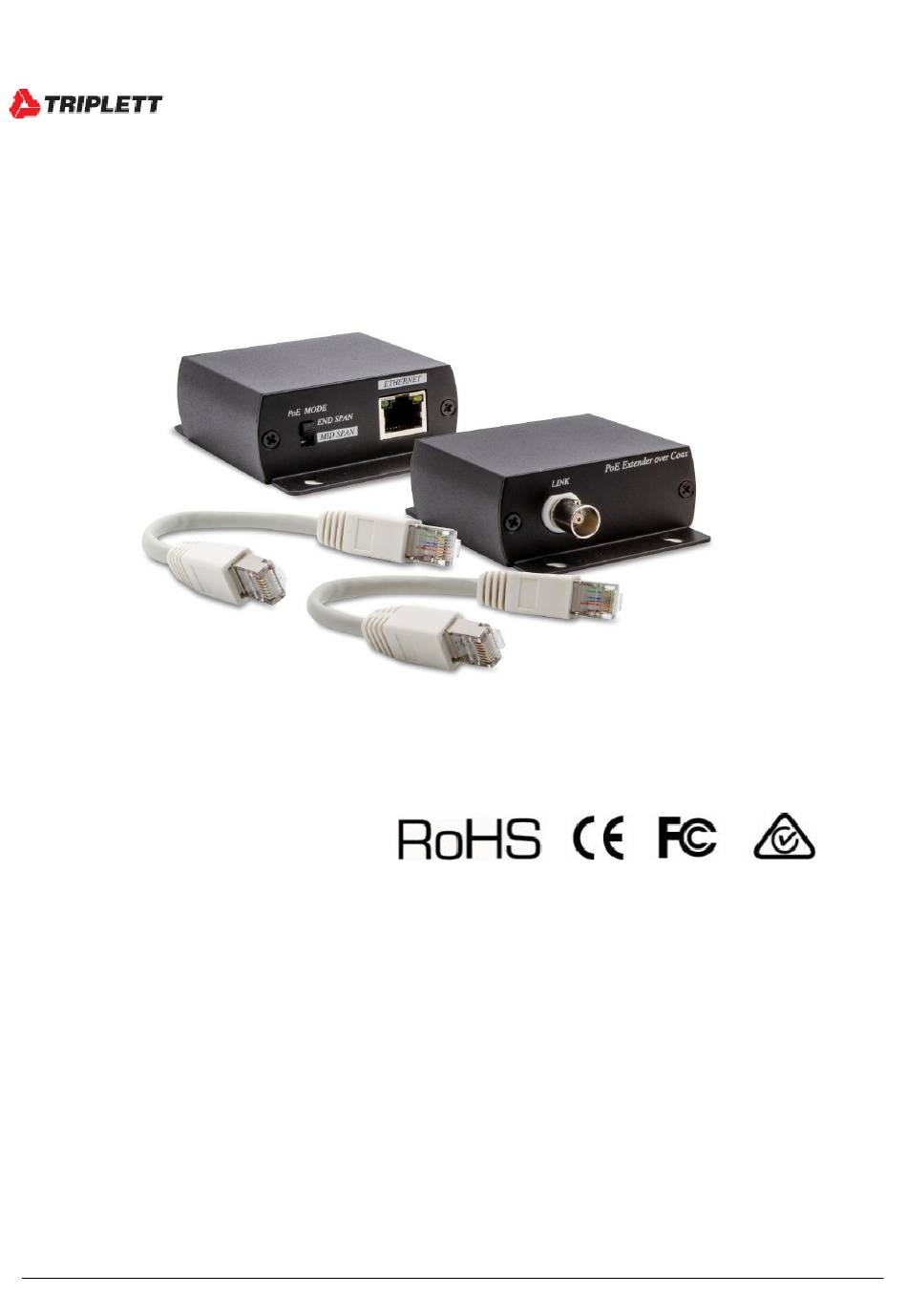

- Page 1 User Manual POC-300M Passive PoE over Coaxial Extender V1.0...
- Page 2 Introduction The Triplett POC-300M is a PoE (Power over Ethernet) extender that can use coaxial cable to send the signal to any TCP/IP 10/100BaseT device with transmission distance up to 300M (Bandwidth at 10Mbps). It is perfect solution to change analog camera to PoE one without replacing existing coaxial cable.
- Page 3 User Manual POC-300M Panel View Installation Guide Please check if your PoE switch supports “Auto MDI, or MDI-X” mode before connection. 2. Please find below 4 different cabling methods based on the spec. of your PoE switch. 3. Package included two 20cm crossover cable.
- Page 4 RJ45 Pin Define Pin Color Pin Define Orange-white TX + Orange TX - Green-white RX + Blue PoE + Blue-white PoE - Green RX - Brown-white PoE - Brown PoE - Caution IP01P only works with PoE devices. Please make sure the PoE mode before connecting the power. 2.
- Page 5 Warranty Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This warranty does not apply to any of our products which have been repaired or altered by unauthorized persons in any way or purchased from unauthorized distributors so as, in our sole judgment, to injure their stability or reliability, or which have been subject to misuse, abuse, misapplication, negligence, accident or which have had the serial numbers altered, defaced, or removed.
