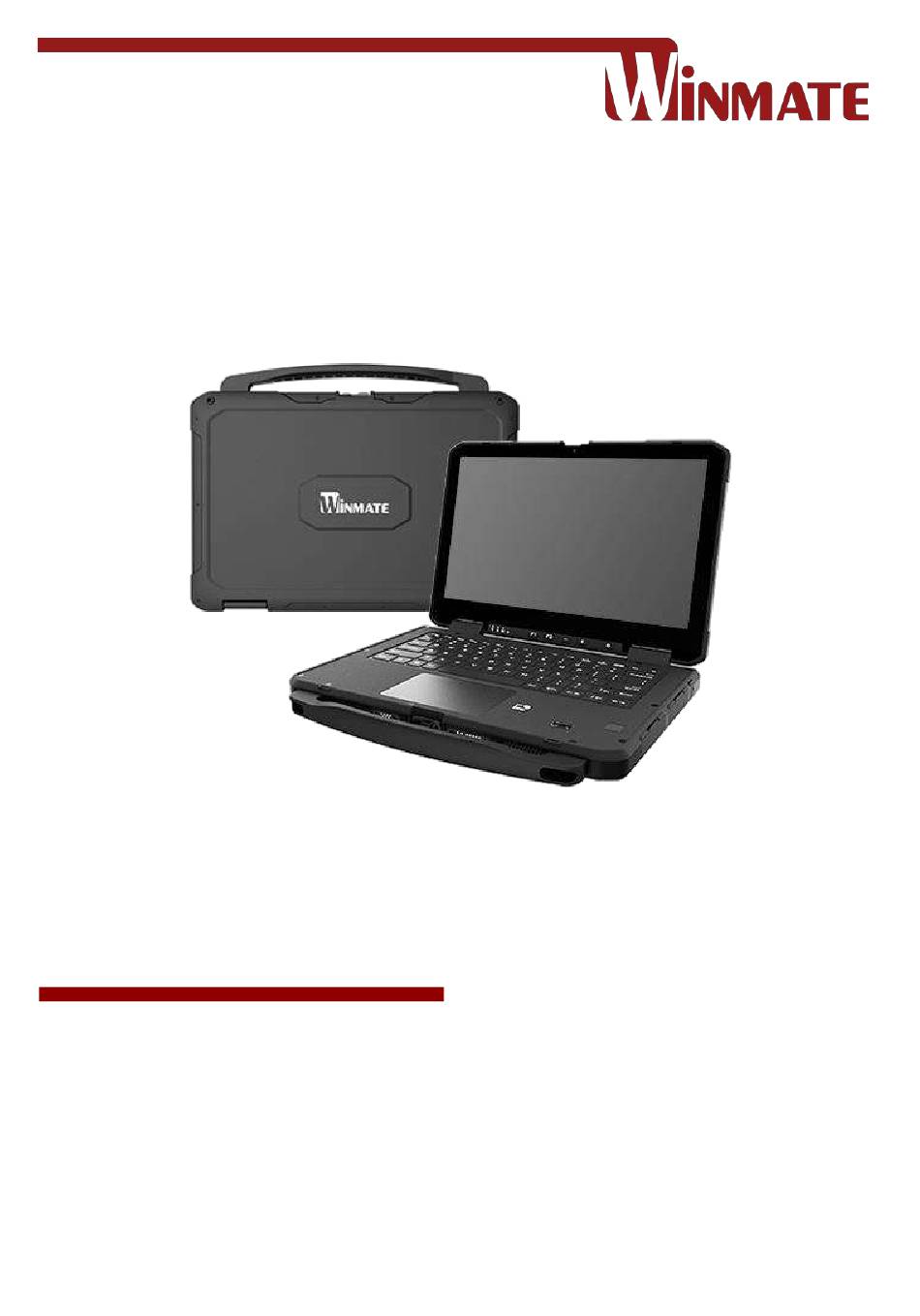

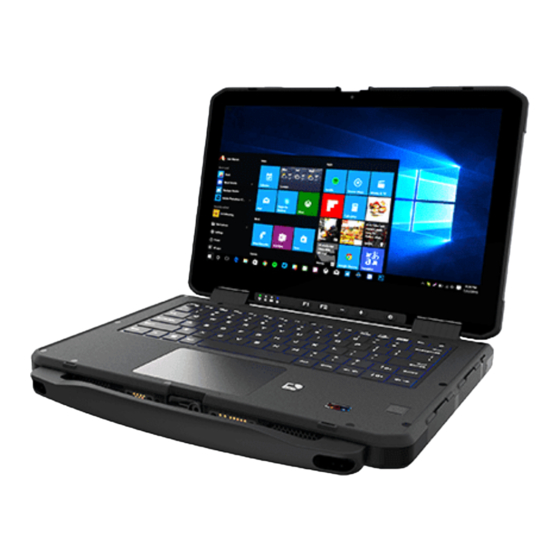

- Page 1 Rugged Laptop L140V2 Series Model no. L140V2-3 L140V2-4 Quick Start Guide Document Version 1.0 Document Part No. 9152140K1002 Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 3: Safety Information
L140V2 Series Rugged Laptop Quick Start Guide Safety Information General Product Safety ▪ This product should not be used near water such as bathtubs, sinks, swimming pools, wet Sécurité générale des basement, etc. produits ▪ [FR] Ce produit ne dois pas être utilisé près de l'eau comme les baignoires, les éviers, les... -
Page 4: Handling And Maintenance
L140V2 Series Rugged Laptop Quick Start Guide Handling and Maintenance General Guideline Touchscreen Guideline Guide Général Guide de l'écran tactile Keep the product at least 13 cm (5 inches) away Use your finger or the stylus on the display. from electrical appliances that can generate a... -
Page 5: Copyright Notice
Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. -
Page 6: Package Content
L140V2 Series Rugged Laptop Quick Start Guide 1. Overview Congratulations on purchasing Winmate L140V2 Series Rugged Laptop. Winmate Rugged Laptop features with • Fanless cooling system. • Flip design for quick switching between laptop and tablet modes. • Easy-replaceable design for keyboard. -
Page 7: Product Overview
L140V2 Series Rugged Laptop Quick Start Guide 3. Product Overview This section contains mechanical drawing of the L140V2 Series Rugged Laptop. Notice that this is a simplified drawing and some components are not marked in detail. Front Components Item Description Top cover latch Locks the top cover. - Page 8 L140V2 Series Rugged Laptop Quick Start Guide Right-side Components Item Description Audio Jack Connects a set of headphones or headset. (Mic is only supported with 3.5mm 4-pin headset). HDMI Connects a HDMI monitor or TV set. USB Type-C High speed USB port connects to USB devices, such as USB flash drive, mouse, keyboard, printer, etc.
- Page 9 L140V2 Series Rugged Laptop Quick Start Guide Top-open Components Item Description Front Camera 2 Megapixel Webcam. LED Indicators Show the current status of the Battery. Qwerty Keyboard with backlight Serves as the data input device. Touch Pad Serves as the pointing device of the computer.
- Page 10 L140V2 Series Rugged Laptop Quick Start Guide LED Indicators Icon Indicator Description Power Indicator Blue– Laptop is ON No light– Laptop is OFF Battery Status Orange–AC adapter is plugged in and charging Green–AC adapter is plugged in and the battery is fully charged Solid Red - Low battery (<10%)
-
Page 11: Mechanical Dimension
L140V2 Series Rugged Laptop Quick Start Guide 4. Mechanical Dimension Unit: mm 5. Hardware Installation 5.1 Side Expansion Area You can add the following option: Product No. SC-L140V2 Smart Card Reader + Removable 2nd SSD Inserting an option to the expansion area:... - Page 12 L140V2 Series Rugged Laptop Quick Start Guide 3. Insert an option to the expansion area. Close the expansion slot door and lock the latch. Removing an option from the expansion area: 1. Turn off the computer and disconnect the AC adaptor. Make sure no foreign objects are under the computer.
-
Page 13: Installing A Microsd Card
If you remove the card before the operation is completed, the data may be damaged or the card access may no longer be performed normally. • Note that Winmate assumes absolutely no liability for any loss of data recorded by the user, or any other damages, direct or indirect. •... -
Page 14: Installing And Removing The Batteries
L140V2 Series Rugged Laptop Quick Start Guide 6. Battery 6.1 Installing and Removing the Batteries Important: • The battery pack is not charged when you first purchase it. Be sure to charge it before using for the first time. Charging starts automatically when the AC adaptor is connected to the computer. - Page 15 • Charge the battery when the computer is powered off to keep the temperature inside the battery. 7. Convert the L140V2 Series L140V2 Series Rugged Laptop’s display panel is adjustable up to 360 degrees. You may adjust the display panel as notebook PC or tablet mode. Important: •...
-
Page 16: Turning On/Off
L140V2 Series Rugged Laptop Quick Start Guide 8. Turning On/Off 8.1 Turning On the Computer Note: • Do not press the power switch repeatedly. • The computer will forcibly be turned off if you press and hold the power switch for ten seconds or longer. - Page 17 L140V2 Series Rugged Laptop Quick Start Guide 8.2 Turning Off the Rugged Laptop Important: • Do not perform the following operations o Touch the keyboard, touchpad, touchscreen, or external mouse. o Pressing power switch. o Connect or disconnect the AC adaptor.
-
Page 18: Appendix A: Declaration Of Conformity (Doc)
L140V2 Series Rugged Laptop Quick Start Guide Appendix Appendix A: Declaration of Conformity (DoC) FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. -
Page 19: Battery Regulations
L140V2 Series Rugged Laptop Quick Start Guide Battery Regulations European Union: Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations. - Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2022 Winmate Inc. All rights reserved.
