OUT-CODE / IN-CODE
DEALER or NASTF
ONLY
Also Requires
Smart Card
2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.

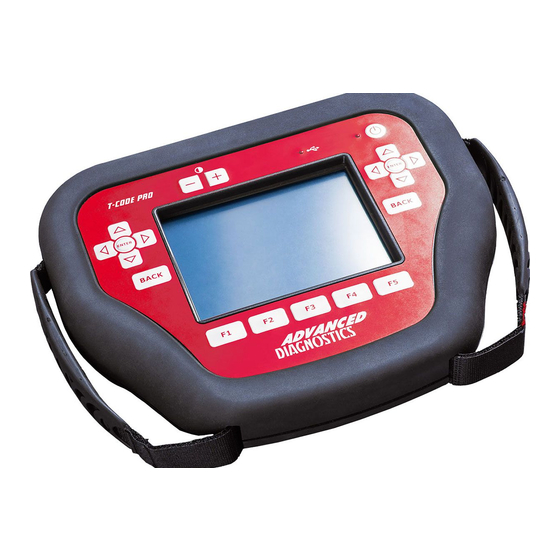

MVP - TCODE - PRO
Powered by ADVANCED DIAGNOSTICS USA
MAZDA PROX 2014
(ADS-225)
Models Covered:
2013-2015 CX-5
2014-2015 MAZDA 3
2014-2015 MAZDA 6
MVP & TCODE PRO
U.S. Patent #7315238
or
PIN
(At time of printing)
+
MVP
PRO
DONGLE
Advanced Diagnostics
Web Challenge / Response
If Pro is not SMC enabled.
SEE WWW.ADUSA.US FOR INFO
ADC250
or
ADC151
G–Tan
Or
MAZDA 2014- 1
Advertisement
Related Manuals for Advanced Diagnostics MVP PRO
Summary of Contents for Advanced Diagnostics MVP PRO
- Page 1 Advanced Diagnostics Also Requires Web Challenge / Response Smart Card If Pro is not SMC enabled. SEE WWW.ADUSA.US FOR INFO MAZDA 2014- 1 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
- Page 2 If the light is on or blinks when the car is turned on then the is a problem with the key or with the immobilizer system. 2 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
-
Page 3: Special Functions Menu
FORCE IGNITION ON. If you have a working prox use it to place the ignition in the ON position. MAZDA 2014- 3 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC. - Page 4 PRESS & RELEASE START / STOP Press and Release the Start Stop BUTTON Button (For about a second) THEN PRESS ENTER PRESS ENTER KEY 4 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
- Page 5 ONCE YOU HAVE COMPLETED THE “FORCE IGNITION ON” PROCEDURE THE DASH SHOULD BE FULLY ON AND THE THEFT LIGHT SHOULD BE BLINKING RAPIDLY SEE NEXT PAGES >>>>> MAZDA 2014- 5 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
- Page 6 IF YOU DISCONNECT YOU WILL HAVE TO START OVER! IN-CODE Carefully _ _ _ _ Enter the 4-Digit IN-CODE CONTINUED ON NEXT PAGE >>>>> 6 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
- Page 7 BUTTON TO SWITCH THE IGNITION BUTTON TO TURN THE IGNITION OFF THEN PRESS ENTER TO CONTINUE PRESS ENTER KEY CONTINUED ON NEXT PAGE >>>>> MAZDA 2014- 7 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
- Page 8 WITHIN 10 SECONDS HOLD THE 1ST PROX OVER THE START / STOP BUTTON WITH THE MAZDA LOGO FACING YOU CONTINUED ON NEXT PAGE >>>>> 8 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
- Page 9 The process can be completed later by starting the engine with the other prox but this is something to be aware of as your customer will likely NOT be happy until everything works as designed. MAZDA 2014- 9 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
- Page 10 Insert 99 into the fields shown above. Insert the OUT-CODE displayed on the PRO without any spaces: Example: ABCD12 10 - MAZDA 2014 2014 Advanced Diagnostics USA Manual for MVP & TCODE PRO – Copyright 2014 Advanced Diagnostics USA INC.
