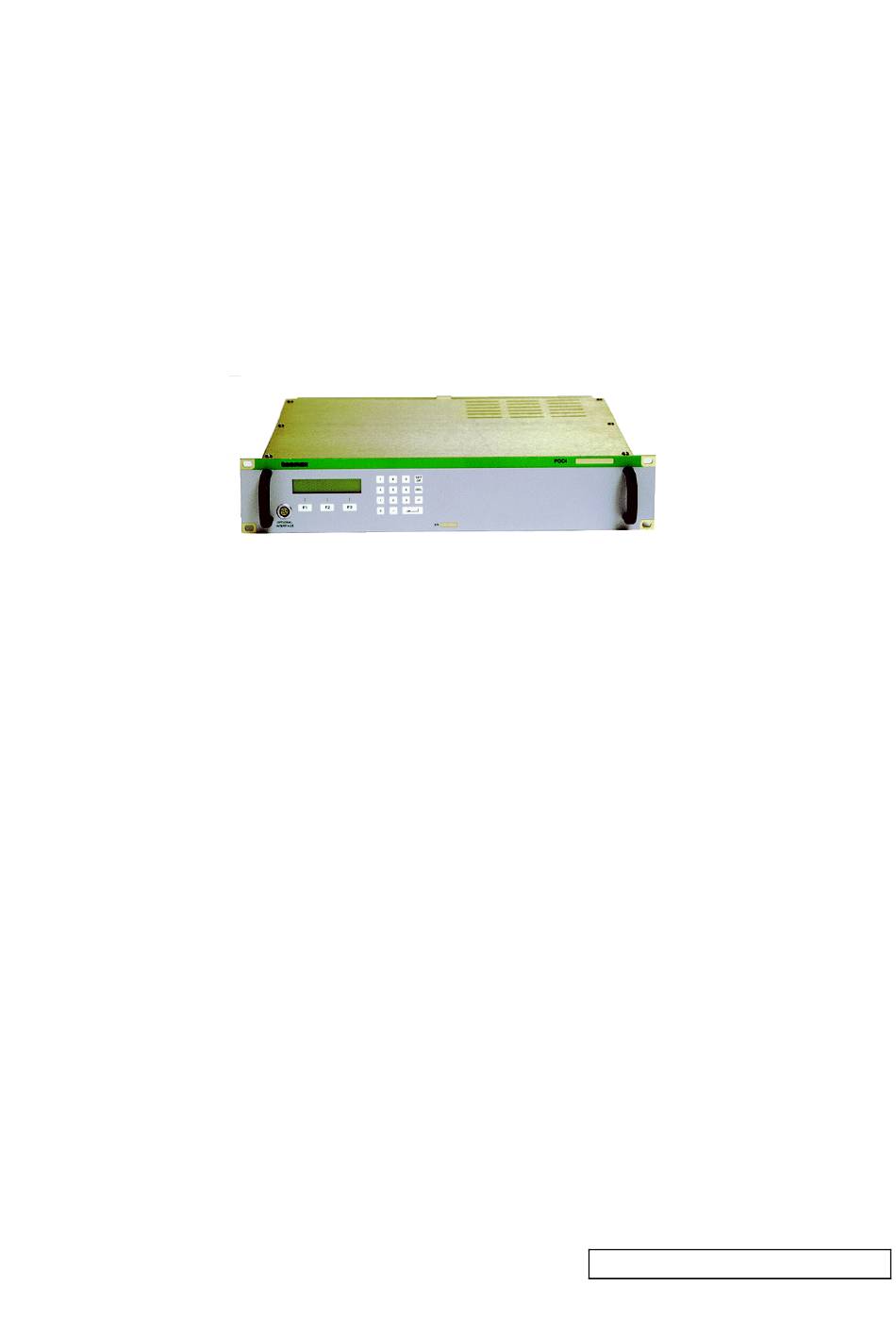

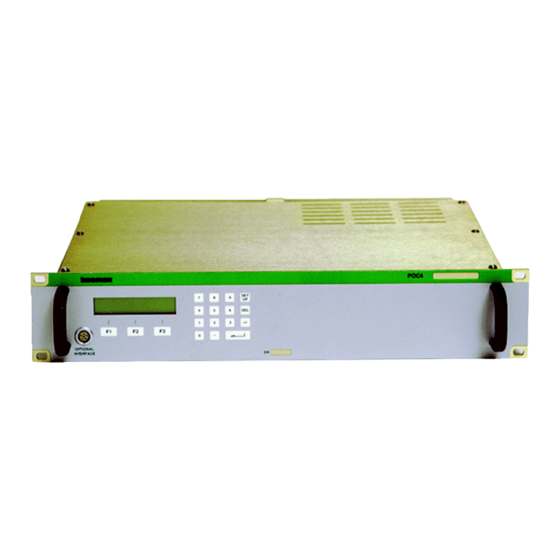

Instruction Manual for
AUTOMATIC PRESSURE
OUTPUT MODULE POC4
Dear user,
We have made every effort to ensure the accuracy of the
contents of this manual. Should any errors be detected, we
would greatly appreciate to receive suggestions to improve the
quality of the contents of this manual.
The above not withstanding, we can assume no responsibility
for any errors in this manual or their eventual consequences.
We reserve rights to make modifications to this manual without
any further notice.
For more detailed technical data about POC4, please contact
the manufacturer.
© Copyright 1997, 2006
OY BEAMEX AB
Ristisuonraitti 10
68600 Pietarsaari
FINLAND
Tel
Fax
E-mail:
Internet: http://www.beamex.com
+358 - 10 - 5505000
+358 - 10 - 5505404
sales@beamex.com
8889700 / UEPOC4S / 000886
Advertisement
Table of Contents
Summary of Contents for BEAMEX POC4
- Page 1 We reserve rights to make modifications to this manual without any further notice. For more detailed technical data about POC4, please contact the manufacturer. © Copyright 1997, 2006 OY BEAMEX AB...
- Page 2 Operation panel (front panel) Connection panel (rear panel) G1/8 88 to 264 V PNEUMATIC SAFETY Type: POC4 50/60 Hz SOURCE PRESSURE MAY LEAK TO THE OUTPUT PORT UNDER 60 VA MAX Serial number: 250 FAULT CONDITION. ENSURE PNEUMATIC SUPPLY IS FUSES T 2.0 A...
-
Page 3: Table Of Contents
4 CALIBRATION ........................A - 12 PART B OPERATION 1 GENERAL ..........................B - 1 2 USING POC4 TOGETHER WITH BEAMEX PRESSURE CALIBRATORS ......B - 2 2.1 Serial communication ......................B - 3 2.1.1 Beamex pressure calibrator settings................B - 3 2.1.2 POC4 settings ......................B - 4... - Page 4 PART C CONFIGURATION 1 GENERAL ..........................C - 1 2 BASIC SETUP MENU......................C - 3 2.1 Power Up ........................... C - 3 2.2 Keyboard ........................... C - 4 2.3 Recalling/Replacing Default Settings................C - 4 2.4 Controller Setup (Stability, Autospeed and Automax) ............C - 5 2.4.1 Stability ........................
- Page 5 A - GENERAL...
-
Page 6: General Overview
Pressure demands from a Beamex pressure calibrator via an RS232 interface are converted by POC4 into a regulated pressure supplied from a line or bottle source. Option B provides negative pressure calibration. -
Page 7: Unpacking And Inspection
1.1 Unpacking and Inspection At the factory each new POC4 passes a careful inspection. It should be free of scrapes and scratches and in proper operation order upon receipt. The receiver should, however, inspect the unit for any damage that may have occurred during transit. -
Page 8: Safety
Do not apply a pressure greater than the maximum pressure stated. * A qualified person must have attended a product training course given by the manufacturer or appointed agent and successfully completed the training course on this equipment. POC4 - General A - 3... -
Page 9: Functional Description
When using POC4 together with Beamex pressure calibrators, no programming or specific commands are required. The calibrator supervises the use of POC4. POC4 can be configured in a number of different ways as detailed in Section C. This section also details the installation procedures. -
Page 10: Analogue Circuit Operation
Setpoint demand and the actual output of POC4. This error is first processed by an Error Signal Processing circuit, under the control of the microprocessor, to drive a pulse width modulator. The output of the pulse width modulator drives the Apply and Release valves to change the output pressure in an appropriate direction to correct the error i.e. - Page 11 As the desired pressure is reached the pressure calibrator shuts POC4 off. This is done in order to have as few disturbing variables as possible while measuring the calibration point.
-
Page 12: Installation
3 INSTALLATION Usually POC4 is already installed in a MCS100 Bench or Table Top system or separately in a 19" rack. Also all the necessary connections are already done. These following chapters are only necessary during uninstallation and reinstallation of POC4. -
Page 13: Electrical Connections
A fuse is also contained within the power socket assembly, details of the fuse fitting being shown in the rightmost of the previous pictures. Both Line (L) and Neutral (N) are individually fused. A - 8 POC4 - General... -
Page 14: Communications Interface Connections
Switch off the power supply to the instrument. 3.3 Communications Interface Connections Only the RS232 connector in the rear panel of POC4 is used when connecting a Beamex pressure calibrator to POC4. Use the RS4 cable supplied with POC4. Also remember to set the switch labeled STACKING on the rear panel to the 0 position. -
Page 15: Pressure Connections
SUPPLY SOURCE 1 OUTPUT 1 POC4 REGULATOR SOURCE 2 OUTPUT 2 POC4 REGULATOR SOURCE 3 OUTPUT 3 POC4 A - 10 POC4 - General... - Page 16 Fit the output pressure supply line to the Output connection port as shown in the picture above, fitting a bonded seal between the pressure union and the measuring port. Note that the Output port has a G1/8 thread fitting. Ensure that the coupling is tight. POC4 - General A - 11...
-
Page 17: Calibration
Note: POC4 measures the output pressure only for its own needs. When the requested pressure level is reached, according to POC4, the pressure calibrator measures the actual pressure and this value is used when the calibration point is stored. - Page 18 B - OPERATION...
-
Page 19: General
1 GENERAL POC4 may be controlled with any computer with a suitable software for serial communication installed. This manual includes only the simplest way of utilizing POC4: in connection with Beamex pressure calibrators. No special skills are needed when using POC4 the aforementioned way; just make the necessary connections described in the next chapter and perform the calibration using the calibrator at hand. -
Page 20: Using Poc4 Together With Beamex Pressure Calibrators
Usually it is on the rear panel. On POC4 it’s a 9-pin RS232 connector and on the pressure calibrator it is a 25-pin RS232 connector marked options or RS232. -
Page 21: Serial Communication
2.1 Serial communication Both POC4 and the Beamex pressure calibrator to be connected to POC4 need to have suitable settings. Otherwise the communication will not succeed resulting in an unsuccessful calibration. 2.1.1 Beamex pressure calibrator settings Pressure calibrator (PC104, PC106 or PC106P):... -
Page 22: Poc4 Settings
The following picture is a quick guide for re-entering the RS232 settings suitable for using POC4 with Beamex pressure calibrators. The picture shows the display and the function keys of POC4. Start by pressing the SETUP key and follow the chart onwards by pressing the function key marked with a black arc. -
Page 23: Troubleshooting
3 TROUBLESHOOTING Symptoms - No outlet pressure when calibrator connected and both POC4 and calibrator switched on and trying to set target pressure. Solution Check that the communications link is working. Check that source pressure is 110% of the F.S. pressure Check supply filter and pipe for blockages. - Page 24 C - CONFIGURATION...
-
Page 25: General
Setup mode is used to set up the instrument's default control parameters to those required for the particular mode of operation. When the instrument is delivered, the parameters are preset. Normal use of POC4 does not require any changes in configuration settings. Only the controller's stability setup (page C-5 on- wards) may require altering when the system volume changes. - Page 26 Full Setup Menu Structure: C - 2 POC4 - Configuration...
-
Page 27: Basic Setup Menu
Setpoint, Controller, Tare, Zero, Value, Ratio, Preset and Rate parameters. Pressing Next (F2) moves you to the next function in the basic setup menu (Keyboard). Note: The Power up setting does not affect the Communication settings. POC4 - Configuration C - 3... -
Page 28: Recalling/Replacing Default Settings
Replace defaults? rameters are required to be set as default values in place Next Quit of the original set, i.e. store current setup. Selecting Next provides a prompt to replace (store) the default values. C - 4 POC4 - Configuration... -
Page 29: Controller Setup (Stability, Autospeed And Automax)
Pressing Next (F2) moves you to the next function in the Recall defaults? Next Quit basic setup menu (Set PIN). Replace defaults? Next Quit Setup controller? Next Quit POC4 - Configuration C - 5... -
Page 30: Stability
Readjust the Stability setting if required. Pressing Quit (F3) moves you to the next main function in the basic setup menu (Set PIN). C - 6 POC4 - Configuration... -
Page 31: Autospeed
Next (F2) to recycle through the controller parameters Alter Next Quit set or Quit (F3) to move on to the Set PIN function. Pressing Quit (F3) moves you to the next main function in the basic setup menu (Set PIN). POC4 - Configuration C - 7... -
Page 32: Setting A P.i.n. Protection
Set PIN? DK144 1.00 Alter Next Quit Quit Next Pressing Next (F2) moves you to the next Recall defaults? Show S/W Rev? Next Quit Next Quit function in the basic setup menu (Self Test: Electronic). C - 8 POC4 - Configuration... -
Page 33: Self Test: Electronic
A Pass is not reported at power-up. Set PIN? Pressing Next (F2) moves you to the next function in the Quit Next basic setup menu (Self Test: Pneumatic). Show S/W Rev? Next Quit Self Test: Electronic Next Quit POC4 - Configuration C - 9... -
Page 34: Self Test: Pneumatic
2.8 Self Test: Pneumatic SETUP This setup option should only be carried out when POC4 has been fully installed. The following system conditions Setup Mode should therefore exist. Comms More Menu Source pressure connected and turned on. Power up: Reset... -
Page 35: Basic Setup Menu Flowsheet
2.9 Basic Setup Menu Flowsheet POC4 - Configuration C - 11... -
Page 36: Communications Setup
. 3.1 RS232 Setup A quick guide for entering the RS232 settings suitable for using POC4 with Beamex pressure calibrators is presented in Section B. In this chapter all possible options for RS232 settings are presented in flowsheet format. - Page 37 POC4 - Configuration C - 13...
-
Page 38: Rs232 Setup
RS232 Setup Menu (Sheet 2): C - 14 POC4 - Configuration... - Page 39 RS232 Setup Menu (Sheet 3): POC4 - Configuration C - 15...
-
Page 40: More Settings
4.1 Scale SETUP Scale permits the selection of a pressure unit to be Setup Mode used in POC4. All three function keys may be allocated Menu Comms More with a pressure unit, but the unit in function key F1 is used when a Beamex pressure calibrator is connected to POC4. -
Page 41: Setup Zero
4.2 Setup Zero SETUP There are three zero modes for the POC4, Manual, Setup Mode Timed and Auto. Each mode can be enabled and dis- Menu Comms More abled under the Setup More option. Setup Mode Auto mode is recommended when using POC4 to-... -
Page 42: Setpoint
Therefore any Select mode unintentional change of setpoint settings can be undone Value Ratio Preset by shutting off and restarting POC4 as long as the al- tered settings are not saved as default values. 4.3.1 Value Select mode Value Ratio... -
Page 43: Ratio And Preset
Only the setting programmed in F2 is utilized when F1 = xxx Alter Next Quit using POC4 with Beamex pressure calibrators. F2 should be set to Auto. The settings of the other function keys does not matter. Setting the F2 key to Auto F1 = xxx... - Page 44 D - MAINTENANCE...
-
Page 45: Maintenance
1 MAINTENANCE There are no user serviceable parts on the POC4 instrument other than the Source, Vent and Output manifold filters and the AC power supply fuses. 1.1 Safety Instructions Observe the general safety procedures detailed at the beginning of this User Manual. -
Page 46: Fuse Replacement
Switch on the power supply. The display should now light up. If the fuse(s) blow immediately on switch on, contact Oy Beamex Ab. An address of Oy Beamex Ab is given at the end of this section. -
Page 47: Replace Vent, Source And Outlet Manifold Filters
DO NOT USE SOLVENTS FOR CLEANING PURPOSES. 1.5 Fault Finding In the event of an instrument malfunction, it can be returned to Oy Beamex Ab for repair. A service charge price list is available which details the charges associated with various service functions. -
Page 48: Error Codes
“Err011” Setpoint too high for range Reduce Setpoint value. “Err012” Remote Enable POC4 not in remote mode. “Err013” Invalid entry Value entered is outside operational limits. Revise value. “Err014” Using Alter Initializes Setup Before proceeding, make sure that a change to set up is required. -
Page 49: Approved Service Agents
1.6 Approved Service Agents The following are approved Service Agents for Oy Beamex Ab Instruments. FINLAND Oy Beamex Ab, P.O. Box 5 FIN-68601 Pietarsaari, FINLAND. Tel: +358 - 6 - 7840111 Fax: +358 - 6 - 7840404 E-mail: service@beamex.com Internet: http://www.beamex.com... -
Page 50: Appendixes
X - APPENDIXES... -
Page 51: Instrument Specification
Negative Pressures - Option B Specification as per positive pressure but calculated as a percentage of the positive full scale. Controller Performance Controller Stability ± 40 ppm of Full Scale Fill Rate Dependent upon system volume POC4 - Appendixes X - 1... - Page 52 47 to 65 Hz Power 60 VA Communications Interfaces POC4 provides two digital communications channels, an RS232 and an IEEE 488 channel (not applicable with Beamex calibrators). Three RS232 connections are provided but all of these access a single processor port. Analogue Output...
- Page 53 DC. for the Optional Interface. Environmental Specification Temperature Operating 0° to +40°C Operating (Compensated)+10° to +30°C Storage -20° to +60°C Protection (POC4 only) Front Panel To IP40 Meets EN 50081-1 (Emissions) and EN 50082-1 (Immunity) Safety Meets EN 61010-1 Pressure Media...
- Page 54 Error as a percentage of +ve full scale. Value dependent upon the accuracy option chosen. This product meets the essential protection requirements of the relevant EEC directives. Further details of applied standards may be found in the product specification. X - 4 POC4 - Appendixes...
