mods4cars smartTOP STHFMZ2 Operation And Programming

mods4cars smartTOP STHFMZ2 Operation And Programming

Comfort roof control module

Advertisement

Quick Links

mods4cars product manual
OPERATION AND PROGRAMMING
Further information and manuals for all products can be found on our web site
We explicitly point out that all functions of this control unit
should be used only while exercising caution and responsibility.
We can NOT be held liable for any damage or injury caused by
PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/mercedes/STHFMZ...
STHFMZ2

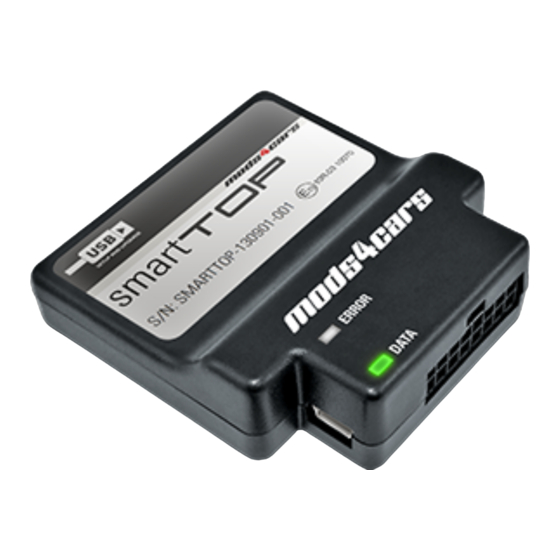

Comfort Roof Control Module for
Mercedes Benz SLK R172
Mercedes-Benz SLC
For Firmware v1.5x
w w w . m o d s 4 c a r s . c o m
installing or using this product.
USING THIS PRODUCT.
Page 1 of 10
19/07/2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the smartTOP STHFMZ2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for mods4cars smartTOP STHFMZ2

  • Page 1 Page 1 of 10 OPERATION AND PROGRAMMING STHFMZ2 Comfort Roof Control Module for • Mercedes Benz SLK R172 • Mercedes-Benz SLC For Firmware v1.5x Further information and manuals for all products can be found on our web site w w w .
  • Page 2 Page 2 of 10 http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/mercedes/STHFMZ... 19/07/2019...
  • Page 3 Page 3 of 10 Important Information. READ BEFORE USING! PRINTING THIS MANUAL This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.
  • Page 4 Page 4 of 10 http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/mercedes/STHFMZ... 19/07/2019...
  • Page 5 Page 5 of 10 Detailed function description (* = Factory setting) http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/mercedes/STHFMZ... 19/07/2019...
  • Page 6 Page 6 of 10 http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/mercedes/STHFMZ... 19/07/2019...
  • Page 7 If problems with the top arise while the module is installed, ALWAYS contact Mods4Cars first at www.mods4cars.com. NEVER take the car to a dealer without getting support first! Function 2 - One-Touch top operation ( 0=OFF / *1=ON WU / 2=ON WD / 3=EXT WU / 4=EXT WD ) This function enables one-touch console switch operation, for which the window position after top open as well as an optional extended convenience mode can be programmed.
  • Page 8 Page 8 of 10 Function 4 - Maximum allowed speed for top operation ( *0=0kmh / 1=10kmh / 2=20kmh / 3=30kmh / 4=40kmh / 5=50kmh / 6=60kmh) Setting the max allowed speed for top operation in steps of 10km/h (~7mph). Setting 0 only allows roof operation while halted.
  • Page 9 Page 9 of 10 Setting 2 will wipe once after 10 seconds and once more after 20 seconds. Programming This module is equipped with our interactive setup feature to allow easy setting of the desired options. All programming is done by using the steering wheel buttons (1,2,3) and the two green turn signal (indicator) arrows.
  • Page 10 Page 10 of 10 Function/Setting Matrix (*green fields are defaults) Product: STHFMZ2 - SmartTOP for Mercedes SLK (R172) Firmware: v1.5x SETTING SETTING SETTING SETTING SETTING 1 SETTING 2 SETTING 3 FUNCTION NOHAZ Module Enabled + Main Switch...
