11. Remove the mount and jig, then use a dowel to apply a
bead of wood glue approximately 1/8" (3mm) wide to the inte-
rior of the tube beginning 3-1/4" (83mm) from the aft end.
Step 11
3-1/4"
83mm
12. Slide the fixed mount and jig into the tube and rotate the
mount into the glue (to distribute it over as much surface as
possible) pushing all the way until the jig stops at the edge of
the tube. This will place the fixed mount at the correct depth
and ensure correct alignment.
Step 12
13. Check from the front side of the tube (the open end) that
no glue has overflowed onto the installation jig. Clean any
drips with a dowel. Allow the mount to dry for several minutes
before removing the installation jig. To remove the jig, rotate
it counterclockwise until the tabs on the jig line up with the
openings on the fixed mount and pull the jig out. The fixed
mount is now installed. Allow it to dry completely before
removable mounts are inserted.
Step 13
14. The fixed mount is now installed in the rocket and ready
to accept any of the removable mounts. Using the Quick-
Change Motor Mount System is as easy as attaching the
shock cord to the anchor on the removable mount then slid-
ing the mount into the back of the rocket, rotating it clockwise
until it drops into the slots and finally rotating another quarter
turn to latch the mount into position. To remove the mount
simply rotate a quarter turn counter-clockwise and pull the
mount out of the rocket.
Need parts or accessories to go
along with this kit?
Go online and order at
www.ApogeeRockets.com
or call us and order at
719-535-9335
Page 4

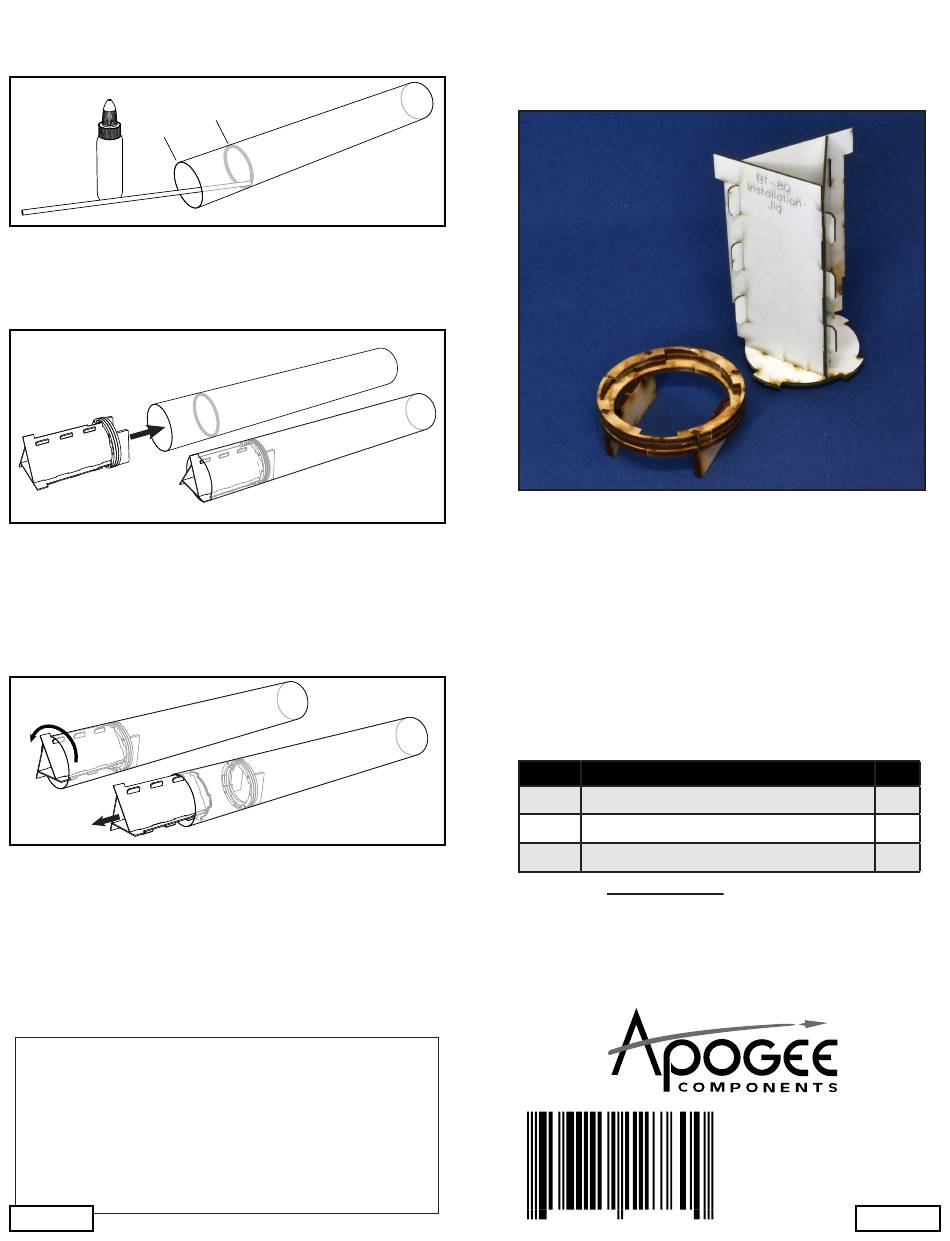

Glue spreads as
mount is inserted
Remove Installation Tool
P/N 12760
BT-80 Fixed Mount
Quick-Change
REQUIRES A BT-80 QUICK CHANGE MOTOR
MOUNT (sold separately)
The quick-change motor mount system allows you to swap out
different motor mounts in your BT-80 tube size rocket, allowing
it to fly on multiple diameter motors, as well as with a cluster
of motors. This gives your rocket a lot of versatility with motor
selection, and could save you lots of money.
This particular kit contains the Fixed Mount that is bonded
into the BT-80 tube, so that the removable motor mounts (not
included) can be screwed into the rocket. This is the part that
is not removable, and you'll need one of this product for every
BT-80 size rocket in which you want to use the Quick-Change
Motor Mounts.
Item # Item Name
12704 BT-80 Fixed Mount Sheet
12705 BT-80 Fixed Mount Jig Sheet
30860 BT-80 Fixed Mount Instructions
Required Tools
Hobby Knife with Sharp Blades
Flat Needle File
Wood Glue
Cotton Swabs (Q-tips)
Wooden Dowel
56779 12760
6
Motor Mount System
Qty
Visit us online at:
www.ApogeeRockets.com
Manufactured in the USA by:
Apogee Components Inc.
Colorado Springs, Colorado, USA
Instructions
Page 1
0
P/N 30860
1
