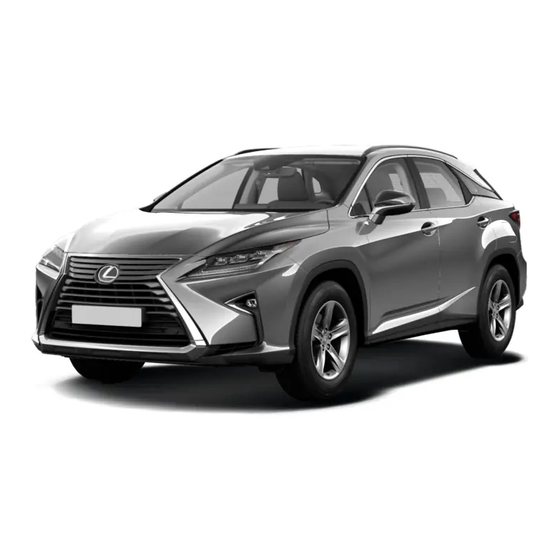

Lexus RX200T 2017 Owner's Manual

Table of Contents

Quick Links

Download this manual

Pictorial index

For safety

and security

Instrument cluster

Operation of each

component

Driving

Lexus Display

Audio system

Interior features

Maintenance

and care

When trouble

arises

Vehicle

specifications

Index

Search by illustration

Make sure to read through them

How to read the gauges and meters, the variety of warning

lights and indicators, etc.

Opening and closing the doors and windows, adjustment

before driving, etc.

Operations and advice which are necessary for driving

Operating the Lexus Display Audio system

Usage of the interior features, etc.

Caring for your vehicle and maintenance procedures

What to do in case of malfunction or emergency

Vehicle specifications, customizable features, etc.

Search by symptom

Search alphabetically

Table of Contents

Troubleshooting

Need help?

Do you have a question about the RX200T 2017 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexus RX200T 2017

Page 1 Opening and closing the doors and windows, adjustment component before driving, etc. Driving Operations and advice which are necessary for driving Lexus Display Operating the Lexus Display Audio system Audio system Interior features Usage of the interior features, etc. Maintenance Caring for your vehicle and maintenance procedures...
Page 2: Table Of Contents
TABLE OF CONTENTS For your information ........8 Operation of each Reading this manual........10 component How to search ..........11 3-1. Key information Pictorial index ..........12 Keys ..........134 For safety and security 3-2. Opening, closing and locking the doors Side doors ........
Page 3 4-5. Using the driving support Driving systems Lexus Safety System+ ....291 4-1. Before driving PCS (Pre-Crash Safety system)........300 Driving the vehicle.....226 Cargo and luggage....235 (Lane-Keeping Assist)... 313 Trailer towing RSA (Road Sign Assist)...324 (vehicles without towing package)......237 Dynamic radar cruise...
Page 4 TABLE OF CONTENTS 5-6. Using an external device Lexus Display Audio system Listening to an iPod....472 Using USB memory 5-1. Basic Operations device...........476 Lexus Display Audio Using the AUX port ....481 system ......... 438 ® 5-7. Connecting Bluetooth Steering wheel audio ®...
Page 5 Speaking on the phone... 498 12.3-inch display......533 ® Using a Bluetooth phone 6-2. Using the air conditioning messages........500 system and defogger Using the steering wheel Lexus Climate Concierge..535 switches........503 ® Automatic air Bluetooth phone conditioning system ....536 settings........504 Heated steering wheel/ 5-10.
Page 6 TABLE OF CONTENTS 6-5. Using the other interior 7-3. Do-it-yourself maintenance features Do-it-yourself service Other interior features ....567 precautions........595 • Sun visors.........567 Hood ..........597 • Vanity mirrors......567 Positioning a floor jack.... 598 • Clock........568 Engine compartment....599 • Wireless charger....568 Tires ..........
Page 7 For vehicles with a navigation system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” for information regarding the equipment listed below. • Navigation system • Lexus parking assist monitor • Audio/visual system • Panoramic view monitor Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels,...
Page 8: For Your Information
Accessories, spare parts and modification of your Lexus Both genuine Lexus and a wide variety of other spare parts and accessories for Lexus vehicles are currently available in the market. Should it be determined that any of the genuine Lexus parts or accessories supplied with the vehicle need to be replaced, Lexus recommends that genuine Lexus parts or accessories, be used to replace them.
Page 9 Scrapping of your Lexus The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS...
Page 10: Reading This Manual
Reading this manual WARNING: Explains something that, if not obeyed, could cause death or serious injury to people. NOTICE: Explains something that, if not obeyed, could cause damage to or a mal- function in the vehicle or its equipment. Indicates operating or working procedures. Follow the steps in numerical order.
Page 11: How To Search
How to search Searching by name ■ • Alphabetical index....P. 758 Searching by installation position ■ • Pictorial index ......P. 12 Searching by symptom or sound ■ • What to do if... (Troubleshooting) ....P. 754 Searching by title ■...
Page 12: Pictorial Index
Pictorial index Pictorial index ■ Exterior The shape of the lights may differ depending on the grade, etc. (P. 644) Side doors ............P. 140 Locking/unlocking .
Page 13 Pictorial index Windshield wipers........... P. 279 Precautions against winter season .
Page 14 Pictorial index ■ Instrument panel (Left-hand drive vehicles) Engine switch ............P. 246 Starting the engine/changing the modes .
Page 15 Pictorial index Multi-information display ......... . . P. 100 Display .
Page 16 Pictorial index ■ Switches (Left-hand drive vehicles) Adaptive High-beam System switch ......P. 269 Automatic High Beam switch .
Page 17 Pictorial index Driving position memory switches ....... . P. 195 Outside rear view mirror switches.
Page 18 Pictorial index Audio remote control switches ......P. 444, 503 Paddle shift switches .
Page 19 ..........P. 530 Lexus Display Audio controller .
Page 20 Pictorial index ■ Interior (Left-hand drive vehicles) SRS airbags............P. 40 Floor mats .
Page 21 Pictorial index Auxiliary box ............P. 561 Interior light .
Page 22 Pictorial index ■ Instrument panel (Right-hand drive vehicles) Engine switch ............P. 246 Starting the engine/changing the modes .
Page 23 Pictorial index Multi-information display ......... . . P. 100 Display .
Page 24 Pictorial index ■ Switches (Right-hand drive vehicles) “ODO/TRIP” switch ..........P. 103 Instrument panel light control switches.
Page 25 Pictorial index Driving position memory switches ....... . P. 195 Window lock switch .
Page 26 Pictorial index Audio remote control switches ......P. 444, 503 Paddle shift switches .
Page 27 ..........P. 530 Lexus Display Audio controller .
Page 28 Pictorial index ■ Interior (Right-hand drive vehicles) SRS airbags............P. 40 Floor mats .
Page 29 Pictorial index Moon roof switches ..........P. 214 Panoramic moon roof switches .
Page 30 Pictorial index...
Page 31: For Safety And Security
For safety and security 1-1. For safe use Before driving......... 32 For safety drive ......34 Seat belts ..........36 SRS airbags ........40 Exhaust gas precautions....50 1-2. Child safety Airbag manual on-off system..........51 Riding with children .....53 Child restraint systems....54 1-3.
Page 32: For Safe Use
1-1. For safe use Before driving Floor mat Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet. Insert the retaining hooks (clips) into the floor mat eyelets.
Page 33 ■ Do not use floor mats designed for other models or different model year vehicles, ● even if they are Lexus Genuine floor mats. Only use floor mats designed for the driver’s seat. ● Always install the floor mat securely using the retaining hooks (clips) provided.
Page 34: For Safety Drive
1-1. For safe use For safety drive For safe driving, adjust the seat and mirror to an appropriate position before driving. Correct driving posture Adjust the angle of the seatback so that you are sitting straight up and so that you do not have to lean forward to steer.
Page 35 1-1. For safe use WARNING Observe the following precautions. Failure to do so may result in death or serious injury. Do not adjust the position of the driver’s seat while driving. ● Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback.
Page 36: Seat Belts
1-1. For safe use Seat belts Make sure that all occupants are wearing their seat belts before driving the vehicle. Correct use of the seat belts Extend the shoulder belt so that it ● comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
Page 37 Seat belt regulations ■ If seat belt regulations exist in the country where you reside, please contact any autho- rized Lexus dealer or repairer, or another duly qualified and equipped professional for seat belt replacement or installation.
Page 38 Each seat belt should be used by one person only. Do not use a seat belt for more ● than one person at once, including children. Lexus recommends that children be seated in the rear seat and always use a seat belt ● and/or an appropriate child restraint system.
Page 39 If the pretensioner has activated, the SRS warning light will come on. In that case, the seat belt cannot be used again and must be replaced at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 40: Srs Airbags
1-1. For safe use SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. ◆...
Page 41 1-1. For safe use ◆ SRS side and curtain shield airbags SRS front side airbags Can help protect the torso of the front seat occupants SRS rear side airbags Can help protect the torso of occupants in the rear outer seats SRS curtain shield airbags Can help protect primarily the head of occupants in the outer seats...
Page 42 1-1. For safe use SRS airbag system components Front passenger airbag Passenger seat cushion airbag “PASSENGER AIR BAG” indicator Driver’s seat position sensor Front side airbags Driver’s knee airbag Curtain shield airbags Driver’s seat belt buckle switch Side impact sensors (rear) Front passenger’s seat belt buckle switch SRS warning light...
Page 43 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recom- mends that all infants and children be placed in the rear seats of the vehicle and prop- erly restrained.
Page 44 1-1. For safe use WARNING SRS airbag precautions ■ Do not sit on the edge of the seat or lean ● against the dashboard. Do not allow a child to stand in front of the ● SRS front passenger airbag unit or sit on the knees of a front passenger.
Page 45 1-1. For safe use WARNING SRS airbag precautions ■ Do not attach anything to or lean anything ● against areas such as the dashboard, steering wheel pad and lower portion of the instru- ment panel. These items can become projectiles when the SRS driver, front passenger and knee airbags deploy.
Page 46 If the areas where the SRS airbags are stored, such as the steering wheel pad and ● front and rear pillar garnishes, are damaged or cracked, have them replaced by any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional. Modification and disposal of SRS airbag system components ■...
Page 47 1-1. For safe use SRS airbag deployment conditions (SRS front airbags) ■ The SRS front airbags will deploy in the event of an impact that exceeds the set thresh- ● old level (the level of force corresponding to an approximately 20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or deform).
Page 48 Collision from the rear ● Vehicle rollover ● When to contact any authorized Lexus dealer or repairer, or another duly qualified and ■ equipped professional In the following cases, the vehicle will require inspection and/or repair. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.
Page 49 1-1. For safe use A portion of a door or its surrounding area is ● damaged, deformed or has had a hole made in it, or the vehicle was involved in an accident that was not severe enough to cause the SRS side and curtain shield airbags to inflate.
Page 50: Exhaust Gas Precautions
If you smell exhaust gases in the vehicle even when the back door is closed, open the ● windows and have the vehicle inspected at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.
Page 51: Child Safety
1-2. Child safety Airbag manual on-off system This system deactivates the front passenger airbag and seat cushion airbag. Only deactivate the airbags when using a child restraint system on the front passenger seat. “PASSENGER AIR BAG” indicator The “ON” indicator light turns on when the airbag system is on (only when the engine switch is in IGNITION ON mode).
Page 52 ■ If any of the following problems occur, it is possible that there is a malfunction in the sys- tem. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Neither “ON” nor “OFF” comes on.
Page 53: Riding With Children
1-2. Child safety Riding with children Observe the following precautions when children are in the vehicle. Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s seat belt. It is recommended that children sit in the rear seats to avoid accidental con- ●...
Page 54: Child Restraint Systems
Be sure to follow the installation method that is in the operation manual enclosed with the restraint system. The use of a Lexus genuine child restraint system is recommended, as it is ● safer to use in this vehicle. Lexus genuine child restraint systems are made specifically for Lexus vehicles.
Page 55 For installation details, refer to the operation manual enclosed with the child restraint system. General installation instruction is provided in this manual. Lexus strongly urges the use of a proper child restraint system that conforms to the ● weight and size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 56 1-2. Child safety Child restraint system Install the available child restraint system in vehicle upon confirming the following items. Standards for child restraint systems ■ 1, 2 Use a child restraint system that conforms to ECE R44 or ECE R129 The following approval mark is displayed on child restraint systems which are conformed.
Page 57 1-2. Child safety Mass group (ECE R44 only) ■ This Mass group table is required when confirming the child restraint system compatibility. Confirm in accordance with the child restraint system compati- bility table. (P. 63,70) The child restraint system which conforms to the standard of ECE R44 is cat- egorized into 5 groups according to the weight of the child.
Page 58 1-2. Child safety Types of child restraint system installation methods ■ Confirm with the operation manual enclosed with the child restraint system about the installation of the child restraint system. Installation method Page Seat belt attachment P. 62 ISOFIX rigid anchor P.
Page 59 1-2. Child safety When using a child restraint system When installing a child restraint system to a front passenger seat ■ For the safety of a child, install child restraint systems to a rear seats. When installing child restraint system to a front passenger seat is unavoidable, adjust the seat as follows and install the child restraint system.
Page 60 1-2. Child safety WARNING When using a child restraint system ■ Observe the following precautions. Failure to do so may result in death or serious injury. Never use a rear-facing child restraint system ● on the front passenger seat when the airbag manual on-off switch is on.
Page 61 1-2. Child safety WARNING When using a child restraint system ■ Only put a forward-facing child restraint sys- ● tem on the front seat when unavoidable. When installing a forward-facing child restraint on the front passenger seat, move the seat as far back as possible. Failing to do so may result in death or serious injury if the airbags deploy (inflate).
Page 62 1-2. Child safety Child restraint system fixed with a seat belt ◆ Confirming the possible installation seating positions and the Mass Group for the seat belt installation type child restraint systems. Confirm the corresponding [Mass group] from the weight of the child (P.
Page 63 Recommended Airbag manual groups Child Restraint Systems Out- on-off switch Center board Up to “LEXUS G 0+, BABYSAFE 10 kg PLUS” (22 lb.) “LEXUS MINI” “LEXUS G 0+, BABYSAFE PLUS with SEAT BELT FIX- Up to ATION, BASE PLATFORM” 13 kg (28 lb.)
Page 64 Recommended Airbag manual groups Child Restraint Systems Out- on-off switch Center board Up to “LEXUS G 0+, BABYSAFE 10 kg PLUS” (22 lb.) “LEXUS MINI” “LEXUS G 0+, BABYSAFE PLUS with SEAT BELT FIX- Up to ATION, BASE PLATFORM” 13 kg (28 lb.)
Page 65 1-2. Child safety Key of letters inserted in the above table: X: Not suitable seat position for children in this mass group. U: Suitable for “universal” category child restraint systems approved for use in this mass group. UF: Suitable for forward-facing “universal” category child restraint systems approved for use in this mass group.
Page 66 1-2. Child safety If the seat belt shoulder anchor is ahead of the child seat belt guide, move the ● seat cushion forward. When installing a junior seat, if the ● child in your child restraint system is in a very upright position, adjust the seatback angle to the most comfort- able position.
Page 67 If your child restraint system does not pro- vide a locking clip, you can purchase the following item from any authorized Lexus dealer or repairer, or another duly qualified and equipped professional: Locking clip for child restraint system (Part No.
Page 68 1-2. Child safety WARNING When installing a child restraint system ■ Observe the following precautions. Failure to do so may result in death or serious injury. Do not allow children to play with the seat belt. If the seat belt becomes twisted ●...
Page 69 1-2. Child safety Child restraint system fixed with an ISOFIX rigid anchor ISOFIX rigid anchors (ISOFIX child restraint system) ■ Lower anchors are provided for the outboard rear seats. (Tags displaying the location of the anchors are attached to the seats.) Confirming the Mass group and Size class for ECE R44 ISOFIX corre- ■...
Page 70 1-2. Child safety Child restraint system suitability table ■ (Installed using ISOFIX [Child restraint system conforms with ECE R44]) ISOFIX child restraint systems are divided in different “size class”. According to this “size class”, you will be allowed to use it in the vehicle seating position mentioned in the table below.
Page 71 Systems Passenger Outboard Center seat Carrycot — Up to 10 kg (22 lb.) “LEXUS MINI” “LEXUS MIDI” Up to 13 kg (28 lb.) — “LEXUS MIDI” 9 to 18 kg (20 to 39 lb.) “LEXUS DUO+” “LEXUS MIDI” “LEXUS MIDI”...
Page 72 When installing a child restraint in the rear seats, adjust the front seat so that it ● does not interfere with the child or child restraint system. When using a “LEXUS MINI” or “LEXUS MIDI” adjust the support leg and ● ISOFIX connectors as follows: Lock the ISOFIX connectors where number 3 can be seen.
Page 73 1-2. Child safety Child restraint system suitability table ■ (Installed using i-Size [Child restraint system conforms with ECE R129]) If your child restraint system is of “i-Size” category, you can install it on the positions mentioned by i-U in the table below. Child restraint system category can be found in the child restraint system manual.
Page 74 1-2. Child safety Installation with ISOFIX rigid anchor (ISOFIX child restraint system) ■ Install the child restraint system in accordance to the operation manual enclosed with the child restraint system. Adjust the seat Adjust the seatback angle to the most uplight position. Remove the head restraint if it interferes with your child restraint system.
Page 75 1-2. Child safety Using an anchor bracket (for top strap) Anchor brackets (for top strap) ■ Anchor brackets are provided for the outboard rear seat. Use anchor brackets when fixing the Anchor brackets top strap. Top strap Fixing the top strap to the anchor bracket ■...
Page 76 1-2. Child safety WARNING When installing a child restraint system ■ Observe the following precautions. Failure to do so may result in death or serious injury. Firmly attach the top strap and make sure that the belt is not twisted. ●...
Page 77: Theft Deterrent System
1-3. Theft deterrent system Engine immobilizer system The vehicle’s keys have built-in transponder chips that prevent the engine from starting if a key has not been previously registered in the vehicle’s on- board computer. Never leave the keys inside the vehicle when you leave the vehicle. This system is designed to help prevent vehicle theft but does not guarantee absolute security against all vehicle thefts.
Page 78 1-3. Theft deterrent system Certification for the engine immobilizer system ■...
Page 79 1-3. Theft deterrent system...
Page 80 1-3. Theft deterrent system...
Page 81 1-3. Theft deterrent system NOTICE To ensure the system operates correctly ■ Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.
Page 82: Double Locking System
1-3. Theft deterrent system Double locking system Unauthorized access to the vehicle is prevented by disabling the door unlock- ing function from both the interior and exterior of the vehicle. Vehicles employing this system have labels on the side window of both front doors.
Page 83: Alarm
1-3. Theft deterrent system  Alarm The alarm The alarm uses light and sound to give an alert when an intrusion is detected. The alarm is triggered in the following situations when the alarm is set: A locked door is unlocked or opened in any way other than using the entry ●...
Page 84 1-3. Theft deterrent system System maintenance ■ The vehicle has a maintenance-free type alarm system. Items to check before locking the vehicle ■ To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow- ing. Nobody is in the vehicle. ●...
Page 85 1-3. Theft deterrent system NOTICE To ensure the system operates correctly ■ Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed. Intrusion sensor (if equipped) /Intrusion sensor and tilt sensor (if equipped) The intrusion sensor detects intruders or movement in the vehicle.
Page 86 1-3. Theft deterrent system Canceling and automatic re-enabling of the intrusion sensor and tilt sensor ■ The alarm will still be set even when the intrusion sensor and tilt sensor are canceled. ● After the intrusion sensor and tilt sensor are canceled, pressing the engine switch or ●...
Page 87 1-3. Theft deterrent system The vehicle is parked in a place where extreme ● vibrations or noises occur, such as in a parking garage. Ice or snow is removed from the vehicle, caus- ● ing the vehicle to receive repeated impacts or vibrations.
Page 88 To ensure that the sensors operate properly, ● do not touch or cover them. Installing accessories other than genuine Lexus parts or leaving objects between the ● driver’s seat and front passenger’s seat may reduce the detection performance.
Page 89: Instrument Cluster
Instrument cluster Instrument cluster Warning lights and indicators........90 Gauges and meters..... 96 Multi-information display ..100 Head-up display......122 Fuel consumption information ......... 128...
Page 90: Warning Lights And Indicators
2. Instrument cluster Warning lights and indicators The warning lights and indicators on the instrument cluster, center panel and outside rear view mirrors inform the driver of the status of the vehicle’s vari- ous systems. For the purpose of explanation, the following illustration displays all warning lights and indicators illuminated.
Page 91 2. Instrument cluster Warning lights Warning lights inform the driver of malfunctions in any of the vehicle’s systems. Brake system warning light LKA indicator (P. 667) (P. 666) (if equipped) Brake system warning light Slip indicator (P. 668) (P. 666) 1, 3 PCS warning light Charging system warning...
Page 92: Indicators
There may be a malfunction in a system if a light does not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 93 2. Instrument cluster 3, 4 BSM outside rear view Brake hold operated mirror indicators indicator (P. 263) (P. 355) (if equipped) 1, 5 Gear Shift Indicator Slip indicator (P. 254) (P. 424) (if equipped) 1, 6 Eco Driving Indicator Light VSC OFF indicator (P.
Page 94 There may be a malfunction in a system if a light does not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 95 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately if this occurs.
Page 96: Gauges And Meters
2. Instrument cluster Gauges and meters Except F SPORT models  F SPORT models  The units used on the meters may differ depending on the target region.
Page 97 Clock Vehicles with a navigation system: Time displayed is linked to the analog clock on the instrument panel. (P. 568) Vehicles with a Lexus Display Audio system: Time displayed on the clock can be adjusted on of the multi-information dis- play.
Page 98 2. Instrument cluster Rev indicator (F SPORT models) ■ When the engine reaches a set speed, a ring-shaped indicator will be displayed on the tachometer. The desired engine speed at which the Rev indicator will begin to be dis- played can be set on of the multi- information display.
Page 99 When “” or “E” is displayed, the system may be malfunctioning. ● Take your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Clock settings screen (vehicles with a navigation system only) ■...
Page 100: Multi-Information Display
2. Instrument cluster Multi-information display Summary of functions The multi-information display presents the driver with a variety of driving-related data, such as the current outside temperature. The multi-information display can also be used to change the display settings and other settings. Except F SPORT models ...
Page 101 2. Instrument cluster Odometer/trip meter display area (P. 118) Displays the following items: • Odometer/trip meter • Distance until next engine oil change • Stop & Start system operation time (current) (if equipped) • Speed warning Meter control switches (P. 102) “ODO/TRIP”...
Page 102 2. Instrument cluster Shift position display (P. 251) Odometer/trip meter display area (P. 118) Displays the following items: • Odometer/trip meter • Distance until next engine oil change • Stop & Start system operation time (current) (if equipped) • Speed warning Meter control switches (P.
Page 103 2. Instrument cluster Registering a top screen ■ The displayed top screen can be changed to a registered screen of your choice. To register a screen as the top screen, display the desired screen and press and hold • A message asking to confirm if registration is desired will be displayed. If the selected screen cannot be registered, a registration failure message will be dis- played.
Page 104 2. Instrument cluster Menu icons Select a menu icon to display its content. Drive information (P. 105) Select to display various drive data. Navigation system-linked display (if equipped) Select to display the following navigation system-linked information. • Route guidance • Compass display (heading-up display) Audio system-linked display Select to enable selection of an audio source or track on the meter using the meter control switches.
Page 105 2. Instrument cluster Drive information ( Drive information 1/Drive information 2/Drive information 3 ■ Displays drive information such as the following: Drive information 1 ● • Current fuel consumption • Average fuel economy (after reset) Drive information 2 ● • Distance (driving range) •...
Page 106 2. Instrument cluster : Resetting: P. 103 : Use the displayed fuel consumption as a reference. : When only a small amount of fuel is added to the tank, the display may not be updated. When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.
Page 107 2. Instrument cluster Boost gauge/engine oil temperature gauge/engine oil pressure gauge (if ■ equipped) Boost gauge Displays the boost pressure. The display will change color if the specified pressure is exceeded. Engine oil temperature gauge Displays the engine oil tempera- ture.
Page 108 2. Instrument cluster G-force (if equipped) ■ Displays lateral G-forces on the vehicle. Also displays, around the periphery of the G-force display, the left and right steering amount, accelerator pedal input, and brake fluid pressure. Acceleration G-force on the vehicle Current G-force value (analyzed value of front/rear and left/right G-forces)
Page 109 2. Instrument cluster Stop & Start system information ( ) (if equipped) Stop & Start system operation time (current)/status notification ■ Displays the current amount of time the engine has been stopped due to the operation of the Stop & Start system. Also shows the status of the Stop & Start system with a pop-up display.
Page 110 2. Instrument cluster Settings display ( ◆ Changing settings Use the meter control switches on the steering wheel to change settings. Press to select Operate the switches to select a desired item. Change the setting by referring to the message displayed on the screen. ◆...
Page 111 Select to enable/disable the Rear RCTA Crossing Traffic Alert function. : The Rear Crossing Traffic Alert function can be enabled/disabled only when the Blind Spot Monitor function is enabled. Lexus parking assist-sensor (if equipped) (P. 371) ■ Item Settings Details...
Page 112 2. Instrument cluster Speed Warning (P. 118) ■ The following speed warning settings can be changed: Item Settings Details Select to enable/disable the speed Speed warning warning. Select to set the vehicle speed at 30 to 260 km/h Speed setting which the speed warning will begin (20 to 160 mph) operating.
Page 113 2. Instrument cluster ICS (Intelligent Clearance Sonar) (if equipped) (P. 380) ■ Item Settings Details Select to enable/disable the Intelli- gent Clearance Sonar system. HUD (Head-up display) (if equipped) (P. 122) ■ The following head-up display settings can be changed: Item Settings Details...
Page 114 12-hour display Select to set the display mode of the Display mode clock. 24-hour display Vehicles with a Lexus Display Audio system  The following clock settings can be changed: Press the switch to select an item and then press the switch to change the setting or adjust the time.
Page 115 2. Instrument cluster Vehicle settings ■ Item Settings Details PBD (Power back door) (if equipped) (P. 151) The following power back door settings can be changed: Select to enable the power back door All On system. Select to disable the touchless sensor. Touchless Sensor System settings...
Page 116 2. Instrument cluster Item Settings Details TPMS (Tire pressure warning system) (P. 614) Select to initialize the Tire pressure warning system. To perform initializa- tion, press and hold the switch. Tire pressure warning system initialization Before performing initialization, make sure to adjust the inflation pressure of each tire to the specified level.
Page 117 2. Instrument cluster Item Settings Details Intersection guid- ance (if equipped) Incoming calls Duration (if Select to enable/disable the pop-up Pop-up display equipped) display. Status equipped) Brightness adjust- ment Color (except Select to set the color of the cursor on 2 available colors SPORT models) the multi-information display.
Page 118 2. Instrument cluster Odometer/trip meter display area ◆ Display items Odometer ■ Displays the total distance the vehicle has been driven. Trip meter A/trip meter B ■ Displays the distance the vehicle has been driven since the meter was last reset.
Page 119 2. Instrument cluster Suggestion function Displays suggestions to the driver in the following situations. To select a response to a displayed suggestion, use the meter control switches. The suggestion function can be turned on/off. (Customizable features: P. 740) Suggestion to enable the power back door (if equipped) ■...
Page 120 2. Instrument cluster Eco Driving Indicator ■ Eco Driving Indicator Light During Eco-friendly acceleration (Eco driv- ing), the Eco Driving Indicator Light will turn on. When the acceleration exceeds the Zone of Eco driving, or when the vehicle is stopped, the light turns off.
Page 121 2. Instrument cluster Tire pressure ■ It may take a few minutes to display the tire inflation pressure after the engine switch is ● turned to IGNITION ON mode. It may also take a few minutes to display the tire infla- tion pressure after inflation pressure has been adjusted.
Page 122: Head-Up Display
• Dynamic radar cruise control with full-speed range (P. 329) • LKA (Lane-Keeping Assist) (P. 313) • Lexus parking assist-sensor (P. 371) • Intelligent Clearance Sonar (ICS) (P. 380) Displayed content is the same as that displayed on the multi-information display. For details, refer to the explanations of each system.
Page 123 2. Instrument cluster Vehicle speed display area Displays the following items: • Vehicle speed • Road sign icons recognized by the RSA (if equipped) (P. 324) Eco Driving Indicator/Tachometer (P. 125) Shift position display (P. 251) HUD (Head-up display) switch (P. 123) Using the head-up display ◆...
Page 124 2. Instrument cluster icons Displays the following multi-information display linked icons: : Master warning icon Displayed when a warning message is displayed on the multi-information display. (P. 673) : Information icon Displayed when a suggestion/advice pop-up display is displayed on the multi-information display.
Page 125 2. Instrument cluster Navigation system-linked display area (if equipped) Displays the following items which are linked to the navigation system: Street name ■ The name of the street that the vehicle is currently driving on is displayed on the bottom of the display area. When the navigation system is performing route guidance, the name of the next street will be displayed on the top of the display area.
Page 126 2. Instrument cluster Head-up display ■ The head-up display may seem dark or hard to see when viewed through sunglasses, especially polarized sunglasses. Adjust the brightness of the head-up display or remove your sunglasses. When the battery is disconnected ■ The customize settings of the head-up display will be reset.
Page 127 2. Instrument cluster NOTICE To prevent damage to components ■ Do not place any drinks near the head-up dis- ● play projector. If the projector gets wet, elec- trical malfunctions may result. Do not place anything on or put stickers onto ●...
Page 128: Fuel Consumption Information
Vehicles with a navigation system: The fuel consumption information can be displayed and operated on the side display. Audio system screen “MENU” button Lexus Display Audio controller “MENU” button Remote Touch knob “ENTER” button : Vehicles with a Lexus Display Audio sys- : Vehicles with a navigation system...
Page 129 Trip information Lexus Display Audio screen  Press the “MENU” button on the Lexus Display Audio controller, and then select “Car” on the “MENU” screen. If the “Trip information” screen does not appear, move the controller to the right and select “Trip information”.
Page 130 Past record Lexus Display Audio screen  Press the “MENU” button on the Lexus Display Audio controller, and then select “Car” on the “MENU” screen. If the “Past record” screen does not appear, move the controller to the right and select “Past record”.
Page 131 2. Instrument cluster Updating the past record data ■ Vehicles with a Lexus Display Audio system  Update the average fuel consumption by moving the controller to the left and select “Update” to measure the current fuel consumption again. Vehicles with a navigation system ...
Page 132 2. Instrument cluster Using the side display (vehicles with a navigation system) Vehicle information can be displayed on the side display (P. 534), then select “” or “” to select the desired screen. Fuel consumption  Displays the average fuel consumption for the past 10 minutes in 1 minute inter- vals, as well as the cruising range.
Page 133: Operation Of Each Component
Operation of each component 3-1. Key information Keys..........134 3-2. Opening, closing and locking the doors Side doors........140 Back door........146 Power back door ......151 Smart entry & start system..168 3-3. Adjusting the seats Front seats........185 Rear seats........186 Driving position memory..
Page 134: Key Information
1, 2 roof (P. 140) Opens and closes the power back door (P. 151) : If equipped : This setting must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 135 3-1. Key information Using the mechanical key To take out the mechanical key, push the release button and take the key out. The mechanical key can only be inserted in one direction, as the key only has grooves on one side. If the key can- not be inserted in a lock cylinder, turn it over and re-attempt to insert it.
Page 136 If you lose your mechanical keys ■ New genuine mechanical keys can be made by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional using another mechanical key and the key number stamped on your key number plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
Page 137 Confirmation of the registered key number ■ The number of keys already registered to the vehicle can be confirmed. Ask any autho- rized Lexus dealer or repairer, or another duly qualified and equipped professional for details. If a wrong key is used ■...
Page 138 In case of a smart entry & start system malfunction or other key-related problems ■ Take your vehicle with all the electronic keys provided with your vehicle, including the card key, to any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. When an electronic key is lost ■...
Page 139 (To remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have any authorized Lexus dealer or repairer, or another duly qualified and equipped professional replace the battery.
Page 140: Opening, Closing And Locking The Doors
Press and hold to open the win- 1, 2 dows and the moon roof 1, 2 panoramic moon roof : If equipped : This setting must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 141 3-2. Opening, closing and locking the doors Operation signals ■ Doors: The emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice) Windows and moon roof or panoramic moon roof: A buzzer sounds. Security feature ■...
Page 142 3-2. Opening, closing and locking the doors Locking and unlocking the doors from the inside ◆ Door lock switches (to lock/unlock) Locks all the doors Unlocks all the doors ◆ Inside lock buttons (to lock) Push down the inside lock button to lock the door.
Page 143 3-2. Opening, closing and locking the doors Locking the doors from the outside without a key For the front doors  Push down the inside lock button. Close the door while pulling the door handle. The door cannot be locked if the engine switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.
Page 144 3-2. Opening, closing and locking the doors Switching the door unlock function ■ It is possible to set which doors the entry function unlocks using the wireless remote con- trol. Turn the engine switch off. Cancel the intrusion sensor and tilt sensor of the alarm system to prevent unintended triggering of the alarm while changing the settings.
Page 145 3-2. Opening, closing and locking the doors Conditions affecting the operation of the smart entry & start system or wireless remote ■ control P. 170 Customization ■ Some functions can be customized. (P. 740) WARNING To prevent an accident ■ Observe the following precautions while driving the vehicle.
Page 146: Back Door
3-2. Opening, closing and locking the doors  Back door The back door can be locked/unlocked and opened by the following proce- dures. Locking and unlocking the back door from the outside ◆ Smart entry & start system Carry the electronic key to enable this function.
Page 147 3-2. Opening, closing and locking the doors When closing the back door Lower the back door using a back door handle, and make sure to push the back door down from the outside to close it. Luggage compartment lights ■ The luggage compartment lights turn on when the back door is opened with the respective lug- gage compartment light switch on.
Page 148 3-2. Opening, closing and locking the doors WARNING Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or serious injury. Before driving the vehicle ■ Before driving the vehicle, make sure that the back door is fully closed. If the back door is not fully closed, it may open unexpectedly while driving, causing an accident.
Page 149 If a bicycle carrier or similar heavy object is attached to the back door, it may sud- ● denly shut again after being opened, causing someone’s hands, arms, head or neck to be caught and injured. When installing an accessory part to the back door, using a genuine Lexus part is recommended.
Page 150 Do not touch the damper stay rod with gloves ● or other fabric items. Do not attach any accessories other than ● genuine Lexus parts to the back door. Damper stays Do not place your hand on the damper stay or ● apply lateral forces to it.
Page 151: Power Back Door
3-2. Opening, closing and locking the doors  Power back door The power back door can be locked/unlocked and opened/closed by the fol- lowing procedures. Locking and unlocking the power back door from the outside ◆ Smart entry & start system Carry the electronic key to enable this function.
Page 152 3-2. Opening, closing and locking the doors Opening/closing the power back door from the inside Press and hold the switch for approxi- mately 1 second. A buzzer will sound and the power back door will automatically open or close. However, if the power back door is locked, it will not open.
Page 153 3-2. Opening, closing and locking the doors Touchless sensor (vehicles with a touchless power back door) ■ The touchless power back door enables automatic opening of the power back door by holding a hand over the upper part of the rear emblem or touching the upper part of the rear emblem.
Page 154 3-2. Opening, closing and locking the doors Closing the power back door from the outside Using the power back door switch to close the power back door ■ Press the switch. A buzzer will sound and the power back door will automatically close. Pressing the switch while the power back door is closing will stop...
Page 155 3-2. Opening, closing and locking the doors Changing the setting of the power back door system The power back door settings can be changed on the multi-information display. (P. 110) Adjusting the open position of the power back door The position at which the power back door will stop when opened automatically can be changed.
Page 156 3-2. Opening, closing and locking the doors Power back door operating conditions ■ If the following conditions are met with the power back door operation enabled (P. 115), the power back door can be opened and closed automatically. The power back door is unlocked. ●...
Page 157 3-2. Opening, closing and locking the doors Luggage compartment lights ■ The luggage compartment lights turn on when the power back door is opened with the respec- tive luggage compartment light switch on. When the engine switch is turned off, the lights will go off automatically after 20 min- utes.
Page 158 3-2. Opening, closing and locking the doors Back door closer ■ In the event that the power back door is left slightly open, the back door closer will auto- matically close it to the fully closed position. The back door closer can function when the engine switch is in any mode. ●...
Page 159 3-2. Opening, closing and locking the doors When reconnecting the battery ■ To enable the power back door to operate properly, close the power back door manually. Jam protection function ■ Sensors are installed in the right and left sides of the power back door.
Page 160 • When the power back door is not fully closed • When a hand is held parallel to the rear emblem : The detection settings can be changed by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. (P. 742) Customization ■...
Page 161 3-2. Opening, closing and locking the doors WARNING Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or serious injury. Before driving the vehicle ■ Before driving the vehicle, make sure that the power back door is fully closed. If the power back door is not fully closed, it may open unexpectedly while driving, causing an accident.
Page 162 If a bicycle carrier or similar heavy object is attached to the power back door, it may ● suddenly shut again after being opened, causing someone’s hands, arms, head or neck to be caught and injured. When installing an accessory part to the power back door, using a genuine Lexus part is recommended.
Page 163 3-2. Opening, closing and locking the doors WARNING Back door closer ■ In the event that the power back door is left ● slightly open, the back door closer will auto- matically close it to the fully closed position. It takes several seconds before the back door closer begins to operate.
Page 164 When installing an accessory part to the power back door, using a genuine Lexus part is recommended. Jam protection function ■...
Page 165 Do not attach any accessories other than ● genuine Lexus parts to the power back door. Do not place your hand on the spindle or ● apply lateral forces to it.
Page 166 In this situation, clean off the dirt or snow, move the vehicle from the current posi- tion and then check if the touchless sensor operates. If it does not operate, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly quali- fied and equipped professional.
Page 167 3-2. Opening, closing and locking the doors NOTICE To prevent unintentional operation (vehicles with a touchless power back door) ■ When the touchless sensor is not to be used, disable the touchless sensor operation using the multi-information display (P. 115)
Page 168: Smart Entry & Start System
3-2. Opening, closing and locking the doors Smart entry & start system The following operations can be performed simply by carrying the electronic key (including the card key) on your person, for example in your pocket. The driver should always carry the electronic key. Locks and unlocks the doors (P.
Page 169 3-2. Opening, closing and locking the doors Alarms and warning messages ■ A combination of exterior and interior alarms as well as warning messages shown on the multi-information display are used to prevent theft of the vehicle and accidents resulting from erroneous operation.
Page 170 3-2. Opening, closing and locking the doors Electronic Key battery-Saving Function ■ When battery-saving mode is set, battery depletion is minimized by stopping the elec- tronic key from receiving radio waves. Press twice while pressing and holding Confirm that the electronic key indicator flashes 4 times.
Page 171 3-2. Opening, closing and locking the doors Note for the entry function ■ Even when the electronic key is within the effective range (detection areas), the system ● may not operate properly in the following cases: • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
Page 172 3-2. Opening, closing and locking the doors When the vehicle is not driven for extended periods ■ To prevent theft of the vehicle, do not leave the electronic key within 2 m (6 ft.) of the ● vehicle. The smart entry & start system can be deactivated in advance. (P. 740) ●...
Page 173 3-2. Opening, closing and locking the doors Certification for the smart entry & start system ■...
Page 174 3-2. Opening, closing and locking the doors...
Page 175 3-2. Opening, closing and locking the doors...
Page 176 3-2. Opening, closing and locking the doors...
Page 177 3-2. Opening, closing and locking the doors...
Page 178 3-2. Opening, closing and locking the doors...
Page 179 3-2. Opening, closing and locking the doors...
Page 180 3-2. Opening, closing and locking the doors...
Page 181 3-2. Opening, closing and locking the doors...
Page 182 3-2. Opening, closing and locking the doors...
Page 183 3-2. Opening, closing and locking the doors...
Page 184 The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details, such as the frequency of radio waves and timing of the emitted radio waves.
Page 185: Adjusting The Seats
3-3. Adjusting the seats Front seats Adjustment procedure Seat position adjustment switch Seat cushion (front) angle adjust- ment switch Vertical height adjustment switch Seatback angle adjustment switch Lumbar support firmness adjust- ment switch Lumbar support height adjustment switch (if equipped) Seat cushion length adjustment switch (if equipped) Power easy access system...
Page 186: Rear Seats
3-3. Adjusting the seats Rear seats Adjustment procedure Manual seat  Seatback angle adjustment lever Seat position adjustment lever Power seat  Seatback angle adjustment switch Seat position adjustment lever...
Page 187 3-3. Adjusting the seats Folding down the rear seatbacks Before folding down the rear seatbacks ■ Stow the rear center seat belt and seat belt buckles. Lower the rear seat head restraints. (P. 200) Folding down the rear seatbacks (manual seat) ■...
Page 188 3-3. Adjusting the seats Folding down the rear seatbacks (power seat) ■ Press and hold the switch to fold down the rear seatback. A buzzer will sound and then the operation will start. The buzzer will sound again when the operation is completed. To stop the operation partway, press either side of the rear seat operation switch of the operating seat.
Page 189 3-3. Adjusting the seats Returning the rear seatbacks (manual seat) ■ Raise the rear seatback until it locks. Check that the plate of the seat belt is on the front side of the seat.
Page 190 3-3. Adjusting the seats Returning the rear seatbacks (power seat) ■ Press and hold the switch to return the rear seatback. A buzzer will sound and then the operation will start. The buzzer will sound again when the operation is completed. To stop the operation partway, press either side of the rear seat operation switch of the operating seat.
Page 191 3-3. Adjusting the seats The rear seatbacks can be adjusted when (power seat) ■ When the rear seatback is in a position within Most the range A shown in the illustration, the rear upright seat operation switch (rear seat) can be used to position adjust the rear seatback.
Page 192 3-3. Adjusting the seats The rear seat seatbacks can be raised when (power seat) ■ When all of the following conditions are met, a rear seat operation switch can be used to return the rear seatback: When the engine switch is turned off or in ●...
Page 193 3-3. Adjusting the seats WARNING When folding down the rear seatbacks and when the rear seatbacks are folded ■ Observe the following precautions. Failure to do so may result in death or serious injury. Do not fold down the rear seatbacks while driving. ●...
Page 194 3-3. Adjusting the seats WARNING Jam protection function (power seat) ■ Observe the following precautions. Failure to do so may result in death or serious injury. Never use any part of your body to intentionally activate the jam protection function. ●...
Page 195: Driving Position Memory
3-3. Adjusting the seats  Driving position memory This feature automatically adjusts the front seats (on some models), steering wheel and outside rear view mirrors to make entering and exiting the vehicle easier or to suit your preferences. Power easy access system (driver’s side only) The seat and steering wheel are automatically adjusted to allow the driver to enter and exit the vehicle easily.
Page 196 3-3. Adjusting the seats Driving position memory Your preferred driving position (the position of the driver’s seat, steering wheel and outside rear view mirrors) can be recorded and recalled by pressing a but- ton. Three different driving positions can be recorded into memory. Recording procedure ■...
Page 197 3-3. Adjusting the seats Recall procedure ■ Check that the shift lever is in P. Turn the engine switch to IGNITION ON mode. Press one of the buttons for the driving position you want to recall until the buzzer sounds. To stop the position recall operation part-way through ■...
Page 198 3-3. Adjusting the seats Memory recall function (driver’s side only) Each electronic key (including a card key) can be registered to recall your pre- ferred driving position. Registering procedure ■ Record your driving position to button “1”, “2” or “3” before performing the following: Carry only the key you want to register, and then close the driver’s door.
Page 199 3-3. Adjusting the seats Cancelation procedure ■ Carry only the key you want to cancel and then close the driver’s door. If 2 or more keys are in the vehicle, the driving position cannot be canceled properly. Turn the engine switch to IGNITION ON mode. While pressing the “SET”...
Page 200: Head Restraints
3-3. Adjusting the seats Head restraints Head restraints are provided for all seats. Front seats ◆ Vertical adjustment Pull the head restraints up. Down Push the head restraint down while pressing the lock release button. Lock release button ◆ Horizontal adjustment (if equipped) The position of the head restraint can be adjusted forward in 4 stages.
Page 201 3-3. Adjusting the seats Removing the head restraints ■ Pull the head restraint up while pressing the lock release button. If the head restraint touches the ceiling, making the removal difficult, change the seat height or angle. (P. 185, 186) Lock release button Installing the head restraints ■...
Page 202: Adjusting The Steering Wheel And Mirrors
3-4. Adjusting the steering wheel and mirrors Steering wheel Adjustment procedure Operating the switch moves the steering wheel in the following directions: Down Toward the driver Away from the driver Auto tilt away When the engine switch is turned off, the steering wheel returns to its stowed position by moving up and away to enable easier driver entry and exit.
Page 203 3-4. Adjusting the steering wheel and mirrors The steering wheel can be adjusted when ■ The engine switch is in ACCESSORY or IGNITION ON mode : If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of engine switch mode.
Page 204: Inside Rear View Mirror
3-4. Adjusting the steering wheel and mirrors Inside rear view mirror The rear view mirror’s position can be adjusted to enable sufficient confirma- tion of the rear view. Adjusting the height of rear view mirror The height of the rear view mirror can be adjusted to suit your driving posture. Adjust the height of the rear view mir- ror by moving it up and down.
Page 205 3-4. Adjusting the steering wheel and mirrors Auto anti-glare inside rear view mirror  Responding to the level of brightness of the headlights of vehicles behind, the reflected light is automatically reduced. Changing automatic anti-glare func- tion mode ON/OFF When the automatic anti-glare function is in ON mode, the indicator illuminates.
Page 206: Outside Rear View Mirrors
3-4. Adjusting the steering wheel and mirrors Outside rear view mirrors Adjustment procedure To select a mirror to adjust, press the switch. Left Right Pressing the same switch again will put the switch in neutral. To adjust the mirror, press the switch. Right Down Left...
Page 207 3-4. Adjusting the steering wheel and mirrors Folding and extending the mirrors Using the switch ■ Press the switch to fold the mirrors. Press it again to extend them to the original position. Setting automatic mode ■ Automatic mode allows the folding or extending of the mirrors to be linked to locking/unlocking of the doors.
Page 208 3-4. Adjusting the steering wheel and mirrors Linked mirror function when reversing When the mirror select switch is in the “L” or “R” position, the outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground. To disable this function, select neither “L”...
Page 209 3-4. Adjusting the steering wheel and mirrors WARNING Important points while driving ■ Observe the following precautions while driving. Failing to do so may result in loss of control of the vehicle and cause an accident, result- ing in death or serious injury. Do not adjust the mirrors while driving.
Page 210: Opening, Closing The Windows And Moon Roof
3-5. Opening, closing the windows and moon roof Power windows Opening and closing procedures The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: Closing One-touch closing Opening One-touch opening : To stop the window partway, operate the switch in the opposite direction.
Page 211 If you release the switch while the window is moving, start again from the beginning. If the window reverses and cannot be fully closed or opened, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped pro- fessional.
Page 212 The power windows can be opened and closed using the wireless remote control. ●  P. 140) : These settings must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Alarm (if equipped) ■...
Page 213 3-5. Opening, closing the windows and moon roof WARNING Observe the following precautions. Failing to do so may result in death or serious injury. Opening and closing the windows ■ The driver is responsible for all the power window operations, including the operation ●...
Page 214: Moon Roof
3-5. Opening, closing the windows and moon roof  Moon roof Use the overhead switches to open and close the moon roof and tilt it up and down. Opening and closing Opens the moon roof The moon roof stops slightly before the fully open position to reduce wind noise.
Page 215 The moon roof can be opened and closed using the mechanical key. (P. 711) ● The moon roof can be opened and closed using the wireless remote control. ● (P. 140) : These settings must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 216 If the moon roof does not fully close even after performing the above procedure cor- rectly, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Alarm (if equipped) ■...
Page 217 3-5. Opening, closing the windows and moon roof WARNING Observe the following precautions. Failing to do so may cause death or serious injury. Opening the moon roof ■ Do not allow any passengers to put their hands or heads outside the vehicle while it is ●...
Page 218: Panoramic Moon Roof
3-5. Opening, closing the windows and moon roof  Panoramic moon roof Use the overhead switches to operate the panoramic moon roof and elec- tronic sunshade. Opening and closing the electronic sunshade Opens the electronic sunshade Slide and hold the switch back- ward.
Page 219 (P. 711) The panoramic moon roof can be opened and closed using the wireless remote con- ● trol. (P. 140) : These settings must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 220 If the panoramic moon roof or electronic sunshade does not fully close even after per- forming the above procedure correctly, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Alarm (if equipped) ■...
Page 221 3-5. Opening, closing the windows and moon roof WARNING Observe the following precautions. Failing to do so may cause death or serious injury. Opening and closing the electronic sunshade ■ Check to make sure that all passengers do ● not have any part of their body in a position where it could be caught when the electronic sunshade is being operated.
Page 222 3-5. Opening, closing the windows and moon roof WARNING To prevent burns or injuries ■ Do not touch the area between the underside of the panoramic moon roof and the electronic sunshade. Your hand may get caught and you could injure yourself. Also, if the vehicle is left in direct sunlight for a long time, the underside of the panoramic moon roof could become very hot and could cause burns.
Page 223 3-5. Opening, closing the windows and moon roof...
Page 224 4-1. Before driving Driving the vehicle..... 226 Cargo and luggage....235 Trailer towing (vehicles without towing package)..237 Trailer towing (vehicles with towing package)....238 4-2. Driving procedures Engine (ignition) switch... 246 Automatic transmission ... 251 Turn signal lever ......258 Parking brake......259 Brake Hold ........263 4-3.
Page 225: Driving
Opening the fuel tank cap..287 Intelligent Clearance Sonar 4-5. Using the driving (ICS) ........... 380 support systems Lexus parking assist Lexus Safety System+ ....291 monitor......... 401 PCS (Pre-Crash Safety Driving mode select system)........300 switch ..........417 All-wheel drive lock (Lane-Keeping Assist) ...
Page 226: Before Driving
4-1. Before driving Driving the vehicle The following procedures should be observed to ensure safe driving: Starting the engine P. 246 Driving With the brake pedal depressed, shift the shift lever to D. (P. 251) Release the parking brake. (P. 260) If the parking brake is in automatic mode, the parking brake is released automatically when shifting the shift lever to any position other than P.
Page 227 4-1. Before driving Starting off on a uphill With the brake pedal depressed, shift the shift lever to D. (P. 251) Pull the parking brake switch and parking brake is set manually. (P. 260) Release the brake pedal and gently depress the accelerator pedal to acceler- ate the vehicle.
Page 228 4-1. Before driving Breaking in your new Lexus ■ To extend the life of the vehicle, observing the following precautions is recommended: For the first 300 km (200 miles): ● Avoid sudden stops. For the first 800 km (500 miles): ●...
Page 229 4-1. Before driving WARNING Observe the following precautions. Failure to do so may result in death or serious injury. When starting the vehicle ■ Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping. When driving the vehicle ■...
Page 230 4-1. Before driving WARNING Observe the following precautions. Failure to do so may result in death or serious injury. When driving on slippery road surfaces ■ Sudden braking, acceleration and steering may cause tire slippage and reduce your ● ability to control the vehicle. Sudden acceleration, engine braking due to shifting, or changes in engine speed ●...
Page 231 If you hear a squealing or scraping noise (brake pad wear indicators) ■ Have the brake pads checked and replaced by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible. Rotor damage may result if the pads are not replaced when needed.
Page 232 4-1. Before driving WARNING Observe the following precautions. Failure to do so may result in death or serious injury. When the vehicle is parked ■ Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehicle ●...
Page 233 4-1. Before driving WARNING Observe the following precautions. Failure to do so may result in death or serious injury. When taking a nap in the vehicle ■ Always turn the engine off. Otherwise, if you accidentally move the shift lever or depress the accelerator pedal, this could cause an accident or fire due to engine over- heating.
Page 234 Engine damage caused by water immersion ● In the event that you drive on a flooded road and the vehicle is flooded, be sure to have any authorized Lexus dealer or repairer, or another duly qualified and equipped pro- fessional check the following: Brake function ●...
Page 235: Cargo And Luggage
4-1. Before driving Cargo and luggage Take notice of the following information about storage precautions, cargo capacity and load. WARNING Things that must not be carried in the luggage compartment ■ The following things may cause a fire if loaded in the luggage compartment: Receptacles containing gasoline ●...
Page 236 4-1. Before driving WARNING When using a roof luggage carrier (vehicles with roof rails) ■ Observe the following precautions: Place the cargo so that its weight is distributed evenly between the front and rear ● axles. If loading long or wide cargo, never exceed the vehicle overall length or width. ●...
Page 237: Trailer Towing (Vehicles Without Towing Package)
4-1. Before driving Trailer towing (vehicles without towing package) Lexus does not recommend towing a trailer with your vehicle. Lexus also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed for trailer...
Page 238: Trailer Towing (Vehicles With Towing Package)
Lexus warranty. Ask your local authorized Lexus dealer or repairer, or another duly qualified and equipped professional for further details before towing, as there are addi- tional legal requirements in some countries.
Page 239 4-1. Before driving Important points regarding trailer loads Total trailer weight and permissible drawbar load ■ Total trailer weight Weight of the trailer itself plus the trailer load should be within the max- imum towing capacity. Exceeding this weight is dangerous. (P. 726) Permissible drawbar load Allocate the trailer load so that the drawbar load is greater than 25 kg...
Page 240 4-1. Before driving WARNING When the gross vehicle mass or maximum permissible axle capacity is exceeded ■ Failing to observe this precaution may lead to an accident causing death or serious injury. Add an additional 20.0 kPa (0.2 kgf/cm or bar, 3 psi) to the recommended tire infla- ●...
Page 241 4-1. Before driving Installation positions for the towing hitch/bracket and hitch ball 528 mm (20.8 in.) 566 mm (22.3 in.) 568 mm (22.4 in.) 1108 mm (43.6 in.) 352 mm (13.9 in.) 363 mm (14.3 in.) 461 mm (18.1 in.) 468 mm (18.4 in.) 597 mm (23.5 in.) 21 mm (0.8 in.)
Page 242 Break-in schedule ■ Lexus recommends that vehicles fitted with new power train components should not be used for towing trailers for the first 800 km (500 miles). Safety checks before towing ■...
Page 243 4-1. Before driving Guidance Your vehicle will handle differently when towing a trailer. In order to avoid acci- dent, death or serious injury, keep the following in mind when towing: Checking connections between trailer and lights ■ Stop the vehicle and check the operation of the connection between the trailer and lights after driving for a brief period as well as before starting off.
Page 244 4-1. Before driving Important points regarding stability ■ Vehicle movement resulting from uneven road surfaces and strong cross- winds will affect handling. The vehicle may also be rocked by passing buses or large trucks. Frequently check behind when moving alongside such vehicles. As soon as such vehicle movement occurs, immediately start to decelerate smoothly by slowly applying the brakes.
Page 245 4-1. Before driving WARNING Follow all the instructions described in this section. Failure to do so could cause an accident resulting in death or serious injury. Trailer towing precautions ■ When towing, make sure that none of the weight limits are exceeded. (P.
Page 246: Driving Procedures
4-2. Driving procedures Engine (ignition) switch Performing the following operations when carrying the electronic key on your person starts the engine or changes engine switch modes. Starting the engine Check that the parking brake is set. Check that the shift lever is in P. Firmly depress the brake pedal.
Page 247 4-2. Driving procedures Changing engine switch modes Modes can be changed by pressing the engine switch with brake pedal released. (The mode changes each time the switch is pressed.) The emergency flashers can be used. ACCESSORY mode Some electrical components such as the audio system can be used.
Page 248 When “Smart Entry & Start System Malfunction See Owner’s Manual” is displayed on ■ the multi-information display The system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately.
Page 249 4-2. Driving procedures If the electronic key battery is depleted ■ P. 638 Operation of the engine switch ■ If the switch is not pressed shortly and firmly, the engine switch mode may not change ● or the engine may not start. If attempting to restart the engine immediately after turning the engine switch off, the ●...
Page 250 ● If the engine becomes difficult to start or stalls frequently, have your vehicle checked ● by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately. Symptoms indicating a malfunction with the engine switch ■...
Page 251: Automatic Transmission
4-2. Driving procedures Automatic transmission Shifting the shift lever While the engine switch is in IGNITION ON mode, move the shift lever with the brake pedal depressed. When shifting the shift lever between P and D, make sure that the vehicle is com- pletely stopped.
Page 252 4-2. Driving procedures Selecting the driving mode P. 417 Selecting shift ranges in the D position (vehicles with paddle shift switches) To drive using temporary shift range selection, operate the “-” or “+” paddle shift switch. When the “-” paddle shift switch is operated, the shift range will be downshifted to a range that enables engine braking force that is suitable to driving conditions.
Page 253 4-2. Driving procedures Selecting gears in the M position To enter M mode, shift the shift lever to M. Gears can then be selected by oper- ating the shift lever or paddle shift switches (if equipped), allowing you to drive in the gear of your choosing.
Page 254 4-2. Driving procedures Gear Shift Indicator (if equipped) The Gear Shift Indicator display is a guide to help the driver achieve improved fuel economy and reduced exhaust emissions within limits of engine perfor- mance. When not in operation Shift-up indicator Gear Shift Indicator function ■...
Page 255 See Owner’s Manual” will be displayed on the multi-information display and the vehicle will go into transmission protection mode automatically. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional. Downshifting restriction warning buzzer ■...
Page 256 If the shift lever cannot be shifted with your foot on the brake pedal, there may be a prob- lem with the shift lock system. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately.
Page 257 4-2. Driving procedures WARNING When driving on slippery road surfaces ■ Be careful of downshifting and sudden acceleration, as this could result in the vehicle skidding to the side or spinning. Gear Shift Indicator display (if equipped) ■ For safety, the driver should not look only at the display. Refer to the display when it is safe to do so while considering actual traffic and road conditions.
Page 258: Turn Signal Lever
4-2. Driving procedures Turn signal lever Operating instructions Right turn Lane change to the right (move the lever partway and release it) The right hand signals will flash 3 times. Lane change to the left (move the lever partway and release it) The left hand signals will flash 3 times.
Page 259: Parking Brake
4-2. Driving procedures Parking brake A selections can be made as desired from the following modes. Automatic mode The parking brake is set or released automatically according to shift lever opera- tion. Even when in automatic mode, the parking brake can be set and released manu- ally.
Page 260 Operate the parking brake switch. If the message does not disappear after operating the switch several times, the system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional immediately.
Page 261 4-2. Driving procedures Parking brake operation sound ■ When the parking brake operates, a motor sound (whirring sound) may be heard. This does not indicate a malfunction. Parking brake indicator light and parking brake lamp ■ Depending on the engine switch mode, the parking brake indicator light and parking ●...
Page 262 Driving the vehicle with the parking brake set will lead to brake components overheat- ing, which may affect braking performance and increase brake wear. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional immediately if this occurs.
Page 263: Brake Hold
4-2. Driving procedures Brake Hold The brake hold system keeps the brake applied when the shift lever is in D, M or N with the system on and the brake pedal has been depressed to stop the vehicle. The system releases the brake when the accelerator pedal is depressed with the shift lever in D or M to allow smooth start off.
Page 264 If “Brake Hold Fault Depress Brake to Deactivate Visit Your Dealer” is displayed on the ■ multi-information display The system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately. Warning messages and buzzers ■...
Page 265: Operating The Lights And Wipers
4-3. Operating the lights and wipers Headlight switch The headlights can be operated manually or automatically. Operating instructions Turning the end of the lever turns on the lights as follows: The front position, tail, rear side marker, license plate and instrument panel lights turn on.
Page 266 4-3. Operating the lights and wipers Follow me home system This system allows the headlights to be turned on for 30 seconds when the engine switch is off. Pull the lever toward you and release it with the light switch is in after turning the engine switch off.
Page 267 4-3. Operating the lights and wipers Daytime running light system ■ To make your vehicle more visible to other drivers during daytime driving, the daytime running lights turn on automatically whenever the engine is started and the parking brake is released with the headlight switch in position.
Page 268 4-3. Operating the lights and wipers Windshield wiper linked headlight illumination ■ When driving during daytime with the headlight switch turned to , if the windshield wipers are used, the headlights will turn on automatically after several seconds to help enhance the visibility of your vehicle.
Page 269: Ahs (Adaptive High-Beam System)
4-3. Operating the lights and wipers  AHS (Adaptive High-beam System) The Adaptive High-beam System uses a camera sensor located behind the upper portion of the windshield to assess the brightness of the lights of vehi- cles ahead, streetlights, etc., and automatically controls the headlight light distribution as necessary.
Page 270 4-3. Operating the lights and wipers Activating the Adaptive High-beam System Push the lever away from you with the headlight switch in the position. Press the Adaptive High-beam Sys- tem switch. The Adaptive High-beam System indi- cator will come on when the system is operating.
Page 271 4-3. Operating the lights and wipers Turning the high beams on/off manually Switching to the low beams ■ Pull the lever to its original position. The Adaptive High-beam System indicator will turn off. Push the lever away from you to acti- vate the Adaptive High-beam Sys- tem again.
Page 272 4-3. Operating the lights and wipers Conditions in which the light distribution control of the headlights changes automati- ■ cally When all of the following conditions are met, the high beams will be turned on automat- ● ically and the system will operate: •...
Page 273 4-3. Operating the lights and wipers Bicycles or similar objects may not be detected. ● In the following situations the system may not be able to correctly detect the surround- ● ing brightness level. This may cause the low beams to remain on or the high beams to flash or dazzle pedestrians or vehicles ahead.
Page 274: Automatic High Beam
4-3. Operating the lights and wipers  Automatic High Beam The Automatic High Beam uses a camera sensor located behind the upper portion of the windshield to assess the brightness of the lights of vehicles ahead, streetlights, etc., and automatically turns the high beams on or off as necessary.
Page 275 4-3. Operating the lights and wipers Turning the high beams on/off manually Switching to the low beams ■ Pull the lever to its original position. The Automatic High Beam indicator will turn off. Push the lever away from you to acti- vate the Automatic High Beam sys- tem again.
Page 276 4-3. Operating the lights and wipers Conditions to turn the high beams on/off automatically ■ When all of the following conditions are met, the high beams will be turned on automat- ● ically (after approximately 1 second): • The vehicle speed is approximately 40 km/h (25 mph) or more. •...
Page 277 4-3. Operating the lights and wipers In the following situations the system may not be able to correctly detect the surround- ● ing brightness level. This may cause the low beams to remain on or the high beams to flash or dazzle pedestrians or vehicles ahead. In such a case, it is necessary to manually switch between the high and low beams.
Page 278: Fog Light Switch
4-3. Operating the lights and wipers Fog light switch The fog lights secure excellent visibility in difficult driving conditions, such as in rain and fog. Operating instructions Turns the front and rear fog lights off Turns the front fog lights on Turns both front and rear fog lights on Releasing the switch ring returns it to...
Page 279: Windshield Wipers And Washer
4-3. Operating the lights and wipers Windshield wipers and washer Operating the wiper lever The wiper operation is selected by moving the lever as follows. Intermittent windshield wipers with interval adjuster  Wiper intervals can be adjusted when intermittent operation is selected. The interval of intermittent operation varies according to vehicle speed.
Page 280 4-3. Operating the lights and wipers Washer/wiper dual operation The wipers will automatically operate a couple of times after the washer squirts. Vehicles with headlight cleaners: When the engine switch is in IGNI- TION ON mode and the headlights are on, if the lever is pulled, the headlight cleaners will operate once.
Page 281 4-3. Operating the lights and wipers Washer/wiper dual operation The wipers will automatically operate a couple of times after the washer squirts. Vehicles with headlight cleaners: When the engine switch is in IGNI- TION ON mode and the headlights are on, if the lever is pulled, the headlight cleaners will operate once.
Page 282 When a nozzle becomes blocked ■ In this case, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 283 4-3. Operating the lights and wipers Changing the windshield wiper rest position/Lifting the windshield wip- When the windshield wipers are not being used, they retract to below the hood. To enable the windshield wipers to be lifted when parking in cold conditions or when replacing a windshield wiper insert, change the rest position of the wind- shield wipers to the service position using the wiper lever.
Page 284 4-3. Operating the lights and wipers Lowering the windshield wipers to the retracted position ■ With the windshield wipers placed on the windshield, turn the engine switch to IGNI- TION ON mode and then move the wiper lever to an operating position. When the wiper switch is turned off, the windshield wipers will stop at the retracted position.
Page 285: Rear Window Wiper And Washer
4-3. Operating the lights and wipers Rear window wiper and washer Operating the wiper lever Turning the end of the lever turns on the rear window wiper and washer. Intermittent operation Normal operation Washer/wiper dual operation The wiper will automatically operate a couple of times after the washer squirts.
Page 286 When a nozzle becomes blocked ■ In this case, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 287: Refueling
4-4. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap: Before refueling the vehicle Close all the doors and windows, and turn the engine switch off. ● Confirm the type of fuel. ● Fuel types ■...
Page 288 4-4. Refueling WARNING When refueling the vehicle ■ Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury. After exiting the vehicle and before opening the fuel door, touch an unpainted metal ●...
Page 289 4-4. Refueling Opening the fuel tank cap With the doors unlocked, press the center of the rear edge of the fuel filler door. Push inward and take your hand away to slightly open the fuel filler door. Then open the door fully by hand. Turn the fuel tank cap slowly and remove it, then put it into the holder on the fuel filler door.
Page 290 WARNING When replacing the fuel tank cap ■ Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 291: Using The Driving Support Systems
Lexus Safety System+ ■ The Lexus Safety System+ is designed to operate under the assumption that the driver will drive safely, and is designed to help reduce the impact to the occupants and the vehicle in the case of a collision or assist the driver in normal driving conditions.
Page 292 The pre-crash safety system does not record conversations, sounds or pictures. Data usage ● Lexus may use the data recorded in this computer to diagnose malfunctions, conduct research and development, and improve quality. Lexus will not disclose the recorded data to a third party except: •...
Page 293 4-5. Using the driving support systems Sensors Two types of sensors, located behind the front grille and windshield, detect infor- mation necessary to operate the drive assist systems. Radar sensor Camera sensor...
Page 294 ● If the radar sensor, front grille, or front bumper has been subjected to a strong impact, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Do not disassemble the radar sensor.
Page 295 • To replace the wiper insert: P. 636 • If the wiper blades need to be replaced, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Do not attach window tinting to the windshield.
Page 296 Do not attach any accessories that may obstruct the camera sensor to the hood, front ● grille or front bumper. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details. If a surfboard or other long object is to be mounted on the roof, make sure that it will ●...
Page 297 4-5. Using the driving support systems Certification ■...
Page 298 4-5. Using the driving support systems...
Page 299 4-5. Using the driving support systems...
Page 300: Pcs (Pre-Crash Safety System)
(P. 304) : Depending on the region in which the vehicle was sold, the pedestrian detection function may not be available. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details.
Page 301 4-5. Using the driving support systems ◆ Pre-crash warning When the system determines that the possibility of a frontal collision is high, a buzzer will sound and a warn- ing message will be displayed on the multi-information display to urge the driver to take evasive action.
Page 302 4-5. Using the driving support systems WARNING Limitations of the pre-crash safety system ■ The driver is solely responsible for safe driving. Always drive safely, taking care to ● observe your surroundings. Do not use the pre-crash safety system instead of normal braking operations under any circumstances.
Page 303 4-5. Using the driving support systems WARNING When to disable the pre-crash safety system ■ In the following situations, disable the system, as it may not operate properly, possibly leading to an accident resulting in death or serious injury: When the vehicle is being towed ●...
Page 304 4-5. Using the driving support systems Changing settings of the pre-crash safety system Enabling/disabling the pre-crash safety system ■ The pre-crash safety system can be enabled/disabled on (P. 110) of the multi-information display. The system is automatically enabled each time the engine switch is turned to IGNI- TION ON mode.
Page 305 4-5. Using the driving support systems Operational conditions ■ Availability of the pedestrian detection function and pre-crash braking function depend on the region in which the vehicle was sold. Regions Function availability The pedestrian detection function and pre-crash braking func- Region A tion are available The pedestrian detection function is not available and the pre-...
Page 306 4-5. Using the driving support systems Region B  (The pedestrian detection function is not available and the pre-crash braking function is available) The pre-crash safety system is enabled and the system determines that the possibility of a frontal collision with a vehicle is high. Each function is operational at the following speeds: Pre-crash warning: ●...
Page 307 4-5. Using the driving support systems Pedestrian detection function ■ The pre-crash safety system detects pedestrians based on the size, profile, and motion of a detected object. However, a pedestrian may not be detected depending on the surrounding brightness and the motion, posture, and angle of the detected object, preventing the system from operating properly.
Page 308 4-5. Using the driving support systems • When driving on a road where relative location to vehicle ahead in an adjacent lane may change, such as on a winding road • When rapidly closing on a vehicle ahead • If the front of the vehicle is raised or lowered, such as when the road surface is uneven or undulating •...
Page 309 4-5. Using the driving support systems • When passing under an object (billboard, etc.) at the top of an uphill road • When rapidly closing on an electric toll gate barrier, parking area barrier, or other barrier that opens and closes •...
Page 310 4-5. Using the driving support systems Situations in which the system may not operate properly ■ In some situations such as the following, a vehicle may not be detected by the radar ● sensor and camera sensor, preventing the system from operating properly: •...
Page 311 4-5. Using the driving support systems • After the engine has started the vehicle has not been driven for a certain amount of time • While making a left/right turn and for a few seconds after making a left/right turn •...
Page 312 If the PCS warning light continues to flash or the warning message does not disappear, ● the system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately.
Page 313: (Lane-Keeping Assist)
4-5. Using the driving support systems  LKA (Lane-Keeping Assist) Summary of functions When driving on highways and freeways with white or yellow lines, this function alerts the driver when the vehicle might depart from its lane and provides assis- tance by operating the steering wheel to keep the vehicle in its lane.
Page 314 4-5. Using the driving support systems Functions included in LKA system ◆ Lane departure alert function When the system determines that the vehicle might depart from its lane, a warning is displayed on the multi-information display, and either the warning buzzer sounds or the steering wheel vibrates to alert the driver.
Page 315 4-5. Using the driving support systems ◆ Lane departure control function When the system determines that the vehicle might depart from its lane, the system provides assistance as necessary by operating the steer- ing wheel in small amounts for a short period of time to keep the vehicle in its lane.
Page 316 4-5. Using the driving support systems ◆ Lane-keeping assist function This function is linked with radar cruise control and provides the required assistance by operating the steering wheel to keep the vehicle in its current lane. When radar cruise control is not operating, the lane-keeping assist function does not operate.
Page 317 Do not modify the suspension etc. If the suspension etc. needs to be replaced, con- ● tact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Do not install or place anything on the hood or grille. Also, do not install a grille guard ●...
Page 318 4-5. Using the driving support systems Turning LKA system on Press the LKA switch to turn the LKA system on. The LKA indicator illuminates and a message is displayed on the multi-infor- mation display. Press the LKA switch again to turn the LKA system off.
Page 319 4-5. Using the driving support systems Indications on multi-information display LKA indicator The illumination condition of the indicator informs the driver of the system operation status. Illuminated in white: LKA system is operating. Illuminated in green: Steering wheel assistance of the lane departure control function or lane- keeping assist function is operating.
Page 320 4-5. Using the driving support systems Operation conditions of each function ■ Lane departure alert function ● This function operates when all of the following conditions are met. • LKA is turned on. • Vehicle speed is approximately 50 km/h (32 mph) or more. •...
Page 321 4-5. Using the driving support systems Temporary cancellation of functions ■ When operation conditions are no longer met, a function may be temporarily canceled. However, when the operation conditions are met again, operation of the function is auto- matically restored. (P. 320) Lane departure control function/lane-keeping assist function ■...
Page 322 4-5. Using the driving support systems Conditions in which functions may not operate properly ■ In the following situations, the camera sensor may not detect white (yellow) lines and var- ious functions may not operate normally. There are shadows on the road that run parallel with, or cover, the white (yellow) lines. ●...
Page 323 4-5. Using the driving support systems If the LKA indicator is illuminated in amber and a warning message is displayed on the ■ multi-information display P. 666 Customization ■ Some functions can be customized. (P. 110)
Page 324: Rsa (Road Sign Assist)
4-5. Using the driving support systems  RSA (Road Sign Assist) Summary of function RSA recognizes specific road signs using the camera sensor and provides information to the driver via the multi- information display. Camera sensor If the system judges that the vehicle is being driven over the speed limit, perform- ing prohibited actions, etc.
Page 325 4-5. Using the driving support systems Indication on the multi-information display After the camera sensor recognizes a sign, it is displayed on the multi-informa- tion display when the vehicle passes the sign. When the driving assist system infor- ● mation is selected, a maximum of 3 signs can be displayed.
Page 326 4-5. Using the driving support systems Types of recognized road signs The following types of road signs, including electronic signs and blinking signs, are recognized. A non-official (not meeting the Vienna Convention) or a recently introduced traffic sign may not be recognized. Type Multi-information display Speed limit begins/ends...
Page 327 4-5. Using the driving support systems : If the turn signal indicator is not operated when changing lanes, the mark does not dis- play. : Vehicles with a navigation system Warning display In the following situations, the RSA system alerts the driver using a warning dis- play.
Page 328 IGNITION ON mode. When “Check RSA system” is displayed on the multi-information display ■ The system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately. Customization ■...
Page 329: Dynamic Radar Cruise Control With Full-Speed Range
4-5. Using the driving support systems Dynamic radar cruise controlwith full-speed  range Summary of functions In vehicle-to-vehicle distance control mode, the vehicle automatically acceler- ates, decelerates and stops to match the speed changes of the preceding vehicle even if the accelerator pedal is not depressed. In constant speed control mode, the vehicle runs at a fixed speed.
Page 330 4-5. Using the driving support systems WARNING Before using dynamic radar cruise control with full-speed range ■ Driving safely is the sole responsibility of the driver. Do not rely solely on the system, and drive safely by always paying careful attention to your surroundings. The dynamic radar cruise control with full-speed range provides driving assistance to reduce the driver's burden.
Page 331 4-5. Using the driving support systems WARNING Situations unsuitable for dynamic radar cruise control with full-speed range ■ Do not use dynamic radar cruise control with full-speed range in any of the following situations. Doing so may result in inappropriate speed control and could cause an accident result- ing in death or serious injury.
Page 332 4-5. Using the driving support systems Driving in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicles up to approximately 100 m (328 ft.) ahead, determines the current vehicle-to-vehicle following distance, and operates to maintain a suitable following distance from the vehicle ahead.
Page 333 4-5. Using the driving support systems Setting the vehicle speed (vehicle-to-vehicle distance control mode) Press the “ON/OFF” button to acti- vate the cruise control. Radar cruise control indicator will come on and a message will be displayed on the multi-information display. Press the button again to deactivate the cruise control.
Page 334 4-5. Using the driving support systems Adjusting the set speed To change the set speed, operate the lever until the desired set speed is dis- played. Increases the speed (Except when the vehicle has been stopped by system control in vehicle-to- vehicle distance control mode) Decreases the speed Fine adjustment: Momentarily move...
Page 335 4-5. Using the driving support systems Changing the vehicle-to-vehicle distance (vehicle-to-vehicle distance control mode) Pressing the button changes the vehi- Preceding cle-to-vehicle distance as follows: vehicle mark Long Medium Short The vehicle-to-vehicle distance is set automatically to long mode when the engine switch is turned to IGNITION ON mode.
Page 336 4-5. Using the driving support systems Canceling and resuming the speed control Pulling the lever toward you cancels the speed control. The speed control is also canceled when the brake pedal is depressed. (When the vehicle has been stopped by system control, depressing the brake pedal does not cancel the setting.) Pushing the lever up resumes the...
Page 337 4-5. Using the driving support systems Selecting constant speed control mode When constant speed control mode is selected, your vehicle will maintain a set speed without controlling the vehicle-to-vehicle distance. Select this mode only when vehicle-to-vehicle distance control mode does not function correctly due to a dirty radar sensor, etc.
Page 338 • The vehicle has been stopped for about 3 minutes If vehicle-to-vehicle distance control mode is automatically canceled for any other rea- son, there may be a malfunction in the system. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 339 ● If constant speed control mode is automatically canceled for any other reason, there may be a malfunction in the system. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Warning messages and buzzers for dynamic radar cruise control with full-speed range ■...
Page 340 4-5. Using the driving support systems Motorcycles traveling in the same lane ● When water or snow thrown up by the surrounding vehicles hinders the detecting of ● the sensor When your vehicle is pointing upwards ● (caused by a heavy load in the luggage com- partment, etc.) Preceding vehicle has an extremely high ●...
Page 341: Cruise Control
4-5. Using the driving support systems  Cruise control Summary of functions Use the cruise control to maintain a set speed without operating the accelerator pedal. Set speed Indicators Cruise control switch Setting the vehicle speed Press the “ON/OFF” button to acti- vate the cruise control.
Page 342 4-5. Using the driving support systems Adjusting the set speed To change the set speed, operate the lever until the desired set speed is obtained. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction. Large adjustment: Hold the lever in the desired direction.
Page 343 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehi- cle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 344 4-5. Using the driving support systems WARNING To avoid operating the cruise control by mistake ■ Switch the cruise control off using the “ON/OFF” button when not in use. Situations unsuitable for cruise control ■ Do not use cruise control in any of the following situations. Doing so may result in loss of control and could cause an accident resulting in death or serious injury.
Page 345: Stop & Start System
4-5. Using the driving support systems  Stop & Start system The Stop & Start system stops and restarts the engine according to the brake pedal operation and other operations when the vehicle is stopped. Stop & Start system operation ◆...
Page 346 4-5. Using the driving support systems ◆ When the brake hold system is enabled The Stop & Start system is operational when the brake hold system is operat- ing. (  P. 263) Stopping the engine ■ While driving with the shift lever in D or M, depress the brake pedal, and stop the vehicle.
Page 347 4-5. Using the driving support systems ◆ When the dynamic radar cruise control with full-speed range is operating (if equipped) The Stop & Start system is operational during a controlled stop by the dynamic radar cruise control with full-speed range. ( ...
Page 348 4-5. Using the driving support systems Disabling the Stop & Start system Press the Stop & Start cancel switch to disable the Stop & Start system. The Stop & Start cancel indicator will come on. Pressing the switch again will enable the Stop &...
Page 349 4-5. Using the driving support systems Operating conditions ■ The Stop & Start system is operational when all of the following conditions are met: ● • The brake pedal is being depressed firmly. (Except when the vehicle comes to a controlled stop while driving with the dynamic radar cruise control with full-speed range in vehicle-to-vehicle distance control mode [if equipped]) •...
Page 350 Installation and removal of electrical components and wireless devices may affect the ● Stop & Start system. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details. If the windshield is fogged up while the engine is stopped by the Stop & Start system ■...
Page 351 4-5. Using the driving support systems Air conditioning system while the engine is stopped by the Stop & Start system ■ If the air conditioning system is being used in automatic mode, the fan speed may be ● reduced or the fan may be stopped while the engine is stopped by the Stop & Start sys- tem in order to reduce changes in the cabin temperature.
Page 352 • If the message is displayed continuously (more than 60 minutes), the battery may be deteriorated. Con- tact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details.
Page 353 If “Stop & Start System Malfunction Visit Your Dealer” is displayed on the multi-infor- ■ mation display The system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. If the Stop & Start cancel indicator continues to flash ■...
Page 354 ■ If any of the following situations occur, the Stop & Start system may not operate cor- rectly. Have your vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. While the driver's seat belt is fastened, the driver's and front passenger's seat belt ●...
Page 355: Bsm (Blind Spot Monitor)
4-5. Using the driving support systems  BSM (Blind Spot Monitor) Summary of the Blind Spot Monitor The Blind Spot Monitor is a system that has 2 functions: The BSM (Blind Spot Monitor) function ● Assists the driver in making a decision when changing lanes The RCTA (Rear Crossing Traffic Alert) function ●...
Page 356 4-5. Using the driving support systems Multi-information display Turning the BSM function/RCTA function on/off. (P. 357) The RCTA function is available when the BSM function is on. Outside rear view mirror indicators BSM function: When a vehicle is detected in a blind spot of the outside rear view mirrors or approaching rapidly from behind into a blind spot, the outside rear view mirror indi- cator on the detected side will illuminate.
Page 357 4-5. Using the driving support systems Turning the BSM function/RCTA function on/off Press “” or “” of the meter control switches, select Press “” or “” of the meter control switches, select “BSM”. Press “” or “” of the meter control switches, select “BSM” or “RCTA”. Outside rear view mirror indicator visibility ■...
Page 358 4-5. Using the driving support systems Except for vehicles sold in Ukraine ...
Page 359 4-5. Using the driving support systems Customization ■ Some functions can be customized. (P. 370, 740)
Page 360 Do not attach stickers to the sensor or surrounding area on the rear bumper. ● Do not modify the sensor or surrounding area on the rear bumper. ● Do not paint the rear bumper any color other than an official Lexus color. ●...
Page 361: Bsm Function
4-5. Using the driving support systems BSM function The BSM function uses radar sensors to detect the following vehicles traveling in adjacent lanes and advises the driver of the presence of such vehicles via the indicators on the outside rear view mirrors. Vehicles that are traveling in areas that are not visible using the outside rear view mirrors (the blind spots) Vehicles that are approaching rapidly from behind in areas that are not visible...
Page 362 4-5. Using the driving support systems BSM function detection areas The areas that vehicles can be detected in are outlined below. The range of each detection area is: Approximately 0.5 m (1.6 ft.) to 3.5 m (11.5 ft.) from either side of the vehicle : The area between the side of the vehicle and 0.5 m (1.6 ft.) from the side of the vehicle cannot be detected.
Page 363 4-5. Using the driving support systems The BSM function is operational when ■ The BSM function is operational when all of the following conditions are met: The BSM function is on. ● The shift lever is in a position other than R. ●...
Page 364 4-5. Using the driving support systems Conditions under which the BSM function may not function correctly ■ The BSM function may not detect vehicles correctly in the following situations: ● • When the sensor is misaligned due to a strong impact to the sensor or its surround- ing area •...
Page 365: Rcta Function
4-5. Using the driving support systems RCTA function The RCTA function uses radar sensors to detect vehicles approaching from the right or left at the rear of the vehicle and alerts the driver of the presence of such vehicles by flashing the outside rear view mirror indicators and sounding a buzzer.
Page 366 4-5. Using the driving support systems RCTA icon display (if equipped) ■ When a vehicle approaching from the right or left at the rear of the vehicle is detected, the following will be displayed on the audio system screen. Display Content A vehicle is approaching from the left at the rear of the vehicle A vehicle is approaching from the right at the rear of the vehicle...
Page 367 4-5. Using the driving support systems RCTA function detection areas The areas that vehicles can be detected in are outlined below. The buzzer can alert the driver of faster vehicles approaching from farther away. Example: Approximate Approaching vehicle Speed alert distance Fast 28 km/h (18 mph) 20 m (65 ft.)
Page 368 4-5. Using the driving support systems Conditions under which the RCTA function will not detect a vehicle ■ The RCTA function is not designed to detect the following types of vehicles and/or objects: Vehicles approaching from directly behind ● Vehicles backing up in a parking space next to your vehicle ●...
Page 369 4-5. Using the driving support systems • When backing out of a shallow angle park- ing spot • Immediately after the RCTA function is turned on • Immediately after the engine is started with the RCTA function on • When the sensors cannot detect a vehicle due to obstructions Instances of the RCTA function unnecessarily detecting a vehicle and/or object may ●...
Page 370 4-5. Using the driving support systems Setting up BSM function/RCTA function (vehicles with a navigation system) You can change the BSM function/RCTA function settings. Press the “MENU” button on the Remote Touch, and then select on the screen. Select “Vehicle”, and then select “Blind Spot Monitor” on the screen. Select the desired setting.
Page 371: Lexus Parking Assist-Sensor
Press “” or “” of the meter control switches, select Press “” or “” of the meter control switches, select “Parking Assist”. When on, the Lexus parking assist- sensor indicator comes on to inform the driver that the system is operational. ...
Page 372 Multi-information display ■ Front corner sensor operation Front center sensor operation Rear corner sensor operation Rear center sensor operation Lexus Display Audio screen ■ Lexus parking assist-sensor dis- play When the vehicle is moving forward. A graphic is automatically displayed when an obstacle is detected.
Page 373 4-5. Using the driving support systems Navigation system screen ■ Lexus parking assist-sensor Rear Crossing Traffic Alert (if equipped) A graphic is automatically displayed on the side display when an obstacle is detected. The screen can be set so that the graphic is not displayed.
Page 374 Sensor detection display, obstacle distance Distance display ■ Sensors that detect an obstacle will illuminate continuously or blink. Insert display Approximate distance to obstacle Display Lexus parking Panoramic Front and rear Front and rear assist monitor view monitor center sensor...
Page 375 4-5. Using the driving support systems : The images may differ from that shown in the illustrations. (P. 372) : Multi-information display : Audio system screen Buzzer operation and distance to an obstacle ■ A buzzer sounds when the sensors are operating. The buzzer sounds faster as the vehicle approaches an obstacle.
Page 376 IGNITION ON mode. Press the “MENU” button on the Lexus Display Audio controller/Remote Touch, and then select on the screen. Select “Vehicle”, and then select “LEXUS park assist” on the screen. Select the desired item. Lexus Display Audio screen Navigation system screen ...
Page 377 Vehicles with a Lexus Display Audio system: When an obstacle is detected while the ● Lexus parking assist monitor is in use, the warning indicator will appear in the upper part of the screen even if the display setting has been set to off.
Page 378 If “Parking Assist Malfunction” is displayed on the multi-information display ■ Depending on the malfunction of the sensor, the device may not be working normally. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Customization ■...
Page 379 ■ In the following situations, the system may not function correctly due to a sensor mal- function, etc. Have the vehicle checked by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. The Lexus parking assist-sensor operation display flashes, and a buzzer sounds when ●...
Page 380: Intelligent Clearance Sonar (Ics)
4-5. Using the driving support systems  Intelligent Clearance Sonar (ICS) If a collision with an object may occur due to the vehicle suddenly moving for- ward due to an accidental accelerator pedal operation, the vehicle moving the unintended direction due to the wrong shift position being selected, or while parking or traveling at low speeds, the sensors detect objects, such a wall, in the traveling direction of the vehicle, and the system operates to lessen an impact with an object and reduce the resulting damage.
Page 381 4-5. Using the driving support systems ◆ When the accelerator pedal is depressed excessively ◆ When the vehicle moves in the unintended direction due to the wrong shift position being selected...
Page 382 4-5. Using the driving support systems Rear Crossing Traffic Auto Brake function (if equipped) If a radar sensor detects a vehicle approaching from the right or left at the rear of the vehicle and a collision may occur, this function will perform brake control to reduce the likelihood of an impact with the approaching vehicle.
Page 383 4-5. Using the driving support systems Types of sensors Except F SPORT models F SPORT models   Front corner sensors Front center sensors Rear corner sensors Rear center sensors Turning the Intelligent Clearance Sonar system on/off Select on the multi-information display.
Page 384 4-5. Using the driving support systems Displays and buzzers for engine output restriction control and brake control If the engine output restriction control or brake control operates, a buzzer will sound and a message will be displayed on the multi-information display to alert the driver.
Page 385 4-5. Using the driving support systems Intelligent Clearance Sonar function If the Intelligent Clearance Sonar function detects that a collision with an object is possible, the engine output will be restricted to restrain any increase in the vehicle speed. (Engine output restriction control: See A below.) Additionally, if the accelerator pedal continues to be depressed, the brakes will be applied automatically to reduce the vehicle speed.
Page 386 4-5. Using the driving support systems Time Down Time Down Time Accelerator pedal Start of control Brake pedal High possibility of a collision Engine output Extremely high possibility of a colli- sion Braking force...
Page 387 The detection range of the Intelligent Clearance Sonar function differs from the detec- tion range of the Lexus parking assist-sensor (P. 375). Therefore, even if the Lexus parking assist-sensor detects an object and provides a warn- ing, the Intelligent Clearance Sonar function may not start operating.
Page 388 Lexus parking assist-sensor buzzer ■ Regardless of whether the Lexus parking assist-sensor system is enabled or not (P. 375), if the Intelligent Clearance Sonar system is enabled (P. 383), the front or rear sensors detect an object and brake control is performed, the Lexus parking assist-sensor...
Page 389 4-5. Using the driving support systems Situations in which the Intelligent Clearance Sonar function may operate even if there ■ is no possibility of a collision In some situations such as the following, the Intelligent Clearance Sonar function may operate even though there is no possibility of a collision. Vehicle surroundings ●...
Page 390 4-5. Using the driving support systems If the Intelligent Clearance Sonar function operates unnecessarily such as at a railroad ■ crossing Even in the event that the Intelligent Clearance Sonar function operates unnecessarily, such as at a railroad crossing, brake control will be canceled after approximately 2 sec- onds, allowing you to proceed forward and leave the area, Brake control can also be canceled by depressing the brake pedal.
Page 391 If this message continues to be displayed even after cleaning the sensor, or is displayed ● even though the sensor is clean, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 392 4-5. Using the driving support systems WARNING Limitations of the Intelligent Clearance Sonar system ■ Do not overly rely on the system, as doing so may lead to an accident. The driver is solely responsible for safe driving. Always drive carefully, taking care to ●...
Page 393 ● properly due to the sensor being misaligned. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional. When using a high pressure washer to wash the vehicle, do not spray the sensors ●...
Page 394 4-5. Using the driving support systems Rear Crossing Traffic Auto Brake function (if equipped) If the Rear Crossing Traffic Auto Brake function detects that a collision with an approaching vehicle is possible, the engine output will be restricted to restrain any increase in vehicle speed.
Page 395 4-5. Using the driving support systems Time Down Time Down Time Accelerator pedal Start of control Brake pedal High possibility of a collision Engine output Extremely high possibility of a colli- sion Braking force...
Page 396 4-5. Using the driving support systems The Rear Crossing Traffic Auto Brake function will operate when ■ The function will operate when the ICS OFF indicator is not illuminated or flashing (P. 383, 391) and all of the following conditions are met: Engine output restriction control ●...
Page 397 4-5. Using the driving support systems Re-enabling the Rear Crossing Traffic Auto Brake function ■ To re-enable the Rear Crossing Traffic Auto Brake function when it is disabled during operation of the Rear Crossing Traffic Auto Brake function, either enable the system again (P.
Page 398 4-5. Using the driving support systems Situations in which the system may operate even though there is no possibility of a colli- ■ sion In some situations such as the following, the Rear Crossing Traffic Auto Brake function may operate even though there is no possibility of a collision. •...
Page 399 4-5. Using the driving support systems Situations in which the Rear Crossing Traffic Auto Brake function may not operate ■ properly In some situations such as the following, this function may not operate properly. Objects and vehicles which the radar sensors are not designed to detect ●...
Page 400 4-5. Using the driving support systems • Vehicles that the sensors cannot detect due to obstructions • When backing up on a slope with a sharp change in grade • When a vehicle turns into the detection area Handling the radar sensors ■...
Page 401: Lexus Parking Assist Monitor
4-5. Using the driving support systems  Lexus parking assist monitor The parking assist monitor assists the driver by displaying an image of the view behind the vehicle while backing up, for example while parking. The screen illustrations used in this text are intended as examples, and may differ from the image that is actually displayed on the screen.
Page 402 4-5. Using the driving support systems Using the Lexus parking assist monitor Screen display ■ The parking assist monitor screen will be displayed if the shift position is shifted to R while the engine switch is in IGNITION ON mode.
Page 403 When the shift lever is in any position other than R, the display mode can be changed in the following procedure. Press the “MENU” button on the Lexus Display Audio controller, and then select “Setup” on the screen. Select “Vehicle”, and then select “Back camera guide line setting” on the screen.
Page 404 4-5. Using the driving support systems Estimated course line display mode Screen description ■ Vehicle center guide line The line indicates the estimated vehicle center on the ground. Vehicle width guide line The line indicates a guide path when the vehicle is being backed straight up. The displayed width is wider than the actual vehicle width.
Page 405 4-5. Using the driving support systems Parking operation ■ When parking in a space which is in the reverse direction to the space described in the procedure below, the steering directions will be reversed. Shift the shift lever to R. Turn the steering wheel so that the estimated course lines are within the parking space, and...
Page 406 4-5. Using the driving support systems Once the vehicle width guide lines and the parking space lines are parallel, straighten the steering wheel and back up slowly until the vehicle has com- pletely entered the parking space. Stop the vehicle in an appropriate place, and finish parking. Parking assist guide line display mode Screen description ■...
Page 407 4-5. Using the driving support systems Parking operation ■ When parking in a space which is in the reverse direction to the space described in the procedure below, the steering directions will be reversed. Shift the shift lever to R. Back up until the parking assist guide line meets the edge of the left-hand dividing line of the park-...
Page 408 The parking assist monitor displays an image of the view from the bumper of the rear area of the vehi- cle. The image of the Lexus parking assist monitor can be adjusted. (P. 453) • The area displayed on the screen may vary according to vehicle orien- tation conditions.
Page 409 4-5. Using the driving support systems Lexus parking assist monitor camera ■ The camera for the parking assist monitor is located above the license plate. Using the camera ● If dirt or foreign matter (such as water droplets, snow, mud etc.) is adhering to the camera, it cannot transmit a clear image.
Page 410 4-5. Using the driving support systems When the ground behind the vehicle slopes up sharply ● The distance guide lines will appear to be closer to the vehicle than the actual distance. Because of this, objects will appear to be farther away than they actually are.
Page 411 4-5. Using the driving support systems When any part of the vehicle sags ● When any part of the vehicle sags due to the number of passengers or the distribution of the load, there is a margin of error between the guide lines on the screen and the actual distance/course on the road.
Page 412 4-5. Using the driving support systems Distance guidelines ● Visually check the surroundings and the area behind the vehicle. On the screen, it appears that a truck is parking at point . How- ever, in reality if you back up to point , you will hit the truck.
Page 413 If you notice any of the following symptoms, refer to the likely cause and the solution, and re-check. If the symptom is not resolved by the solution, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Likely cause Solution ...
Page 414  The estimated course lines move even though the steering wheel is straight Have the vehicle inspected by any autho- There is a malfunction in the signals being rized Lexus dealer or repairer, or another output by the steering sensor. duly qualified and equipped professional.
Page 415 Estimated course line display mode: If the steering wheel is straight and the vehicle ● width guide lines and the estimated course lines are not in alignment, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 416 Do not expose the camera to strong impact as this could cause a malfunction. ● If this happens, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.
Page 417: Driving Mode Select Switch
4-5. Using the driving support systems Driving mode select switch The driving modes can be selected to suit driving conditions. Vehicles without Adaptive Variable Suspension System  Normal mode Provides an optimal balance of fuel economy, quietness, and dynamic perfor- mance.
Page 418 4-5. Using the driving support systems Vehicles with Adaptive Variable Suspension System  Except F SPORT models F SPORT models Normal mode/Customized mode Normal mode and customized mode are selected by pressing the driving mode select switch. Each time the switch is pressed, the driving mode changes between normal mode and customized mode.
Page 419 4-5. Using the driving support systems Function Setting Normal Powertrain Power Normal Chassis Sport Normal Air conditioning system Eco drive mode Helps the driver accelerate in an eco-friendly manner and improve fuel econ- omy through moderate throttle characteristics and by controlling the opera- tion of the air conditioning system (heating/cooling).
Page 420 4-5. Using the driving support systems Operation of the air conditioning system in Eco drive mode ■ Eco drive mode controls the heating/cooling operations and fan speed of the air condi- tioning system to enhance fuel efficiency. To improve air conditioning performance, adjust the fan speed or turn off Eco drive mode.
Page 421: All-Wheel Drive Lock Switch
4-5. Using the driving support systems All-wheel drive lock switch (AWD models) All-wheel drive lock mode can be used when a large amount of drive power needs to be applied to all the wheels, such as when the vehicle gets stuck in mud and you need to free it.
Page 422: Driving Assist Systems
4-5. Using the driving support systems Driving assist systems To help enhance driving safety and performance, the following systems oper- ate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heav- ily when operating the vehicle.
Page 423 4-5. Using the driving support systems ◆ EPS (Electric Power Steering) Employs an electric motor to reduce the amount of effort needed to turn the steering wheel ◆ Dynamic Torque Control AWD system (AWD models) Automatically switches from front-wheel drive to all-wheel drive (AWD) according to the driving conditions, helping to ensure reliable handling and stability.
Page 424 4-5. Using the driving support systems When the TRC/VSC systems are operating The slip indicator light will flash while the TRC/VSC systems are operating. Disabling the TRC system If the vehicle gets stuck in mud, dirt or snow, the TRC system may reduce power from the engine to the wheels.
Page 425 When the message is displayed on the multi-information display showing that TRC has ■ been disabled even if the VSC OFF switch has not been pressed TRC cannot be operated. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Operating conditions of hill-start assist control ■...
Page 426 4-5. Using the driving support systems Automatic reactivation of TRC and VSC systems ■ After turning the TRC and VSC systems off, the systems will be automatically re-enabled in the following situations: When the engine switch is turned off ● If only the TRC system is turned off, the TRC will turn on when vehicle speed increases ●...
Page 427 The ABS, TRC and VSC systems will not function correctly if different tires are installed on the vehicle. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for further information when replacing tires or wheels.
Page 428 4-5. Using the driving support systems WARNING Handling of tires and the suspension ■ Using tires with any kind of problem or modifying the suspension will affect the driving assist systems, and may cause a system to malfunction. Trailer Sway Control precaution ■...
Page 429: Driving Tips
4-6. Driving tips Winter driving tips Carry out the necessary preparations and inspections before driving the vehi- cle in winter. Always drive the vehicle in a manner appropriate to the prevail- ing weather conditions. Pre-winter preparations Use fluids that are appropriate to the prevailing outside temperatures. ●...
Page 430 If the shift lever can be shifted from P, there may be a problem with the shift lock system. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional immediately.
Page 431 4-6. Driving tips Windshield wipers To enable the windshield wipers to be lifted when heavy snow or icy conditions are expected, change the rest position of the windshield wipers from the retracted position below the hood to the service position using the wiper lever. (P.
Page 432 Repairing or replacing snow tires ■ Request repairs or replacement of snow tires from any authorized Lexus dealer or repairer, or another duly qualified and equipped professional or legitimate tire retailers. This is because the removal and attachment of snow tires affects the operation of the tire pressure warning valves and transmitters.
Page 433: Utility Vehicle Precautions
4-6. Driving tips Utility vehicle precautions This vehicle belongs to the utility vehicle class, which has higher ground clear- ance and narrower tread in relation to the height of its center of gravity. Utility vehicle feature Specific design characteristics give it a higher center of gravity than ordinary ●...
Page 434 4-6. Driving tips Off-road driving Your vehicle is not designed to be driven off-road. However, in the event that off- road driving cannot be avoided, please observe the following precautions to help avoid the areas prohibited to vehicles. Drive your vehicle only in areas where off-road vehicles are permitted to ●...
Page 435 4-6. Driving tips NOTICE To prevent water damage ■ Take all necessary safety measures to ensure that water damage to the engine or other components does not occur. Water entering the engine air intake will cause severe engine damage. ● Water entering the automatic transmission will cause deterioration in shift quality, ●...
Page 436 5-1. Basic Operations Lexus Display Audio system..........438 Steering wheel audio switches........444 USB/AUX ports......445 5-2. Setup Setup menu ........448 General settings......449 Voice settings......452 Display settings......453 5-3. Using the audio system Selecting the audio source..........455 Optimal use of the audio system..........456 Audio settings ......
Page 437 Lexus Display Audio system ® 5-6. Using an external device 5-9. Bluetooth Phone ® Listening to an iPod....472 Using a Bluetooth Phone........... 492 Using USB memory device...........476 Making a call........494 Using the AUX port ....481 Receiving a call......497 ®...
Page 438: Lexus Display Audio System
Lexus Display Audio system Use the following buttons to start listening to the audio system. Lexus Display Audio operation buttons The illustration below is for left-hand drive vehicles. The button positions and shapes may differ slightly for right-hand drive vehicles.
Page 439 5-1. Basic Operations “MENU” screen ■ To display the “MENU” screen, press the “MENU” button on the controller unit. Button Function Display the audio top screen “Audio” (P. 464, 466, 472, 476, 481, 490) “Climate” Display the air conditioning control screen (P. 536) “Telephone”...
Page 440 5-1. Basic Operations Lexus Display Audio controller By using the Lexus Display Audio controller, you can control the audio system, hands-free system, etc. Display the “Source” screen or audio top screen (P. 455) Display the “MENU” screen (P. 439) Back button...
Page 441 5-1. Basic Operations Basic screen operation ■ When a list is displayed, use the appropriate button to scroll through the list. Select the list by turning the con- troller. Return to the previous screen. Indicator turns on when you can move the controller left to view additional screen text.
Page 442 5-1. Basic Operations Inputting letters and numbers Input mode ■ Letters and numbers are inputted via the screen. Turn the controller to select the desired character and press the controller to input the character. When this indicator is shown, you can change input fields by moving the controller forward.
Page 443 To prevent Lexus Display Audio controller malfunction ■ Do not allow the Lexus Display Audio controller to come into contact with food, liq- ● uid, stickers or lit cigarettes as doing so may cause it to change color, emit a strange odor or stop functioning.
Page 444: Steering Wheel Audio Switches
5-1. Basic Operations Steering wheel audio switches Some audio features can be controlled using the switches on the steering wheel. Operation may differ depending on the type of audio system or navigation system. For details, refer to the manual provided with the audio system or nav- igation system.
Page 445: Usb/Aux Ports
Connect an iPod, USB memory device or portable audio player to the USB/ AUX port as indicated below. Select “iPod”, “USB”, “AUX” or “A/V” on the audio source selection screen and the device can be operated via Lexus Dis- play Audio system.
Page 446 5-1. Basic Operations Using a 4-pole AUX cable To view a video on an iPod video or VTR, it is necessary to use a 4-pole AUX cable to connect the portable audio device. When connecting a portable audio device to the AUX port, use a 4-pole AUX cable with a plug that matches the exact layout shown in the illustration.
Page 447 5-1. Basic Operations When using a 4-pole AUX cable ■ If a 4-pole AUX cable with a different layout is used, audio and/or video may not be out- put properly. When using the USB/AUX port ■ There is clearance between the lid and console box to allow the cable routed to outside the con- sole box.
Page 448: Setup
5-2. Setup Setup menu The Lexus Display Audio system can be adjusted to the desired settings. Display “Setup” screen Go to “Setup”: “MENU” button “Setup” Change the settings for operation sounds, screen animation, etc. (P. 449) Adjust the settings for voice guid- ance volume.
Page 449: General Settings
Set the animation effect on/off. “Delete personal data” Delete personal data (P. 451) Update program versions. For details, contact any “Software update” authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Update gracenote database versions. For details, ® “Gracenote...
Page 450 5-2. Setup Customizing images Go to “Customise images”: “MENU” button  “Setup”  “General”  “Customise images” Select “Set images” and then select the desired image. Set as startup image. Set as screen off image. Set as startup image and screen off image.
Page 451 5-2. Setup USB memory ■ When saving the images to a USB memory device, name the folder that the images are saved to “Image”. Compatible device formats ● The following device format can be used: • The image’s file format must be JPEG •...
Page 452: Voice Settings
5-2. Setup Voice settings You can adjust the guidance volume setting. Go to “Voice settings”: “MENU” button  “Setup”  “Voice” Adjust the voice guidance volume setting. Return to the default settings ■ Move the controller to the left and select “Default”.
Page 453: Display Settings
5-2. Setup Display settings Settings are available for adjusting the contrast and brightness of the screen. The display can also be turned off. Screen for display settings Go to “Display”: “MENU” button  “Display” Turn off screen. Adjust screen quality. Adjust screen quality of the rear view monitor camera.
Page 454 5-2. Setup Adjusting the screen contrast/brightness/color/tone Select “General” or “Camera” on the “Display” screen or select “Display” on audio menu screen. (P. 461) Adjust the display as desired by turning the controller clockwise (+) or counterclockwise (-). To select “Contrast”, “Brightness”, “Colour” or “Tone”, move the controller to the left. (“Colour”...
Page 455: Using The Audio System
5-3. Using the audio system Selecting the audio source Switching between audio sources, such as the radio and CD, is explained in this section. Changing audio source Press the “AUDIO” button to display the “Source” screen. If the “Source” screen is not displayed, press the button again. Select the desired audio source.
Page 456: Optimal Use Of The Audio System
5-3. Using the audio system Optimal use of the audio system On the “Sound settings” screen, sound quality (Treble/Mid/Bass), volume bal- ance and DSP settings can be adjusted. How to adjust the sound settings and sound quality Go to “Sound settings”: “MENU” button  “Setup”  “Audio”  “Sound settings”...
Page 457: Audio Settings
5-3. Using the audio system Audio settings Screen for audio settings Go to “Audio settings”: “MENU” button  “Setup”  “Audio” Change sound settings (P. 456) Change FM radio settings (P. 458) Change DAB settings (if equipped) (P. 458) Change iPod settings (P. 459) Change USB settings (P.
Page 458 5-3. Using the audio system Changing FM radio settings To display the radio settings screen in a different way, select “FM radio settings” on the audio menu screen. (P. 461) Change the order of the station list Select to set the traffic announce- ment interrupt operation on/off When traffic announcement is set to on, the radio will begin seeking a TP station.
Page 459 5-3. Using the audio system Changing iPod settings To display the iPod settings screen in a different way, select “iPod settings” on the audio menu screen. (P. 461) Change the screen size (video mode) Change the cover art settings (P. 460) Adjust the screen quality (video mode) (P.
Page 460 5-3. Using the audio system Changing A/V settings To display the A/V settings screen in a different way, select “A/V settings” on the audio menu screen. (P. 461) Change the screen size Change the video signal Adjust the screen quality (P. 453) Changing the cover art settings To display the cover art settings screen in a different way, select “Cover art set- tings”...
Page 461: Audio Menu Screen Operation
5-3. Using the audio system Audio menu screen operation You can change the settings and control functions for each audio source. Audio menu screen Go to audio menu screen: Move the controller to the left on the audio top screen Radio mode ...
Page 462 5-3. Using the audio system Media mode  Button Function Target audio source “Play” Plays or pauses a track/file All media (except A/V) “Pause” “Track up” “Track down” Selects a track/file All media (except A/V) “File up” “File down” “Folder up” MP3/WMA/AAC Selects a folder/album disc, USB audio...
Page 463 5-3. Using the audio system Repeat play Mode Action “Track repeat” “Repeat” File/track repeat “On” “Folder repeat” Folder/album repeat “Album repeat” Random/shuffle playback Mode Action “1 CD” “Random” Random/shuffle play of the disc/folder/album “Shuffle” “Folder random” “Album random” Random/shuffle play of all folders/albums “Album shuffle”...
Page 464: Using The Radio
5-4. Using the radio Radio operation Select “AM”, “FM” or “DAB” on the “Source” screen to begin listening to the radio. Radio top screen Pressing the “RADIO” button displays the radio top screen from any screen of the selected source. Menu screen ■...
Page 465 5-4. Using the radio Manual tuning (manual screen) ■ Turn the “TUNE•SCROLL” knob or turn the controller. Station list (preset or station list screen) ■ Select the desired station by pressing the “<” or “>” button, turn the “TUNE•SCROLL” knob, or turning and pressing the controller. Setting station presets (preset screen) Radio stations can be preset.
Page 466: Cd Player Operation
5-5. Playing an audio CD and MP3/WMA/AAC discs CD player operation Insert a disc, press the “MEDIA” button or select “DISC” on the “Source” screen with a disc inserted to begin listening to a disc. Audio disc top screen Pressing the “MEDIA” button displays the audio disc top screen from any screen of the selected source.
Page 467 If the following error messages appear on the screen, refer to the table and take the appropriate measures. If the problem is not rectified, take the vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Message...
Page 468 5-5. Playing an audio CD and MP3/WMA/AAC discs MP3 file compatibility ● • Compatible standards MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3) • Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz) MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz) • Compatible bit rates (compatible with VBR) MPEG1 LAYER3: 32-320 (kbps) MPEG2 LSF LAYER3: 8-160 (kbps) •...
Page 469 5-5. Playing an audio CD and MP3/WMA/AAC discs File names ● The only files that can be recognized as MP3/WMA/AAC and played are those with the extension .mp3, .wma or .m4a. Discs containing multi-session recordings ● As the audio system is compatible with multi session discs, it is possible to play discs that contain MP3, WMA and AAC files.
Page 470 5-5. Playing an audio CD and MP3/WMA/AAC discs ® The Gracenote media database ■ Gracenote, the Gracenote logo and logotype, “Powered by Gracenote”, MusicID, ● Playlist Plus and MediaVOCS are either registered trademarks or trademarks of Gracenote, Inc. in the United States...
Page 471 5-5. Playing an audio CD and MP3/WMA/AAC discs NOTICE Discs and adapters that cannot be used ■ Do not use the following types of discs. Also, do not use 8 cm (3 in.) disc adapters, DualDiscs or printable discs. Doing so may damage the player and/or disc insert/eject function. Discs that have a diameter that is not 12 cm (4.7 in.).
Page 472: Using An External Device
5-6. Using an external device Listening to an iPod Connecting an iPod enables you to enjoy music from the vehicle speakers. Press the “MEDIA” button or select “iPod” on the “Source” screen. Connecting an iPod P. 445 iPod top screen Pressing the “MEDIA”...
Page 473 5-6. Using an external device About iPod ■ “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been ● designed to connect specifically to an iPod, or iPhone, respectively, and has been certi- fied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety ●...
Page 474 If the following error messages appear on the screen, refer to the table and take the appropriate measures. If the problem is not rectified, take the vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Message Cause/Correction procedures “Connection error.
Page 475 5-6. Using an external device iPod problems ■ To resolve most problems encountered when using your iPod, disconnect your iPod from the vehicle iPod connection and reset it. For instructions on how to reset your iPod, refer to your iPod Owner’s Manual. Compatible models ■...
Page 476: Using Usb Memory Device
5-6. Using an external device Using USB memory device Connecting a USB memory device enables you to enjoy music from the vehi- cle speakers. Select “USB1” or “USB2” on the “Source” screen. Connecting a USB memory device P. 445 USB top screen Pressing the “MEDIA”...
Page 477 If the following error messages appear on the screen, refer to the table and take the appropriate measures. If the problem is not rectified, take the vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Message Cause/Correction procedures “Connection error.
Page 478 5-6. Using an external device USB memory ■ Compatible devices ● USB memory devices that can be used for MP3, WMA and AAC (audio mode) or MP4, WMV and AVI (video mode) playback. Compatible device formats ● The following device format can be used: •...
Page 479 5-6. Using an external device WMA file compatibility ● • Compatible standards WMA Ver. 7, 8, 9 (only compatible with Windows Media Audio Standard) • Compatible sampling frequencies 32, 44.1, 48 (kHz) • Compatible bit rates (only compatible with 2-channel playback) Ver.
Page 480 5-6. Using an external device MP3, WMA and AAC playback ● • When a device containing MP3, WMA or AAC files is connected, all files in the USB memory device are checked. Once the file check is finished, the first MP3, WMA or AAC file is played.
Page 481: Using The Aux Port
5-6. Using an external device Using the AUX port To use the AUX port, connect a portable player, press the “MEDIA” button or select “AUX” or “A/V” on the “Source” screen. Connecting a portable player P. 445 Top screen Pressing the “MEDIA” button displays the top screen from any screen of the selected source.
Page 482: Connecting Bluetooth
Steps for using Bluetooth devices ® The following can be performed using Bluetooth wireless communication: A portable audio player can be operated and listened to via the Lexus ■ Display Audio system Hands-free phone calls can be made via a cellular phone ■...
Page 483 ® 5-7. Connecting Bluetooth “Bluetooth setup” screen setup”: “MENU” button  “Setup”  “Bluetooth Go to “Bluetooth ” : Bluetooth is a registered trademark of Bluetooth SIG, Inc. When displaying “Bluetooth setup” screen from the “Bluetooth audio” screen ■ Display the “Bluetooth audio”...
Page 484: Registering A Bluetooth ® Device
® 5-7. Connecting Bluetooth ® Registering a Bluetooth device ® Bluetooth compatible phones (HFP) and portable audio players (AVP) can ® be registered simultaneously. You can register up to 5 Bluetooth devices. ® How to register a Bluetooth device ® Turn the Bluetooth connection setting of your device set to on.
Page 485: Selecting A Bluetooth ® Device
® 5-7. Connecting Bluetooth ® Selecting a Bluetooth device ® If multiple Bluetooth devices are registered, follow the procedure below to ® select the Bluetooth device to be used. You may only use one device at a time. ® How to select a Bluetooth device setup”: “MENU”...
Page 486: Connecting A Bluetooth ® Audio Player
® 5-7. Connecting Bluetooth ® Connecting a Bluetooth audio player There are 2 portable audio player connection settings available: connecting from the vehicle and connecting from the portable player. Connecting method is set to “Vehicle” When the portable audio player is in standby for a connection, it will be automat- ically connected whenever the engine switch is in either ACCESSORY or IGNI- TION ON mode.
Page 487: Connecting A Bluetooth Phone
® 5-7. Connecting Bluetooth ® Connecting a Bluetooth phone There are two connecting methods available: automatic and manual. Auto connection When you register a phone, auto connection will be activated. It is recom- ® mended to have the system set to this mode and leave the Bluetooth phone in a place where a good connection can be established.
Page 488: Displaying A Bluetooth ® Device Details
® 5-7. Connecting Bluetooth Displaying a Bluetooth ® device details You can confirm and change the registered device details. ® Bluetooth device registration status setup”: “MENU” button  “Setup”  “Bluetooth Go to “Bluetooth ” Select the desired device and then select “Device info”. Change the name of the device Change the connection method “Vehicle”: Connect the audio system...
Page 489: Detailed Bluetooth Settings
® 5-7. Connecting Bluetooth ® Detailed Bluetooth settings ® You can confirm and change the detailed Bluetooth settings. ® How to check and change detailed Bluetooth settings setup”: “MENU” button  “Setup”  “Bluetooth Go to “Bluetooth ” Move the controller to the left and then select “System settings”. ®...
Page 490: Bluetooth Audio
® 5-8. Bluetooth Audio ® Listening to Bluetooth Audio ® The Bluetooth audio system enables the user to enjoy music played on a por- table player from the vehicle speakers via wireless communication. ® When a Bluetooth device cannot be connected, check the connection status on the “Bluetooth audio”...
Page 491 ® 5-8. Bluetooth Audio ® Bluetooth audio top screen ® Pressing the “MEDIA” button displays the Bluetooth audio top screen from any screen of the selected source. Menu screen ■ P. 461 Selecting a song ■ Press the “” or “” button or turn the “TUNE•SCROLL” knob to select the desired song number.
Page 492: Bluetooth Phone
® 5-9. Bluetooth Phone ® Using a Bluetooth Phone The hands-free system is a function that allows you to use your cellular phone without touching it. ® ® This system supports Bluetooth . Bluetooth is a wireless data system that allows the cellular phone to wirelessly connect to the hands-free system and make/receive calls.
Page 493 ® 5-9. Bluetooth Phone ◆ Phone switch (P. 503) ◆ Microphone The vehicle’s built-in microphone is used when talking on the phone. The person to whom you are speaking to can be heard from the front speak- ers. To use the hands-free system, you must ®...
Page 494: Making A Call
® 5-9. Bluetooth Phone Making a call ® Once a Bluetooth phone is registered, you can make a call using the follow- ing procedure: Dialing Go to “Dial pad”: “MENU” button  “Telephone”  “Dial pad” Input a phone number. (P. 442) Press the off-hook switch on the steering wheel or select Dialing from the phonebook You can dial a number from the phonebook data imported from your cellular...
Page 495 ® 5-9. Bluetooth Phone When the phonebook is empty ® You can transfer the phone numbers in a Bluetooth phone to the system. Operation methods differ between PBAP (Phone Book Access Profile) compat- ® ible and PBAP incompatible Bluetooth phones. If the cellular phone does not support either PBAP or OPP (Object Push Profile) service, you cannot transfer contacts.
Page 496 ® 5-9. Bluetooth Phone Dialing from favorites You can make a call using numbers registered in the favorites. Go to “Favourites”: “MENU” button  “Telephone”  “Favourites” Choose the desired contact to call from the list. Choose the number and then press the off-hook switch on the steering wheel or press the controller.
Page 497: Receiving A Call
® 5-9. Bluetooth Phone Receiving a call When a call is received, the following screen is displayed together with a sound. To answer the phone Press the off-hook switch on the steer- ing wheel or select To refuse a call Press the on-hook switch on the steering wheel or select International calls ■...
Page 498: Speaking On The Phone
® 5-9. Bluetooth Phone Speaking on the phone The following screen is displayed when speaking on the phone. To adjust the transmit volume Select “Transmit volume”. To restore default volume, move the controller to the left on the “Transmit volume” screen and then select “Default”.
Page 499 ® 5-9. Bluetooth Phone To transfer a call Select “Handset mode” to change from a hands-free call to a cellular phone call or vice versa. To hang up Press the on-hook switch on the steering wheel or select Call waiting When a call is interrupted by a third party while talking, an incoming call mes- sage will be displayed.
Page 500: Using A Bluetooth
® 5-9. Bluetooth Phone ® Using a Bluetooth phone messages ® Once a MAP-profile compatible Bluetooth phone is registered, you can check the E-mail/SMS/MMS and reply to a message using the following pro- cedures: Checking messages Go to “Message inbox”: “MENU” button  “Telephone”  “Message inbox” Select a message.
Page 501 ® 5-9. Bluetooth Phone Replying to a message Move the controller to the left while on the message screen. Select “Quick message” to display the “Quick message” screen. Select the desired message and then select “Send”. Editing a quick message ■...
Page 502 ® 5-9. Bluetooth Phone Receiving a message popup function This function is available when the “E-mail notification popup” or “SMS/MMS notification popup” are set to on. (P. 509) “Incoming E-mail display” or “Incoming SMS/MMS display” are set to “Drop-  down”...
Page 503: Using The Steering Wheel Switches
® 5-9. Bluetooth Phone Using the steering wheel switches The steering wheel switches can be used to operate a connected cellular phone. Operating a phone using the steering wheel switches Volume switch During an incoming call: Adjusts the ring tone volume During speaking on the phone: Adjusts in call volume.
Page 504: Bluetooth ® Phone
® 5-9. Bluetooth Phone ® Bluetooth phone settings You can adjust the hands-free system to your desired settings. “Telephone settings” screen Go to “Telephone settings”: “MENU” button  “Setup”  “Telephone” ® Register and connect a Bluetooth device. (P. 484) Adjust the call volume.
Page 505 ® 5-9. Bluetooth Phone Phone display settings Change the incoming call display Set the phonebook/history transfer status notification display on/off To return to the default volume settings ■ Move the controller to the left and then select “Defaults”.
Page 506: Phonebook
5-10. Phonebook Contact settings Individual phonebooks from up to 5 phones can be registered to the system. The data for 2500 contacts (up to 4 numbers per contact) can be registered into the system’s phonebook. “Contact/call history settings” screen Go to “Contact/call history settings”: “MENU” button  “Setup”  “Telephone” ...
Page 507 5-10. Phonebook ® Edit a contact (PBAP incompatible Bluetooth phones, or compatible phones with “Automatic transfer” off) Select the desired contact to edit. ® Delete contacts (P. 508) (PBAP incompatible Bluetooth phones, or compatible phones with “Automatic transfer” off) Edit a voice tag (P. 526) Return to the default settings ■...
Page 508 5-10. Phonebook Registering favorites You can register the desired contact from the phonebook. Up to 15 contacts per phone can be registered. Go to “Add favourite”: “MENU” button  “Setup”  “Telephone”  “Con- tact/call history settings”  “Add favourite” Choose the contact to register.
Page 509: Messaging Setting
5-10. Phonebook Messaging setting Go to “Messaging settings”: “MENU” button  “Setup”  “Telephone”  “Messaging settings” Select to set the message forward- ing from cellular phones on/off Select to set the new SMS/MMS notification display on/off Select to set the new e-mail notifica- tion display on/off Select to set the signature function on/off...
Page 510: Bluetooth
® 5-11. Bluetooth What to do if... (Troubleshooting) ® If there is a problem with the hands-free system or a Bluetooth device, first check the table below. ® When using the hands-free system with a Bluetooth device  ® The hands-free system or Bluetooth device does not work.
Page 511 ® 5-11. Bluetooth When making/receiving a call  A call cannot be made/received. Your vehicle is in a “No service” area.  Move to where “No service” no longer appears on the display. When using the phonebook  Phonebook data cannot be transferred manually/automatically. Automatic phonebook transfer function on this system is set to off.
Page 512 ® 5-11. Bluetooth In other situations  Even though all conceivable measures have been taken, the symptom status does not change. The cellular phone is not close enough to this system.  Bring the cellular phone closer to this system. The cellular phone is the most likely cause of the symptom.
Page 513: Bluetooth
® 5-11. Bluetooth ® Bluetooth ® When using the Bluetooth audio system ■ In the following situations, the system may not function. ● • If the portable audio player is turned off • If the portable audio player is not connected •...
Page 514 ® 5-11. Bluetooth ® Bluetooth antenna ■ The antenna is built into the display. If the portable audio player is behind the seat or in the glove box or console box, or is touching or covered by metal objects, the connection status may deteriorate. If the cellular phone is behind the seat or in the console box, or touching or covered by metal objects, the connection status may deteriorate.
Page 515 ® 5-11. Bluetooth Compatible models ■ ® The Bluetooth audio system supports portable audio players with the following specifi- cations ® Bluetooth specifications: ● Ver. 2.0, or higher (Recommended: Ver. 3.0 +EDR or higher) Profiles: ● • A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (Recommended: Ver.
Page 516 ® 5-11. Bluetooth Certification ■...
Page 517 ® 5-11. Bluetooth...
Page 518 ® 5-11. Bluetooth WARNING While driving ■ Do not operate the portable audio player, cellular phone or connect a device to the ® Bluetooth system. Caution regarding interference with electronic devices ■ ® Your audio unit is fitted with Bluetooth antennas.
Page 519: Other Function
5-12. Other function “Information” screen Display “Information” screen Go to “Information”: “MENU” button  “Info” Display the “MirrorLink” screen. (P. 520) Display the “USB photo” screen. (P. 524)
Page 520: Mirrorlink
5-12. Other function MirrorLink™ The MirrorLink™ function enables operations of some smartphone content via the Lexus Display Audio system. Depending on differences between models or software version etc., some models might be incompatible with this system. Connect a smartphone to USB port using a USB cable.
Page 521 ■ Follow the specific operation procedures for the smartphone application. Control area Press the back button on the Lexus Display Audio controller to turn the control area display on/ off. Return application list screen If you select the other application, the new application screen will displayed.
Page 522 When using MirrorLink™ ■ Check that the smartphone screen is unlocked. Unlock the smartphone screen before ● connecting it to the Lexus Display Audio system. (Some smartphones may not be able ™ to be connected via MirrorLink if the screen is locked.) ®...
Page 523 5-12. Other function NOTICE To avoid damaging the smartphone ■ Depending on the size and shape of the smartphone that is connected to the system, ● the console box may not close fully. In this case, do not forcibly close the console box as this may damage the smartphone or the terminal, etc.
Page 524: Usb Photo
5-12. Other function USB photo Connecting a USB memory device enables you to enjoy photo on the Lexus Display Audio display. USB photo screen Go to “USB photo”: “MENU” button  “Info”  “USB 1 photo” or “USB 2 photo”...
Page 525 5-12. Other function USB memory functions ■ P. 477 USB memory ■ Compatible devices ● USB memory device that can be used for JPEG display. Compatible device formats ● The following device format can be used: • USB communication format: USB2.0 FS (480 Mbps) •...
Page 526: Speech Command System
5-12. Other function Speech command system Using the speech command system enables you to make a call to contacts that have a voice tag. Editing a voice tag You can register desired contacts to enable the speech command system. Up to 50 contacts per phone can be registered.
Page 527 5-12. Other function Microphone ■  P. 493 Speech commands may not be recognized if: ■ Spoken too quickly ● Spoken at a low or high volume ● Passengers are talking while speech commands are spoken ●...
Page 528 5-12. Other function...
Page 529: Interior Features
• Sun visors ........ 567 • Vanity mirrors ....... 567 6-2. Using the air conditioning system and defogger • Clock ........568 Lexus Climate Concierge..535 • Wireless charger ....568 Automatic air • Power outlets......574 conditioning system ....536 • Front passenger Heated steering wheel/ footwell hooks.......575...
Page 530: Remote Touch
6-1. Basic operation of the Remote Touch screen  Remote Touch The Remote Touch can be used to operate the Remote Touch screens. For details, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”. The illustration below is for left-hand drive vehicles. “MAP”...
Page 531 6-1. Basic operation of the Remote Touch screen Remote Touch operation Select: Move the Remote Touch knob in the desired direction. Enter: Push the Remote Touch knob or an “ENTER” button. Screen display during low temperatures ■ When the ambient temperature is extremely low, screen response may be delayed even if the Remote Touch is operated.
Page 532 6-1. Basic operation of the Remote Touch screen “Menu” screen Press the “MENU” button on the Remote Touch to display the “Menu” screen. When the split-screen display is selected, the “Menu” screen will be displayed on the main display. (P. 533) Switch Function Select to display the map screen or the navigation menu screen.
Page 533: Inch Display
6-1. Basic operation of the Remote Touch screen  12.3-inch display 12.3-inch display overview Full screen display ■ The following functions can be displayed full screen: • Initial screen • “Menu” screen (P. 532) • Map screen • Audio screen •...
Page 534 (P. 533), it will be dis- played full screen. Interruption screens  Each of the following screens is displayed automatically in accordance with conditions. • Lexus parking assist-sensor (P. 372) • Phone • Driving mode (P. 417) : Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
Page 535: Using The Air Conditioning System And Defogger
The climate control seats are automatically controlled according to the set temperature of the air conditioning system, outside temperature, cabin tem- perature, etc. Lexus Climate Concierge allows a comfortable condition to be maintained without adjusting each system. Automatic air conditioning system (P. 541) Set the air conditioning system to automatic mode.
Page 536: Automatic Air Conditioning System
Air outlets and fan speed are automatically adjusted according to the tem- perature setting. Vehicles with a Lexus Display Audio system: Press the “MENU” button on the Lexus Display Audio controller, then select “Climate” to display the air condi- tioning control screen.
Page 537 6-2. Using the air conditioning system and defogger Control panel Adjusting the temperature setting ■ Press to increase the temperature and to decrease the tem- perature. Adjusting the fan speed setting ■ Press to increase the fan speed and to decrease the fan speed. Press the “OFF”...
Page 538 6-2. Using the air conditioning system and defogger Change the airflow mode ■ To change the air outlets, press Vehicles with a Lexus Display Vehicles with a navigation system   Audio system The air outlets used are switched each time the button is pressed.
Page 539 6-2. Using the air conditioning system and defogger Control screen Lexus Display Audio screen  Adjust the left-hand side tempera- ture setting Adjust the fan speed setting Select to set auto mode on/off Select to change the fan speed set- ting during the automatic mode operation.
Page 540 ■ Select on the air conditioning control screen to display the option control screen. The functions can be switched on and off. Lexus Display Audio screen Navigation system screen   Prevent ice from building up on the windshield and wiper blades (if equipped) (P.
Page 541 6-2. Using the air conditioning system and defogger Air conditioning controls Using the automatic mode ■ Press the “AUTO” button or select “AUTO” on the air conditioning control screen. Press to switch to automatic air intake mode. (if equipped) The air conditioning system automatically switches between outside air and recirculated air modes.
Page 542 6-2. Using the air conditioning system and defogger Other functions Switching between outside air and recirculated air modes ■ Type A  Press The mode switches between (recirculated air mode) and (outside air mode) modes each time the button is pressed. Type B ...
Page 543 6-2. Using the air conditioning system and defogger Windshield wiper de-icer (if equipped) ■ This feature is used to prevent ice from building up on the windshield and wiper blades. Select on the option control screen. When the windshield wiper de-icer is on, is displayed on the air condition- ing control screen.
Page 544 6-2. Using the air conditioning system and defogger Air outlets Location of air outlets ■ The air outlets and air volume changes according to the selected air flow mode. Adjusting the position of and opening and closing the air outlets ■...
Page 545 ● entry & start system can be changed. For details, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. : The doors that can recall the driving position memory are changed at the same time.
Page 546 6-2. Using the air conditioning system and defogger Outside/recirculated air mode ■ When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recircu- ● lated air mode button to the recirculated air mode. This is effective in preventing out- side air from entering the vehicle interior.
Page 547 6-2. Using the air conditioning system and defogger nanoe (if equipped) ■ Your vehicle incorporates a nanoe device, which is considered a biocidal product. The nanoe device generates charged water particles from the ambient air. These parti- cles purify the air in the cabin by suppressing bacteria. The nanoe...
Page 548 (if equipped) ■ Do not disassemble or repair the generator because it contains high voltage parts. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional if the generator needs repair. NOTICE To prevent battery discharge ■...
Page 549: Heated Steering Wheel/ Seat Heaters/ Seat Ventilators
6-2. Using the air conditioning system and defogger   Heated steering wheel /seat heaters /seat ventila-  tors Heated steering wheel and seat heaters heat the side grips of the steering wheel and seats, respectively. Seat ventilators maintain good airflow by blow- ing air from the seats.
Page 550 6-2. Using the air conditioning system and defogger Operation condition ■ The heated steering wheel can be used when the engine switch is in IGNITION ON mode. Timer ■ The heated steering wheel will automatically turn off after about 30 minutes. When the heated steering wheel is operating ■...
Page 551 6-2. Using the air conditioning system and defogger When the front passenger seat heater is operating ■ If the Heated Windshield Defroster is operated, operation of the front passenger seat heater will be suspended. Turn off the Heated Windshield Defroster enable the front pas- senger seat heater.
Page 552: Using The Interior Lights
6-3. Using the interior lights Interior lights list Outer foot lights Rear interior light (P. 553) Instrument panel ornament light Rear personal lights (P. 554) (if equipped) Door courtesy lights Shift lever light (if equipped) Footwell lights Front interior light (P. 553) Scuff lights (if equipped) Front personal lights (P.
Page 553: Interior Lights
6-3. Using the interior lights Interior lights The rear interior light turns on/off together with the front interior light. Turns the lights on/off (touch the light) Turns the door position on/off...
Page 554: Personal Lights
6-3. Using the interior lights Personal lights Front  Turns the lights on/off (touch the lights) Rear  Turns the lights on/off...
Page 555 Never remove the lens for the front interior light and front personal lights. Otherwise, ● the lights will be damaged. If the lens need to remove, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 556: List Of Storage Features
6-4. Using the storage features List of storage features Glove box (P. 557) Bottle holders (P. 560) Auxiliary boxes (if equipped) Console box (P. 557) (P. 561) Cup holders (P. 558) Door pockets (P. 559) Coin box (P. 560) WARNING Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause ●...
Page 557: Glove Box
6-4. Using the storage features Glove box Open (press the button) Unlock with the mechanical key Lock with the mechanical key The glove box light turns on when the tail lights are on. Console box Push the knob. Lift by hand to fully open the console box.
Page 558: Cup Holders
6-4. Using the storage features Cup holders Front Rear   Pull down the armrest and then press down the button. The depth of the front cup holder can be changed. To store a water bottle, push down the bottom of the cup holder.
Page 559: Door Pockets
6-4. Using the storage features NOTICE To prevent damage to the rear cup holder, stow the cup holder before stowing the arm- rest. Door pockets Front Rear   The door pockets can be opened and closed. WARNING Front door pockets: Keep the door pockets closed while driving. Injuries may result in the event of an accident or sudden braking.
Page 560: Bottle Holders
6-4. Using the storage features Bottle holders When storing a bottle, close the cap. ● The bottle may not be stored depending on its size or shape. ● NOTICE Do not place open bottle, glass or paper cups containing liquid in the bottle holders. Otherwise, contained liquid may be spilled.
Page 561: Auxiliary Boxes
6-4. Using the storage features Auxiliary boxes Type A Type B   Press in the lid. Lift the lid. Type C (if equipped)  Pull up the lever to release the lock, and lift the lid. WARNING Type A: Do not store items heavier than 200 g (0.44 lb.). Doing so may cause the auxiliary box to open and the items inside may fall out, result- ing in an accident.
Page 562: Luggage Compartment Features
6-4. Using the storage features Luggage compartment features Cargo hooks Pull down the hook to use. The cargo hooks are provided for securing loose items. WARNING To avoid injury, always return the hooks to their stowed positions when not in use. Cargo net hooks To hang the cargo net, use the cargo net hooks and rear cargo hooks.
Page 563 6-4. Using the storage features Grocery bag hooks To use the grocery bag hook, push it in. NOTICE Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks. Luggage cover Using the luggage cover ■...
Page 564 6-4. Using the storage features Removing the luggage cover ■ Release the cover from the left and right anchors and allow it to retract. Compress the end of the luggage cover and lift the luggage cover After removing the luggage cover, place it somewhere other than the passenger compartment.
Page 565 6-4. Using the storage features Auxiliary boxes Pull the lever up and fold the flap of the deck board. Lift the deck board and disengage the hook on the underside of the deck board. Attach the hook to the upper edge of the back door opening as shown.
Page 566 6-4. Using the storage features Vehicles with a full-size spare tire ■ Deck Floor box Deck side box   Pull the strap upwards when lifting the cover up. Vehicles without a spare tire ■ Deck Floor box Deck side box ...
Page 567: Other Interior Features
6-5. Using the other interior features Other interior features Sun visors To set the visor in the forward posi- tion, flip it down. To set the visor in the side position, flip down, unhook, and swing it to the side. To use the side extender, place the visor in the side position, then slide it backward.
Page 568: Clock
The GPS clock's time is automatically adjusted by utilizing GPS time informa- tion. For details, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”. Vehicles with a Lexus Display Audio system  The clock can be adjusted by pressing the buttons. Pressing and holding will move the clock hands backward.
Page 569 6-5. Using the other interior features Name for all parts ■ Power supply switch Operation indicator light Charge area Using the wireless charger ■ Press the power supply switch of the wireless charger. Pressing the switch again turns the wireless charger off. When turned on, the operation indi- cator light (green) comes on.
Page 570 Operation indicator light Suspected causes Measure Contact any authorized Blinks (orange) at a one Vehicle to charger com- Lexus dealer or repairer, second interval continu- munication failure. or another duly qualified ously and equipped professional. A foreign object exists...
Page 571 6-5. Using the other interior features If a cover or accessory is attached to the portable device ■ Do not charge a portable device if a cover or accessory which is not Qi compatible is attached. Depending on the type of cover and/or accessory attached, it may not be pos- sible to charge the portable device.
Page 572 6-5. Using the other interior features WARNING Caution while driving ■ When charging a portable device while driving, for safety reasons, the driver should not operate the portable device. Caution regarding interference with electronic devices ■ People with implantable cardiac pacemakers, cardiac resynchronization therapy pace- makers or implantable cardioverter defibrillators, as well as any other electrical medi- cal device, should consult their physician about the usage of the wireless charger.
Page 573 If in situations other than above the wireless charger does not operate properly or the operation indicator light is blinking, the wireless charger may be malfunctioning. Con- tact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 574: Power Outlets
6-5. Using the other interior features Power outlets Please use as a power supply for electronic goods that use less than 12 VDC /10 A (power consumption of 120 W). Observe the following when using electronic goods: Make sure that the power consumption of all the connected power outlets on ●...
Page 575: Front Passenger Footwell Hooks
6-5. Using the other interior features The power outlets can be used when the engine switch is in ACCESSORY or IGNI- ● TION ON mode. The shape of the console box rim allows power ● cables to be passed through when the console box lid is closed.
Page 576: Rear Door Sunshades
6-5. Using the other interior features Rear door sunshades (if equipped) Pull the sunshade up using the tab and hook the sunshade on to the anchors. To lower the sunshade, pull it up slightly using the tab, unhook it from the anchors, and lower it slowly.
Page 577: Assist Grips
6-5. Using the other interior features Assist grips An assist grip installed on the ceiling can be used to support your body while sitting on the seat. WARNING Do not use the assist grip when getting in or out of the vehicle or rising from your seat. NOTICE To prevent damage to the assist grip, do not hang any heavy object or put a heavy load on the assist grip.
Page 578: Era-Glonass
6-5. Using the other interior features  ERA-GLONASS ERA-GLONASS is a telematics service that uses Global Navigation Satellite System (GLONASS) data and embedded cellular technology to enable the following emergency calls to be made: Automatic emergency calls (Auto- matic Collision Notification) and manual emergency calls (by pressing the “SOS”...
Page 579 ● engine switch is turned to IGNITION ON mode, the system may be malfunc- tioning or the backup battery may be depleted. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. The service life of the backup battery is 3 years or more.
Page 580 If the battery’s voltage decreases or there is a disconnection, the system may not be ● able to access the Public Safety Answering Point (PSAP). When replacing DCM to a new one ■ ERA-GLONASS have to be activated. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 581 Using the system while there is smoke or an unusual smell may cause a fire. Stop ● using the system immediately and consult any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 582 Call or the Manual Maintenance Check You will not be able to communicate with the Public Safety Answering Point (PSAP) operator. If any of this equipment has been broken, please consult any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 583: Maintenance And Care
Maintenance and care 7-1. Maintenance and care Cleaning and protecting the vehicle exterior ....584 Cleaning and protecting the vehicle interior....589 7-2. Maintenance Maintenance requirements ......592 7-3. Do-it-yourself maintenance Do-it-yourself service precautions........595 Hood ..........597 Positioning a floor jack ....598 Engine compartment ....599 Tires...........612 Tire inflation pressure ....629 Wheels ..........
Page 584: Cleaning And Protecting The Vehicle Exterior
7-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condi- tion: Working from top to bottom, liberally apply water to the vehicle body, wheel ● wells and underside of the vehicle to remove any dirt and dust. Wash the vehicle body using a sponge or soft cloth, such as a chamois.
Page 585 • Do not use wax or glass cleaners that contain abrasives when cleaning the windows. • Do not use any metallic objects to remove condensation build up. When the water-repellent performance has become insufficient, the coating can be ● repaired. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 586 Precaution regarding the rear bumper with Blind Spot Monitor (if equipped) ■ If the paint of the rear bumper is chipped or scratched, the system may malfunction. If this occurs, consult any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 587 7-1. Maintenance and care NOTICE To prevent paint deterioration and corrosion on the body and components (aluminum ■ wheels, etc.) Wash the vehicle immediately in the following cases: ● • After driving near the sea coast • After driving on salted roads •...
Page 588 7-1. Maintenance and care NOTICE When using a high pressure car wash ■ When washing the vehicle, do not let water of the high pressure washer hit directly or ● the vicinity of the camera. Due to the shock from the high pressure water, it is possible the device may not operate as normal.
Page 589: Cleaning And Protecting The Vehicle Interior
7-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth ●...
Page 590 7-1. Maintenance and care Caring for leather areas ■ Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle’s interior. Shampooing the carpets ■ There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 591 Water may also cause the body to rust. When cleaning the inside of the windshield (vehicles with Lexus Safety System+) ■ Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
Page 592: Maintenance
Lexus recommends the following maintenance: Scheduled maintenance Scheduled maintenance should be performed at specified intervals according to the maintenance schedule. For full details of your maintenance schedule, refer to the “Lexus Service Booklet” or “Lexus Warranty Booklet”. Do-it-yourself maintenance What about do-it-yourself maintenance? Many maintenance items are easy to do yourself if you have a little mechanical ability and a few basic automotive tools.
Page 593 Engine coolant temperature continually higher than normal (P. 666) ● If you notice any of these clues, take your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible. Your vehicle may need adjustment or repair.
Page 594 7-2. Maintenance WARNING If your vehicle is not properly maintained ■ Improper maintenance could result in serious damage to the vehicle and possible seri- ous injury or death. Handling of the battery ■ Battery posts, terminals and related accessories contain lead and lead compounds which are known to cause brain damage.
Page 595: Do-It-Yourself Service Precautions
7-3. Do-it-yourself maintenance Do-it-yourself service precautions If you perform maintenance by yourself, be sure to follow the correct proce- dure as given in these sections. Items Parts and tools • Warm water • Baking soda • Grease Battery condition (P. 607) •...
Page 596 7-3. Do-it-yourself maintenance WARNING The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions. When working on the engine compartment ■ Keep hands, clothing and tools away from the moving fan and engine drive belt. ●...
Page 597: Hood
7-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release lever. The hood will pop up slightly. Pull up the auxiliary catch lever and lift the hood. WARNING Pre-driving check ■...
Page 598: Positioning A Floor Jack
7-3. Do-it-yourself maintenance Positioning a floor jack When using a floor jack, follow the instructions in the manual provided with the jack and perform the operation safely. When raising your vehicle with a floor jack, position the jack correctly. Improper placement may damage your vehicle or cause injury. ◆...
Page 599: Engine Compartment
7-3. Do-it-yourself maintenance Engine compartment RX350  Washer fluid tank (P. 611) Battery (P. 607) Engine oil filler cap (P. 603) Fuse box (P. 640) Engine oil level dipstick (P. 601) Radiator (P. 607) Engine coolant reservoir Condenser (P. 607) (P.
Page 600 7-3. Do-it-yourself maintenance RX200t  Intercooler coolant reservoir Fuse box (P. 640) (P. 605) Radiator (P. 607) Engine oil filler cap (P. 603) Condenser (P. 607) Engine oil level dipstick (P. 601) Electric cooling fans Engine coolant reservoir Intercooler radiator (P. 607) (P.
Page 601 7-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil ■ Park the vehicle on level ground. After warming up the engine and turning off the engine, wait more than 5 minutes for the oil to drain back into the bottom of the engine.
Page 602 7-3. Do-it-yourself maintenance Holding a rag under the end, pull the dipstick out and check the oil level. Normal Excessive Flat dipstick Non-flat dipstick   The shape of the dipstick may differ depending on the type of vehicle or engine.
Page 603 7-3. Do-it-yourself maintenance Adding engine oil ■ If the oil level is below or near the low level mark, add engine oil of the same type as that already in the engine. RX350 RX200t   Make sure to check the oil type and prepare the items needed before adding oil.
Page 604 Call any autho- rized Lexus dealer or repairer, or another duly qualified and equipped professional, service station or auto parts store for information concerning recycling or disposal.
Page 605 7-3. Do-it-yourself maintenance Coolant The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on the reservoir when the engine is cold. Engine coolant reservoir ■ RX350 RX200t   Reservoir cap “LOW” line “FULL” line If the level is on or below the “LOW”...
Page 606 Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and water pump. If you cannot find a leak, have any authorized Lexus dealer or repairer, or another duly qualified and equipped professional, test the cap and check for leaks in the cooling sys- tem.
Page 607 Check the radiator, condenser and intercooler radiator and clear away any for- eign objects. If any of the above parts are extremely dirty or you are not sure of their condition, have your vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. WARNING When the engine is hot ■...
Page 608 7-3. Do-it-yourself maintenance Checking battery fluid ■ Check that the level is between the “UPPER LEVEL” and “LOWER LEVEL” lines. “UPPER LEVEL” line “LOWER LEVEL” line If the fluid level is at or below the “LOWER LEVEL” line, add distilled water.
Page 609 If the system will not start even after multiple attempts at all the methods above, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional.
Page 610 7-3. Do-it-yourself maintenance WARNING Chemicals in the battery ■ Battery contains poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near the battery: Do not cause sparks by touching the battery terminals with tools.
Page 611 7-3. Do-it-yourself maintenance Washer fluid If none of the washer do not work or the “Windshield Washer Fluid Low” appears on the multi-information dis- play, the washer tank may be empty. Add washer fluid. WARNING When adding washer fluid ■ Do not add washer fluid when the engine is hot or operating as washer fluid contains alcohol and may catch fire if spilled on the engine, etc.
Page 612: Tires
7-3. Do-it-yourself maintenance Tires Replace or rotate tires in accordance with maintenance schedules and treadwear. Checking tires Check if the treadwear indicators are showing on the tires. Also check the tires for uneven wear, such as excessive wear on one side of the tread. Check the spare tire condition and pressure if not rotated.
Page 613 Front Front Rotate the tires in the order shown. To equalize tire wear and help extend tire life, Lexus recommends that you rotate your tires approximately at the following intervals: 2WD models: Every 10000 km (6000 miles)
Page 614 7-3. Do-it-yourself maintenance Tire pressure warning system Your vehicle is equipped with a tire pressure warning system that uses tire pres- sure warning valves and transmitters to detect low tire inflation pressure before serious problems arise. The tire pressure detected by the tire ●...
Page 615 Have tire pressure warning valve and transmitter ID codes registered by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. (P. 617) ◆...
Page 616 7-3. Do-it-yourself maintenance How to initialize the tire pressure warning system ■ Park the vehicle in a safe place and turn the engine switch off. Initialization cannot be performed while the vehicle is moving. Adjust the tire inflation pressure to the specified cold tire inflation pressure level.
Page 617 A tire goes flat repeatedly or cannot be properly repaired due to the size or location of ● a cut or other damage. If you are not sure, consult with any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Replacing tires and wheels ■...
Page 618 In the following cases, the tire pressure warning system may not operate properly. ● • If non-genuine Lexus wheels are used. • A tire has been replaced with a tire that is not an OE (Original Equipment) tire. • A tire has been replaced with a tire that is not of the specified size.
Page 619 After performing initialization, the tire pressure warning light blinks for 1 minute then ● stays on while driving. If the inflation pressure of each tire is still not displayed, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 620 7-3. Do-it-yourself maintenance Certification for tire pressure warning system ■...
Page 621 7-3. Do-it-yourself maintenance...
Page 622 7-3. Do-it-yourself maintenance...
Page 623 7-3. Do-it-yourself maintenance...
Page 624 7-3. Do-it-yourself maintenance...
Page 625 7-3. Do-it-yourself maintenance...
Page 626 7-3. Do-it-yourself maintenance...
Page 627 Do not mix tires of different makes, models or tread patterns. ● Also, do not mix tires of remarkably different treadwear. Do not use tire sizes other than those recommended by Lexus. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Page 628 If a liquid sealant is used, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional or other qualified service shop as soon as possible. After use of liquid sealant, make sure to replace the tire pressure warning valve and transmitter when repairing or replacing the tire.
Page 629: Tire Inflation Pressure
Reduced safety ● Damage to the drive train ● If a tire needs frequent inflating, have it checked by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Instructions for checking tire inflation pressure ■ When checking tire inflation pressure, observe the following: Check only when the tires are cold.
Page 630 7-3. Do-it-yourself maintenance WARNING Proper inflation is critical to save tire performance ■ Keep your tires properly inflated. If the tires are not properly inflated, the following conditions may occur which could lead to an accident resulting in death or serious injury: Excessive wear ●...
Page 631: Wheels
● Bent wheels that have been straightened ● Aluminum wheel precautions Use only Lexus wheel nuts and wrenches designed for use with your alumi- ● num wheels. When rotating, repairing or changing your tires, check that the wheel nuts are ●...
Page 632 Because tire repair or replacement may affect the tire pressure warning valves and ● transmitters, make sure to have tires serviced by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional or other qualified ser- vice shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 633: Air Conditioning Filter
7-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air condi- tioning efficiency. Removal method Turn the engine switch off. Open the glove box. Slide off the damper. Push in the glove box on the vehicle’s outer side to disconnect the claws.
Page 634 Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, please refer to the “Lexus Service Booklet” or “Lexus Warranty Booklet”.) If air flow from the vents decreases dramatically ■...
Page 635 7-3. Do-it-yourself maintenance NOTICE When using the air conditioning system ■ Make sure that a filter is always installed. Using the air conditioning system without a filter may cause damage to the system. To prevent damage to the filter cover ■...
Page 636: Windshield Wiper Inserts
7-3. Do-it-yourself maintenance Windshield wiper inserts Replacing a windshield wiper insert Change the rest position of the windshield wipers to the service position using the wiper lever and then lift a windshield wiper. (P. 283) While pressing and holding the wiper blade lock release button, remove the wiper blade.
Page 637 Do not drive the vehicle with the windshield wipers lifted. Replacing the rear wiper insert ■ Have the rear wiper insert replaced by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Handling of the windshield wiper blades and inserts ■...
Page 638: Electronic Key Battery
7-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is depleted. You will need the following items: Flathead screwdriver ● Lithium battery CR2032 ● Replacing the battery Take out the mechanical key. Remove the cover. To prevent damage to the key, cover the tip of the flathead screwdriver with a tape.
Page 639 When the card key battery needs to be replaced (if equipped) ■ The battery for the card key is available only at your Lexus dealer. Your Lexus dealer can replace the battery for you. If the electronic key battery is depleted ■...
Page 640: Checking And Replacing Fuses
7-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the engine switch off. Open the fuse box cover. Engine compartment ...
Page 641 7-3. Do-it-yourself maintenance Remove the fuse with the pullout tool. Only some fuses can be removed using the pullout tool. Check if the fuse is blown. Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rat- ing.
Page 642 If the lights do not turn on even after the fuse has been replaced, a bulb may need ● replacement. (P. 643) If the replaced fuse blows again, have the vehicle inspected by any authorized Lexus ● dealer or repairer, or another duly qualified and equipped professional.
Page 643: Light Bulbs
As there is a danger that components may be damaged, we recommend that replacement is carried out by any autho- rized Lexus dealer or repairer, or another duly qualified and equipped profes- sional. Preparing for light bulb replacement Check the wattage of the light bulb to be replaced.
Page 644 7-3. Do-it-yourself maintenance Bulb locations Front ■ Front turn signal light (vehicles with single-beam headlights)
Page 645 7-3. Do-it-yourself maintenance Rear ■ Back-up light Rear turn signal light (vehicles with single-beam headlights)
Page 646 7-3. Do-it-yourself maintenance Replacing light bulbs Front turn signal lights (vehicles with single-beam headlights) ■ To ensure enough space to per- form work, turn the steering wheel to rotate the front wheel away from the bulb to be replaced. Remove the 3 fender liner clips. Turn the steering wheel to the left when replacing the right side light bulb, and turn the steering wheel to...
Page 647 7-3. Do-it-yourself maintenance Remove the light bulb. Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise. After installing the bulb base, wiggle it lightly to make sure it is securely installed and turn on the turn signal lights to visually check that there is no light leaking from between the bulb...
Page 648 7-3. Do-it-yourself maintenance Rear turn signal lights (vehicles with single-beam headlights) ■ Open the back door and apply protective tape to the vehicle body around the taillight. Use masking tape, etc. Do not use duct tape, as it may leave residue or damage the paint when removed.
Page 649 7-3. Do-it-yourself maintenance Remove the taillight unit. Attach 2 long pieces of mask- ing tape to the taillight unit and fold the excess in half. Hold the folded portion and pull it toward the rear of the vehicle to remove the light unit. Turn bulb base...
Page 650 7-3. Do-it-yourself maintenance Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise. After installing the bulb base, wiggle it lightly to make sure it is securely installed and turn on the rear turn sig- nal lights to visually check that there is no light leaking from between the bulb base and light unit.
Page 651 7-3. Do-it-yourself maintenance Back-up lights ■ Open the back door and remove the cover. Using a flathead screwdriver, remove the cover. To prevent scratching to the vehicle, wrap the tip of the flathead screw- driver with a cloth, etc. Turn bulb base counterclockwise and remove it.
Page 652 Replacing the following bulbs ■ If any of the lights listed below has burnt out, have it replaced by any autho- rized Lexus dealer or repairer, or another duly qualified and equipped profes- sional. Headlight low beams ●...
Page 653 LEDs. If any of the LEDs has burned out, take your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipped professional to have the light replaced.
Page 654 7-3. Do-it-yourself maintenance...
Page 655: When Trouble Arises
When trouble arises 8-1. Essential information 8-2. Steps to take in an emergency Emergency flashers ....656 If your vehicle needs If your vehicle has to be towed........658 to be stopped in an emergency ......657 If you think something is wrong........664 Fuel pump shut off system..665 If a warning light turns on or a warning buzzer...
Page 656: Essential Information
8-1. Essential information Emergency flashers The emergency flashers are used to warn other drivers when the vehicle has to be stopped in the road due to a breakdown, etc. Press the switch. All the turn signal lights will flash. To turn them off, press the switch once again.
Page 657: If Your Vehicle Has To Be Stopped In An Emergency
8-1. Essential information If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following procedure: Steadily step on the brake pedal with both feet and firmly depress it. Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.
Page 658: Steps To Take In An Emergency
Situations when it is necessary to contact dealers before towing The following may indicate a problem with your transmission. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped pro- fessional or commercial towing service before towing.
Page 659 8-2. Steps to take in an emergency Towing with a wheel-lift type truck From the front (2WD models) From the front (AWD models)   Release the parking brake. Use a towing dolly under the rear wheels. From the rear ...
Page 660 8-2. Steps to take in an emergency Using a flatbed truck If your vehicle is transported by a flat- bed truck, it should be tied down at the locations shown in the illustration. Front If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45.
Page 661 8-2. Steps to take in an emergency Emergency towing procedure Take out the towing eyelet. (P. 680, 695) Remove the eyelet cover. Except F SPORT models F SPORT models   Insert the towing eyelet into the hole and tighten partially by hand. Tighten down the towing eyelet securely using a wheel nut wrench or hard metal bar.
Page 662 8-2. Steps to take in an emergency While towing ■ If the engine is not running, the power assist for the brakes and steering will not function, making steering and braking more difficult. Wheel nut wrench ■ Wheel nut wrench is installed in luggage compartment. (P. 680, 695) WARNING Observe the following precautions.
Page 663 8-2. Steps to take in an emergency WARNING While towing ■ When towing using cables or chains, avoid sudden starts, etc. which place excessive ● stress on the towing eyelets, cables or chains. The towing eyelets, cables or chains may become damaged, broken debris may hit people, and cause serious damage. Do not turn the engine switch off.
Page 664: If You Think Something Is Wrong
If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible. Visible symptoms Fluid leaks under the vehicle ●...
Page 665: Fuel Pump Shut Off System
8-2. Steps to take in an emergency Fuel pump shut off system To minimize the risk of fuel leakage when the engine stalls or when an airbag inflates upon collision, the fuel pump shut off system stops the supply of fuel to the engine.
Page 666: If A Warning Light Turns On Or A Warning Buzzer Sounds
If a light comes on or flashes, but then goes off, this does not necessar- ily indicate a malfunction in the system. However, if this continues to occur, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 667 SRS warning light Indicates a malfunction in: • The SRS airbag system; or • The seat belt pretensioner system  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately. ABS warning light Indicates a malfunction in: •...
Page 668 • The TRC system; • The Trailer Sway Control; or • The hill-start assist control system  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately. When the warning light flashes:...
Page 669 Indicates a malfunction in the Stop & Start system (The Stop & Start cancel indicator will come on when the system is canceled: P. 348)  Have the vehicle inspected by any authorized Lexus dealer or (Flashes) (If equipped) repairer, or another duly qualified and equipped professional immediately.
Page 670 If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp will go off after several trips. If the malfunction indicator lamp does not go off, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.
Page 671 If both the ABS and the brake system warning lights remain on ■ Stop your vehicle in a safe place immediately and contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. The vehicle will become extremely unstable during braking, and the ABS system may fail, which could cause an accident resulting in death or serious injury.
Page 672 Check the tires. If a tire is flat, change it with the spare tire and have the flat tire repaired by the nearest any authorized Lexus dealer or repairer, or another duly qualified and equipped pro- fessional.
Page 673: If A Warning Message Is Displayed
Multi-information display If any of the warning messages are shown again after the following actions have been performed, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 674 The warning lights and warning buzzers operate as follows depending on the content of the message. If a message indicates the need for inspection by a dealer, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately.
Page 675 If the following messages are shown, there may be a malfunction. ● Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Con- tinuing to drive the vehicle may be dangerous.
Page 676 If this message is displayed but you have not had a new electronic key regis- tered, ask any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. to check if an unknown electronic key (other than...
Page 677 Indicates that the engine oil should be changed. (After the engine oil is changed and the message has been reset.) Check and change the engine oil, and oil filter by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. After chang-...
Page 678 There is a possible malfunction relating to the charging system or the battery may be deteriorating. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Vehicles with a Heated Windshield Defroster: This message will be displayed when the...
Page 679: If You Have A Flat Tire (Vehicles With A Spare Tire)
8-2. Steps to take in an emergency If you have a flat tire (vehicles with a spare tire) Your vehicle is equipped with a spare tire. The flat tire can be replaced with the spare tire. For details about tires: P. 612 WARNING If you have a flat tire ■...
Page 680 8-2. Steps to take in an emergency Location of the spare tire, jack and tools Vehicles with a compact spare tire  Jack handle Jack Wheel nut wrench Towing eyelet Spare tire...
Page 681 8-2. Steps to take in an emergency Vehicles with a full-size spare tire  Jack handle Jack Wheel nut wrench Towing eyelet Spare tire...
Page 682 8-2. Steps to take in an emergency WARNING Using the tire jack ■ Observe the following precautions. Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading to death or serious injury. Do not use the tire jack for any purpose other than replacing tires or installing and ●...
Page 683 8-2. Steps to take in an emergency Taking out the jack Secure the deck board using the hook. (P. 565) Disengage the hook and take out the jack. Remove the wheel nut wrench and then the jack. Taking out the spare tire Vehicles with a compact spare tire ...
Page 684 8-2. Steps to take in an emergency Vehicles with a full-size spare tire  Secure the deck board using the hook. (P. 565) Remove the spare tire cover. Loosen the center fastener that secures the spare tire. When taking out the spare tire, wear Spokes working gloves, firmly hold the spokes, and take out the tire with the proper...
Page 685 8-2. Steps to take in an emergency Replacing a flat tire Chock the tires. Flat tire Wheel chock positions Left-hand side Behind the rear right-hand side tire Front Right-hand side Behind the rear left-hand side tire Left-hand side In front of the front right-hand side tire Rear Right-hand side In front of the front left-hand side tire...
Page 686 8-2. Steps to take in an emergency Raise the vehicle until the tire is slightly raised off the ground. Remove all the wheel nuts and the tire. When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface.
Page 687 • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 688 8-2. Steps to take in an emergency Installing the spare tire Remove any dirt or foreign matter from the wheel contact surface. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, causing the tire to come off.
Page 689 8-2. Steps to take in an emergency Firmly tighten each wheel nut two or three times in the order shown in the illustration. Tightening torque: 103 N·m (10.5 kgf·m, 76 ft·lbf) Vehicles with a full-size spare tire: Reinstall the wheel ornament. Stow the flat tire, tire jack and all tools.
Page 690 8-2. Steps to take in an emergency Certification for the jack ■...
Page 691 • Dynamic radar cruise control with full- • Intelligent Clearance Sonar (ICS) (if speed range (if equipped) equipped) • PCS (Pre-Crash Safety system) (if • Lexus parking assist monitor (if equipped) equipped) • Panoramic view monitor (if equipped) • BSM...
Page 692 When removing or fitting the wheels, tires or the tire pressure warning valve and trans- mitter, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as the tire pressure warning valve and transmitter may be dam-...
Page 693: If You Have A Flat Tire (Vehicles Without A Spare Tire)
8-2. Steps to take in an emergency If you have a flat tire (vehicles without a spare tire) Your vehicle is not equipped with a spare tire, but instead is equipped with an emergency tire puncture repair kit. A puncture caused by a nail or screw passing through the tire tread can be repaired temporarily with the emergency tire puncture repair kit.
Page 694 ■ In the following cases, the tire cannot be repaired with the emergency tire puncture repair kit. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. When the tire is damaged due to driving without sufficient air pressure ●...
Page 695 8-2. Steps to take in an emergency Location of the emergency tire puncture repair kit, jack and tools Towing eyelet Emergency tire puncture repair kit Jack handle Jack Wheel nut wrench : Use of the jack (  P. 682, 683)
Page 696 8-2. Steps to take in an emergency Emergency tire puncture repair kit components Bottle ■ Air release cap Hose Sticker Compressor ■ Air pressure gauge Rubber stopper Power plug Compressor switch...
Page 697 8-2. Steps to take in an emergency Taking out the emergency tire puncture repair kit Secure the deck board using the hook. (P. 565) Take out the emergency tire punc- ture repair kit.
Page 698 8-2. Steps to take in an emergency Emergency repair method Remove the valve cap from the valve of the punctured tire. Extend the hose. Remove the air release cap from the hose. You will use the air release cap again. Therefore keep it in a safe place.
Page 699 8-2. Steps to take in an emergency Lift the rubber stopper on the com- pressor. Remove the power plug from the compressor. Connect the power plug to the power outlet socket. (P. 574) Connect the bottle to the compres- sor. Make sure that the bottle is securely connected.
Page 700 8-2. Steps to take in an emergency Attach the sticker as shown. Check the specified tire inflation pressure. Tire inflation pressure is specified on the label as shown. (P. 737) Left-hand drive vehicles Right-hand drive vehicles   Start the engine. (P. 246) To inject the sealant and inflate the tire, turn the compressor switch on.
Page 701 25 minutes with the switch on, the tire is too damaged to be repaired. Turn the compressor switch off and contact any autho- rized Lexus dealer or repairer, or another duly qualified and equipped professional. • If the tire inflation pressure exceeds the recommended level, let out some air to adjust the tire inflation pressure.
Page 702 Check the tire inflation pressure. If the tire inflation pressure is below 130 kPa (1.3 kgf/cm bar, 19 psi): The puncture cannot be repaired. Contact any autho- rized Lexus dealer or repairer, or another duly qualified equipped professional. If the tire inflation pressure is between 130 kPa (1.3 kgf/cm or bar, 19 psi) and a point below the recommended level: The tire can be repaired.
Page 703 100 km (62 miles) away for tire repair or replacement. Make sure to tell any authorized Lexus dealer or repairer, or another duly qualified and equipped professional when you have them repair or replace the tire that sealant...
Page 704 The sealant has a limited life span. The expiry date is marked on the bottle. The sealant ● should be replaced before the expiry date. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for replacement.
Page 705 8-2. Steps to take in an emergency Note for checking the emergency tire puncture repair kit ■ Check the sealant expiry date occasionally. The expiry date is shown on the bottle. Do not use sealant whose expiry date has already passed.
Page 706 8-2. Steps to take in an emergency WARNING When fixing the flat tire ■ Stop your vehicle in a safe and flat area. ● Do not touch the wheels or the area around the brakes immediately after the vehicle ● has been driven.
Page 707 If a liquid sealant is used, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional or other qualified service shop as soon as possible. After use of liquid sealant, make sure to replace the tire pressure warning valve and transmitter when repairing or replacing the tire.
Page 708: If The Engine Will Not Start
8-2. Steps to take in an emergency If the engine will not start If the engine will not start even though correct starting procedures are being followed (P. 246), consider each of the following points: The engine will not start even though the starter motor operates nor- mally One of the following may be the cause of the problem: There may not be sufficient fuel in the vehicle’s tank.
Page 709 ● There may be a malfunction in the steering lock system. ● Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional if the problem cannot be repaired, or if repair procedures are unknown. Emergency start function When the engine does not start, the following steps can be used as an interim measure to start the engine if the engine switch is functioning normally.
Page 710: If The Electronic Key Does Not Operate Properly
8-2. Steps to take in an emergency If the electronic key does not operate properly If communication between the electronic key and vehicle is interrupted (P. 170) or the electronic key cannot be used because the battery is depleted, the smart entry & start system and wireless remote control cannot be used.
Page 711 (turn and hold) Opens the windows and the moon roof panoramic moon roof (turn and hold) These settings must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. : If equipped...
Page 712 Firmly depress the brake pedal and check that is shown on the multi- information display. Press the engine switch. In the event that the engine still cannot be operated, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 713 8-2. Steps to take in an emergency Stopping the engine ■ Shift the shift lever to P, set the parking brake, and press the engine switch as you nor- mally do when stopping the engine. Replacing the key battery ■ As the above procedure is a temporary measure, it is recommended that the electronic key battery be replaced immediately when the battery is depleted.
Page 714: If The Vehicle Battery Is Discharged
The following procedures may be used to start the engine if the vehicle’s bat- tery is discharged. You can also call any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your vehicle by following the steps below.
Page 715 8-2. Steps to take in an emergency Connect the jumper cables according to the following procedure: RX350  RX200t  Connect a positive jumper cable clamp to the positive (+) battery terminal on your vehicle. Connect the clamp on the other end of the positive cable to the positive (+) battery terminal on the second vehicle.
Page 716 Once the vehicle’s engine has started, remove the jumper cables in the exact reverse order from which they were connected. Once the engine starts, have the vehicle inspected at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.
Page 717 If an unsupported battery is used, Stop & Start system functions may be restricted to protect the battery. Also, battery performance may decrease and the engine may not be able to restart. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. WARNING Avoiding battery fires or explosions ■...
Page 718: If Your Vehicle Overheats
After the engine has cooled down sufficiently, inspect the hoses and radiator core (radiator) for any leaks. Radiator Cooling fans If a large amount of coolant leaks, immediately contact any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional.
Page 719 8-2. Steps to take in an emergency The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on the reservoir. Engine Intercooler (RX200t only)   Reservoir “FULL” line “LOW” line Radiator cap Add coolant if necessary. Engine Intercooler (RX200t only) ...
Page 720 If the fans are operating: Have the vehicle inspected at the nearest any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Check if “Engine Coolant Temp High Stop in a Safe Place See Owner’s Man- ual”...
Page 721 8-2. Steps to take in an emergency NOTICE When adding engine coolant ■ Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant to a hot engine too quickly can cause damage to the engine. To prevent damage to the cooling system ■...
Page 722: If The Vehicle Becomes Stuck
8-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt or snow: Stop the engine. Shift the shift lever to P and set the parking brake. Remove the mud, snow or sand from around the front wheels.
Page 723 8-2. Steps to take in an emergency WARNING When attempting to free a stuck vehicle ■ If you choose to push the vehicle back and forth to free it, make sure the surrounding area is clear to avoid striking other vehicles, objects or people. The vehicle may also lunge forward or lunge back suddenly as it becomes free.
Page 724 8-2. Steps to take in an emergency...
Page 725: Vehicle Specifications
Vehicle specifications 9-1. Specifications Maintenance data (fuel, oil level, etc.) ....726 Fuel information......739 9-2. Customization Customizable features .... 740 9-3. Initialization Items to initialize......752...
Page 726: Specifications Maintenance Data (Fuel, Oil Level, Etc.)
9-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weights Overall length 4890 mm (192.5 in.) Overall width 1895 mm (74.6 in.) 1690 mm (66.5 in.) Overall height 1710 mm (67.3 in.) Wheelbase 2790 mm (109.8 in.) Front 1640 mm (64.6 in.) Tread Rear 1630 mm (64.2 in.)
Page 727 ■ The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in register- ing the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 728 9-1. Specifications Engine number ■ RX350  The engine number is stamped on the engine block as shown. RX200t  The engine number is stamped on the engine block as shown. Engine RX350  Model 2GR-FKS Type 6-cylinder V type, 4-cycle, gasoline 94.0 ...
Page 729 9-1. Specifications RX200t  Model 8AR-FTS 4-cylinder in line, 4-cycle, gasoline Type (with turbocharger) 86.0  86.0 mm (3.39  3.39 in.) Bore and stroke Displacement 1998 cm (121.9 cu. in.) Valve clearance (engine cold) Automatic adjustment Drive belt tension Automatic adjustment Fuel EU area...
Page 730 Engine oil selection ■ RX350  “Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom- mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of matching quality can also be used. Oil grade: 0W-20, 5W-30 and 10W-30: API grade SL “Energy-Conserving”, SM “Energy-Conserving”...
Page 731 9-1. Specifications Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather. •...
Page 732  “Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” or equiva- lent to satisfy the following grade and viscosity.
Page 733 9-1. Specifications Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather. •...
Page 734 Do not use plain water alone. : The coolant capacity is a reference quantity. If replacement is necessary, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Ignition system (spark plug) RX350 ...
Page 735 6.7 L (7.1 qt., 5.9 Imp. qt.) Fluid type Toyota Genuine ATF WS : The fluid capacity is a reference quantity. If replacement is necessary, contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. NOTICE Transmission fluid type ■...
Page 736 Toyota Genuine Differential gear oil LT Oil type and viscosity 75W-85 GL-5 or equivalent Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification.
Page 737 9-1. Specifications Steering Free play Less than 30 mm (1.2 in.) Tires and wheels Type A  Tire size 235/65R18 106V Front wheel Rear wheel Vehicle speed kPa (kgf/cm kPa (kgf/cm or bar, psi) or bar, psi) Tire inflation pressure More than (Recommended cold tire...
Page 738 9-1. Specifications Compact spare tire (if equipped)  Tire size T165/90D18 107M Spare tire inflation pressure (Recommended cold tire 420 kPa (4.2 kgf/cm or bar, 60 psi) inflation pressure) 18  4 T Wheel size Wheel nut torque 103 N • m (10.5 kgf • m, 76 ft • lbf) When towing a trailer (vehicles with towing package) ■...
Page 739: Fuel Information
The use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Page 740: Customization
The settings of these features can be changed using the multi-information display, on the audio system screen, or at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Customizing vehicle features When customizing vehicle features, ensure that the vehicle is parked in a safe place with the shift lever in P and the parking brake set.
Page 741 Settings that can be changed on the audio system screen Settings that can be changed by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional Definition of symbols: O = Available, – =Not available Gauges, meters and multi-information display (P.
Page 742 9-2. Customization Power back door (P. 151) ■ Function Default setting Customized setting Power back door switch opera- Press for 1 second One short press — O tion Automatic closing of the back — O door when lowered Automatic opening of the back door using the back door opener —...
Page 743 9-2. Customization Smart entry & start system and wireless remote control (P. 140, 168) ■ Function Default setting Customized setting Operation signal (Emergency flashers) Time elapsed before automatic 60 seconds door lock function is activated if 30 seconds — O door is not opened after being 120 seconds unlocked...
Page 744 9-2. Customization Driving position memory (P. 195) ■ Function Default setting Customized setting Driver’s seat movement when Standard exiting the vehicle Partial Selecting doors linked to the Driver’s door All doors — O memory recall function : If equipped Steering wheel (P. 202) ■...
Page 745 9-2. Customization Power windows, and moon roof or panoramic moon roof ■ (P. 210, 214, 218) Function Default setting Customized setting Mechanical key linked operation — O Wireless remote control linked — O operation Wireless remote control linked — O operation signal (buzzer) : If equipped Moon roof...
Page 746 9-2. Customization Turn signal lever (P. 258) ■ Function Default setting Customized setting The number of times the turn sig- nal lights flash automatically when the turn signal lever is — O moved to the first position during a lane change Automatic light control system (P.
Page 747 9-2. Customization AHS (Adaptive High-beam System) P. 269)  ■ Function Default setting Customized setting Adaptive High-beam System — O Clearance between a vehicle Narrow ahead and the shaded high Standard — O Wide beams Approximately 100 km/h (63 mph) or Vehicle speed at which the Approximately 120 more...
Page 748 Buzzer volume 1 to 5 All sensors dis- Display setting Display off played : If equipped : When Lexus parking assist-sensor is operating. BSM (Blind Spot Monitor) (P. 355) ■ Function Default setting Customized setting Outside rear view mirror indica-...
Page 749 9-2. Customization Driving mode select switch (P. 417) ■ Function Default setting Customized setting Power Powertrain control in customized Normal O — mode Chassis control in customized Normal Sport O — mode Air conditioning operation in Normal O — customized mode : If equipped Automatic air conditioning system (P.
Page 750 9-2. Customization Illumination (P. 552) ■ Function Default setting Customized setting Time elapsed before the interior 15 seconds 7.5 seconds lights turn off 30 seconds Operation after the engine — O switch is turned off Operation when the doors are —...
Page 751 9-2. Customization Vehicle customization ■ When the speed linked door locking function and the shift position linked door locking ● function are both on, the door lock operates as follows. • When shifting the shift lever to any position other than P, all the doors will be locked. •...
Page 752: Initialization
9-3. Initialization Items to initialize The following items must be initialized for normal system operation after such cases as the battery being reconnected, or maintenance being performed on the vehicle: Item When to initialize Reference • When changing the tire inflation pressure by changing traveling Tire pressure warning system speed...
Page 753: Index
What to do if... (Troubleshooting)....... 754 Alphabetical index.........758 For vehicles with a navigation system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” for information regarding the equipment listed below. • Navigation system • Lexus parking assist monitor • Audio/visual system • Panoramic view monitor...
Page 754 If you lose your mechanical keys, new genuine mechanical keys can be made ● by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. (P. 136) If you lose your electronic keys, the risk of vehicle theft increases significantly.
Page 755 What to do if... (Troubleshooting) If you think something is wrong The engine does not start Did you press the engine switch while firmly depressing the brake pedal? ● (P. 246) Is the shift lever in P? (P. 248) ● Is the electronic key anywhere detectable inside the vehicle? (P.
Page 756 What to do if... (Troubleshooting) A warning buzzer sounds during driving The seat belt reminder light is flashing ● Are the driver and the passengers wearing the seat belts? (P. 669, 669) The parking brake indicator is on ● Is the parking brake released? (P. 259) Depending on the situation, other types of warning buzzer may also sound.
Page 757 What to do if... (Troubleshooting) When a problem has occurred If you have a flat tire Vehicles without a spare tire ● Stop the vehicle in a safe place and repair the flat tire temporarily with the emergency tire puncture repair kit. (P. 693) Vehicles with a spare tire ●...
Page 758: Alphabetical Index
Alphabetical index Alphabetical index Airbags ............40 Airbag manual on-off system..51 A/C ............536 Airbag operating conditions ...47 Air conditioning filter......633 Airbag precautions Automatic air conditioning for your child........43 system ..........536 Airbag warning light ......667 Blower customization .....543 Correct driving posture.....34 S-FLOW mode.........
Page 759 Approach warning.......336 system .............267 Armrest.............576 Automatic High Beam ......274 Assist grips ..........577 Automatic light control system..265 Audio system (with Lexus Automatic transmission.......251 Display Audio System)....438 If the shift lever cannot be Antenna ..........465 shifted from P........256 Audio input ...........445 M mode..........
Page 760 Alphabetical index Brake Hold..........263 Warning light........667 Back door Break-in tips..........228 Back door..........146 Brightness control Power back door........151 Instrument panel light control ..98 Touchless power back door..153 BSM (Blind Spot Monitor) ....355 Wireless remote control....151 Blind Spot Monitor function ..361 Back-up lights Rear Crossing Traffic...
Page 761 Alphabetical index Child safety..........54 Coolant Airbag precautions......43 Capacity..........734 Back door precautions....148 Checking..........605 Battery precautions ....610, 717 Preparing and checking Child restraint system......54 before winter........429 How your child should wear Cooling system ........605 the seat belt.......... 37 Engine overheating......718 Installing child restraints ....54 Cornering lights........
Page 762 Alphabetical index Do-it-yourself maintenance .....595 Doors Eco drive mode........417 Automatic door locking and Eco Driving Indicator......120 unlocking system......143 Electric Power Steering (EPS) ..423 Back door..........146 Warning light........667 Door lock..........142 Electronic key ..........134 Outside rear view mirrors.....206 Battery-saving function ....169 Power back door........
Page 763 Alphabetical index Engine ACCESSORY mode ..... 247 Flat tire ...........679, 693 Compartment........599 Floor mats........... 32 Engine switch........246 Fluid Hood............597 Automatic transmission....735 How to start the engine....246 Brake ............736 Identification number.......728 Washer............611 If your vehicle has to be Fog lights stopped in an emergency..657 Replacing light bulbs .......
Page 764 Alphabetical index Front turn signal lights Replacing light bulbs......643 Hands-free system Turn signal lever.........258 (for cellular phone)......492 Wattage..........738 Head restraints........200 Fuel Head-up display........122 Capacity..........729 Headlight cleaner......... 279 Fuel gauge..........96 Headlights ..........265 Information..........739 Adaptive High-beam System ..269 Refueling ..........287 Automatic headlight leveling..267 Type............
Page 765 Alphabetical index Hill-start assist control ......422 Inside rear view mirror....... 204 Hood ............597 Instrument panel light control .... 98 Hooks Intelligent Clearance Sonar Cargo hooks........562 (ICS) ............380 Cargo net hooks........562 Indicator .............92 Front passenger footwell Warning light ........668 hooks............575 Warning messages ....
Page 766 Alphabetical index Lexus parking assist monitor .... 401 Display ............ 402 Keyless entry Precautions...........408 Smart entry & start system..... 168 Lexus parking assist-sensor....371 Wireless remote control..134, 151 Lexus Safety System+......291 Keys............. 134 Adaptive High-beam System ..269 Battery-saving function.....170 Automatic High Beam ....274 Electronic key........134...
Page 767 Memory recall function....... 198 Engine oil temperature gauge..107 Meter G-force display........108 Head-up display........122 Language ..........116 Indicators ..........90 Lexus parking assist-sensor ..371 Instrument panel light control..98 LKA (Lane-Keeping Assist) ..319 Meters ............96 Outside temperature ......96 Multi-information display....100 Settings............110 (Pre-Crash Safety system) ..301...
Page 768 Alphabetical index Paddle shift switches....252, 253 Navigation system Panoramic moon roof ......218 Jam protection function ....219 Operation ..........218 Odometer...........118 Parking assist sensors......371 Parking brake......... 259 Engine oil ..........729 Parking brake engaged Rear differential oil......736 warning buzzer/message... 261 Transfer oil..........736 Warning light........
Page 769 Alphabetical index Rear view mirror Inside rear view mirror ....204 Radar cruise control (dynamic Outside rear view mirrors.... 206 radar cruise control Rear window defogger ...... 542 with full-speed range)......329 Rear window wiper......285 Radiator ............607 Refueling ..........287 Radio............464 Capacity..........729 Rear Crossing Traffic Fuel types ..........729...
Page 770 Automatic headlight system ..267 S-FLOW mode ........538 Camera sensor ........293 Seat belts.............36 Inside rear view mirror ....205 Adjusting the seat belt......36 Lexus parking assist-sensor ..371 Child restraint system Radar sensor ........293 installation..........54 Rain-sensing windshield Cleaning and maintaining wipers ............281...
Page 771 Alphabetical index Spare tire Switches Inflation pressure........ 737 Adaptive High-beam System Storage location........680 switch........... 270 Spark plug..........734 All-wheel drive lock switch .... 421 Specifications ......... 726 Audio remote control Speech command system....526 switches ..........444 Speed warning..........118 Automatic High Beam switch..274 Speedometer ..........96 Brake hold switch ......
Page 772 Alphabetical index Outside rear view mirror switches..........206 Tachometer ..........96 Paddle shift switches....252, 253 Tail lights Panoramic moon roof Light switch........... 265 switches..........218 Replacing light bulbs ....... 643 Parking brake switch .......259 Talk switch........503, 526 Power back door opener Telephone switch .........503 and closer switch....
Page 773 Alphabetical index Tires............. 612 Traction Control (TRC)..... 422 Chains .............430 Trailer Sway Control......422 Checking ..........612 Trailer towing ......237, 238 Emergency tire puncture Transfer............. 736 repair kit ..........693 Transmission If you have a flat tire....679, 693 Automatic transmission....251 Inflation pressure....629, 737 Driving mode select switch....
Page 774 Approach warning......336 SRS ............667 Downshifting........255 Stop & Start cancel indicator ..669 Lane departure alert Tire pressure........669 function..........314 Warning messages......673 Lexus parking assist-sensor..375 Washer Light reminder........267 Checking...........611 Open door..........144 Preparing and checking Pre-crash warning ......301 before winter........429 Seat belt reminder......669...
Page 775 Alphabetical index Wheels ............631 Replacing wheels.........631 Size............737 Window glasses Front side windows......585 Power windows........210 Window lock switch ......210 Windows Power windows........210 Rear window defogger....542 Washer ........279, 285 Windshield wiper de-icer....543 Windshield wiper inserts ....636 Windshield wipers........
Page 776 GAS STATION INFORMATION Auxiliary catch lever Fuel filler door P. 597 P. 289 Hood lock release lever Tire inflation pressure P. 597 P. 737 Fuel tank capacity 72 L (19.0 gal., 15.8 Imp. gal.) (Reference) EU area: Unleaded gasoline conforming to European standard EN228 only Fuel type Except EU area:...
