RCY21151W
Manual Crimp Hand Tool
For Minitek Contacts AWG 26-30
User's Manual
Rev 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCY21151W and is the answer not in the manual?

Questions and answers

Summary of Contents for Amphenol RCY21151W

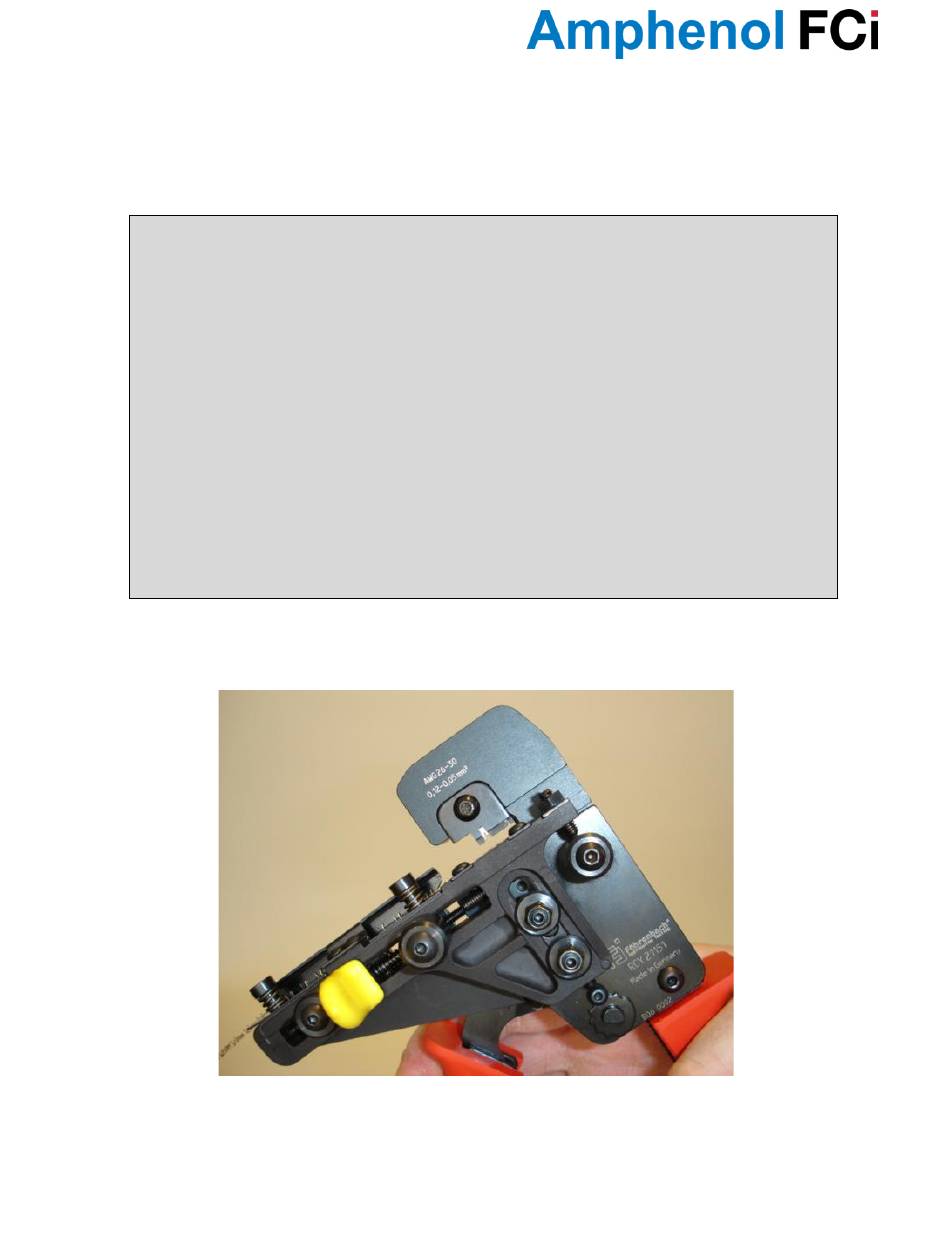

  • Page 1 RCY21151W Manual Crimp Hand Tool For Minitek Contacts AWG 26-30 User’s Manual Rev 02...

  • Page 2: Tool Description

    1. PURPOSE Crimping of Minitek AWG 26-30 contacts onto dedicated stranded wire. 2. TOOL DESCRIPTION - Single head crimp tool. The tool crimps one contact per cycle. - Short set-up times. - Releasable ratchet ensures the complete crimping process. - Ergonomically handles for comfortable working. - Optimal force transmission ratio.
  • Page 3 Feed a terminal into the crimping area of the hand tool. As shown on the picture, insert the strands of a stripped and straightened wire into the slot of the wire positioner. The insulation of the wire should be pouched to the surface of the wire positioner.
  • Page 4 Open the tool and take the crimped wire. The tool is not cutting the carrier strip. In order to work properly, the operator has to cut the carrier strip on a regular base. Before making the next crimp, feed terminal by one pitch. And repeat the crimping process.
  • Page 5 4. ADJUSTMENTS Depending on the applied wire, it could be possible that you need to adjust the conductor crimping height. In order to do this, remove the locking screw as shown on the picture Be sure that the tool is open. Adjust the crimping height by means of the crimping height adjustment key.

  • Page 6: General Specification

    After the adjustment, install the locking screw again. Do never crimp without the locking screw in position. 5. GENERAL SPECIFICATION - Color : Black metal with red levers. - Weight (tool) : 0.55kg - Weight (tool+box) : 1.45kg - Size (Protective box) : length 390 mm, width 300 mm, height 100mm 6.

  • Page 7: Environmental Conditions

    9. ENVIRONMENTAL CONDITIONS 9.1. Ambient temperature The ambient temperature is measured at a height of 1.5 m above the floor. a. Normal range : + 15°C to +30°C b. Average value : ± 23°C c. Maximum variation within a 5 min. period : ±...

  • Page 8: Appendix A: Release The Feeding Finger

    Appendix A: Release the feeding finger In order to release the feeding finger, pouch the release lever in the direction as shown by the red arrow on the tool body. With your other hand, you can carefully slide the strip of contacts out of the tool.
  • Page 9 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: FCI / Amphenol RCY21151W...
