Cool Energy
diverTech
Solar Diverter
Version 1.1
Installation and Users Guide
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
RETAIN FOR FUTURE REFERENCE
Customer Service and Technical Support
(Open from 9am-4pm Monday- Friday)
Phone: 01472 867497
Email:
sales@coolenergyshop.com
Address: Office & Showroom - 163 Cleethorpe Road, Grimsby, DN31 3AX
Website:
www.coolenergyshop.com
Page | 1
Cool Energy diverTech Manual v1.1 2022 ©
Advertisement
Table of Contents
Related Manuals for Cool Energy diverTech
Summary of Contents for Cool Energy diverTech
- Page 1 RETAIN FOR FUTURE REFERENCE Customer Service and Technical Support (Open from 9am-4pm Monday- Friday) Phone: 01472 867497 Email: sales@coolenergyshop.com Address: Office & Showroom - 163 Cleethorpe Road, Grimsby, DN31 3AX Website: www.coolenergyshop.com Page | 1 Cool Energy diverTech Manual v1.1 2022 ©...
- Page 2 Under the Consumer Protection Act 1987 and the Health and Safety at Work Act 1974, it is required to provide information on substances hazardous to health (COSHH Regulations 1998). Cool Energy takes every reasonable care to ensure that these products are designed and constructed to meet these general safety requirements, provided they are properly installed and used.
- Page 3 • Periodically check the condition of any supports for deterioration. • Do not wash the unit with water, alcohol, benzene, thinner, glass cleaner or powders. • During cleaning, isolate the electrical supply to the appliance. Page | 3 Cool Energy diverTech Manual v1.1 2022 ©...
-
Page 4: Product Overview

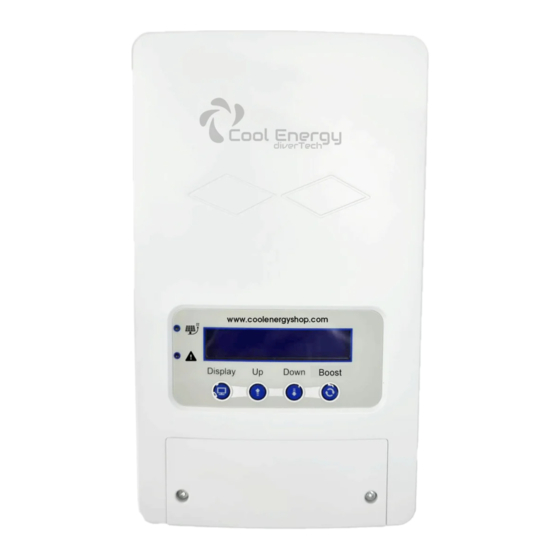

What can I connect to my diverTech? The diverTech is designed for use with up to 2 immersion heaters each rated up to 3kW for water heating, although it is possible to connect other resistive heaters like towel radiator elements. -
Page 5: Installation
Mounting should be at a height appropriate to allow the screen to be visible and buttons accessible. The room where the diverTech unit is installed should be well ventilated and a minimum of a 150mm air gap around all sides of the unit should be maintained to allow airflow for cooling. -
Page 6: Wiring Diagram
Element 1. will always take priority, and when satisfied will automatically switch over to Element 2. Every 20 minutes the diverTech unit will check to see if there is any demand for Element 1. and switch back to heating this element if there is a demand present. - Page 7 Wireless CT Sender Pairing: To initiate pairing of the wireless CT sender to the diverTech unit follow the below steps: 1. Ensure sender unit has 2 x AA batteries installed. 2. On the inverTech unit press “Display” + “Down” buttons together for 1 second – The Screen will now show “Pairing”...
-
Page 8: User Operation
Shows total energy diverted for all time Time HH:MM Current time in 24 Hour format Reset Data: Display + Boost Together – Clears all Software Data! Reset Button (Under wiring cover) – Clears all Hardware Data! Page | 8 Cool Energy diverTech Manual v1.1 2022 ©... -
Page 9: Technical Specifications
Timing Operation The diverTech energy diverter can provide users with three manual boost time periods if required. When set the maximum output will be sent to the heater outputs during this time even if there is not enough export power. -
Page 10: Warning Icon
If the PV array is not currently generating, you can temporarily reverse the CT clamp and turn on a household appliance like a kettle or electric fire. This will simulate export and cause the diverTech unit to think that there is solar surplus and start diverting power to the elements. -
Page 11: Warranty
Warranty The diverTech Solar Energy Diverter is covered by a 3 Year Warranty if installed correctly by a qualified electrician and registered with Cool Energy directly. • The warranty starts from the delivery date by an approved dealer. To validate the warranty must be registered with Cool Energy within 30 days of this date, unless otherwise •... - Page 12 Cool Energy Holding Ltd. 163 Cleethorpe Road, Grimsby, DN31 3AX. Email: sales@coolenergyshop.com www.coolenergyshop.com...
