Summary of Contents for GROM Audio GROM-HDR1

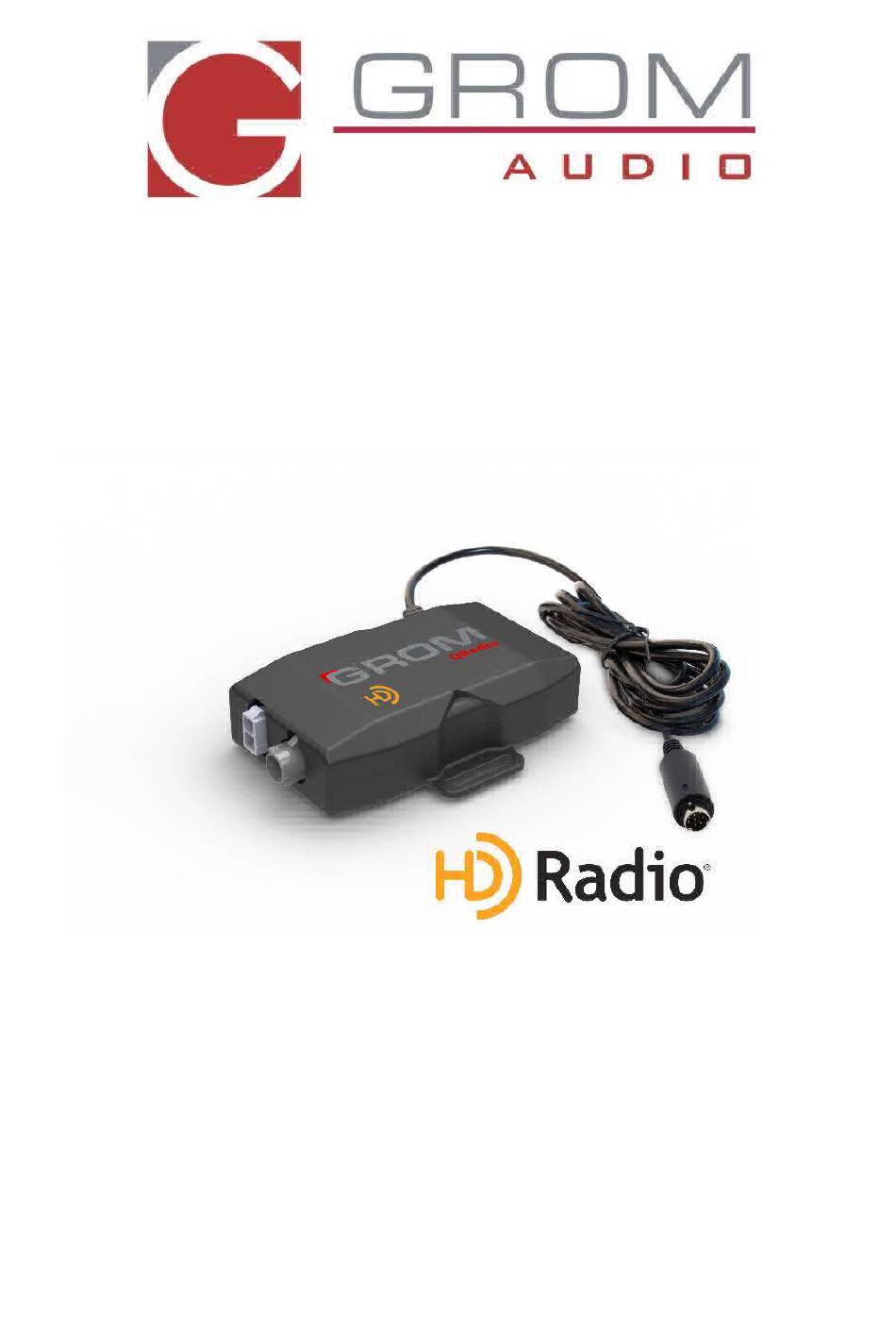

- Page 1 GROM-HDR1 FM HD Radio integration for compatible GROM units Support: http:/gromaudio.com/support.html Copyright © GROM Audio, 2016...
-
Page 2: Installation Instructions
Installation Instructions Chapter 1 – Getting Started 1.1 Subject The GROM-HDR1 adapter will allow you to add crystal clear digital FM HD radio to your existing compatible GROM adapter for your factory stereo. 1.2 Introduction Thank you for purchasing the GROM-HDR1 adapter, which has been designed to provide high quality digital FM HD radio through a compatible GROM adapter. -
Page 3: Chapter 2 - General Installation
USB3, MST3p, MST4, IPD4, BT3, IPD3. It will NOT work with other GROM units that are not listed. The GROM-HDR1 will occupy the EXT2/AUX port of the GROM unit. If you currently have a AUX or iPod cable connected you will need to disconnect that accessory in order to connect the GROM-HDR1. - Page 4 Once the operation of the interface is confirmed, you may continue with the installation. If you experience difficulties with the installation, please see our troubleshooting section. 8. Find a place where you can place the GROM-HDR1 adapter. In many cars, there is enough room in the dash to place GROM.
- Page 5 2.6 Testing the operation Testing 1. Turn ON factory stereo. You may need to turn the ignition off for about 10 seconds then on for the stereo to recognize the GROM HDR1 for the first time. BT3/IPD3 operation When using HDR1 with a BT3 or IPD3 product there are some slight differences in operation compared to all other compatible adapters.
- Page 6 CDC firmware operation (Dual display mode) (This section applies to BMW (non most), Chrysler, Mbus, Mits02, and Vol01 firmware units.) Operation 1. Press CD/DISC button to select GROM unit mode. 2. You will need to enter the “RADIO” mode of the GROM unit, for mode changing instructions please refer to yours owner’s manual of your GROM unit.
- Page 7 CDC firmware operation (Single display mode) (This section applies to Hon1, Maz02, Maz08, Mits08, NisCDC, SubCDC, Vag, Toy, and MOST firmware units.) *VOLS Single CD does not apply see VOLS operation on page 8 Operation Press CD/DISC button to select GROM unit mode. You will need to enter the “RADIO”...
- Page 8 MOST VOLS single CD operation (All other MOST vehicles refer to CDC single display operation section) Operation Press CD/DISC button to select GROM unit mode. You will need to enter the “RADIO” mode of the GROM unit, for mode changing instructions please refer to yours owner’s manual of your GROM unit.
-
Page 9: Installation Troubleshooting
A. It will only display this information if the firmware and stereo both support text display. Q. Does this unit receive AM HD radio stations? A. The GROM-HDR1 only supports FM HD radio at this time. You can also view our FAQ for some tips: http://gromaudio.com/support/faq.html... - Page 10 All parts of this product are guarantied for a period of 1 year as follows: Within the first 12 months form the date of purchase, subject to the conditions above, GROM Audio will repair or replace the product at their discretion, if it is defective in the material or workmanship.
- Page 11 6.3.2 OPERATIONAL WARNING AND SAFETY INSTRUCTIONS IMPORTANT NOTICE: YOU SHOULD READ AND FAMI LIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING THE GROM AUDIO iPod adapter. FAIL- URE TO ABIDE BY THESE OPERATIONAL WARNINGS AND SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS BODILY INJURY OR DEATH.
- Page 12 A. INDEMNIFICATION OFGROM AUDIO, ITS AGENTS AND EMPLOYEES. By Purchasing, Installing and Using the Products, You, the End- User, agree to indemnify, defend and hold harmless, GROM AUDIO, and it s Affiliates, Directors, Officers, Agents and Employees from any Liabilities, Damage, Loss, Claim and Ex- pense (including reasonable Attorney’s Fees) arising out of the installation and use of the Products.
