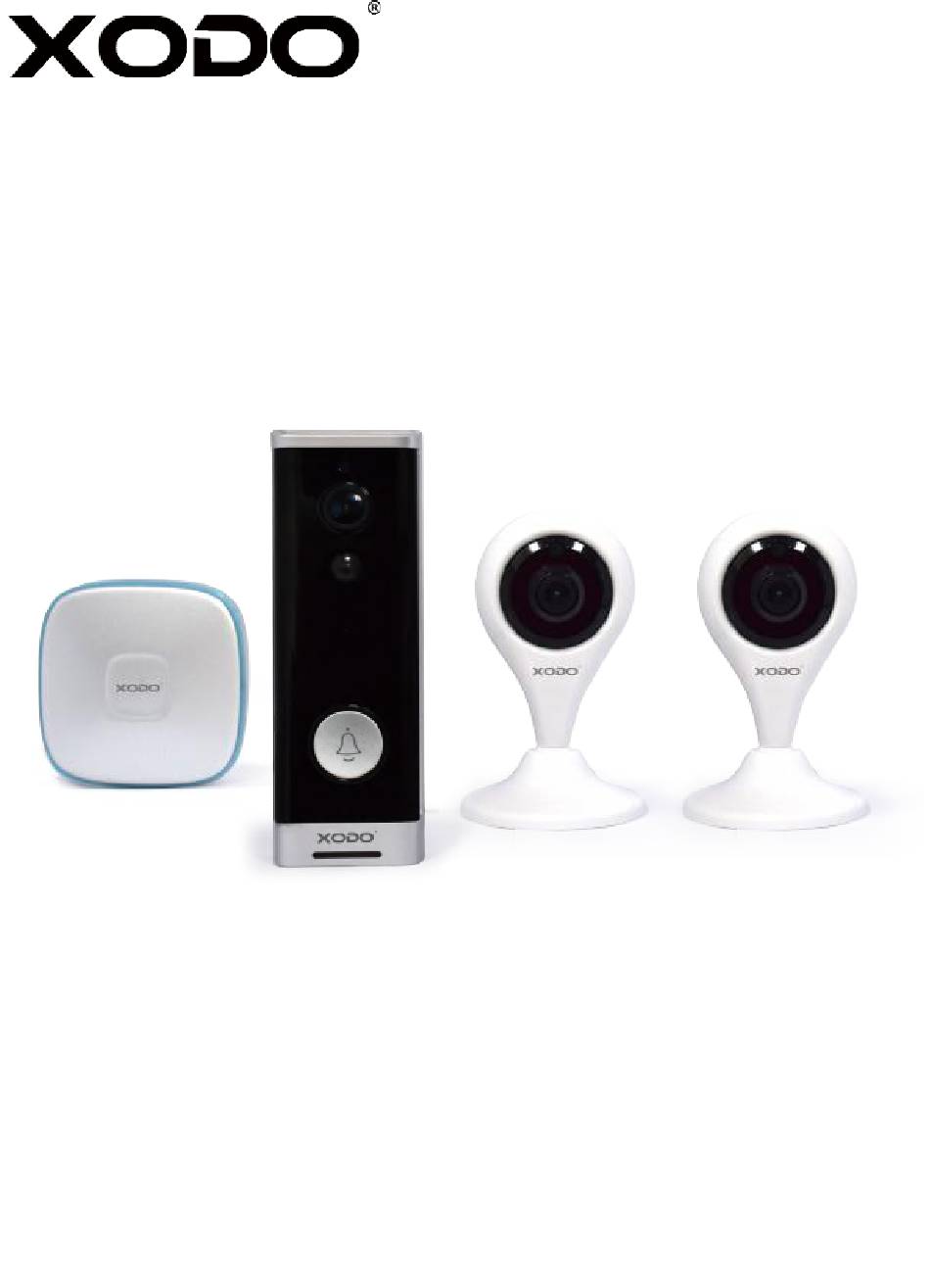

- Page 1 Smart Home Doorbell Kit PK2 User Manual...
-
Page 2: Table Of Contents
Your new PK2 doorbell and mo�on detec�on USB cameras is a smart home innova�on to help monitor your doorstep and detect ac�vity around your home or office. An external doorbell ringer allows no�fica�on if somebody presses the ringer bu�on. -
Page 3: Package Contents
What’s included in the box You will find the following contents included to help you get started: Package Contents VD1 Smart Doorbell×1: External Ringer×1, Moun�ng Screw Sets×3, Screwdriver×1 USB Cable×1 E4 Smart Home Camera×2: Micros USB Wall Charger×2, Micro USB Cable×2, Moun�ng Screw Sets×6... -
Page 4: External Ringer Pairing
External Ringer Pairing An external ringer has been provided and can be setup to hear the doorbell ring. This is useful in the event if no smartphone that has been configured is available, others can s�ll hear the doorbell sound when guests arrive at the door. -
Page 5: Specifica�Ons
Monitoring: Doorbell bu�on, mo�on detec�on, remote wake up Power Consump�on Standby: 20 uA; Working 170 mA Smart WiFi Camera E4 Specifica�ons Product Name: Xodo Smart WiFi Camera Model: E4 Power Input: 5V 1A(Min) Total Power Consump�on: 5W(Max) Support System: Android or IOS Resolu�on: 1920 x 1080... -
Page 6: Introduc�On
Smart Doorbell Introduc�on Light sensor Infra-Red LED Moun�ng Slot Video Camera Reset bu�on Lens Micro USB Port PIR Mo�on Dectector Microphone Ba�ery Compartment SD Card Port Main Bu�on Horn Smart Camera Components IR LED — Measures ambient light to brighten playback brightness. Light Sensor —... - Page 7 Smart Camera Introduc�on SD Card Port Reset Bu�on Light sensor Lens Speaker IR LED Micro USB Port Smart Camera Components IR LED —Measures ambient light to brighten playback brightness. Light Sensor — Determines when to turn on IR sensor. MIC — Capture input audio. Lens —...
-
Page 8: Installa�On Of Smart Wifi Doorbell
Installa�on of Smart Doorbell 1. Remove the moun�ng bracket. 2. Mount the bracket to the wall. (Remove oblique upper) 3. Install the doorbell onto the 4. Install the moun�ng screws moun�ng bracket. under the bracket. -
Page 9: Xodo Smart App
Download and Install the Xodo Smart APP Download and install the APP. It can be also be found by searching "Xodo Smart" by Con�xo Inc. in the App Store (for IOS) or Google Play Store (for Android). Xodo Smart Open the APP The welcome screen will appear and then you will be asked to login or register a profile. - Page 10 Adding Devices You will be able to manually add a device. Select Doorbells VD1 to con�nue. Detec�ng Device When detec�ng devices manually, power on the device and confirm you hear the prompt: The Con�xo doorbell is now ready to pair. (Hold the reset bu�on for 5 seconds) Once you confirm the smart device is ready, press the “nest step”...
- Page 11 Connect to a WiFi Network Now you want to connect the smart device to a local WiFi network. If the proper network is not listed on this page, click the " " bu�on to see a list of available networks. Your router may broadcast both 2.4Ghz and 5.0Ghz broadband frequency.
- Page 12 Scan with Camera Screens The pairing process will ask for you to use the doorbell to scan a QR barcode on the screen. The QR barcode will appear on the screen. Hold doorbell camera in front of the QR barcode un�l you hear a prompt.
- Page 13 “Done” bu�on at the bo�om of screen to con�nue to next step. Home Screen Updated Now that your device has been added, it will show on the home screen along with all other paired Xodo Smart Products. Now you are all set.
-
Page 14: Configure The Doorbell Se�Ngs
Doorbell Home Screen The home screen will show the live camera feed along with doorbell controls. Switch image quality Remaining ba�ery Mute/listen to the doorbell Adjust the screen size Full-screen display Photograph Hold to speak Video Hide the menu bar Access stored video from the memory card Album Adjust the background color... - Page 15 11. Add to Home Screen allows to add the wifi doorbell to the home screen of your smartphone. 12. Device Update allows to check so�ware or install updates to device. 12. Remove device will remove the wifi doorbell from the Xodo Smart app and remove pairing. This is necessary if pairing with a new device.
-
Page 16: Installa�On Of Smart Wifi Camera
3. Install the base securely by using 4. The camera will mount back onto the provided moun�ng screws. moun�ng base with a clockwise mo�on. 5. Connect USB power supply and 6. Download Xodo app, create or login external memory card. to account, and follow app instruc�ons. -
Page 17: Connect E4
Connect E4 The welcome screen will appear and then you will be asked to login or register a profile. Register an account by entering your email address and se�ng up a profile or logging in with an exis�ng account. Adding Devices You will be able to manually add a device. - Page 18 Detec�ng Device To detect the device manually, power on the device and hold the reset bu�on un�l you hear the confirma�on sound. Once you confirm the smart device is ready, press the “nest step” bu�on then click the “Next” bu�on. Con�nue on to the next step. Pressing the “Rese�ng Devices”...
- Page 19 Scan with Camera Screens The pairing process will ask for you to use the camera to scan a QR barcode on the screen. The QR barcode will appear on the screen. Hold camera in front of the QR barcode un�l you hear a prompt. Press the “I Heard a Prompt” bu�on to con�nue.
- Page 20 Connec�ng A�er you hear the prompt and con�nue on, the “Connec�ng” screen will appear. It will usually register within by approximately 30 seconds. A�er connec�ng process completes it will con�nue on toward the next screen. Confirma�on Screen The smart device is added once they are communica�ng on the same network.
- Page 21 Home Screen Updated Now that your device has been added, it will show on the home screen along with all other paired Xodo Smart Products. Now you are all set. Camera Home Screen The home screen will show the live camera feed along with camera controls.
-
Page 22: Configure The Camera Se�Ngs
10. Add to Home Screen allows to add the camera to the home screen of your smartphone. 11. Device Update allows to check so�ware or install updates to device. 12. Remove device will remove the camera from the Xodo Smart app and remove pairing. This is necessary if pairing with a new device. - Page 23 My Home Page Device Controls 1. Some devices can set group control. Click " " in the upper right corner 2. Click "Create Group". 3. The page displays all devices with the same model number and available to be added as a group. Select the device and click “Confirm”.
-
Page 24: Smart Features
4.Enter group name and click “Save” to finish. 5.When a group has been created successfully, the page will be automa�cally redirected to the group control panel, where grouped devices can be managed. Smart Features 1 Click “Automa�on” on the "Smart" page. 2 Click "+"... - Page 25 4 Select the ac�on to occur. 5 Click “Name” and enter the automa�on name. 5 Click “Effec�ve Period” to set a valid �me period for automa�on. 7 Click “Save” and then click “Yes” to create the automa�on. 8.Click the switch in the lower right corner to select to execute or turn off the automa�on.
- Page 26 Smart Features - Tap-to-Run 1 Click “Tap-to-Run” on the "Smart" page. 2 Click "+" to go to the smart se�ngs page. 3 Click “launch Tap To Run“ to add set automa�on. 4 Click the task to occur. 5 Click “Name” and enter the Tap-to-Run’s name and click “Save” to finish.
-
Page 27: Customer Service And Tech Support
See our website for more products www.con�xo.com We enjoy your feedback! Xodo is a subdivision of the Con�xo Inc. group., and the respec�ve logos are registered trademarks of Con�xo Inc. and may not be used, reproduced, or altered without wri�en Permission. All other trademarks are the property of their respec�ve owners and used with permission.
