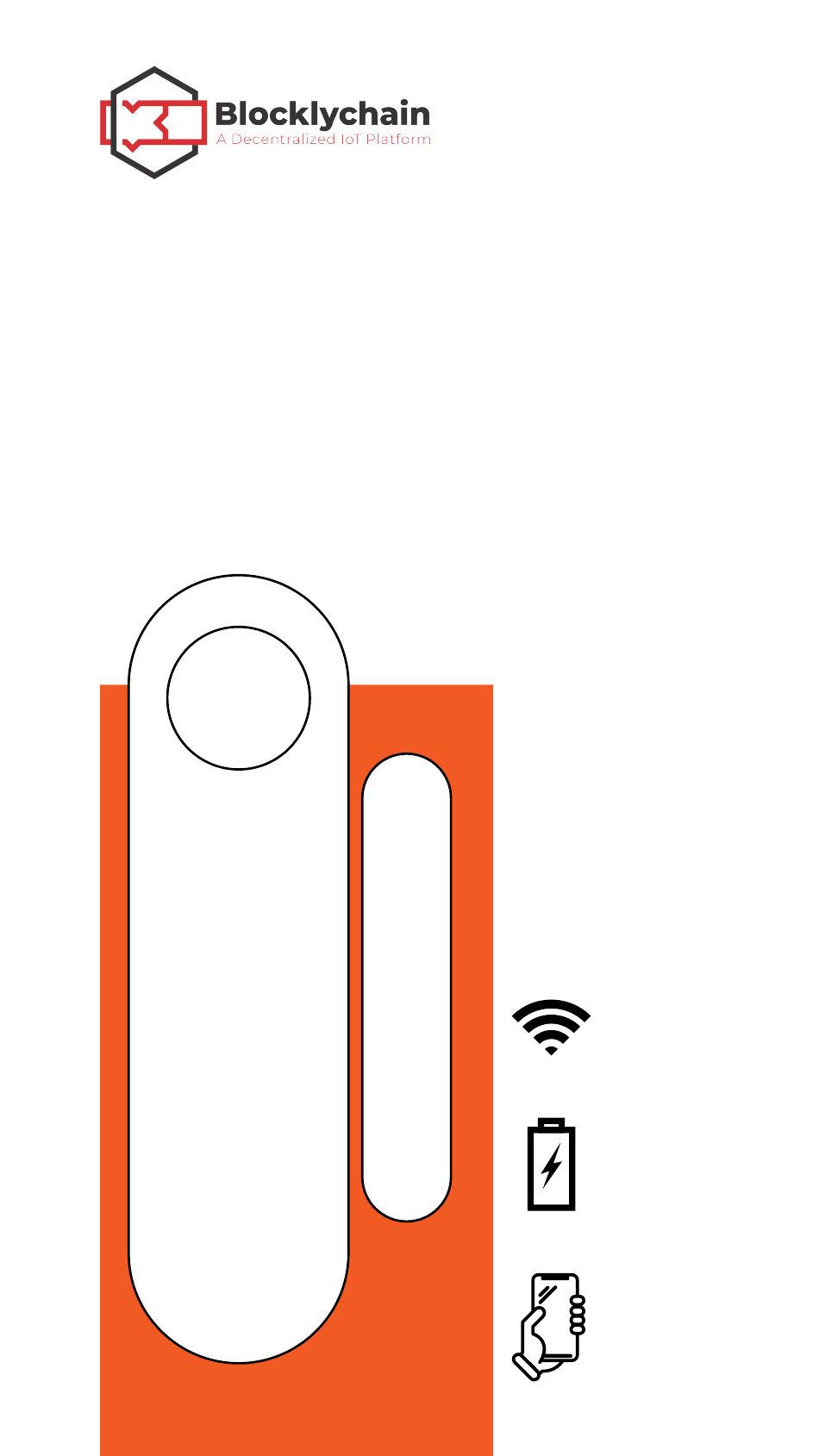

- Page 1 DOOR SENSOR DS-103...
- Page 2 HELLO Thank you for purchasing Door Sensor. We are excited to bring convenience, security, and peace of mind into your home. Remote Access Control and monitor your home devices from the Internet. Wi-Fi Connectivity Door Sensor provides Wi-Fi to connect directly to the Internet.
- Page 3 How to Mount Door Sensor To mount the Door Sensor, stick the big part on the frame of the door or window. Then, place the small part on the surface opposite the big part. Maximum recommended gap between the big and the small parts is 2 cm.
- Page 4 How to Install Door Sensor Connect the big part to a Micro USB charger. Go to www.blocklychain.com www.blocklychain.com...
- Page 5 Log into your account in BKC Control Panel. [or signup if you don’t have an account.] www.blocklychain.com Login Click on Devices on the menu. My Home My Home Today Devices Services Tuesday, 29 September 2021 Home 12:28 Home Europe/London Devices...
- Page 6 Select Door Sensor from the list. My Home Add New Device Choose your device type Home Choose the type of your new device you want to install Devices Service Market Installed Services Motion Detector Door Sensor Smart Button Smart Plug Smart Speaker Activity Service Creator...
- Page 7 Go to the Wi-Fi setting on your laptop/mob- ile and switch it to Door_Sensor Wi-Fi. Door_Sensor HomeWi-Fi James ST1QTJ1 Tigerx 2:28 pm 12/6/2020 Go back to BKC Control Panel and click on Next. My Home Add New Device Change your Wi-Fi Home Go to Setting on your mobile and connect to the Wi-Fi name “Door_Sensor”.
- Page 8 Choose your home Wi-Fi from the list and type the password. Then, click on Check Wi-Fi. My Home Add New Device Set your home Wi-Fi Home Choose your home Wi-Fi from the list below. Devices Manual Setting Available Wi-Fi list My Wi-Fi Service Market Wi-Fi X...
- Page 9 How to Control Door Sensor Log into your account in BKC Control Panel. Then, go to the Devices page. Your Door Sensor card will be like below. Name of the Door Sensor Device modes Last activity time Battery indicator Device dashboard Device connection indicator...
-
Page 10: Device Modes
Device modes OPEN The small part got far from the big part, so door/ window is opened. OPEN The small part is close to the big part, so door/ window is opened. Note: OPEN after 5 seconds, the mode change OPEN to the mode. - Page 11 BKC Control Panel In BKC Control Panel, you can register, monitor, and control your BKC devices. www.blocklychain.com...
- Page 12 Installing BKC Control Panel On the phone Open the Google Chrome browser. Go to www.blocklychain.com Click on Login. Log into your account. On the pop-up page, click on Add to Home Screen. On the desktop Open the Google Chrome browser.
- Page 13 Blocklychain Services In BKC Control Panel, BKC Services are mini apps that add new functionalities to smart devices. You can access hundreds of BKC Services in Service Market or easily develop new services on Service Creator to extend the functionality of your Door Sensor.
- Page 14 Service Creator In BKC Control Panel, using Service Creator, you can develop new services. How to create Blocklychain Services There are two programming consoles in Service Creator: 1. Blockly Console 2. Coding Console My Home 8952 Created Service Published Service Installed Service...
- Page 15 Play Emergency Alarm 1.mp3 Text Service Creator 2. Coding Console Coding Console enables professional deve- lopers to program BKC services by JavaScript syntax for Blocklychain-enabled devices including Door Sensor. My Home *Describe this function... function cron() { Power1.SEND_COMMAND('TURN_OFF');} Home Devices if ((Shortcut1.PAYLOAD.state === 'pressed')) {...
- Page 16 Status Indicator Description Connection Orange Connecting to Blocklychain (Blinking every 4 seconds) server on the Internet Orange Connecting to Wi-Fi (Blinking every 1seconds) Battery Blinking Red Very low battery Solid Red Low battery Solid Blue Charging Solid Green Full charge...
- Page 17 Caution 1. Do not disassemble the product or change the batteries. 2. Do not charge the product at high temper- ature. Keep the device away from open fire to avoid explosion. 3. Improper use of your device’s battery may result in fire or explosion.
- Page 18 6. Parts of your device are magnetic and may attract metallic items. Do not place magnetically sensitive devices, credit cards, other magnetic storage media near your device.
-
Page 19: Specification
Specification Product Name Door Sensor Model DS-103 Size (big part) 7x2x2 cm Size (small part) 5x1x1 cm Weight (big part) 22 g Weight (small part) Material Communication Wi-Fi 802.11 b/g/n 2.4GHz Battery 3.7V 600mA Lithium-ion rechargeable battery Charger USB Type-C 500mA... -
Page 20: Package Content
Package Content 1x Door Sensor For further help or inquiries: 1) Email support@blocklychain-iot.com, or 2) Login to your account on BKC Control Panel , click , and submit a ticket. All right reserved. Copyright © 2022 Blocklychain...
