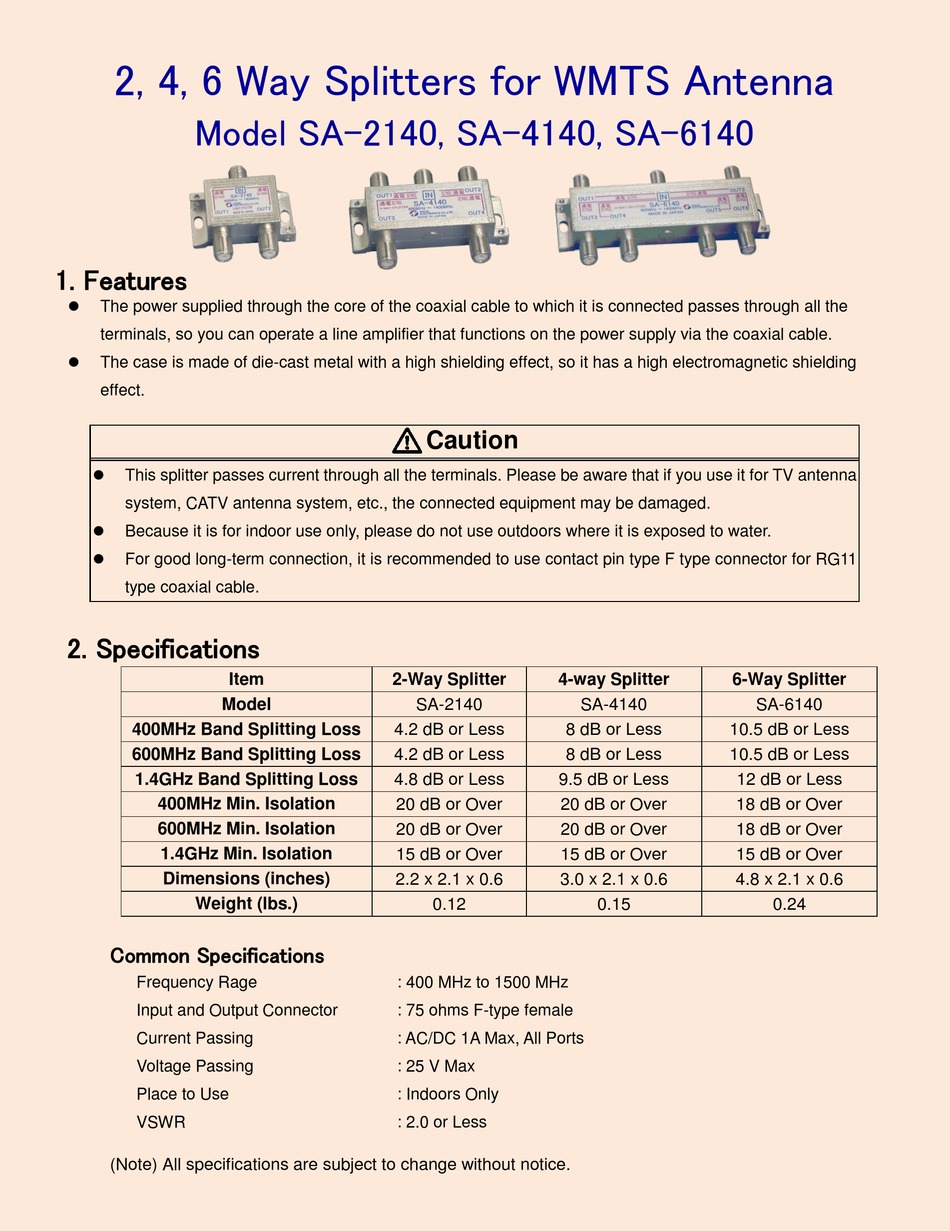

2, 4, 6 Way Splitters for WMTS Antenna
Model SA-2140, SA-4140, SA-6140
1. Features

The power supplied through the core of the coaxial cable to which it is connected passes through all the
terminals, so you can operate a line amplifier that functions on the power supply via the coaxial cable.

The case is made of die-cast metal with a high shielding effect, so it has a high electromagnetic shielding
effect.

This splitter passes current through all the terminals. Please be aware that if you use it for TV antenna
system, CATV antenna system, etc., the connected equipment may be damaged.

Because it is for indoor use only, please do not use outdoors where it is exposed to water.

For good long-term connection, it is recommended to use contact pin type F type connector for RG11
type coaxial cable.
2. Specifications
Item
Model
400MHz Band Splitting Loss
600MHz Band Splitting Loss
1.4GHz Band Splitting Loss
400MHz Min. Isolation
600MHz Min. Isolation
1.4GHz Min. Isolation
Dimensions (inches)
Weight (lbs.)
Common Specifications
Frequency Rage
Input and Output Connector
Current Passing
Voltage Passing
Place to Use
VSWR
(Note) All specifications are subject to change without notice.
Caution
2-Way Splitter 4-way Splitter
SA-2140
4.2 dB or Less 8 dB or Less
4.2 dB or Less 8 dB or Less
4.8 dB or Less 9.5 dB or Less
20 dB or Over 20 dB or Over
20 dB or Over 20 dB or Over
15 dB or Over 15 dB or Over
2.2 x 2.1 x 0.6 3.0 x 2.1 x 0.6
0.12
: 400 MHz to 1500 MHz
: 75 ohms F-type female
: AC/DC 1A Max, All Ports
: 25 V Max
: Indoors Only
: 2.0 or Less
6-Way Splitter
SA-4140 SA-6140
10.5 dB or Less
10.5 dB or Less
12 dB or Less
18 dB or Over
18 dB or Over
15 dB or Over
4.8 x 2.1 x 0.6
0.15 0.24
