Summary of Contents for EasyTouch RV 347

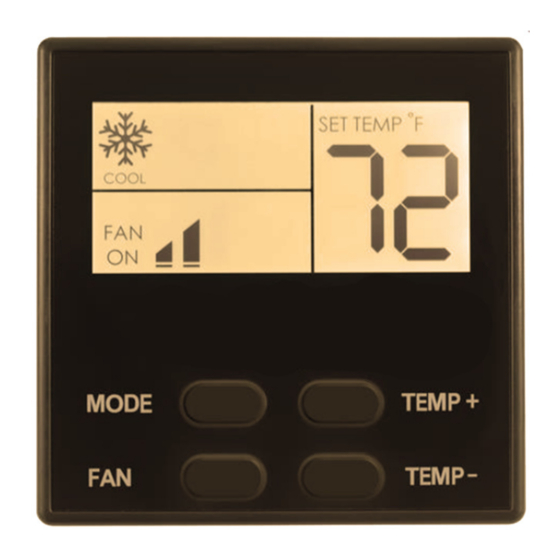

- Page 1 EasyTouch RV Installation Manual Revision 1.0...
-
Page 2: Table Of Contents
Contents EasyTouch RV 347 Models and Compatible Replacements ................3 Model Compatibility ..........................3 Installing the Thermostat ..........................3 Safety ................................ 3 Removing the Old Thermostat ........................4 Using the push button terminals ......................4 Wiring the Thermostat ..........................4 Apply Power .............................. -
Page 3: Easytouch Rv 347 Models And Compatible Replacements
GE® is a trademark of General Electric Corporation. Model Compatibility Table 2 lists the known OEM model numbers that can be used with EasyTouch RV 347. The tables are not exhaustive so if your thermostat is not listed, please contact Micro-Air https://www.micro-... -
Page 4: Removing The Old Thermostat
Figure 2 Wiring the Thermostat There are three terminals on the back of EasyTouch RV Model 347 labeled SIG, GND, and 12V. They will be connected to the push terminals on the back of the EasyTouch thermostat. Use the information in Table 1 to determine the connections. -
Page 5: Mounting The Thermostat
Mounting the Thermostat Step 1: Locate the mounting buttons horizontally across the hole with the smaller diameter against the wall. Step 4: Remove mounting tab before mounting on the wall. Step 2: Screw in one screw and level the buttons so the display will be straight when installed. -
Page 6: Initial Setup Instructions
Initial Setup Instructions Configure your available heat sources EasyTouch RV 347 must be configured for your system prior to using it. Tap the Settings button on the main screen, then navigate to the Switches Settings Setup button and tap it. Tap the heat pump button and/or the furnace button to enable or disable it based on what is installed in your system.
