Life Ionizers LIFE MXL-15 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

LifeIonizers.com/support
LIFE MXL-15 C/UC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIFE MXL-15 and is the answer not in the manual?

Questions and answers

Susan Wallace
March 18, 2025

My PPM is 561. Shouldn’t that be way lower

0
1 comments:
Mr. Anderson
May 14, 2025

The ideal PPM (parts per million) level for the Life Ionizers MXL-15 is up to 1.8 ppm (with drops) or 1.6 ppm (with Trustlex meter).

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Life Ionizers LIFE MXL-15

Summary of Contents for Life Ionizers LIFE MXL-15

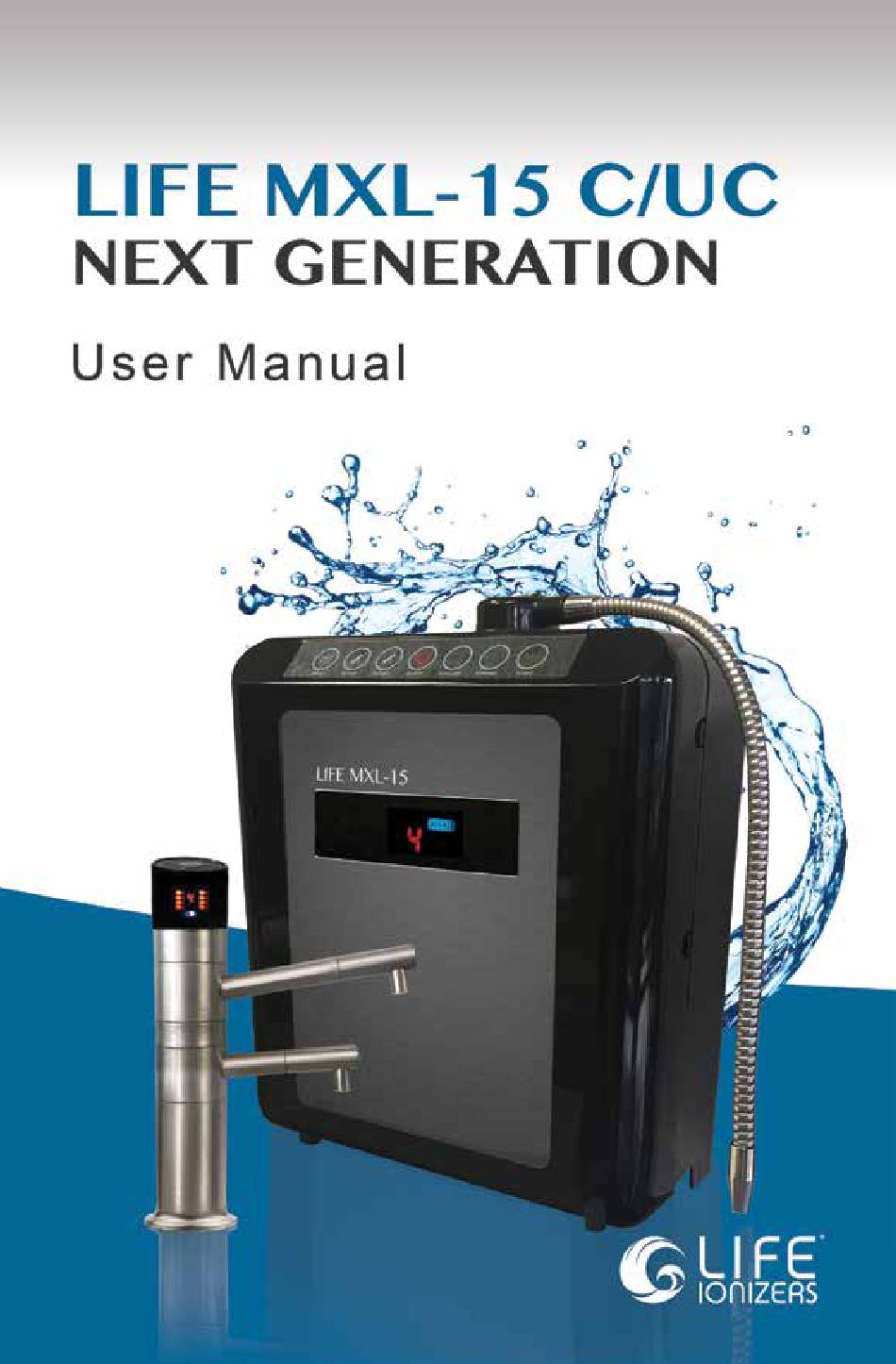

  • Page 1 LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 2 Welcome to the LIFE Ionizers family! Congratulations on the purchase of your new alkaline mineral water ionizer. We are grateful to our many customers for recognizing our efforts in providing the best water ionizer available! Ionized Alkaline Mineral Water promotes good health with its superi- or hydration, mineralization, oxygenation and cellular detoxification.

  • Page 3: Table Of Contents

    LIFE MXL-15 UC Installation (under counter) Quick Connect Fittings and Tubing Display Overview Function Options LIFE MXL-15 Operation Method (counter top) LIFE MXL-15 UC Operation Method (under counter) Internal Filter Replacement Filter Reset Indicators (counter top) Citric Acid (Scaling) Cleaning Filter Filtration Media Pre-Filter Replacement Acidic Cleaning Instructions &...

  • Page 4: Safety Guide

    Safety Guide Power Plug As with most electrical appliances, electrical parts in this ionizer are electrically live even when the switch is off. • Power cord should not be touched with wet hands • Use only (110v) in the USA, Mexico and Japan. Most other countries require (220v).
  • Page 5 Don’t shake or drop the unit • If the ionizer machine falls into water: 1. Unplug power cord from electrical outlet 2. Wipe the machine down and place in shaded area 3. Contact your LIFE Ionizer dealer LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 6 Ionized water • If inexperienced with drinking Ionized Alkaline Water, users are encouraged to start with level 1 • When drinking Ionized Alkaline Water - Do not take prescription or other medications for approximately one hour before and after drinking water. Ionized alkaline water hydrates more efficiently, therefore will deliver more medication than tap water.

  • Page 7: Product Specifications

    Settings 1 Purified, 3 Acidic, 4 Alkaline Warranty Guaranteed LIFEtime warranty Dimensions 12.5” W | 15” H | 6.25” D Plate Material Platinum over Industrial Titanium LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 8: Package Contents

    Package Contents Flexible Hose Diverter Valve 1/4” Tubing Hose User Manual Extra Fuse Located in the Power Suction Cup Switch at the bottom of the machine Reagent Drops pH Color (pH Test Drops) Chart BTB Chemical For MXL-15 UC Cold Water Connect Faucet Alkaline/Acid...
  • Page 9 1. Keep away from eye area. If eyes become irritated, flush thoroughly and consult a doctor. 2. If accidentally swallowed, drink water and consult a doctor. 3. Store in an airtight container away from the reach of children. 4. Drops are flammable. Keep away from children. LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 10: Important To Remember

    Important to Remember Pre-filter Installation & Maintenance • You must run 2-3 gallons of water through the pre-filters before you connect them to the ionizer. To do this, install the pre-filters into their housings, connect a piece of tubing to the outlet con- nection on the pre-filter housing and run it into the sink so you can flush them out with water.
  • Page 11 Do not twist top of faucet. This will damage the faucet. • We recommend internal filters and pre-filters be changed annually. • Citric acid cleaning filter should be used 3 to 4 times per year. • Use cold water only with your ionizer LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 12: Parts Of The Ionizer

    Parts of the Ionizer BACK 1. First Filter Cover 2. Wall Mount Screw Holes 3. Speaker 4. Bar Code and Serial Number x x x - x x x x x - x x - x x 5. Second Filter 6.
  • Page 13 WARNING: Do not twist Faucet Cap. This will damage the faucet. 1- ON/OFF Water Selection 2- Faucet Cap 3- Digital Indicator 4- Product Water Spout 5- Waste Water counter hole for faucet should be 1 3/8” LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 14: Life Mxl-15 Installation (Counter Top)

    LIFE MXL-15 Installation (counter top) (help video on LifeIonizers.com/support) Refer to diagrams on page15. STEP 1: Unscrew the existing aerator from your faucet. STEP 2: Use Teflon plumber’s tape on the threads. Make sure the black rubber washer is inside the diverter valve before you screw it onto your faucet.
  • Page 15 ** Plugs must be removed before installation. Bottom of ionizer STEP 6: outlet Diverter valve valve inlet valve suction Pre-filters NOTE: Run 2-3 gallons of water through the pre-filters before you connect them to the ionizer. LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 16: Life Mxl-15 Uc Installation (Under Counter)

    LIFE MXL-15 UC Installation (under counter) (help video on LifeIonizers.com/support) Angle stop valve Cold water connect valve COLD WATER CONNECT Totally disconnect Find the raw water Take off the cold the line as shown valve under sink. water line from the above.
  • Page 17 Front Alkaline outlet Faucet turret Faucet patch cable Back Do not over tighten connection x x x - x x x x x - x x - x x on back of ionizer Plug connector LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 18: Quick Connect Fittings And Tubing

    Quick Connect Fittings and Tubing To ensure an optimal seal, tubing should be cut with the end square. An angled cut or distortion of the tubing will not provide an efficient seal and may cause leaks. Determine the length of tubing needed for the connection and cut the segment of tubing to the appropriate length.

  • Page 19: Display Overview

    4. Acidic Selector 5. Menu/Function 6. Filter 1 Indicator 7. Filter 2 Indication 8. Filter 1/Life Indicator 9. Filter 2/Life Indicator 10. Operation Display Lamp 11. Level Indicator 12. Indicator Water Type (Alkaline/Acidic/Purify) 13. pH Indicator LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 20: Function Options

    Function Options NOTE: FLOW RATE MUST BE SET TO GET PROPER PH LEVELS. Recommended flow rate is 1.5-3.0 LPM AMPS AND LITERS PER MINUTE (LPM) NOTE: the unit must be dispensing water before pressing the buttons. • Press and hold “FILTER 1”...
  • Page 21 Once you do this “VOL” will appear on the display and below that it will show a number. • To increase volume, press and release the “FILTER 2” button, to decrease the volume setting press and release the “FILTER 1” button. MENU FILTER 1 FILTER 2 LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 22 PH TESTING WITH DROPS To test and to determine the pH of your water, you will have to select the level you are testing as well as combining the liquid reagent pH drops provided with the purchase of your ionizer with a sample of water gathered from your ionizer.
  • Page 23 For optimum performance of the unit, you will need to clean your ionizer with the CITRIC ACID CLEANING FILTER also known as the SCALING FILTER. We recommend using this cleaning cartridge 3-4 times a year depending on the hardness of your water. LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 24 FUNCTIONS F-30 AND AFTER To enter F-30 and after functions you will need to do the following: • Press and hold the “MENU” & “FILTER 1” buttons simultaneously for 5 seconds. • The machine will display F30 and the screen. •...

  • Page 25: Life Mxl-15 Operation Method (Counter Top)

    LIFE MXL-15 Operation Method (counter top) * Make sure the cold water is on and diverted to the ionizer. Press the “ON/OFF” button. Alkaline water discharge method Then press the “ALKALINE” button and keep tapping that button until the desired alkaline level displays on the screen.

  • Page 26: Life Mxl-15 Uc Operation Method (Under Counter)

    LIFE MXL-15 UC Operation Method (under counter) DISPLAY WINDOW OPERATION MENU DESCRIPTION When you select alkaline water. 1~4 phases appear in number and light is marked by blue color. When you select acid water, 1~3 phases appear in number and light is marked by orange color.
  • Page 27 *Acidic Water 3 - 3rd grade of acid water is being extracted now. *Acidic Water 2 - 2nd grade of acid water is being extracted now. *Acidic Water 1 - 1st grade of acid water is being extracted now. Purified Water Button *Purified Water is being extracted now. LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 28 Volume Adjustment Adjust the volume from the faucet. 1. Press and hold the “PURIFY” button for 5 seconds. A number will appear flashing. 2. Release the “PURIFY” button. 3. Press “ACID” button to lower the volume number. Press “ALKL” button to raise the volume number.

  • Page 29: Internal Filter Replacement

    0000 or no liters left on filter life the filter needed. It is best to have additional filters on hand so that Filter 1 you can replace the filters before Filter 2 this happens. LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 30: Filter Reset Indicators (Counter Top)

    Filter Reset Indicators (counter top) (help video on LifeIonizers.com/support) Filter 1 Indicator After changing FILTER 1, the unit will recognize that a new filter has been installed. The indicator will reset to 3000 automatically. Filter 2 Indicator After changing FILTER 2, the unit will recognize that a new filter has been installed.

  • Page 31: Citric Acid (Scaling) Cleaning Filter

    Cartridge is only good for one cleaning. ON/OFF PURIFIED NOTE: If the water dispersed from the spout is still slower than the waste water, the machine may need to be sent in for deep cleaning. LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 32 NOTE: If you are putting in any new filters, do so after the cleaning. 1. Turn off power to the ionizer by pressing the circle side of the power switch located at the bottom of the ionizer. 2. Release the #2 filter cover (located on the left side when looking at the back of the ionizer) by pushing up on the filter cover.

  • Page 33: Filtration Media

    3. Activated Carbon Anti-chlorine and anti-bacterial filtration 4. KDF (Made in USA) VOC and heavy metal reduction 5. Easy-Notify Filter Change™ alerts with RFID technology Your water will always be fresh without the need to mark your calendars. LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 34: Pre-Filter Replacement

    Pre-filter Replacement 1. Shut off water supply at source (cold water connect or diverter valve). Turn on the ionizer to relieve water pressure. Shut off ionizer. 2. Disconnect 1/4” tubing from inlet and out- let from pre-filter. Press collar in the then pull on tubing to release.

  • Page 35: Acidic Cleaning Instructions & Routine Maintenance

    This procedure must be performed 3-4 times per year to keep warranty intact. See page 31 & 32 for instructions on how to do this. LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 36: Common Problems And Solutions

    Water pressure may be low for supply tubes is crimped many reasons (RO system, sprinkler • House water pressure is too system, etc) Call LIFE Ionizers Tech Support for assistance • Pre-filter and/or unit filters • If unit has been used for 6 months...

  • Page 37: Operation Warnings/Error Messages

    - See page 29 for proper way to install the filter. For further help with the above error codes, or any additional error messages that appear on the LCD screen, please contact our technical support at 866-321-3116. LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 38: How Alkaline Water Is Made

    How Alkaline Water is Made Converts the existing mineral carbonates in tap water into mineral hydrates. Splits alkaline minerals – calcium and magne- sium – from the carbon- Alkaline Side: Acidic Side: ate in water using elec- • Higher pH •...

  • Page 39: Alkaline/Acidic/Purified Water

    B) When the Acid button is pressed, Acid water will be dispensed from the top spout and Alkaline water will be dispensed from the bottom spout. C) When the purify button is pressed, purified water will be dispensed from the bottom and top spouts. LifeIonizers.com/support LIFE MXL-15 C/UC...

  • Page 40: Uses Of Ionized Alkaline/Acidic Water

    Uses for Ionized Alkaline/Acidic Water Highly Ionized Alkaline Water: pH 11.0+ Highly Ionized Alkaline Water is useful for cleaning and preparing food. Food Preparation: Wash Vegetables and fruit. Cleaning: Clean cutting boards with. Good for cleaning oil and tough grime from vents, as well as for general cleaning in the kitchen.
  • Page 41 Watering plants and flowers. Ionized Alkaline Water extends the freshness and life of plants. Ionized Alkaline Water with a pH level of 9.0 can also restore the health of sick plants. Ionized Alkaline Water stimulates germination and improves seeding development. LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 42 Acidic Water pH: 4.0-6.0 Face wash: The astringent properties of acidic water are effective in toning and firming your skin. Pat the skin and leave to dry. This water is also excellent as a toner after shaving. Hair Care: Use this water to rinse your hair after shampooing. Reduces annoying tangles and brings out a radiant shine.

  • Page 43: Performance Features

    UV Light System- LIFE UV Light Technology™ is an optional feature on our LIFE Ionizers®. UV light addresses cysts and bacteria as the water passes around the light inside the unit. UV Light is being used by major municipal water authorities such as New York City and Orange County, CA as added treatment to disinfect their water.

  • Page 44: Frequently Asked Questions

    Frequently Asked Questions Q: What should I expect from drinking Ionized Alkaline Water? A: Everybody’s body is different, but typically new alkaline water drinkers say they see or feel effects in a month or two. You will notice a difference in taste: Ionized Water is much smoother tasting than conventional water.
  • Page 45 You may increase the number of glasses per day during the first week if you’re feeling good. On average, two to three weeks per level; work your way up to a 10.5 pH (strength Level 4 (four). LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 46 Q: Why do some people have flu like symptoms when first drinking Ionized Alkaline Water? A: If you start drinking Ionized Alkaline Water at too high of a strength level (high pH level) then you might notice flu like symptoms. These symptoms are mild and they clear up in about a week.
  • Page 47 Q: How does a water ionizer work? A: Your counter top Alkaline LIFE Ionizer® LIFE MXL-15 can be directly connected to a diverter valve at the end of your faucet. Connecting directly to your faucet takes about 10-15 minutes. Once connected your water ionizer uses a two step process to transform your tap water into refreshing, healthy alkaline water.
  • Page 48 Alkaline minerals produce positively-charged ions which gather at the negative electrode. These minerals chemically combine with hydroxyl ions taken from water molecules and form mineral hydrates. Carbonate produces negatively charged ions which gather at the positive electrode and combine with water to create a weak solution of carbonic acid.
  • Page 49 CO3), creating such substances. This is apparent evidence of electrolysis. Although it is safe to drink, wash the container - add one spoon of edible vinegar and water to the container, leave the container for approximately 1 hour, and wash the container. LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 50 Q: What is hard water? A: According to the U.S. Geological Survey, more than 85 percent of the United States geography has hard water. Hard water forms when naturally occurring minerals enter water sources. Over time these minerals are absorbed by groundwater. The two most common types of minerals found in hard water are calcium and magnesium compounds.
  • Page 51 A: A water report is necessary to determine what type of filter is needed. Well water may need to be tested by an independent water testing company. Please contact your sales representative and they will pull your Federal Water Report, analyze it, and recommend filters. LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 52 Q: How do I clean the internal plates? A: Use the Citric Acid Cleaning Filter 3 to 4 times per year. Q: What is the product warranty? A: To validate your warranty, you must complete the warranty card and return it or register online within 30 days of purchase. The warranty that is in effect at the time the machine is purchased is the one that is honored.
  • Page 53 Feel Free to contact us to confirm if the Dealer is an Authorized Dealer - 888 688 8889: Jeff or Kara The LIFE LIFE MXL-15 has a LIFEtime warranty on both parts & labor. Q: What is your return policy? A: We invite you to try out our new range of LIFE Ionizer®...
  • Page 54 FDA, nor are they intended to treat, cure, mitigate, diagnose or prevent any illness or disease. The following technology is not intended to replace the advice of your family physician. LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 55 Contact U 6352 Corte Del Abeto, Suite H Carlsbad, CA 92011 866.321.3116 760.431.8047 *When calling technical support please be prepared to give your ionizer serial number located on the back of the unit. www.LifeIonizers.com/Support LifeIonizers.com/support LIFE MXL-15 C/UC...
  • Page 56 www.LifeIonizers.com rev 11-10-22...

This manual is also suitable for:

Life mxl-15 cLife mxl-15 uc
