DO NOT MODIFY THE SWITCH POSITION IN ANY CASE
The replacement of the Switch in case of
malfunction must be carried out in a test
bench at MANVIA's facilities.
SPARE PARTS
DO‐TVS O‐rings Kit
DEGASSER SYSTEM SPARE PARTS
Part #
Name
DO‐TVS
"O" Rings Kit
STANDARD WARRANTY
MANVIA warrants products manufactured and supplied by it, to be free from defects in
workmanship and, to the extent materials are selected by Seller, to be free from defects in
materials, for a period of twelve months from shipment.
All rights reserved. All product and company names are property of their respective owners.
This document contains proprietary information. No part of this document may be
photocopied or reproduced without the prior written consent of Manvia S.A.
MA‐TVSr01

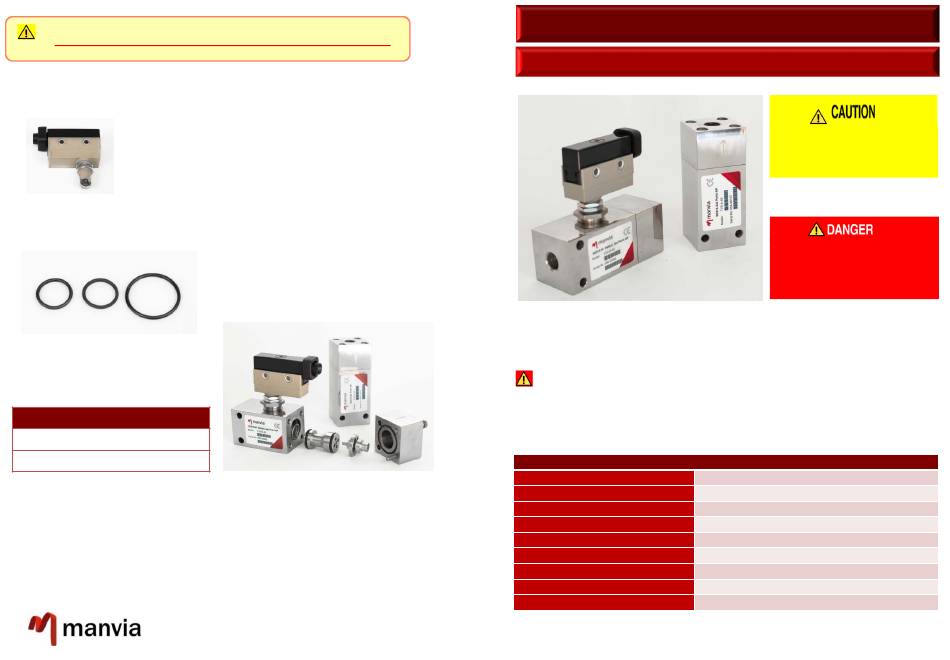

MANVIA THERMAL SHUT OFF VALVE TVS
Installation, OPERATION & MAINTENANCE MANUAL
SAFETY INFORMATION
Please pay attention to all Warnings and Cautions in this manual. Failure to do so could result in
serious personal injury and/or equipment damage. It is mandatory to read the entire manual
unpack, install or operate this product.
DANGER: Installation, operation and maintenance must only be carried out by suitably
trained personnel and in accordance with this manual. Safety precautions must be taken to avoid
the possibility of an accident when operating in conditions of high pressure and/or high
temperature.

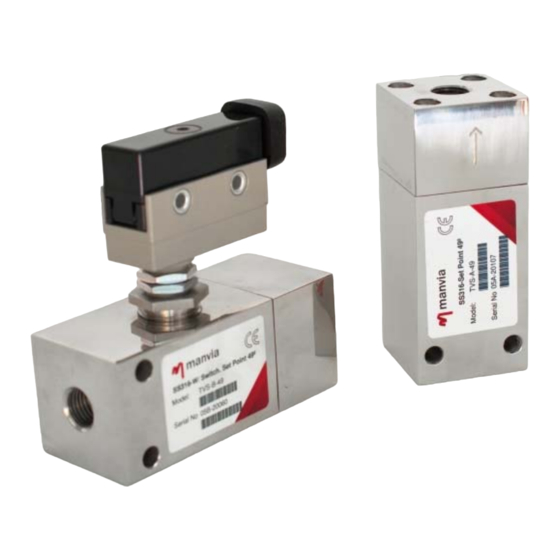

TVS SPECIFICATION
TECHNICAL SPECIFICATIONS
Wetted parts:
Max. Pressure
Trip temperature:
Max. Temperature:
Connections:
Cv:
Switch type (optional):
Contact rating (optional):
Switch protection degree:
CAUTION, indicates a hazardous
situation which, if materialized,
could result in material damage or
a moderate injury.
DANGER indicates a hazardous
situation which, if materialized,
could result in a serious injury and
even in death.
SS 316 and VITON
200 barg
49 ⁰C. Check label. Other available.
200 ⁰C
¼" NPTF
0.18
SPDT
10 A, 250 VAC, 6A 30 VDC
IP67
Advertisement
Table of Contents
Related Manuals for manvia TVS
Summary of Contents for manvia TVS
- Page 1 Wetted parts: 200 barg Max. Pressure STANDARD WARRANTY 49 ⁰C. Check label. Other available. Trip temperature: MANVIA warrants products manufactured and supplied by it, to be free from defects in 200 ⁰C Max. Temperature: workmanship and, to the extent materials are selected by Seller, to be free from defects in ¼” NPTF Connections: materials, for a period of twelve months from shipment.
- Page 2 PRODUCT DESCRIPTION DIMENSIONAL AND CONNECTION DRAWING MANVIA TVS is a thermal shut‐off valve, which is used to assure that the process fluids are always below the maximum allowable temperature for instruments, specially for analyzer sample measurement. When sample is too hot to be measured by analyzers, sample coolers are commonly used to reduce sample temperature to the acceptable limits.
