Scion Tech
SC08.CTL100H
User Manual
SC08.CTL100H
AV over IP
Network Controller
User Manual
Version 4.0
Scion Tech Limited
Unit 10, Thatcham Business Village, Colthrop Way,
Thatcham, Berkshire, RG19 4LW, United Kingdom
www.scion-tech.co.uk
Tel: +44 (0) 1635 862484
www.scion-tech.co.uk
sales@scion-tech.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Scion-Tech SC08.CTL100H
Summary of Contents for Scion-Tech SC08.CTL100H
- Page 1 Scion Tech SC08.CTL100H User Manual SC08.CTL100H AV over IP Network Controller User Manual Version 4.0 Scion Tech Limited Unit 10, Thatcham Business Village, Colthrop Way, Thatcham, Berkshire, RG19 4LW, United Kingdom www.scion-tech.co.uk Tel: +44 (0) 1635 862484 www.scion-tech.co.uk sales@scion-tech.co.uk...
-
Page 2: Table Of Contents
Scion Tech SC08.CTL100H User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, elec- tric shock, lighting strikes, etc. -
Page 3: Introduction

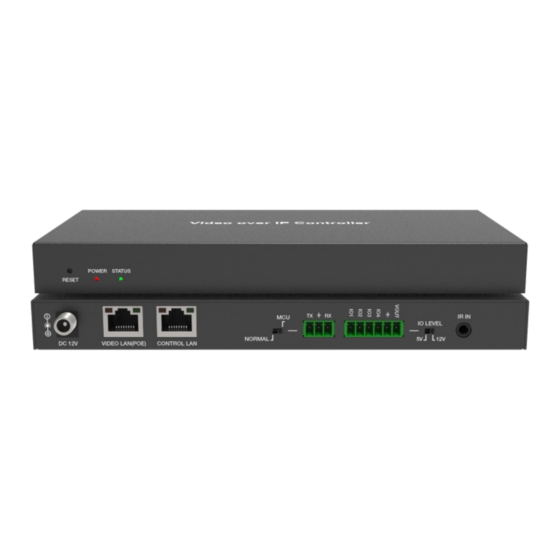

Scion Tech SC08.CTL100H User Manual 1.0 Introduction This AV over IP Controller is used to control and manage SC08.MX200/600 Encoders and Decoders. Dual LAN ports provide network isolation of Control and Multicast video distribution. Built-in Web GUI, TCP and RS-232 control are supported. The controller has POE and wide band 12V IR signal receiving. -
Page 4: Operation, Controls And Functions
Scion Tech SC08.CTL100H User Manual 5.0 Operation, Controls and Functions 5.1 Front Panel Power Status Update Reset 1. Reset Button - Press and hold for approximately 10 seconds until the status LED starts to flash, the controller will automatically reset. -
Page 5: Infrared Pin Connections
Scion Tech SC08.CTL100H User Manual 5.3 IR Pin Connections 6.0 Web GUI 6.1 Preparation The controllers Web GUI gives you complete control of encoders and decoders within your LAN/Project. Step 1: Enter controllers URL or IP address in to your Web Browser address bar. - Page 6 Scion Tech SC08.CTL100H User Manual Stage 2: Click the “close” button to load an existing project directly in to the web page or click the “next” but- ton to create a new project. To setup AV over IP system, you need to set the IP management mode of the video LAN domain. The IP management modes are: ●...
-
Page 7: Network Settings - Mode 1, Automatically Managed By Controller
Scion Tech SC08.CTL100H User Manual 6.2 Mode 1: Automatically managed by the controller box. DVD Player TX GND RX TX GND RX TX GND RX TX GND RX TX GND RX TX GND RX DC 12V Video LAN (PoE) IR In... - Page 8 Scion Tech SC08.CTL100H User Manual If you select “Automatically add Encoders and Decoders to project” and click the “Scan” button to enter the project page. All discovered devices will be listed in the current devices page. AVoIP Project Display ID...
- Page 9 Scion Tech SC08.CTL100H User Manual Click “Stop Scan” to stop search. Then the “Add All” buttons and “Add” buttons behind Unassigned Encoders and Unassigned Decoders in the figure below will become operable. AVoIP Project Unassigned Devices Configuration & Scan Stop Scan...
-
Page 10: Network Settings - Mode 2, Dhcp
Scion Tech SC08.CTL100H User Manual 6.3 Mode 2: DHCP Mode - Please connect all devices according to the diagram below. DVD Player TX GND RX TX GND RX TX GND RX TX GND RX TX GND RX TX GND RX... -
Page 11: Network Settings - Static Ip
Scion Tech SC08.CTL100H User Manual 6.4 Mode 3: Static IP mode DVD Player TX GND RX TX GND RX TX GND RX TX GND RX TX GND RX TX GND RX DC 12V HDMI IN HDMI OUT Video LAN (PoE) - Page 12 Scion Tech SC08.CTL100H User Manual After entering the interface as shown in the dialogue box below, manually set the IP address, subnet mask and gateway for the video LAN. Controller Box Video LAN Port Settings IP Address 169.254.2.225 Subnet Mask 255.255.0.0...
-
Page 13: System Control
Scion Tech SC08.CTL100H User Manual On this interface, you can set the IP address range of Encoders and Decoders. After the setting is complete, click the “Next” button to enter the interface as shown in the figure below. Now you can select to automatically add all discovered Encoders and Decoders to the project or just them in the web page where you can add them manually. -
Page 14: Matrix Control
Scion Tech SC08.CTL100H User Manual 7.2 Matrix Control AVoIP Matrix Control Encoders Encoder 001 Encoder 002 Decoders Decoder 001 Decoder 001 Decoder 001 Decoder 001 TX: Encoder 001 TX: Encoder 002 TX: Encoder 003 TX: Encoder 004 Encoders: Display all the current Encoders. The text in the figure is the name of the device. -
Page 15: Project
Scion Tech SC08.CTL100H User Manual 7.3 Project Page AVoIP Project Display ID Save Project Clear Project Current Devices Encoders Encoders Name IP Address Status Name IP Address Status Encoder 001 169.254.3.6 Offline Decoder 001 169.254.6.8 Offline Encoder 002 169.254.3.1 Offline Decoder 002 169.254.6.5... -
Page 16: Encoders
Scion Tech SC08.CTL100H User Manual 7.4 Encoders AVoIP Encoders Refresh Name MAC Address IP Address Firmware Status EDID Audio Selection > Encoder 001 6C:DF:FB:00:09:71 169.254.3.5 1.00.21 Online Default EDID HDMI > Encoder 002 6C:DF:FB:00:09:72 169.254.3.1 1.00.21 Online Default EDID HDMI >... - Page 17 Scion Tech SC08.CTL100H User Manual AVoIP Encoders Refresh Name MAC Address IP Address Firmware Status EDID Audio Selection > Encoder 001 6C:DF:FB:00:09:71 169.254.3.5 1.00.21 Online Default EDID HDMI Name Encoder 001 Update ID Select CEC Pass-Through Power LED Copy EDID...
-
Page 18: Decoders
Scion Tech SC08.CTL100H User Manual 7.5 Decoders AVoIP Decoders Refresh Name MAC Address IP Address Firmware Status Source Scaler Resolution Function > Decoder 001 6C:DF:FB:00:09:97 169.254.6.6 1.00.21 Online Encoder 005 Pass Through Matrix > Decoder 002 6C:DF:FB:00:09:92 169.254.6.7 1.00.21 Online... - Page 19 Scion Tech SC08.CTL100H User Manual AVoIP Decoders Refresh Name MAC Address IP Address Firmware Status Source Scaler Resolution Function Decoder 001 6C:DF:FB:00:09:97 169.254.6.6 1.00.21 Online Pass Through Matrix Encoder 005 Name > Decoder 001 Update ID > Select CEC Pass-Through >...
-
Page 20: Locked Signal Routing
Scion Tech SC08.CTL100H User Manual 7.6 Locked Signal Routing AVoIP Locked Signal Routing Help Refresh Name IP Address Video Audio Serial Decoder 001 169.254.6.25 Follow Follow Follow Follow Follow Follow Decoder 002 169.254.6.35 Follow Follow Follow Follow Follow Follow Decoder 003 169.254.6.30... - Page 21 Scion Tech SC08.CTL100H User Manual Step 1: Click “Create” to reveal the following window. Create a new Video Wall Video Wall ID Name Video Wall 1 Horizontal Vertical You can set the Video Wall ID, Name, Horizontal and Vertical panel numbers.
- Page 22 Scion Tech SC08.CTL100H User Manual Step 3: Click “Class Configuration” to enter the class configuration page, then click each screen to select the corresponding Class as required (the same class name will form a video wall, you can create a regular or irreg- ular video wall by Class Configuration).
- Page 23 Scion Tech SC08.CTL100H User Manual On this page, you can select different video walls and configurations that you have set up by clicking the drop- down box on the right of “Video Wall Selection / Configuration Selection”. Besides, you can directly drag En- coders at the top of the page to the video wall to change signal sources.
-
Page 24: Users
Scion Tech SC08.CTL100H User Manual 7.8 Users AVoIP Users Help New User Refresh Encoders IDs Decoder IDs There are no users in the system On this page you can setup user accounts. 7.9 Controller Settings AVoIP Controller Settings Reset Controller... -
Page 25: Firmware Update
Scion Tech SC08.CTL100H User Manual 7.10 Firmware Update AVoIP Firmware Update Show Progress Upload Firmware Upload Encoder or Decoder Firmware Update SS Firmware Update Firmware Encoders Decoders Update All Update All ID Name SS Firmware Firmware ID Name Firmware Encoder 001 1.02.15... -
Page 26: Maintenance And Warranty
Scion Tech SC08.CTL100H User Manual 8.0 Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... - Page 27 Scion Tech SC08.CTL100H User Manual Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damag-...
