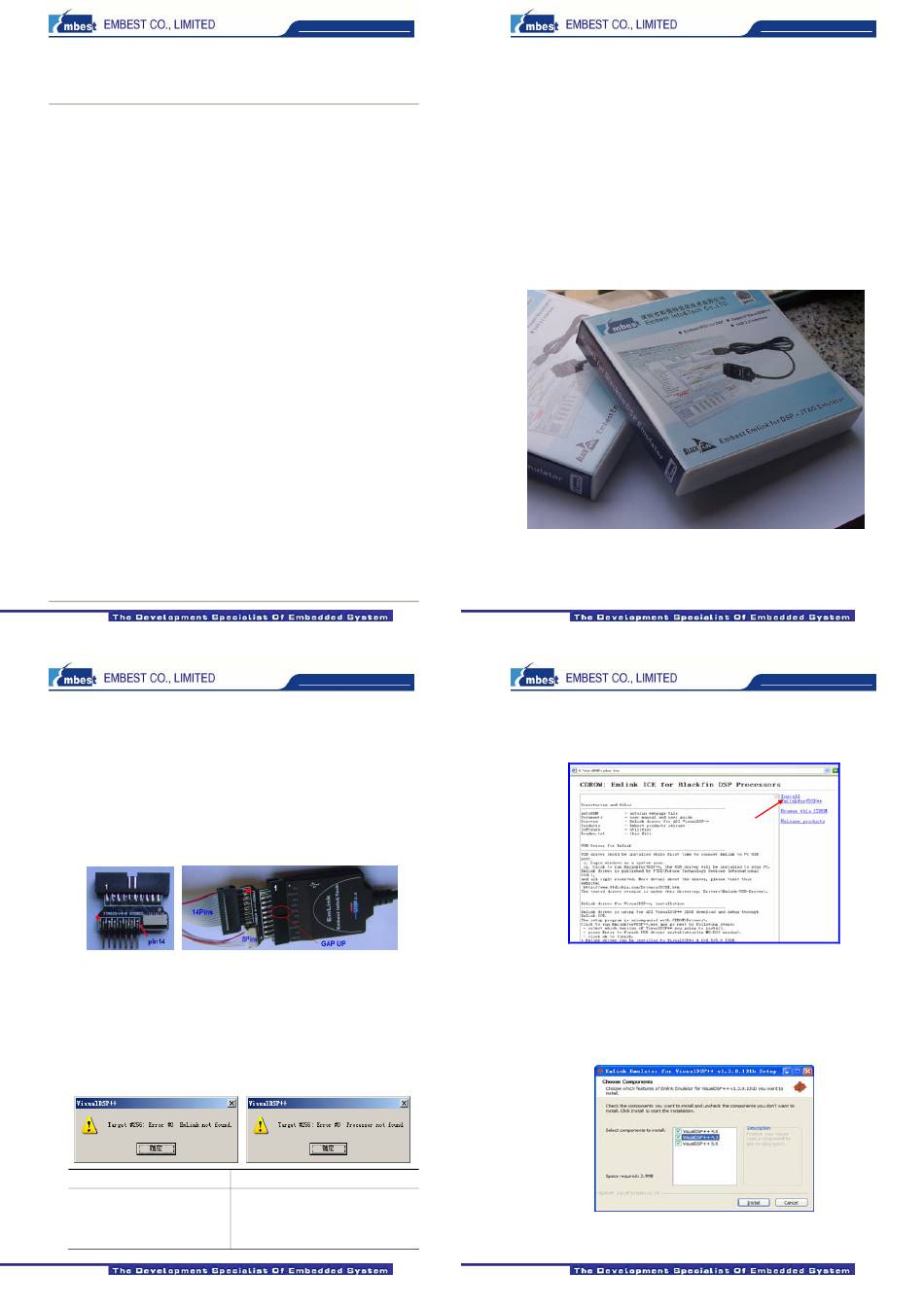

Emlink ICE for Blackfin
Q: How to connect the Emlink to my target board?
A: Emlink has two sides, one is connected to PC through an USB port(Host), another
is JTAG port to connect to your target board's JTAG port. Emlink can be power supplied
via PC's USB port.
Because of the Emlink JTAG port is 20pins, 2.54mm female interface, it can be easy
to plug it into the target's JTAG 20pins directly (notes that the JTAG signal should be
designed following Emlink Signal described in the hardware documentation. Meanwhile,
Emlink can also connect to JTAG 14pins, 2.54mm interface, which designed following
ADI EE-68 used, in this instance, Emlink first to connect with a convert module (a tiny
board), Pin1 to Pin1(red triangle):
Figure 3.1 Emlink + JTAG20-14-8 convert module
Q: How to confirm the Emlink connection? Why errors appeared?
A: Emlink does not support ADI VisualDSP++ 'ICE Test' function to test the ICE
connection. Emlink will work normally in these circumstance:
* there is seem 'USB Serial Coverter A and B' under the 'General Bus Controller',
while running the Device manager, or
* connect to the target through VDSP++ Session and no errors appeared.
Emlink for VisualDSP++ also gives two type of errors to test the connections(same
as ICE TEST function):
(a) "Emlink not Found"
Emlink have not connect to PC,
or Emlink USB driver install failed,
or Emlink ICE has broken.
www.embedinfo.com/en
1/8
www.embedinfo.com/en
Connections
(b) "Proccessor not Found"
The target board have not power up,
or JTAG ports do not connect well,
or JTAG signals mismatch as described,
or something wrong with target board,
such as no enough voltage and current.
3/8
Emlink ICE for VDSP++
EMLINK-BH Features:
♦ Compatible with ADI VisualDSP++ 3.5/4.0/4.5/5.0
♦ Supports Blackfin processors, BF531/2/3/4/6/7
♦ Debugging with Halt, Step, Run, Breakpoint
♦ Supports Windows98/NT/2000 /XP host
♦ Support USB 2.0 protocol
♦ Mini and smart size: 45x32x12mm, weight about 55g
♦ Power suply via USB port without power adapter
♦ JTAG port (20pins, FH2.54mm) for connecting target board
♦ Downloading and debugging speed up to
♦ Support to program on-board Flash.
Emlink ICE for Blackfin (Type: EMLINK-BH)
Figure 2.1 Emlink ICE for Blackfin package box (full-scale picture)
Emlink for VDSP++
A webpage will be prompted out after input the Emlink CD to your CDROM (Enable
Win-Autorun), then click to 'Install EmlinkforVDSP++' on the right side:
* If disable the Windows Autorun function, please find this file and click to run:
'AutoRUN\index.htm'.
* Any windows system cautions appeared while installing, please click OK.
Here click EmlinkforVDSP++.exe to run and settings as following:
1. Check which version of VisualDSP++ has installed on your Windows. Emlink driver
setup file can detect any one or more version of VisualDSP++, the check box can be
selected if any version of 4.5/4.0/5.0 being installed on your PC, otherwise it is a gray
check box. (ADI VisualDSP++ should be authorized by ADI.)
Figure 4.2 Choose which version of VisualDSP++ (one or more)
www.embedinfo.com/en
Getting Started
IDDE
etc.
200KBytes/s (1.5Mbps)
2/8
www.embedinfo.com/en
Driver Installation
Click here to
Install
4/8
