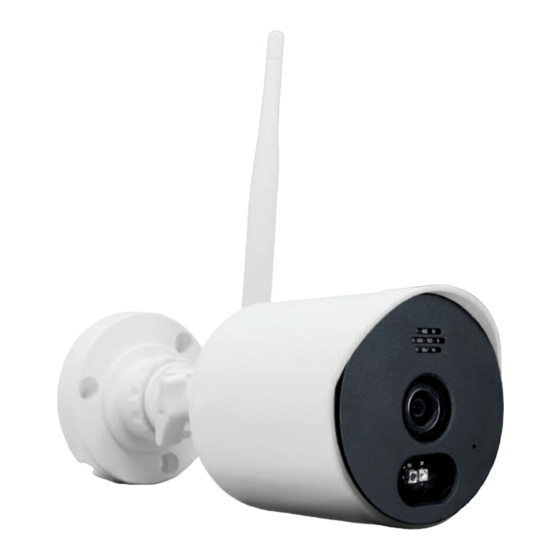

1080P WIFI IP CAMERA
EN
Outdoor Surveillance Camera
Ref. 340511
MOVEMENT
NIGHT
DETECTION
VISION
GUARANTEE
Free app
'Easymate Cam'
TECHNICAL
available on
SUPPORT
Safely monitor your outdoors.
Easy to install and discreet, it helps you keep your home secure by sending
notifications to your smartphone whenever motion is detected. The Inter-
net-connected camera allows you to monitor your home or any other area
with ease. Wherever you are, via your iPhone or Android smartphone, you can
remotely view video, take a live photo or begin video recording.
FULL
HD
1080P
IP 65
V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 340511 and is the answer not in the manual?

Questions and answers

Summary of Contents for Easymate 340511

  • Page 1 1080P WIFI IP CAMERA Outdoor Surveillance Camera Ref. 340511 FULL MOVEMENT NIGHT 1080P IP 65 DETECTION VISION GUARANTEE Free app ‘Easymate Cam’ TECHNICAL available on SUPPORT Safely monitor your outdoors. Easy to install and discreet, it helps you keep your home secure by sending notifications to your smartphone whenever motion is detected.
  • Page 2: Table Of Contents

    1080P WIFI IP CAMERA CONTENTS A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 2 - MAINTENANCE AND CLEANING 3 - RECYCLING B - PRODUCT DESCRIPTION 1 - KIT CONTENTS 2 - CAMERA 3 - MAINS ADAPTOR C - INSTALLATION 1 - INSTALLING THE CAMERA 2 - INSERTING A MICRO SD CARD (NOT INCLUDED) 3 - CONNECTING THE CAMERA D - CONFIGURATION...
  • Page 3 1080P WIFI IP CAMERA F - RESETTING G - FAQ H - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS 2 - WARRANTY 3 - HELP AND ADVICE 4 - PRODUCT RETURNS/AFTER SALES SERVICE 5 - EC DECLARATION OF CONFORMITY...
  • Page 5: A - Safety Instructions

    1080P WIFI IP CAMERA A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 3 - RECYCLING • The cameras must not be installed where the This logo denotes that devices no longer lens filter may be vulnerable to scratching and in use should not be disposed of as dirt.
  • Page 6: B - Product Description

    1080P WIFI IP CAMERA B - PRODUCT DESCRIPTION 1 - CONTENTS OF THE KIT Camera Wall plugs for wall-mounting 230V A/C 50 Hz mains adaptor / Screws for wall-mounting 12V DC/1A Reset tool Antenna to be screwed to rear of camera 2 - CAMERA...
  • Page 7: Mains Adaptor

    1080P WIFI IP CAMERA B - PRODUCT DESCRIPTION Slot cover for microSD card (not included) of up to 128 GB, RESET button and USB socket (not used) Loudspeaker grid Location of the microphone (on the front) Adjustable stand Mains adaptor power supply (included) Camera lens Infra-red light for night vision Dusk sensor for infra-red lighting control...
  • Page 8: C - Installation

    1080P WIFI IP CAMERA C - INSTALLATION 1 - INSTALLING THE CAMERA • The camera can be attached to either wall or ceiling. • Mount the camera using suitable screws and wall plugs for the type of surface (the screws and plugs supplied are suitable for solid walls).
  • Page 9: Connecting The Camera

    1080P WIFI IP CAMERA C - INSTALLATION Note: These operations must be carried out with the camera disconnected from the mains power supply. 3 - CONNECTING THE CAMERA...
  • Page 10: D - Configuration

    ADDING IT TO THE APP the camera: Comment: the screenshots shown are from the Android version of the Easymate Cam app. The iPhone version works in exactly the same way. Download the Easymate Cam app on the Appstore or Google Play, then open the app. Accept the...
  • Page 11 1080P WIFI IP CAMERA D - CONFIGURATION it must send to the camera for internet access. Important: Camera network compatibility: 2.4 GHz - 20/40 auto - WPA/WPA2. Not compatible with 5 GHz WiFi or with WEP encryption. Please check the WiFi settings of your gateway with your Internet service provider if you experience connection difficulties.
  • Page 12: Access To All Settings

    1080P WIFI IP CAMERA D - CONFIGURATION network indicated by your smartphone, the camera plays a tune. When your smartphone detects the presence of your camera on the network, it asks you which time zone it should use: The time indicated is inset in the video recordings made by the camera.
  • Page 13 1080P WIFI IP CAMERA D - CONFIGURATION It is easier if you rename your camera here after pairing Change of camera access password, which changes when the camera is started up MicroSD card management (not included) and formatting Movement detection management: starting/stopping the recording on the microSD card when movement is detected in...
  • Page 14: E - Operation

    1080P WIFI IP CAMERA E - USE 1 - LIVE VIDEO Simultaneous display of up to 4 cameras Smartphone microphone activation to speak From the list of cameras (home screen of the app through the camera’s speaker after start-up), click on the image or name of your Start/stop video recording...
  • Page 15 1080P WIFI IP CAMERA E - USE When a recorded video is viewed, it appears instead of the live image Start/Stop playback Turn recorded video sound on/off Take an instant photo of the recording being viewed (saved to smartphone memory) Start/stop recording video of the video being viewed (saved to smartphone memory so it can be shared)
  • Page 16: F - Resetting

    1080P WIFI IP CAMERA F - RESETTING If there is a problem, you can reset the WiFi configuration by pressing the Reset button beside the SD card slot until a beep sounds. Once reset, the camera will start up again. After 30 seconds, it is available for reconfiguration.
  • Page 17: G - Faq

    Android manufacturer in order to obtain a on your device recent Android version Unable to install the Easymate Google Play checks all the key Cam app components needed to run on my Android device the application properly.
  • Page 18: H - Technical And Legal Information

    1080P WIFI IP CAMERA H - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS 2M Pixels Resolution Power supply: 12V/1A Real-time video playback Technical characteristics Communication protocol: 2.4 GHz b/g/n WiFi 4 Encryption: WPA-PSK/WPA2 Viewing angles ° Audio Two-way Night vision Yes, 20m range Sensor and lens 1/4”...
  • Page 19: Warranty

    The warranty will be void if the device is tampered below: with. 1080p outdoor IP camera 340511 Complies with the RED 2014/53/EU directive and 3 - HELP AND SUGGESTIONS that its conformity has been assessed pursuant to the applicable standards in force: •...
  • Page 21 AVIDSEN 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France...
