York LX Series Technical Manual

Split system heat pumps
Hide thumbs Also See for LX Series:
Table of Contents

Advertisement

Quick Links

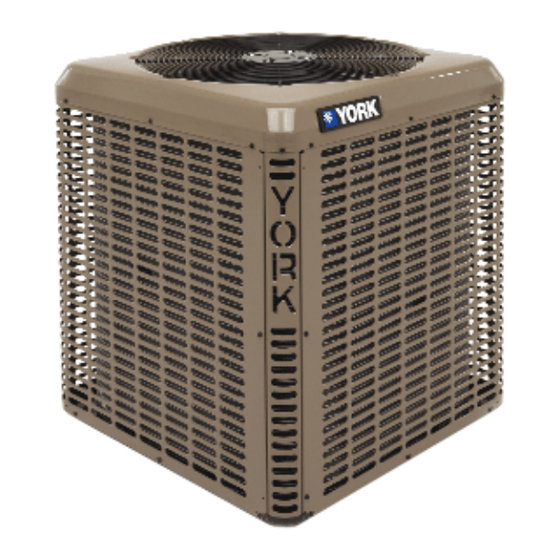

TECHNICAL GUIDE
LX SERIES
SPLIT SYSTEM
HEAT PUMPS
14 SEER – R-410A – 1 PHASE
1.5 TO 5 NOMINAL TON
MODELS: YEE18 TO 60
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.simplygettingthejobdone.com
www.york.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Standard 5-year limited parts warranty.
Standard 10-year limited compressor warranty.
Extended 10-Years limited parts warranty when product is
registered online within 90 days of purchase for replacement
or closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or Internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed
®
and

DESCRIPTION

The YEE models are part of our successful LX Series split sys-
tem heat pump lineup. These outdoor units are optimized for 14
SEER/8.2 HSPF Minimum Efficiency in all US Regions, and are
specifically designed to be matched with YORK
furnaces, and air handlers to provide a complete system solu-
tion.

FEATURES

• Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. All models utilize TXVs.
The factory installed stainless steel filter-drier and factory
charge for a 15 ft lineset means less time spent brazing and
charging the system. The small base dimension and reduced
unit clearances make for easier retrofits.
• Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
• Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galva-
nized steel chassis components resist corrosion and rust
creep. Champagne colored powdercoat paint further protects
external panels.
• Rugged Coil Protection - Coils are protected from mechan-
ical damage by a an extruded louver coil guard.
• Quality Coils - Enhanced aluminum fins are mechanically
bonded to copper tubing.
• Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high and low pressure
switches. The liquid line filter-drier is factory installed to pro-
tect the compressor against moisture and debris.
• Reliable Operation - Ball bearing fan motors provide supe-
rior performance in extreme temperatures.
• Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
• Top Discharge - Warm air is blown up, away from the struc-
ture and any landscaping and allows compact location on
multi-unit applications.
• Low Operating Sound Levels - Developed using CFD and
FEA tools, the sturdy cabinet and top design provides sound
performance as low as 66 dBA. Compatible accessories for
further sound reduction are also available.
• Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electri-
cal controls, full corner access, and removable fan guard
allow easy access for unit maintenance.
• Agency Listed - Safety certified by CSA to the 4th Edition of
UL 1995 / CSA 22.2. Performance certified to ANSI/AHRI
Standard 210/240 in accordance with the Unitary Small
Equipment certification program.
5855836-YTG-B-1121
®
indoor coils,
