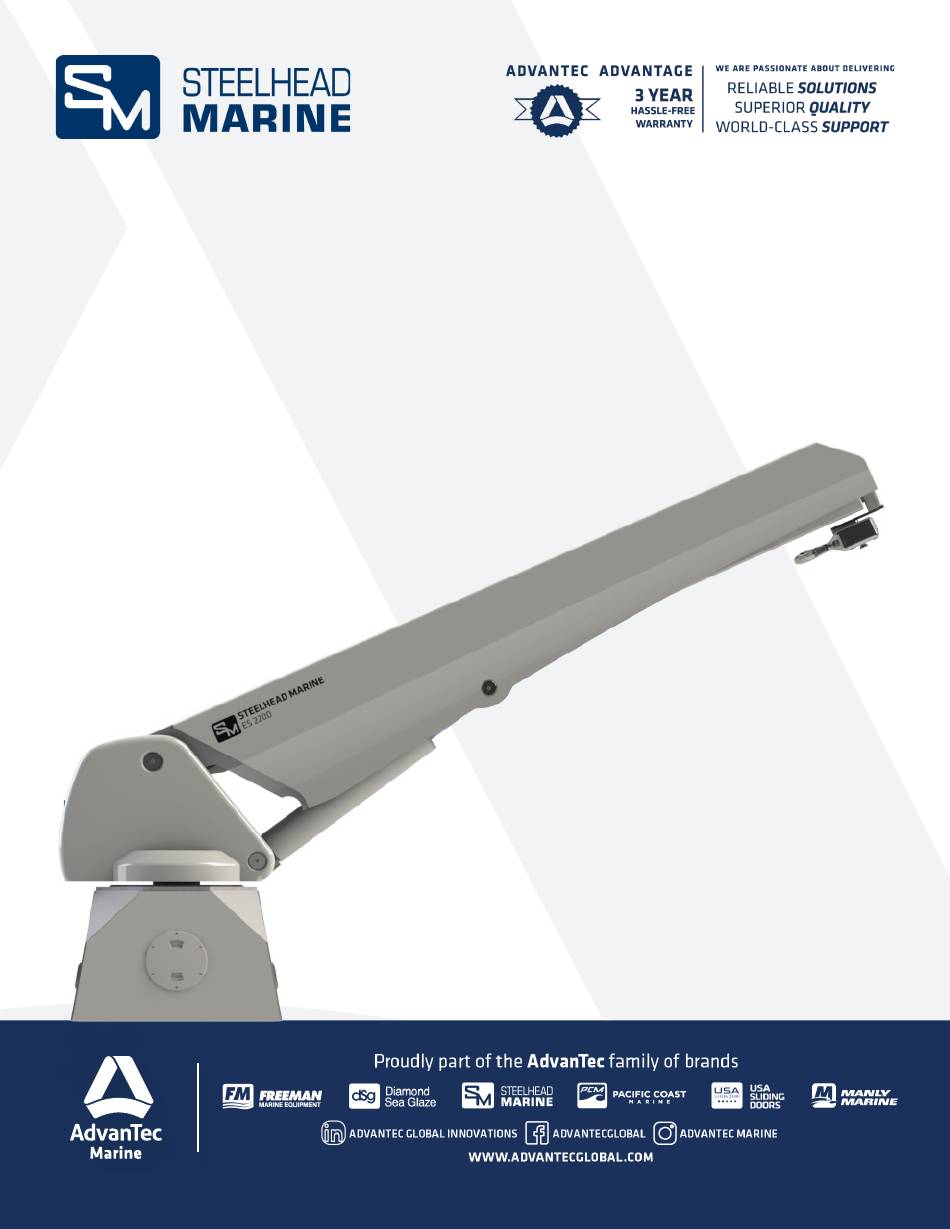

  • Page 1 INSTALLATION AND OPERATION MANUAL ES2200 | ES2500 ES Series Lightweight, super efficient, low profile European design with four-function hydraulics.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ABOUT US BENEFITS OF STEELHEAD MARINE | OUR WARRANTY YACHT CRANE ASSEMBLY NOTICE TO INSTALLER REQUIRED EQUIPMENT AND TOOLS PLANNING THE INSTALLATION 14FT ES 22 REACH INSTALLING THE STANDPIPE OPERATING INSTRUCTIONS CRANE STORAGE | MAINTENANCE TROUBLESHOOTING SPECIFICATIONS APPENDIX WIRING DIAGRAM MANIFOLD...

  • Page 3: About Us

    ABOUT ADVANTEC: AdvanTec is a collaboration of brands that specializes in the design, engineering, and manufacturing of a wide variety of marine products. As one of the largest marine manufacturers in the world, with over 150 years of experience collectively from their brands, they have been one of the leaders in innovation and creative manufacturing systems.
  • Page 4 • Platinum Warranty - 36 months from date of shipment All Powered Equipment: • Standard Warranty - 24 months from date of shipment • Onsite commissioning required by AdvanTec Marine or certified technician for an additional 12-month extension Scan for more information...

  • Page 5: Yacht Crane Assembly

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L YACHT CRANE ASSEMBLY BOOM BODY RING GEAR...
  • Page 6 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L BASE VARIATIONS Figure 1b: Standpipe, Round Base, Square Base...

  • Page 7: Notice To Installer

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L NOTICE TO INSTALLER Throughout this publication, Warnings and Cautions accompanied by the International Hazard Symbol...

  • Page 8: Required Equipment And Tools

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L REQUIRED EQUIPMENT AND TOOLS This section describes the equipment and tools needed or recommended for the yacht crane installation.

  • Page 9: Planning The Installation

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L REQUIRED EQUIPMENT AND TOOLS Required Tools You should have the following tools on hand for installation:...

  • Page 10: 14Ft Es 22 Reach

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L 14FT ES 22 REACH ANGLE LENGTH...

  • Page 11: Installing The Standpipe

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L INSTALLING THE STANDPIPE...
  • Page 12 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L INSTALLING THE STANDPIPE Follow this procedure if you are installing the optional standpipe assembly CRANE...
  • Page 13 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L Seal deck core material as directed by shipyard, chock standpipe step spigot with FRP filler material and bed standpipe step with Sikaflex 292 and Sikaflex 210T Primer.
  • Page 14 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L BATTERY (+) FROM CONTROL ( + )

  • Page 15: Operating Instructions

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L OPERATING INSTRUCTIONS...
  • Page 16 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L OPERATING INSTRUCTIONS Misuse of the crane may result in injury or death.

  • Page 17: Crane Storage | Maintenance

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L CRANE STORAGE To properly store the crane after use: 1.

  • Page 18: Troubleshooting

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L TROUBLESHOOTING PROBLEM PROBABLE CAUSE...

  • Page 19: Specifications

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L SPECIFICATIONS Electrical System The control system is available as 24 volt, 3 amps...

  • Page 20: Appendix

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L APPENDIX...

  • Page 21: Wiring Diagram

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L APPENDIX –...

  • Page 22: Manifold

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L APPENDIX –...
  • Page 23 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L APPENDIX –...
  • Page 24 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L APPENDIX –...
  • Page 25 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L APPENDIX –...

  • Page 26: Exploded View

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L APPENDIX –...

  • Page 27: Sm-1 Controller

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L SM-1 CONTROLLER TX -Green LED Indicator (flashes when transmitting message)
  • Page 28 HIGH PERFORMANCE YACHT CRANES Steelhead Marine cranes are found on the finest yachts and superyachts around the world. Whisper Davits Whisper–quiet, low lift requirments, compact, sleek, and dual function davits. E Series Lightweight aluminum crane with standard two function (luffing &...
  • Page 29 STEELHEAD MARINE’S HIGH PERFORMANCE YACHT CRANE LINE SERIES HYDRAULIC OPTIONS MODEL CAPACITY REACH HOIST RETRACTED WEIGHT IDEALLY SUITED FUNCTIONS LENGTH FOR VESSELS WD600 < 50 < 15 Pedestal Base WD800 < 50 < 15 Hoisting WHISPER DAVITS Standpipe Mount Power Luffing 12 or 24V DC power WD1000 1000...

  • Page 30: Yacht Cranes

    E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L SERVICE & SUPPORT At AdvanTec Marine, We Support What We Sell! We’re more than a manufacturer of innovative marine products. We offer a range of technical support services for our products post-purchase.
  • Page 31 E S 2 2 0 0 | E S 2 5 0 0 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L Tel: +1 206-420-4932 Email: info@geetech.mc Fax: +64 9 415 8304...
  • Page 32 To request a quote or to talk to a product specialist please call: Tel 604-607-0091 | Toll Free: (North America) 1-800-770-0455 SCAN FOR MORE STEELHEAD MARINE PRODUCTS AdvanTec Manufacturing Canada Phone: 1.800.770.0455 AdvanTec Manufacturing USA 43676 Progress Way, Chilliwack, Email: info@advantecglobal.com 28336 Hunter Creek Rd., Gold...
