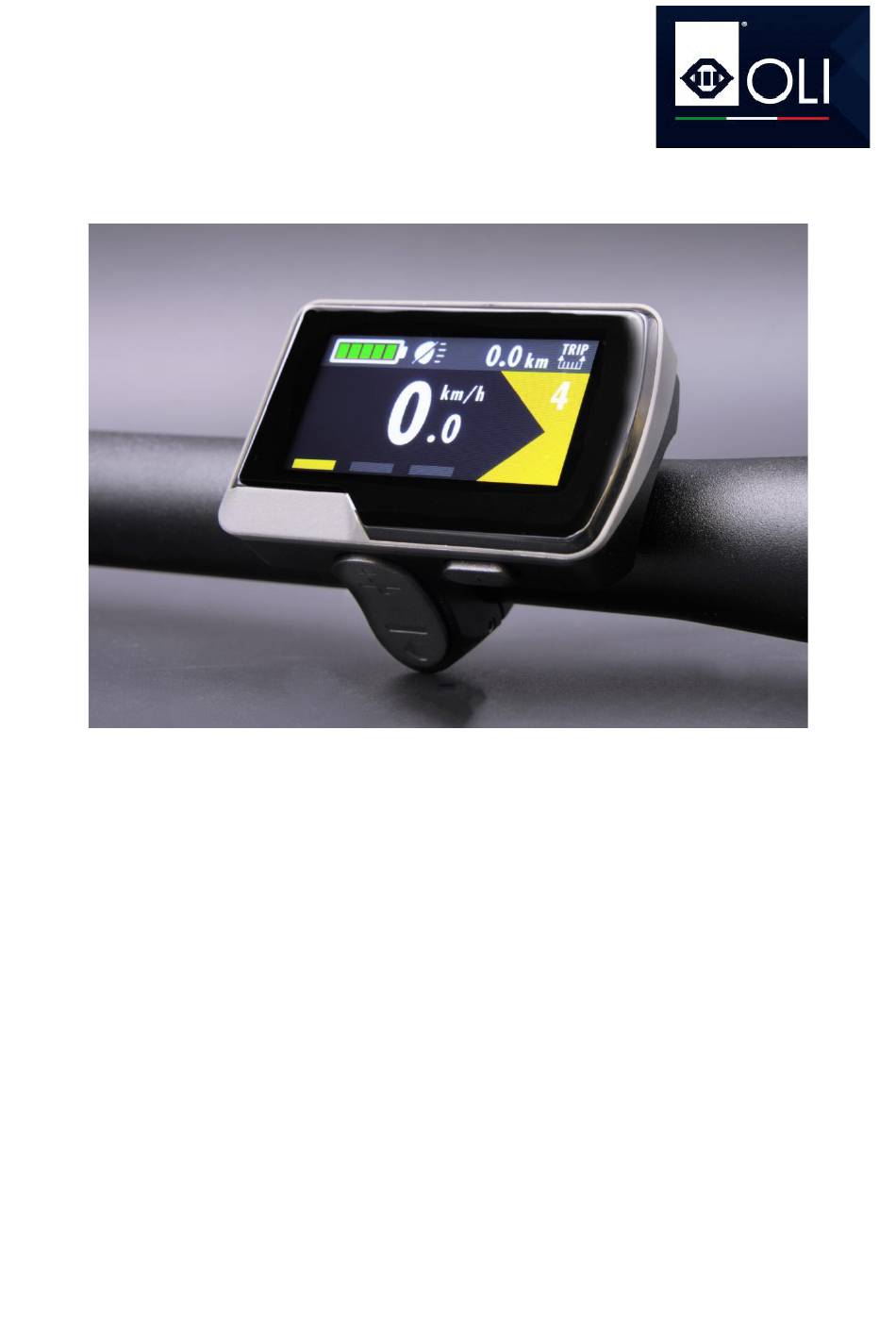

OLI eBIKE SYSTEMS SIDE VISION DISPLAY – user manual SUMMARY 1. SPECIFICATION 2. DIMENSIONS 3. WARRANTY 4. OPERATIVE BUTTONS 5. SWITCH ON AND OFF THE SYSTEM 6. CHANGE ASSISTANCE LEVEL 7. READ RIDE INFORMATIONS 8. ACCESS AND OPERATE THE MENU 9. -
Page 2: Specification
1) Specifications • 36V Power Supply • Rated working current :22m • Operating temperature: -20℃~ 60℃ • Storage temperature: -30℃~ 70℃ • Water resistance: IP66 2) Dimensions Expressed in mm 3) Warranty • Warranty will be valid only for products used in normal usage conditions. •... -
Page 3: Operative Buttons
4) Operative buttons ① SHORT PRESS: increases assistance level LONG PRESS: turns lights on/off – ② SHORT PRESS: decreases assistance level HOLD PRESS: activates walk mode. Pushes the bike at 5km/h ③ SHORT PRESS: cycles through ride’s information LONG PRESS: enters menu ④... -
Page 4: Switch On And Off The System
System is switched ON by pressing button ④ for 2 seconds. Loading page shows the OLI eBike Systems logo. The system turns on by default on assistance level 3, but it might be there variation according to bike manufacture’s specifications. -
Page 5: Read Ride Informations
7) Read ride information ③, ride’s information cycle in the top-right corner of the display. By short clicking button Shown information are: Trip since last erase Ride time since last erase Odometer 8) Access and operate menu To access the system’s menu, hold press button ③... -
Page 6: Walk Mode
9) Walk mode To help pushing the bike uphill while walking, the system features a WALK MODE that pushes the bike up to 5km/h without the need of pedalling. – To operate the WALK MODE, hold press button ② – ②...
