USER MANUAL

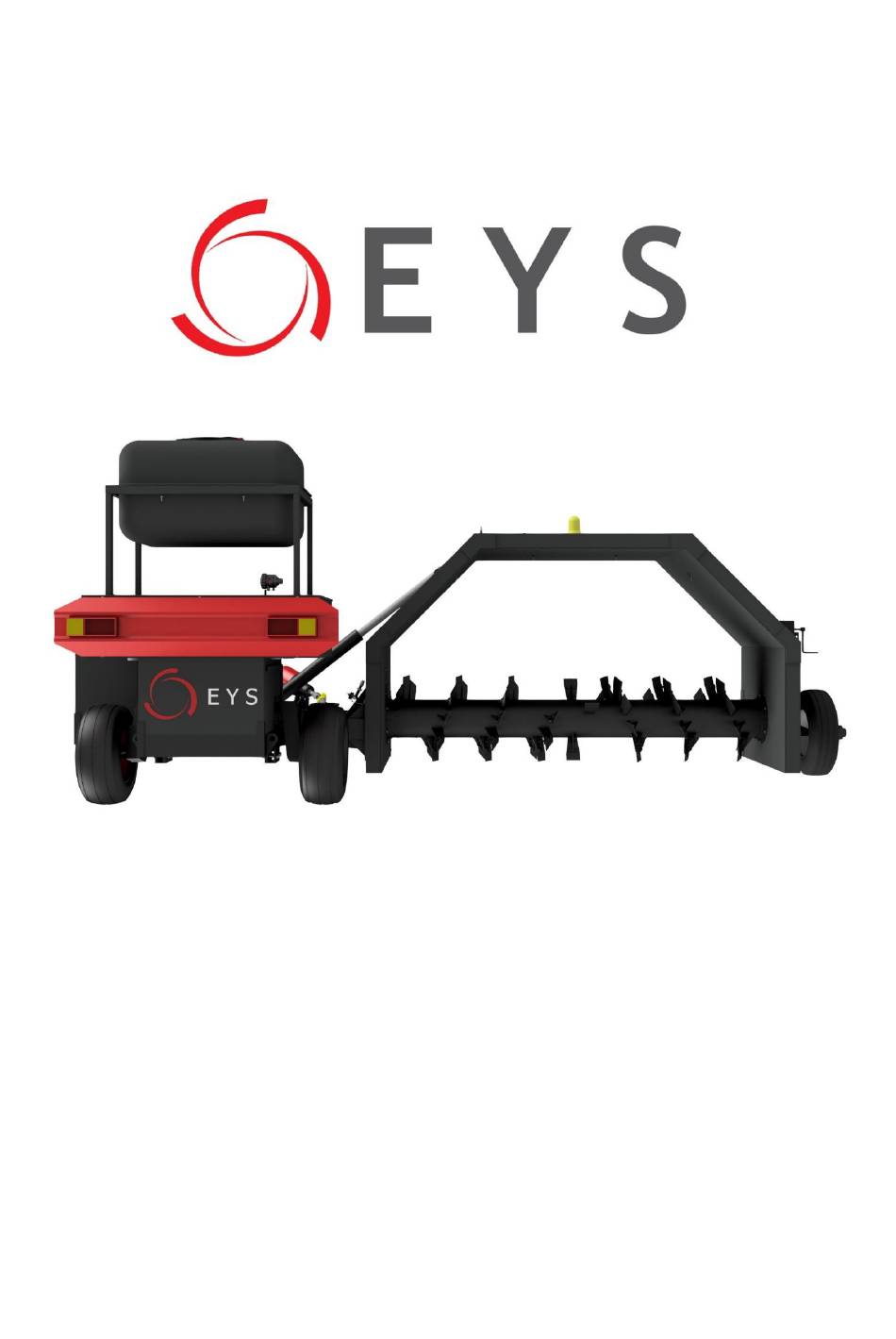

EYS COMPOST TURNER
GK3000
March 2021
1/28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GK3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for EYS GK3000

  • Page 1 USER MANUAL EYS COMPOST TURNER GK3000 March 2021 1/28...
  • Page 2 2/28...
  • Page 3 If any of your questions or concerns are not covered in this manual, please contact the respective dealer who had installed the machinery. Your dealer’s contact information is: If you are not able to reach your dealer and in need of immediate support, then please contact EYS directly at: This user manual is an important part of the EYS Compost Turner.
  • Page 4 4/28...
  • Page 5 PRODUCT INFO Product : COMPOST TURNER Model : ⃝ GK3000 Serial Number Dealer Adress Installation Date : Manufacturer : Customer Address ______ Telephone ______ Please keep serial number of your machine in a safe place and specify model and serial number when you contact with your dealer or manufacturer.
  • Page 6 6/28...
  • Page 7 HAND-OVER FORM (TO BE SIGNED OFF BETWEEN THE DEALER AND THE CUSTOMER) Product : COMPOST TURNER Model : ⃝ GK3000 Serial Number Dealer Customer Installation Date : This form confirms that the product installation and start-up has been completed successfully. Basic training has been provided and this manual has been handed over to the responsible personnel below.
  • Page 8 8/28...
  • Page 9 EYS GmbH/EYS Metal San.ve Tic.Ltd.Şti. Our customer service is always available. EYS Compost Turner has technological and high-quality materials that can serve you for many years without any problems. The minimum lifetime specified by the Ministry of Customs and Trade for separator is 10 (ten) years.
  • Page 10 EYS Compost Turners should be used by only staff who are able to cope with the damages which may occur from the machine. The prevention of the accidents and all first aid rules should be analyized carefully.

  • Page 11: Table Of Contents

    INDEX 1 SAFETY INSTRUCTIONS ....................13 2 GENERAL INFORMATION....................15 3 DELIVERY, HANDLING AND INSTALLATION ............16 3.1. Delivery ........................16 3.2. Installation ........................17 4 PRELIMINARY PREPARATIONS BEFORE START-UP ..........20 5 STARTING AND STOPPING THE MACHINE ............... 21 5.1.
  • Page 12 Table of Figures This warning box is used to highlight safety related precautions throught the document. Remember that there is risk of personal injury with every “warning” sign topic and it is of utmost importance WARNING to understand and follow the contained information. Failure to follow instructions can result in damage to a par tor the whole of the machine, possibly putting the machine out of CAUTION...

  • Page 13: Safety Instructions

    FOR CORRECT AND SAFE USAGE It’s strictly forbidden for untrained, unauthorised personnel to montage, maintain and operate the machines and to be around the machine. EYS compost turner can not be used except of it’s intended use. Usage Information ...
  • Page 14 Make sure all the malfunctions are solved when the power take-off is back Check electric cables regularly. This process must be done after the main power is cut off. Maintenance Never perform any maintenance, service or cleaning before fully stopping the machine and the other system components.

  • Page 15: General Information

    Water Pump Hydraulic Unit EYS compost turner is designed to mix separated or compost bovine and pig manure and organic waste. Manure should be mixed frequently with the machine to complete maturation over time. This process will also decrease moisture of material. Compost turner is driven by tractor power take-off. Control of pistons, nozzle system, rotation of drum etc.

  • Page 16: Delivery, Handling And Installation

    DELIVERY, HANDLING AND INSTALLATION 3.1. Delivery EYS compost turner is delivered as 9 parts. All parts are available in below image. Please make sure all the parts are available while receiving the machine. Tunnel Water Tank Rear Bumper Long and...

  • Page 17: Installation

    3.2. Installation You will need wrench set, sling ropes and a forklift to assembly EYS Compost Turner. Firstly place top plate of weight tank as shown in right image but do not fix it yet. After placing water tank on weight tank, top plate will be fixed by using M12x40 screws.
  • Page 18 Connect rear bump to weight tank as shown in right image and fix it by M8x16 screws and M8 nuts. Screws will be fixed to marked parts in right image. Left and right wings will be connected on tunnel. Use M12x25 mm screws for connection. Connect rope slings to water tank and lift it slowly by forklift.
  • Page 19 Nozzle inlet line 5 - Top bypass outlet (returns to top of tank) Pressure adjustment screw 6 - Additional outlet Pressure control lever 7 - Pump Outlet Bottom bypass outlet (returns to tank) 8 - Pump inlet During a normal operation, nozzle inlet line (1), bottom bypass line (4), top bylass line (5) and pressure control lever (3) should be open.

  • Page 20: Preliminary Preparations Before Start-Up

    Slowly turn piston as shown in right image and connect piston and lifting eyes on tunnel by using pin. Now connect short and long shafts. Short shaft will be connected between gearbox and tractor link adapter. In order to connect short shaft, first remove link adapter by removing it from chassis.

  • Page 21: Starting And Stopping The Machine

     Check tyre pressure. The value is 55 Bar.  Check screw tension of blades on drum.  Make sure there are no obstacles or foreign materials (rock etc.) in operation area.  Blind spots may occur during operation. Make sure there is no human or animal in operation area between/around piles while the machine is running.

  • Page 22: Troubleshooting

    Check tyre pressure. height, machine isn’t lifted. MAINTENANCE In order to use your EYS compost turner for long years, a proper maintenance is required. Please follow the steps in this section to maximize life span of your machine. FREQUENCY OPERATION Check tyre pressure.
  • Page 23 ISO VG 320 synthetic oil will be used for gearbox. Required amount is 3 liters and must be replaced once every year. Oil cover is marked in right image. Remove the cover and fill oil. Lubricate shaft components as shown in below images. 8 hours 8 hours Wide Angle...

  • Page 24: Cleaning

    7.3. Emptying Water Pump If EYS GK3000 compost turner will be used in areas where environmental temperature is less than 0°C, water pump should completely be emptied after each operation and before storage. In order to drain water completely, follow below steps;...

  • Page 25: Long Term Storage

    LONG TERM STORAGE If EYS compost turner will not be used for a long time, in order to protect the machine from corrosion, clean the body with water. The pieces of the manure which will dry on the machine may cause corrosion in a long term.

  • Page 26: Overall Dimensions

    9.2. Overall Dimensions 6400 2355 4260 26/28...

  • Page 27: Identification Label

    9.3. Identification Label While contacting your supplier or EYS, make sure to tell serial number of your machine. Serial number and date of manufacture are available in the identification label of the machine. ISO 9001 PRODUCT DESCRIPTION MODEL DATE OF MANUFACTURE : SERIAL NUMBER EYS Metal San.

  • Page 28: Declaration Of Conformity

    234/1 EFELER, AYDIN, TURKEY Yetkili firma, bu belgede bildirilen makine ekipmanın 2006/42/EC Makine Direktiflerine uygunluğunu garanti eder. Aşağıda bahsi geçen makine ekipmanın tüm imalat kontrolleri EYS METAL SAN. VE TİC. LTD. ŞTİ. tarafından gerçekleştirilmiştir. The undersigned Company certifies under its sole responsibility that the item of equipment specified below satisfies the requirements of the Machinery Directive 2006/42/EC which applies to it.
