Hacousto Holland bv
Industrieweg 87
2651BC Berkel & Rodenrijs

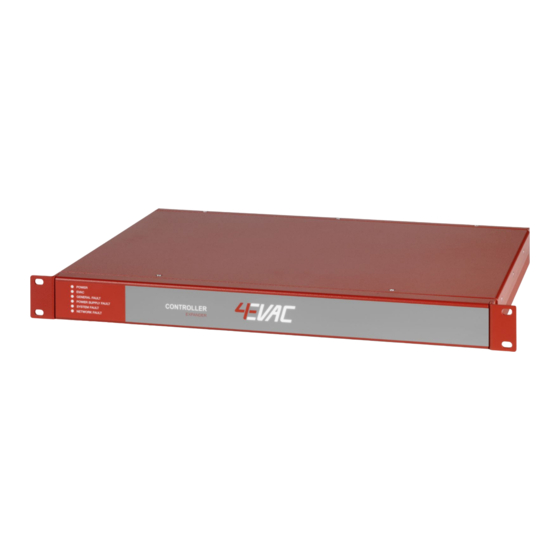

Impact Controller – Expander
User and installation manual
SUMMARY
This document describes the Controller-Expander, which is an optional network port expander dedicated
to 4EVAC Voice Evacuation systems.
REVISION AND APPROVAL
Rev.
Date
01
09-03-2020
02
08-06-2020
03
11-06-2020
04
05-08-2021
Page 1 of 10
Nature of Changes
Preliminary draft
Updated pictures, minor corrections
Corrections
Technical specifications corrections
Author:
Approved By
DD
DD
TvdH
AJH
DD
Advertisement
Table of Contents
Summary of Contents for 4EVAC Impact Controller-Expander
- Page 1 2651BC Berkel & Rodenrijs Impact Controller – Expander Author: User and installation manual SUMMARY This document describes the Controller-Expander, which is an optional network port expander dedicated to 4EVAC Voice Evacuation systems. REVISION AND APPROVAL Rev. Date Nature of Changes Approved By 09-03-2020...
-
Page 2: Table Of Contents
Hacousto Holland bv Industrieweg 87 2651BC Berkel & Rodenrijs Impact Controller – Expander Author: User and installation manual Table of Contents What is the Controller-Expander? ........................... 3 Front panel ....................................4 POWER ................................... 4 EVAC ....................................4 GENERAL FAULT ................................4 POWER SUPPLY FAULT ............................. -
Page 3: What Is The Controller-Expander
The Controller Expander cannot not be used alone as a standalone VACIE (Voice alarm control and indicating equipment), as it does not feature EN54-16 mandatory inputs / outputs. The Expander may be used in the system only as an additional interface, connected to the main network of 4EVAC VACIE main units. -
Page 4: Front Panel
Hacousto Holland bv Industrieweg 87 2651BC Berkel & Rodenrijs Impact Controller – Expander Author: User and installation manual 2. Front panel Indicators (functions identically to the Impact Controller, except power supply fault): POWER Indicates if the Controller is being powered and if the system is booted properly. Not powered GREEN continuous This device is powered and operational. -
Page 5: System Fault
Hacousto Holland bv Industrieweg 87 2651BC Berkel & Rodenrijs Impact Controller – Expander Author: User and installation manual SYSTEM FAULT Indicates a system fault of the Controller-Expander, where: A CPU or program execution is stopped or malfunctioning, Storage memory containing config settings and audio files (SD card) is corrupted. Where the system fault is caused by a CPU or memory fault, the device remains in its “safe state”... -
Page 6: Local Network
Multiple microphone stations may be used in the same L-Net, with the following limitations: A maximum of 8 stations per L-Net port A maximum of 16 stations per single 4EVAC main unit (total sum of all 3 L-net ports) A microphone station may be also daisy-chained together with other L-Net devices NOTE: Controller expander does not support 4E-SW6. -
Page 7: Micro Sd Card
Compact 500. 5. Network cabling The 4EVAC network features a full duplex RS-422 data link and 24V DC power to remote devices. If you’re building a distributed system using the 4EVAC network, you should make physical links between devices using the right cables. Cabling should meet the following requirements:... -
Page 8: Connections And Recommended Cable Types
Hacousto Holland bv Industrieweg 87 2651BC Berkel & Rodenrijs Impact Controller – Expander Author: User and installation manual pin number pin number shield shield power + power + power - power - power + power + power - power - xover type A cable pin number pin number... -
Page 9: Technical Specifications
2500 m All information provided in this document is subject to change without notice. 4EVAC may also make improvements and/or changes in the products described in this information at any time without notice. Page 9 of 10... - Page 10 Author: User and installation manual M A D E T H E N E T H E R L A N D S 4EVAC is a trade name of: Hacousto Holland bv Industrieweg 87 2651BC Berkel & Rodenrijs The Netherlands www.4EVAC.com...
