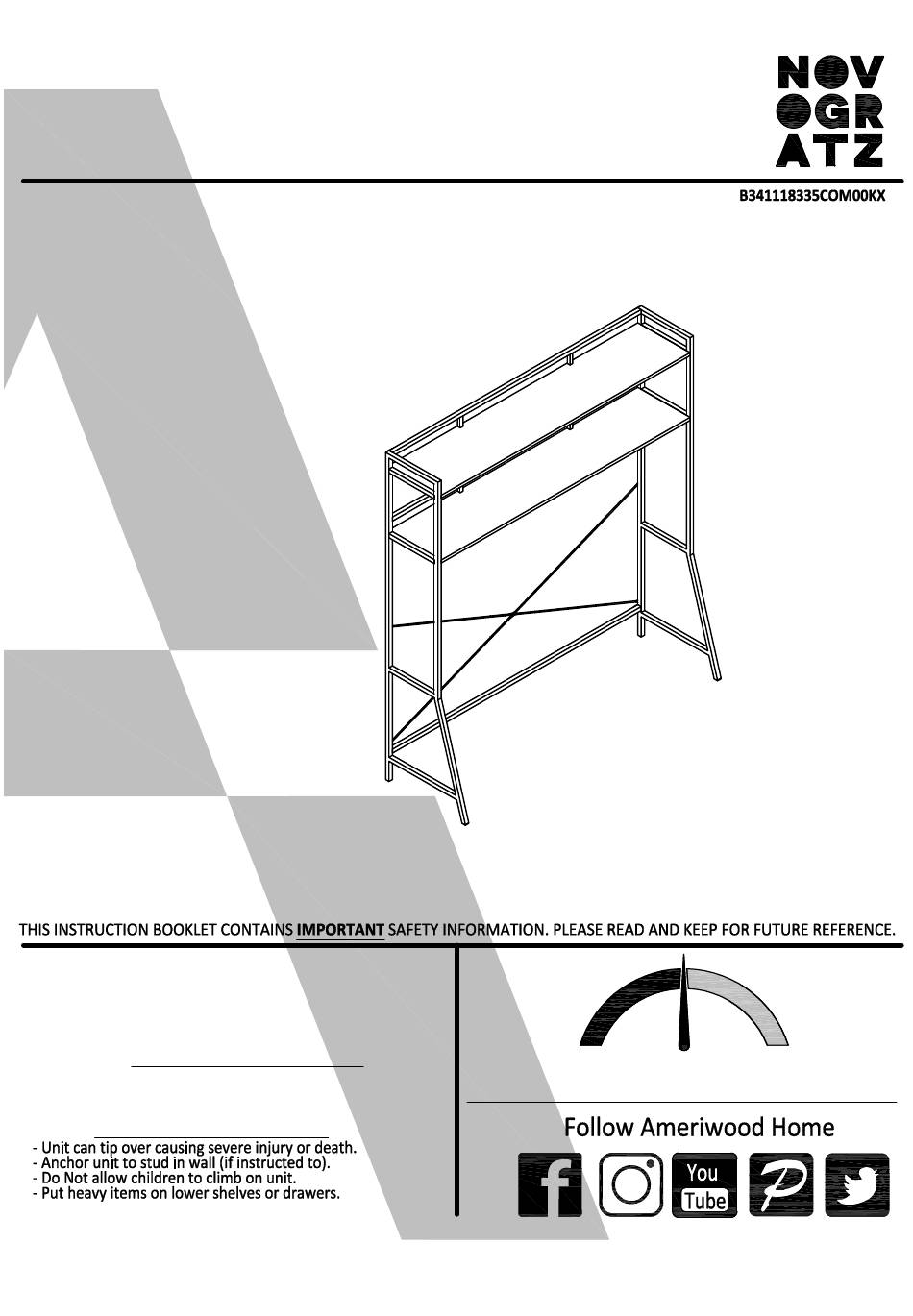

1118335COM
Baylor over the bed storage
Nightfall OAK /Black
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
Easy
Assembly Difficulty Meter
Tough
Advertisement
Related Manuals for Novogratz Baylor 1118335COM
Summary of Contents for Novogratz Baylor 1118335COM
- Page 1 1118335COM Baylor over the bed storage Nightfall OAK /Black Date of Purchase ___ / ___ / ___ Lot Number: Do Not Return This Product! Contact our customer service team for help first. Call: 1-800-489-3351 (toll free) Monday-Friday 9am - 5pm CST Easy Visit: www.ameriwoodhome.com Tough...
-
Page 2: Helpful Hints
Contact Us! Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 2 ESTIMATED ASSEMBLY TIME: 1 HOUR ameriwoodhome.com... -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not Actual Size Shelf Left leg frame Right leg frame T1118335010KX T1118335020KX T1118335030KX QTY:2 PCS Preassembled Parts Preassembled Parts Left leg frame T1118335020KX1 Right leg frame T1118335030KX1 Tube plug (2) TKX1323 Tube plug (2) TKX1323 Support tube Support tube Tension bar T1118335040KX T1118335050KX... - Page 5 Board Identification Not Actual Size ameriwoodhome.com...
-
Page 6: Part List
Hardware Bag Reference Number: 21118335COM0KX Part List Actual Size Ø1/4"X12mm Ø1/4"X12 mm Ø1/4"X25 mm M4X12 mm × 8 × 6 × 4 × 4 Bolt Bolt Screw bolt Bolt TKX1033 TKX1132 TKX1302 TKX1091 Ø4X30mm Ø4X12 mm ×1 × 1 Screw Screw TKX1328 TKX1327... - Page 7 STEP 1 Ø1/4"X12 mm × 8 1.1 Attach (A) to (B) & (C) with (2) as illustrated. NOTE: DO NOT tighten the bolt to ensure the assembly successfully in this step. ameriwoodhome.com...
- Page 8 STEP 2 Ø1/4"X12mm × 6 2.1 Attach (D), (E) to (B) & (C) with (3) as illustrated. NOTE: Tighten all bolts to secure the unit in this assembly step. ameriwoodhome.com...
- Page 9 STEP 3 Ø4X12 mm 35*50*15mm Ø1/4"X25 mm M4X12 mm × 4 × 1 × 4 3.1 Attach (D) to (A) with (1) as illustrated. 3.2 Attach (F) to (B) & (C) with (4) as illustrated. 3.3 Attach (7) to (A) with (6) as illustrated. ameriwoodhome.com...
- Page 10 STEP 4 Ø4X30 mm Ø8.5 × 30mm × 1 × 1 Please note that this unit must be placed against a wall. Option 1: Fasten the wall bracket (7) to a stud in the wall with the screw (5). Option 2: Drill a 5 mm (3/16”) diameter hole in the wallboard. Tap the wall anchor (8) into the hole until it is flush. Fasten the wall bracket (7) to the wall anchor (8) with the screw (5).
- Page 11 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
- Page 12 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
- Page 13 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 14 Español Identificación de los Paneles (Página 4-5) Este no es el tamaño real ESTANTE ESTRUCTURA DE LA PATA IZQUIERDA ESTRUCTURA DE LA PATA DERECHA TUBO DE SOPORTE TUBO DE SOPORTE BARRA DE TENSIÓN Página 7 1.1 Fije (A) a (B) y (C) con (2) como se ilustra. NOTA: NO apriete el perno para garantizar que el ensamblaje se realice correctamente en este paso.
- Page 15 Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LIRE ET GARDER POUR UNE RÉFÉRENCE FUTURE Ne retournez pas ce produit! Contactez notre équipe de service à la clientèle amicale d'abord pour obtenir de l'aide. Appelez-nous: (sans frais) du Lundi au Vendredi de 9h à...
- Page 16 Français Identification des matériaux (Page 4-5) Pas de taille réelle ÉTAGÈRE CADRE DE PIED GAUCHE CADRE DE PIED DROIT TUBE SUPPORT TUBE SUPPORT BARRE DE TENSION Page 7 1.1 Fixez (A) à (B) et (C) avec (2) comme illustré. REMARQUE : NE PAS serrer le boulon pour assurer le succès de l'assemblage à cette étape. Page 8 2.1 Fixez (D), (E) à...
