Hidrotermal HJ-3600RF Manual

Led rgb controller

Download this manual

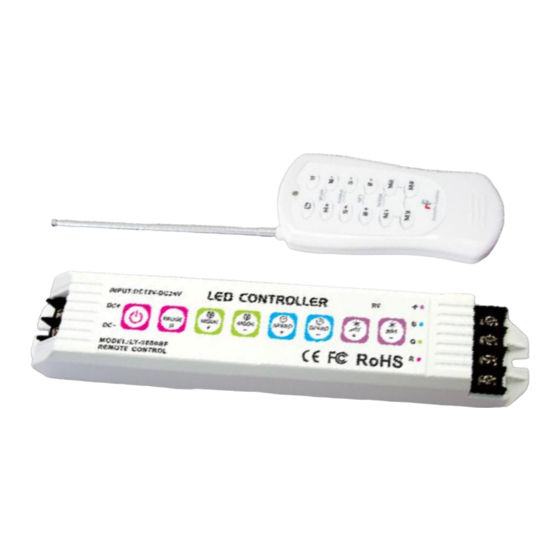

HJ-3600F is a multi-functional RGB LED controller, use the advanced PWM(Pulse-Width modulation) control

technique, built-in 16 kinds of changing mode. Smooth changing effect without flicker; PC engineering plastic

shell, exquisite appearance. The receiver has 8 keys, which are used for namely ON/OFF, PAUSE, MODE+/-,

SPEED+/-, BRT+/-, compatible with RF remote(100m control distance).12-24VDC wide voltage input, 3CH

output(common anode), widely used for all kinds of LEDs with current-limiting resistor, like RGB LED

modules, LED strips, SMD and so on.

1. Technical Specs:

HJ-3600RF(Common Anode)

• Input Voltage: 12-24VDC

• Max Current Load: 6AX3CH

• Max Output Power: 26W/432W(12V/24V)

• Grey Scale Levels: 4096x4096x4096

• RF Remote Distance: 100m

• Radio Frequency: 433.92MHz

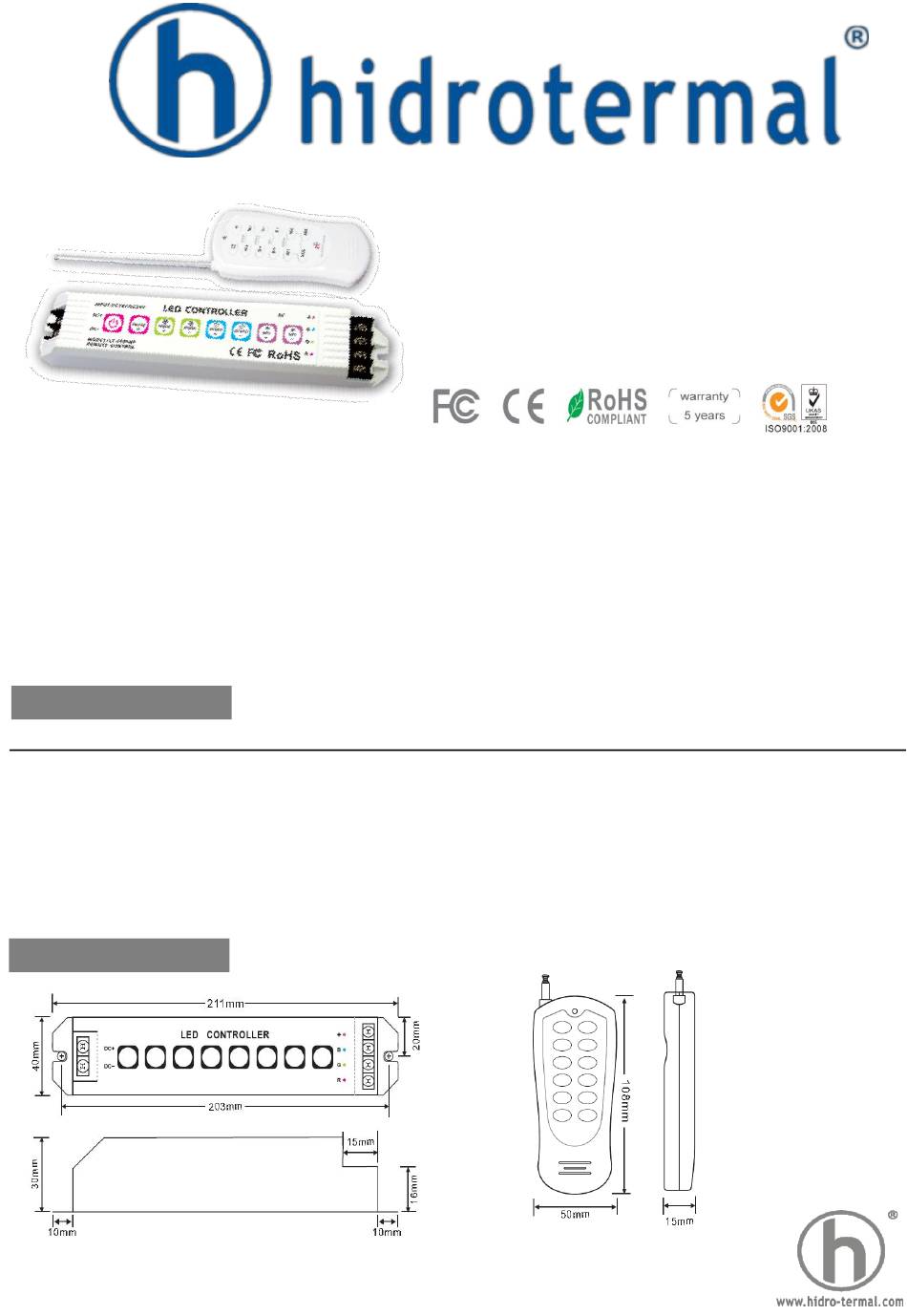

2. Product Size:

Receiver

H J -3600RF

LED RGB Controller

• Remote Output Power: 8mW

• Working Temp.: -30℃~55℃

• Dimensions: L211XW40XH30(mm)

• Package Size: L313XW50XH32(mm)

• Weight(G.W.): 240g

RF Remote Control

Need help?

Do you have a question about the HJ-3600RF and is the answer not in the manual?

Page 1 LEDs with current-limiting resistor, like RGB LED modules, LED strips, SMD and so on. 1. Technical Specs: HJ-3600RF(Common Anode) • Input Voltage: 12-24VDC • Remote Output Power: 8mW • Max Current Load: 6AX3CH •...
Page 2 3. Detailed Key 8 function keys on the receiver, which is corresponding to the first 8 buttons on the RF remote: namely ON/OFF, PAUSE, MODE+, MODE-, SPEED+, SPEED-, BRT+, BRT- Other Functions: A. Press PAUSE in 3s, the buzzer can be on or off. B.
Page 3 5. Wiring Diagram: 5.1 Connected to LED RGB strips: 5.2 Working with power repeater(Connected to LED RGB strips as an example):...
Page 4 6. Attention: 6.1 The product shall be installed and serviced by the qualified person. 6.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. 6.3 Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation. 6.4 Please check if the output voltage of the LED power supply used comply with the working voltage of the product.
