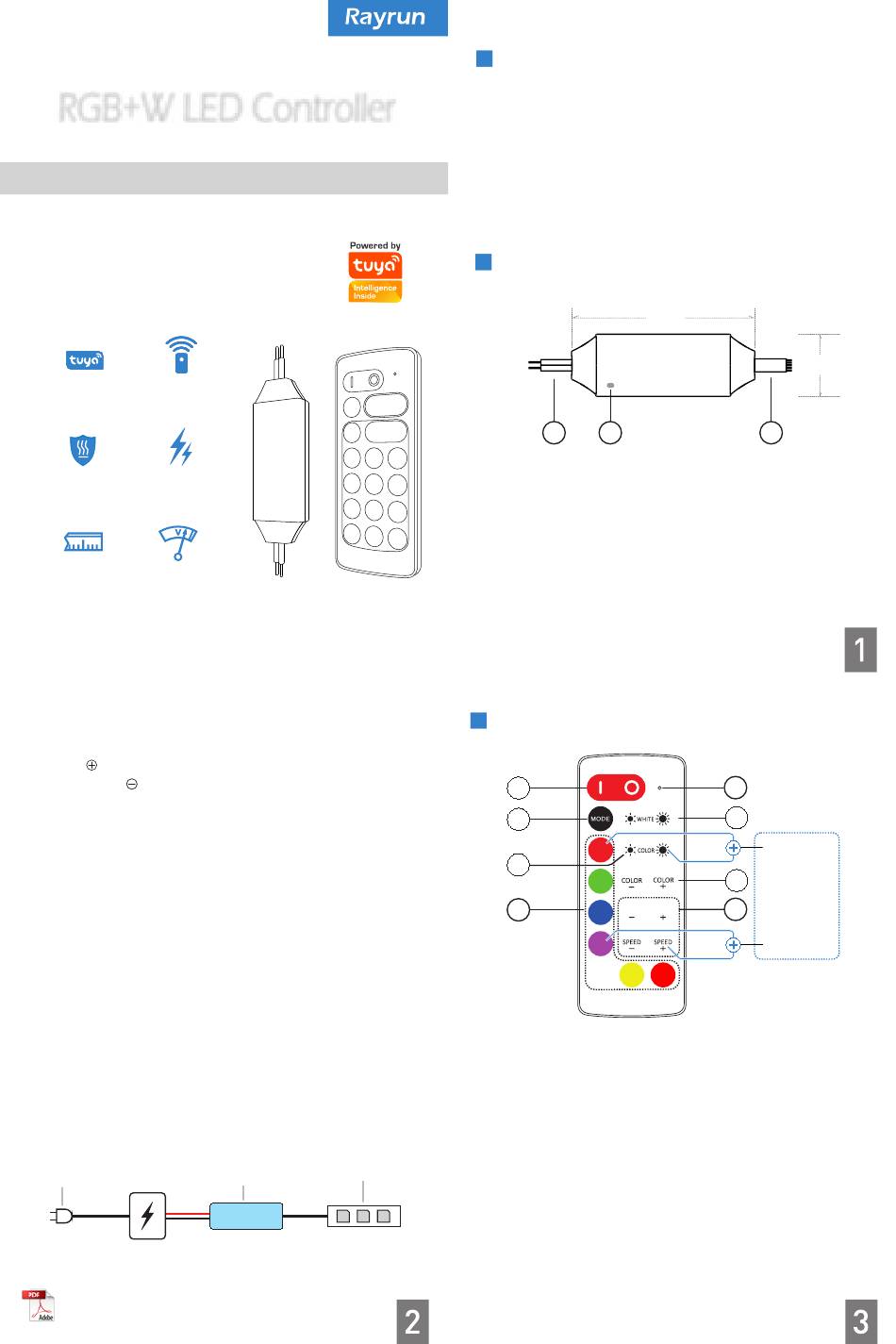

Rayrun TT40 User Manual

Smart & Remote Control
RGB+W LED Controller
Model: TT40 (W/Z/B)
Tuya Smart Tuya Smart Wireless Remote Wireless Remote
High Power
Overheat Protection
Compact Size
12V/24V voltage
2. LED output
Connect to constant voltage type LED load. Connect
the LED to black cable, and R, G, B, W cable to the
relevant color . Please make sure the LED rated
voltage is same as the power supply and the maximum
load current is below the controller rated current.
CAUTION! The controller will be permanently
damaged if output cables short circuited. Please ensure
the cables are well insulated to each other.

3. Work status indicator (optional)

This indicator shows all working status of the
controller. It displays different events as following:
Steady on: Remote and Tuya smart mode.
Flash twice: Tuya not connected.
Flash 3 times: Over heat protection.
Blink: New command received.
Long single blink: Brightness or speed reach limit.

4. Wiring diagram

To 110/230 12-24V DC output
AC power
Power supply
12-24V DC
TT40 LED
LED Strips
Controller
2
12-24V Driving
LED Controller

Introduction

TT40 LED controller is designed to drive constant
voltage RGB+White color LED products in voltage range of
DC12-24V. It can be controlled by smart phone with Tuya
smart app connection or by the stand alone RF remote
controller. User can setup LED brightness, color, scene
and dynamic effects with the rich function on smart phone
Tuya app or the easy operation remote controller.
Terminal & Size
1 3
1. Power supply input
Connect positive power to the cable marked with '+'
and negative to the cable marked with '-'. The controller
can accept DC power from 12V to 24V, the output is PWM
driving signal with same voltage level as the power supply,
so please make sure the LED rated voltage is same as the
power supply.

Functions

5
6
10
8
EFFECT

5. Turn ON / OFF

Press 'I' key to turn on unit or press 'O' key to turn off.
The power on status can be set to last status or default
status from app. At last status mode, the controller will
memorize the on/off status and will restore to the
previous status on next power on.

6. Light mode switch

Press this key to switch between RGB, white and
RGB+White mode. In RGB mode, white channel will be
disabled; In white mode, RGB channel will be disabled; In
RGB+White mode, all channels are usable.
60mm
20.5mm
2
12
9
Pair new
remote
7
Press in 10
seconds once
11
receiver powered
EFFECT
Reset to
factory
