Summary of Contents for LINHOF TECHNO

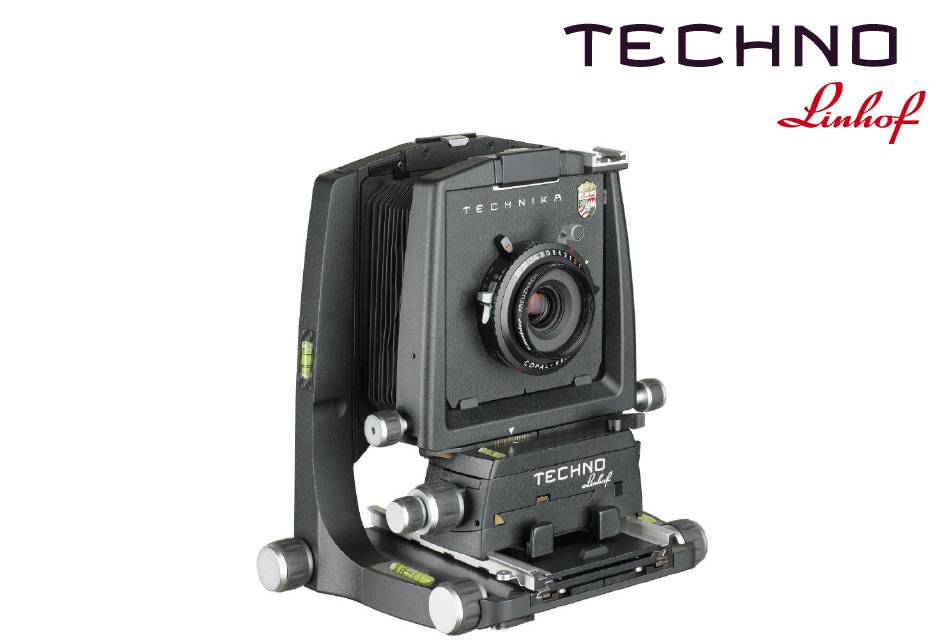

- Page 1 M A D E I N G E R M A N Y...

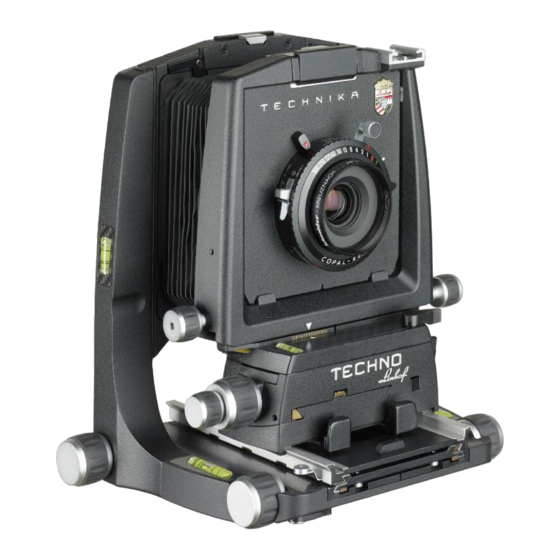

- Page 2 THE DESIGN PRINCIPLE This permits large extensions up to 250 mm TECHNICAL DATA LINHOF TECHNO The TECHNO is a compact hi-tech camera offe- which is a prerequisite for long focal length Camera dimensions in basic position ring all practical adjustment facilities for extre- lenses.
-
Page 3: Ordering Informations
021845-S Rollex Back Groundglass scoring 56x36 / 71x56 (Leaf AFi 10 / Aptus 10) 021846-S Super Rollex Rollfilm back 6x9 for M 679 and Techno 001520 Groundglass / integrated Fresnel screen, scoring 49x37 021850-S Groundglass / integrated Fresnel screen, scoring 53,9x40,4 021851-S Outdoor.case... - Page 4 O p e r a t i n g E l e m e n t s a n d C a m e r a F u n c t i o n s Operating Elements and Camera Functions Unlocking of Technika lensboard Accessory shoe Interchangeable lenses on Technika...
- Page 5 26 Unlocking for lens change: (26) Hold and release with (1). Secure against falling out of the lens. 27 Normal bellows Linhof Techno (included in basic outfit), for changing to wide angle bellows by opening the 4 levers (22). See the note under "bellows change".
- Page 6 O p e r a t i n g E l e m e n t s a n d C a m e r a F u n c t i o n s 29 Back for interchangeable groundglass, Fresnel screens and viewing aids 30 Interchangeable format groundglass 31 Tripod socket 3/8”, it is recommended the...
- Page 7 (and the bellows is locked. vice-versa): Unlock the 4 levers (22) at the inner The wide angle bellows of the Linhof Techno is lens and rear standards. The bellows can now double-folded permitting extreme extensions.
-
Page 8: Lens Change
O p e r a t i n g E l e m e n t s a n d C a m e r a F u n c t i o n s LENS CHANGE Usable focal length lenses from 23 - 210 mm are supplied in mechanical (shutter size 0 and 1) or electronic shutters on Technika lens board. - Page 9 Universal Rapid Change Adapter Slide permitting stit- ching. The detachable groundglass back accepts various groundglasses and viewing aids. The open system Linhof Techno permits compatibility to professional medium format techniques – digital and analogue. CHANGE...
- Page 10 Should this extension be insufficient the release (12) is again pressed thus lengthening the extension up to the next click stop. Linhof Techno with maximum extension for lenses with focal lengths up to 210 mm or for close-up photography.
- Page 11 The absolute parallelism of the standards of the (10). This procedure is especially recommen- Techno is of great importance. Therefore, ded for vertical shots. Linhof have added two zero clicks at the lens Should the upper track be retracted again press standard. the release (12).
-
Page 12: Focusing Aids
These groundglasses have an integrated Fresnel dium. The basic lighthood is slotted behind gro- screen and thereby offers a bright matte field. undglass and Fresnel screen into the third For working with digital backs with Linhof groove of the groundglass back. Techno. - Page 13 MAGNIFIERS For exact focus we recommend magnifiers from 3x to 12x. If the Linhof Brightscreen is used this works in perfect combination with the 12x critical focus The Basic lighthood (002763-S) loupe for exact area focusing. Before you focus the image, you should adjust...
- Page 14 O p e r a t i n g E l e m e n t s a n d C a m e r a F u n c t i o n s COMPENDIUM (001925) The compendium adapted to the accessory shoe serves as a light shield.
- Page 15 = position for stitching. Digital back adapter plates firmly connect the back with the slide. Linhof offer the short and the longer Rapid Techno with Universal Rapid Change Adapter Adapter plates for the different digital backs (002767-S) and digital back in shooting position...
- Page 16 O p e r a t i n g E l e m e n t s a n d C a m e r a F u n c t i o n s STITCHING SLIDE for digital backs with live view, 002768-S The extra short stitching slide (19×12 cm) allows the benefits of stitching even when working in the live view mode.
- Page 17 GROUNDGLASS ADAPTER FOR STITCHING SLIDE 001690-S For those users who also want groundglass control when using live view digital backs, a groundglass adapter for the stitching slide (code 002768-S) is available. The adapter can hold all groundglasses of the Techno System.
- Page 18 A c c e s s o r i e s Groundglass 53,9x 40,4 PhaseOne P65+ (021845-S) For Shooting with Film: Groundglass 56x36 / 71x56 Leaf AFi 10 (021846-S) Groundglass 6x6 (021834-S) Groundglass 6x7 (021835-S) Groundglass 33x44 (021841-S) Groundglass 37x37 / Groundglass 6x8 (021836-S) 37x71 (021838-S) Groundglass 6x9 (021842-S)
- Page 19 37x49 mm the Universal Adapter Slide code mat cameras can be combined with the ingeni- 002766-S is available. ous view camera system Linhof M 679cs and Chip format 37x37 mm with groundglass Linhof Techno. code 021838-S can be enlarged by stitching...
- Page 20 A c c e s s o r i e s ADAPTERS FOR ROLLFILM AND DIGITAL IMAGING The Linhof Techno is a universal camera by using various medium format magazines for classical rollfilm photography as well as for digital backs for electronic imaging. Special adapters for each system are the link.
- Page 21 Automatic exposure counter, removable film carrier for convenient loading. The Linhof Super Rollex back 01520 is specifi- cally designed for Linhof Techno and M 679cs. THE MULTI ADAPTER Accepts the Mamiya RB magazine Pro SD, the Mamiya 6x8 motor cassette, Horseman back...
- Page 22 LINHOF 3D MICRO The Linhof 3D Micro is a levelling head develo- ped by Linhof guaranteeing extremely precise camera adjustments. It can be used for digital and analogue photography, in the studio and on location. Two levelling segments have been...
- Page 23 T e c h n o o n L o c a t i o n TECHNO – OUTDOOR DIGITAL When working on location, it is important to be equipped with the right accessories. The Techno Outdoor Case accepts the camera, the Change Adapter Slide with digital back and lenses. ATTENTION:...
-
Page 24: Vertical Shift
CAMERA ADJUSTMENTS SHIFT drive (19). The Linhof Techno offers the possibility of The Techno permits shifting of the lens standard perspective corrections and depth-of-field and the rear standard. The mechanical dis- control for obtaining professional results. placements often exceed the optical possibili- All operating elements are ergonomically ties of the lenses. - Page 25 Zero clicks at the lens standard guarantee exact must intersect in one common line. zero positions after camera displacements. Above: The Linhof Techno with Scheimpflug Schematic illustration of adjustment (tilt) at the lens standard with micro the Scheimpflug rule.
- Page 26 LINHOF PRÄZISIONS - SYSTEMTECHNIK GMBH RUPERT-MAYER-STRASSE 45 81379 MÜNCHEN TEL. +49.89.72492-0 FAX +49.89.72492-250 www.linhof.com info@linhof.com...
