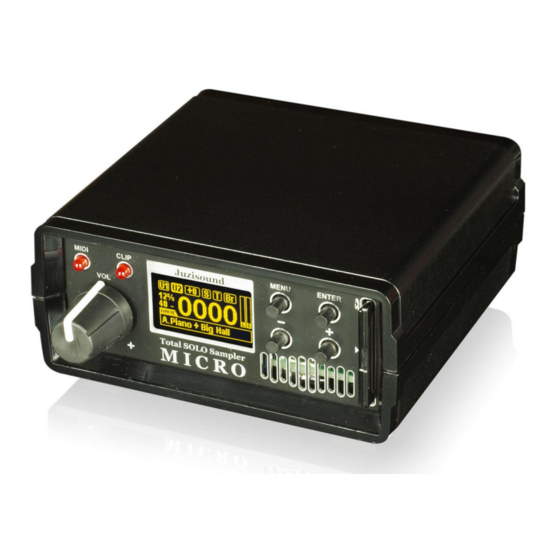

- Page 1 Juzisound Total SOLO Sampler M I C R O Quick Start Guide Version: 1.0 Juzisound Ltd Address: 76 Bozhin Chulev str., 5897 Zgalevo, BULGARIA Phone: +359 887/69-47-09 Phone: +359 887/69-47-10 E-mail: juzisound_ltd@abv.bg Internet site: www.juzisound.com Page 1 of 13...
-
Page 2: Important Safety Instructions
Important Safety Instructions WARNING The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to consti- tute a risk of electric shock to people. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) in-... -
Page 3: Additional Precautions
Technical Support If you are unable, with your dealer’s help, to solve problems you encounter with the Juzisound MICRO Sampler, you may contact our technical support department in one of the following ways: Tech support: (+359) 887-69-47-09 (Monday through Friday, 9 am to 5 pm EST) ... -
Page 4: Information For Users On Collection And Disposal Of Old Equipment
EU Compliance Juzisound Total SOLO Sampler MICRO is CE compliant. Note that any cables supplied with this equipment may be fitted with ferrite rings at each end. This is to comply with the current regulations and these ferrites should not be removed. -
Page 5: Power Supply
International Power Supply Standard 230V / 50Hz 110V/ 60Hz Not OK Use original power adapter Use 110V to 220V Step Up Voltage Converter, provided by Juzisound. with a Power of 10 watts or more! Page 5 of 13... -
Page 6: Device Placement
Device placement Juzisound Total SOLO Sampler use active cooling system, with internal turbine fan. For cooling to function properly, you must ensure at least 5 centimeters of free space in front and behind the unit. Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. - Page 7 PLUS/MINUS (+/-) – Move through the menu items, or if a parameter is selected, change the parameter value. Rear panel 1. Power IN (Use only 15v/0,4A AC adap- tor provided by Juzisound) 2. USB Host connector, for connecting USB MIDI keyboard or USB Mass Stor- age.
-
Page 8: Using A Sd Card
Using a SD card Carefully insert the SD card all the way in—until it is firmly in place. Never touch the terminals of the USB flash drives. Also, avoid getting the terminals dirty. SD cards are constructed using precision components; handle the SD cards carefully, paying particular note to the following. -
Page 9: Standard Connections
Standard Connections Connect Power Adapter to Power Input of sampler. WARNING!!! Use only an original AC/AC adapter supplied by Juzisound! Using the wrong adapter can damage your sampler!!! Connect Breath Controller Headset to the Breath Input of the sampler. If not use Breath Controller, skip this step. - Page 10 Avoid INCORRECT Audio Connection Always connect the audio output of the sampler DIRECTLY to a mixing console, not through the audio input of the synthesizer. In this picture audio connections are INCORRECT and leads to a DRASTIC reduction in sound quality. The correct way is shown in previous picture! Audio Output Settings Volume potentiometer is located on the front panel and controls the level of both the headphones...
- Page 11 To switch between 2 availabe power polarity scheme, move switch LEFT or RIGHT. Juzisound Breath Controller work in LEFT position. If you select wrong scheme, or have short cirquit in cable, sampler will stop power and produce error message on display.
- Page 12 Juzisound Accordeon MIDI systems. Pinout: 1. +5 Volt power out for Juzisound Accordeon MIDI System. Alsu (MIDI OUT+). 2. GND power out for Juzisound Accordeon MIDI System. 3. MIDI OUT-. Connect trought 220 Ohm resistor to pin 1 (MIDI OUT+).
- Page 13 MIDI Y Cable Circuit If MIDI IN and MIDI OUT are used simultaneously, a MIDI Y cable must be used. You can get it from us or make according to the scheme attached below. Page 13 of 13...
