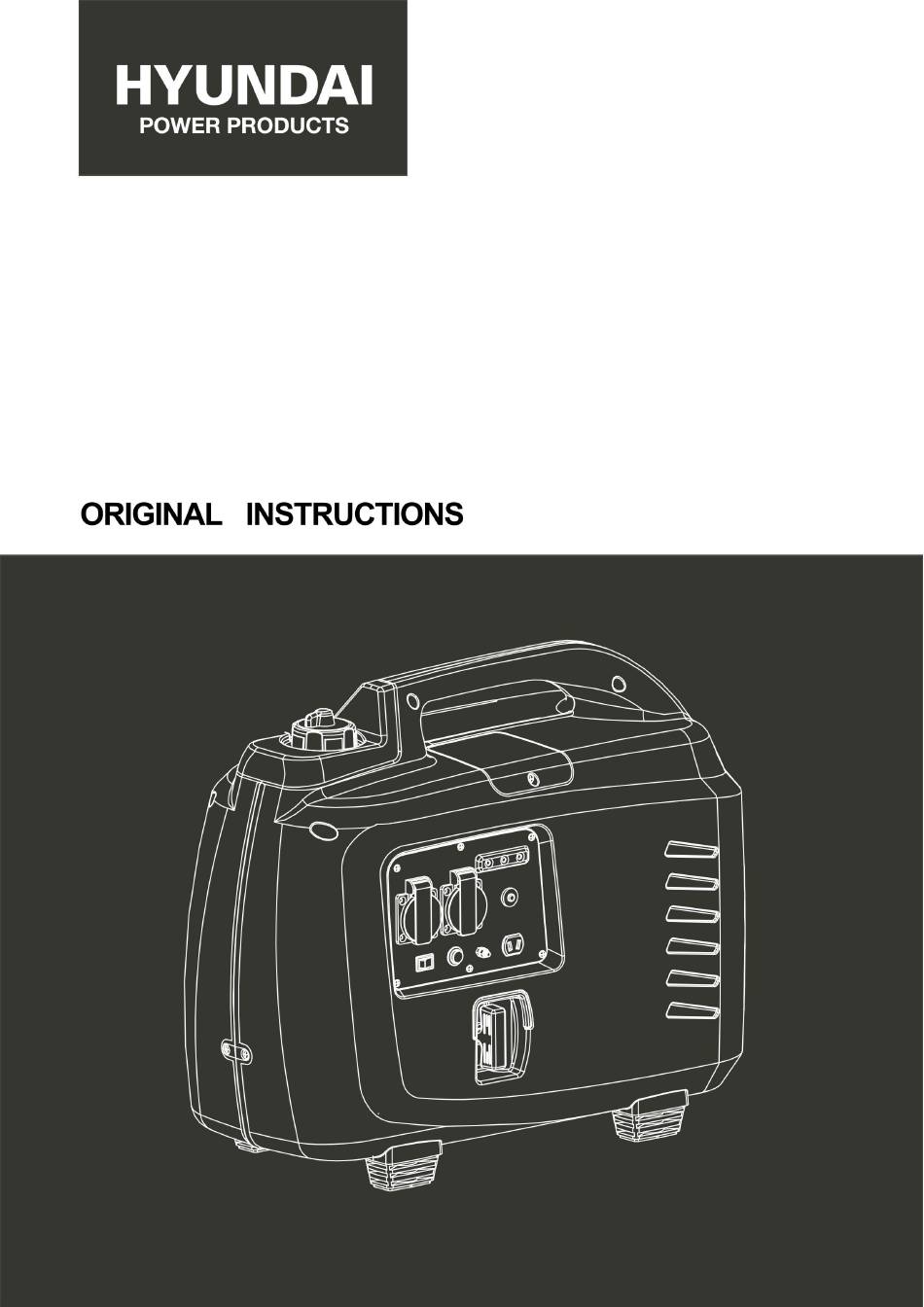

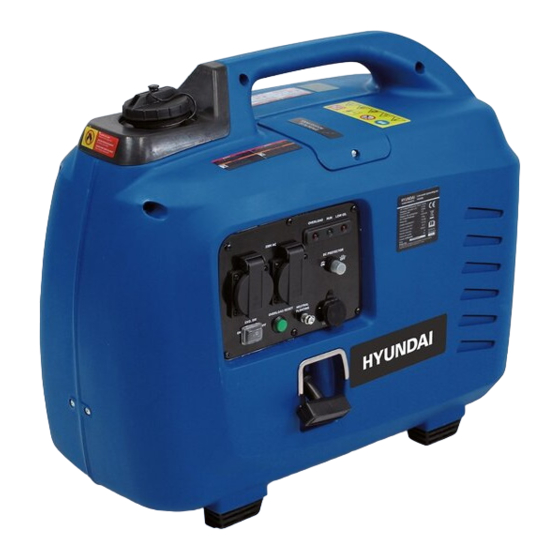

- Page 1 GENERAT OR PETROL INVERTER HG3000 I WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENT 1. Warnings for safety operation················································3 2. Quick Start ······································································7 3. Safety Precautions label position············································9 4. Parts Identification·······························································10 5. Pre flight checks··································································11 6. Start the engine··································································14 7. Use of the generator····························································16 8. Switch off the engine····························································22 9. Maintenance ······································································23 10. Transportation/Warehousing·················································30 11. -
Page 3: Warnings For Safety Operation
1. Warnings for safety operation General security instructions • The operator must know the principles of functioning and the structure of the generator and the motor. He must know how to stop the motor in case of urgency and how to manipulate the controls. •... - Page 4 • Periodically check the installation of the connections and the tightness of the fixations, re-tightening them if necessary. • Clean the components of the air filter periodically, and replace the air filter when necessary. • Remove any electrical equipment that is plugged in before starting or stopping the generator.
- Page 5 • Carry out filling in a safe place, and slowly open the fuel cap to release the pressure which has built up inside the tank. Wipe up any drops of petrol that have spilled before starting the motor. • To prevent fire, move the generator at least 4 metres away from the area for filling with fuel.
- Page 6 Protection of the environment • You must periodically check the silencer (Before doing this, switch off the generator and let it cool completely). A damaged silencer increases noise. • Do not throw motor oil into the drains but deposit it at a collection point set up for that purpose.
-
Page 7: Quick Start
2. Quick start Warning ◆ Only active outdoors. Generator of toxic carbon monoxide, a colorless, odorless gas that can cause death or serious injury. ◆ To ensure that the generator is placed horizontally. ◆ Can not work in the rain, snow or other humid environments. ◆... - Page 8 petrol or above 87 # gasoline. Not add too fast, so as not to spill gasoline. And to prevent dirt, dust or water into the tank. Tighten the fuel tank cap after the addition was complete. Be careful ◆ Do not use two-stroke gasoline or dirty gasoline. Start the generator 4.
-
Page 9: Safety Precautions Label Position
3．Safety Precautions label position These decals tips you may cause serious injury accidents. Please read this manual mentioned decals, safety and caution carefully. Fire ban labels Parameter labels Noise stickers Anti-hot stickers Oil switch stickers... -
Page 10: Parts Identification
4．Parts Identification Fuel tank cap Top access panel control panel Start handle Side access panel Fuel switch Outlet cover... -
Page 11: Pre Flight Checks
Control panel Output Overload Oil alarm Ground AC socket Engine switch DC protector Reset DC socket 5．Pre flight checks Be careful ◆ Be sure to check whether the generator level place, whether the engine is turned off. 1. Check the oil level Be careful ◆... - Page 12 Remove the dipstick with a clean rag to wipe the oil dipstick, without tightening the dipstick and insert it into the oil port to check the oil level. If the oil level is below the bottom of the dipstick, add the recommended oil. Be careful ◆...
- Page 13 Warning ◆ Gasoline explosive under certain conditions. ◆ Please ventilation refueling, turn off the engine when refueling. Gasoline generator fuel storage area and the area is strictly prohibited fireworks. ◆ Never add fuel when the generator is running, that’s very dangerous. ◆...
-
Page 14: Start The Engine
6．Start the engine Before starting the engine, disconnect the load on AC and DC socket. Open the fuel switch Open Press The start switch to the "ON" position Engine switch Pull the starter handle until you feel resistance, then pull the handle as the direction of the arrow in FIG quickly, start the generator. - Page 15 Handle Recoil start handle Operation at high altitudes At high altitudes the standard carburetor air-fuel mixture more concentrated, reducing engine operating performance, and fuel consumption increases. Then you can place the carburetor main jet with a small one, and adjust the mixing ratio of the screw, you can change the engine performance in high altitude areas.
-
Page 16: Use Of The Generator
7. Use of the generator Warning ◆ In order to prevent improper use of electric shock, the generator should be grounded. Between the ground terminal and an external ground source generator is connected by a thick cable. ◆ When the generator is used as backup power to a building. It should be connected by a qualified electrician, and ,must comply with relevant laws and electrical codes. - Page 17 AC power applications 1. Connect the ground terminal Ground mark According to "start engine" requirement starts. Ensure that the required device connected to the switch is turned off, and then plug in the machine at the generator outlet. Output indicator (green) Overload indicator (red) Plug Be careful...
- Page 18 Normal output Overload Output indicator (green) indicator (red) on overload or short circuit Output, overload indicator, oil warning light: Under normal operating conditions, the output indicator light (green) will be lit. If the generator is overloaded, an internal short circuit or connected equipment, the output indicator light (green) is off, and overload indicator (red) lights up.
- Page 19 Generator rated output Altitude: 0 m Ambient temperature: 25 ℃ Relative Humidity: 30% Only under specified ambient temperature and cooling, generator sets can be loaded to the rated power. If the working conditions do not meet the standards, as well as generators or poor engine cooling (run in a limited area), it should be appropriate to reduce the generator power.
- Page 20 1． The charging cable is connected to the generator DC socket, and then connect to the battery terminals. Charging wire Warning ◆ Charging first charging cable is connected to the battery, and then connected to the generator and remove the generator shall commence from the end, then to the battery which prevents sparks.
- Page 21 Warning ◆ During charge should provide proper ventilation and away from the fireworks, because the battery will be volatile flammable gases. ◆ The battery contains sulfuric acid (electrolyte), contact with skin or eyes may cause burns, wear protective clothing and masks。 ➢...
-
Page 22: Switch Off The Engine
8. Switch off the engine If need emergency shutdown the engine, turn the start switch to the ‘OFF’ position. Normal use: 1. Turn off the connected equipment, pull out the plug. Plug 2. Turn the start switch to the ‘OFF’ position. Engine switch 3. -
Page 23: Maintenance
9. Maintenance Maintenance and adjustment schedule was developed to enable the generator in the best working condition. Warning ◆ Turn off the engine before any repairs, the engine must be running in the ventilation if repairs need the engine on because exhaust contains poisonous carbon monoxide. Be careful ◆... - Page 24 1. Oil change When the engine is a heat engine, can discharge oil quickly and thoroughly. ◆ In order to meet environmental requirements, we recommend put the waste oil in a sealed container and send to your local service station and recycling center. Do not pour oil on the ground or in the trash.
- Page 25 Top line Bottom line Dipstick Oil injection port After contact with the oil, please wash your hands with soap and water. Be careful ◆ In order to meet environmental requirements, we recommend put the waste oil in a sealed container and send to your local service station and recycling center. Do not pour oil on the ground or in the trash.
- Page 26 3. Air filter maintenance Dirty air filter can block the airflow into the carburetor to prevent carburetor malfunction, maintenance of air filters regularly, especially if you frequently use a generator in a dirty place, require frequent maintenance. Warning ◆ Do not use gasoline or low flash point solvents to clean the generator because they are flammable and explosive under certain conditions.
- Page 27 4. Spark plug maintenance Recommended spark plug(NGK): In order to ensure the normal operation of the engine, the spark plug gap must be appropriate, no spark plugs coke. Remove the top access panel screws and remove the top access panel Pull the ignition coil out.
- Page 28 Manually install the spark plug carefully, be careful not to screw dislocation. After manually installing a new spark plug, tighten 1/2 turn with a wrench, and a good pressure washer. If it is a used spark plug inspection can still be used, then it simply after positioning with a wrench and tighten 1/4 to 1/8 can.
- Page 29 4. Fire prevention muffler maintenance and cleaning Dirty muffler will affect the muffling effect and the engine power. To ensure the normal operation of the generator, periodically clean up the muffler flame screens, if you use the generator in extremely dirty place frequently.
-
Page 30: Transportation/Warehousing
10. Transportation/Warehousing Warning When transporting the generator: ◆ Do not fill too much fuel.(Filler should be no fuel) ◆ Make sure the fuel switch is off. ◆ When transporting the generator should be fixed firmly to prevent rollover. ◆ When the generator is still on the means of transport, do not operate the generator, the generator is removed from the transport, use it in a well-ventilated place. -
Page 31: Troubleshooting
11. Troubleshooting Engine does not start Whether there is fuel in the tank? Add fuel Whether the start switch and oil switch on The engine switch and oil switch is in the the ‘ON ‘position "on" position Whether there is sufficient engine oil? Add recommended oil 是... - Page 32 Note ◆ Make sure to check the spark plug when the engine is cold, otherwise hot engine and spark plug can cause burns. ◆ Make sure that no fuel spill around the spark plug, spilled fuel could catch fire. Generator connected device does not start Output indicator lit? Return the unit to dealer Overload indicator lit?
-
Page 33: Specifications
12. Specifications Specification Dimensions and weight Is DC protector OFF Model No. HG3300I Length x Width x Height（ mm） 575×302×488mm Net weight(Kg) Engine Model No. XG157F Engine type 4-stroke, overhead valve, single cylinder machine Displacement 149cc Rating speed 5000/min Compression ratio Cooling system Air cooled Oil capacity... -
Page 34: Ce Declaration
13. CE DECLARATION CE Declaration of conformity BUILDER ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below : GENERATOR PETROL INVERTER HG3300I Modle : Serial number : 20210862391-20210862640 Complies with the provisions of the Directive « machinery » 2006/42/EG and national laws transposing it : Also complies with the following European directives : EMC Directive 2014/30/EC... -
Page 35: Warrnty
14. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 36: Product Failure
15. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 37: Warranty Exclusions
16. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
