Page 2
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. PALM GARDEN...
Bluetooth Introduction Bluetooth is a global wireless standard for enabling short-range wireless connections. It is a simple and instant radio solution that allows different devices to talk to one another. Bluetooth eliminates the need for cables/wires/cords between devices such as mobile phones and headphones. Bluetooth facilitates fast and secure transmissions of both voice and data between devices even if they are not in line-of-sight.
Package List The following checked items should be in the package. Items Quantity Receiver Box (Home Received) WANSTONIC Stereo Audio Kit Thank you for choosing WANSTONIC Stereo Audio Kit. It is unique and different from most Bluetooth products in the market for its good integration of AV t Profiles.

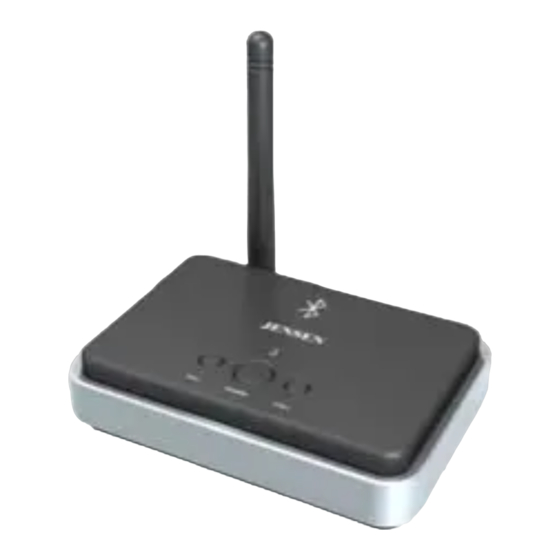

BluePacket Stereo Audio Kit Outline LED indicator Volume Down Volume Up Power On / Off WBT310 (Home Received) How to Use BluePacket RX Box performs well with the Bluetooth TX dongle and can be used to demonstrate the following usage scenarios: Enjoying the superior music quality Connect the TX dongle to PC or CD player, workman etc.
Page 6
Enjoying the Superior Music Quality Before using the RX box to listen to music, you should make a music connection as follows: 1. Setting Up Music Source Please make sure you have plugged in the music source rightly to TX dongle. 2.Connecting AV dongle / RX box (1) Turn on the RX box.
Specification Product Name BluePacket Bluetooth Receiver Photo Standard Bluetooth 1.2 compliant Power Class Class 2 Frequency Band 2.402~2.480 GHZ unlicensed ISM band Profile Supported A2DP, Headset and Hands Free Profiles Audio Format Memory 8M flash external memory Rx Sensitivity < 0.1% BER at -86 dBm...
Page 8
1. Q : How do I know that the battery of the AV dongle have insufficient power? A : The battery power is almost exhausted when one or more following scenarios happen: (1) The RX box starts to reset automatically. (2) You can constantly hear breaks on the audio link, or (3) You cannot connect the RX box to the AV dongle after several tries.
