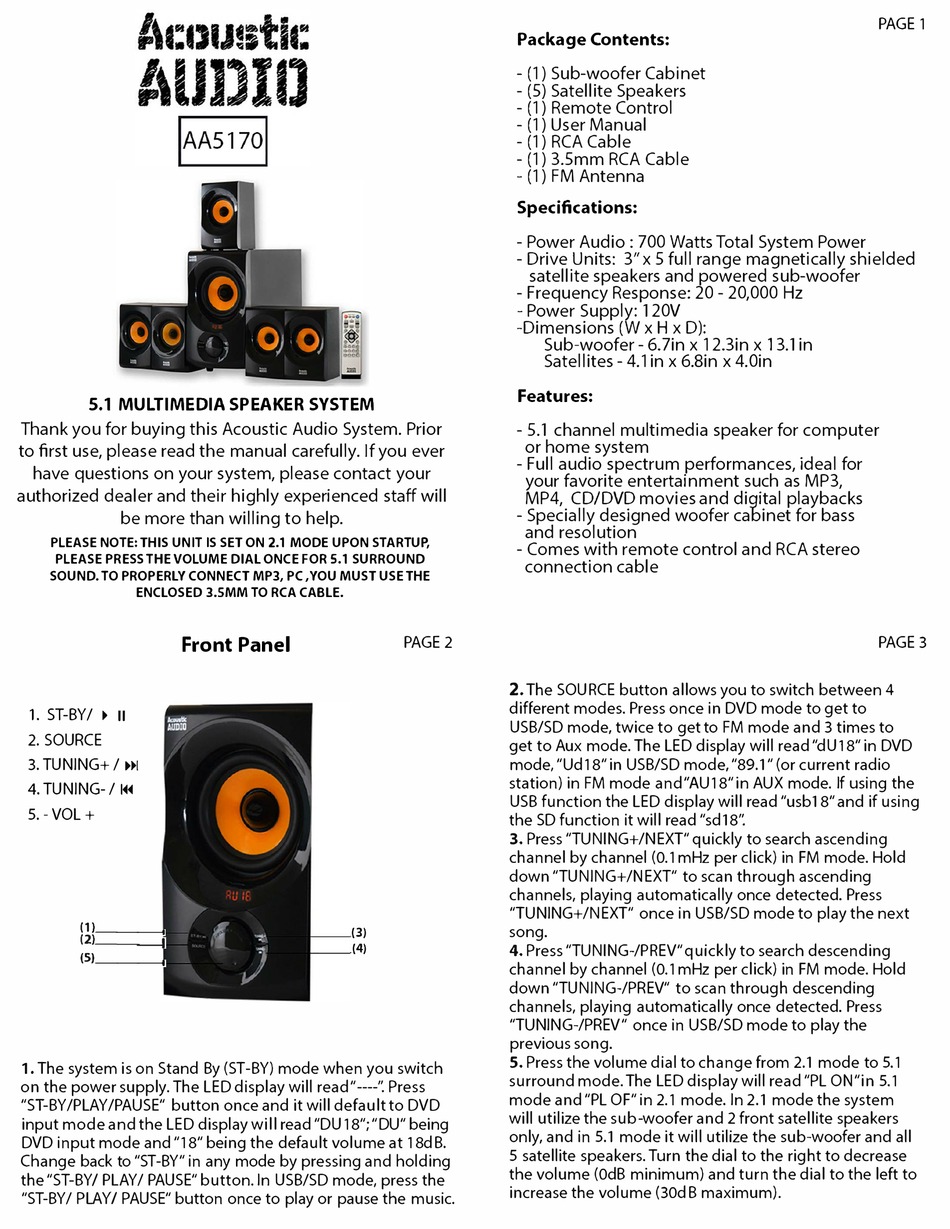

5.1 MULTIMEDIA SPEAKER SYSTEM
Thank you for buying this Acoustic Audio System. Prior
to first use, please read the manual carefully. If you ever
have questions on your system, please contact your
authorized dealer and their highly experienced staff will
be more than willing to help.
PLEASE NOTE: THIS UNIT IS SET ON 2.1 MODE UPON STARTUP,
PLEASE PRESS THE VOLUME DIAL ONCE FOR 5.1 SURROUND
SOUND. TO PROPERLY CONNECT MP3, PC ,YOU MUST USE THE
ENCLOSED 3.SMM TO RCA CABLE.
Front Panel
1.
ST-BY/ ► 11
2. SOURCE
3. TUNING+ / ►�
4. TUNING- /
◄◄
1
5. -VOL +
(1) __ _
(2) __ ____J
(5) __ _
1. The system is on Stand By (ST-BY) mode when you switch
on the power supply. The LED display will read"----''. Press
"ST-BY/PL AY/PAUSE" button once and it will default to DVD
input mode and the LED display will read "DU 18";"DU" being
DVD input mode and "18" being the default volume at 18dB.
Change back to "ST-BY" in any mode by pressing and holding
the "ST-BY I PL AY/ PAUSE" button. In U SB/SD mode, press the
"ST-BY/ PLAY/ PAUSE" button once to play or pause the music.

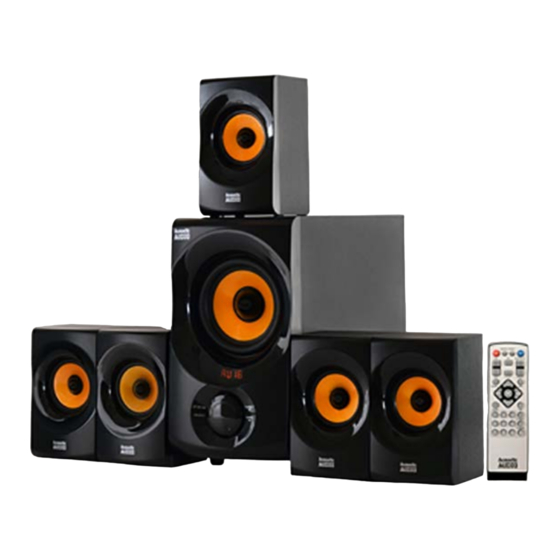

Package Contents:
- (1) Sub-woofer Cabinet
- (5) Satellite Speakers
- (1) Remote Control
- (1) User Manual
- (1) RCA Cable
- (1) 3.5mm RCA Cable
- (1) FM Antenna
Specifications:
- Power Audio: 700 Watts Total System Power
- Drive Units: 3"x 5 full range magnetically shielded
satellite speakers and powered sub-woofer
- Frequency Response: 20 - 20,000 Hz
- Power Supply: 120V
-Dimensions (W x H x D):
Features:
- 5.1 channel multimedia speaker for computer
or home system
- Full audio spectrum performances, ideal for
your favorite entertainment such as MP3,
MP4, CD/DVD movies and digital playbacks
- Specially designed woofer cabinet for bass
and resolution
- Comes with remote control and RCA stereo
connection cable
PAGE 2
2. The SOURCE button allows you to switch between 4
different modes. Press once in DVD mode to get to
USB/SD mode, twice to get to FM mode and 3 times to
get to Aux mode. The LED display will read "dUl 8" in DVD
mode, "Ud 18" in USB/SD mode, "89.1" (or current radio
station) in FM mode and"AU18" in AUX mode. If using the
USB function the LED display will read "usbl 8" and if using
the SD function it will read "sd 18''.
3.
Press "TUNING+/NEXT" quickly to search ascending
channel by channel (0.1 mHz per click) in FM mode. Hold
down "TUNING+/NEXT" to scan through ascending
channels, playing automatically once detected. Press
"TUNING+/NEXT" once in USB/SD mode to play the next
song.
(3)
4.
(4)
Press "TUNING-/PREV" quickly to search descending
channel by channel (0.1 mHz per click) in FM mode. Hold
down "TUNING-/PREV" to scan through descending
channels, playing automatically once detected. Press
"TUNING-/PREV " once in USB/SD mode to play the
previous song.
5.
Press the volume dial to change from 2.1 mode to 5.1
surround mode. The LED display will read "PL ON"in 5.1
mode and "PL OF" in 2.1 mode. In 2.1 mode the system
will utilize the sub-woofer and 2 front satellite speakers
only, and in 5.1 mode it will utilize the sub-woofer and all
5 satellite speakers. Turn the dial to the right to decrease
the volume (0dB minimum) and turn the dial to the left to
increase the volume (30dB maximum).
Sub-woofer - 6.7in x l 2.3in x 13.1 in
Satellites - 4.1 in x 6.8in x 4.0in
PAGE 1
PAGE 3
