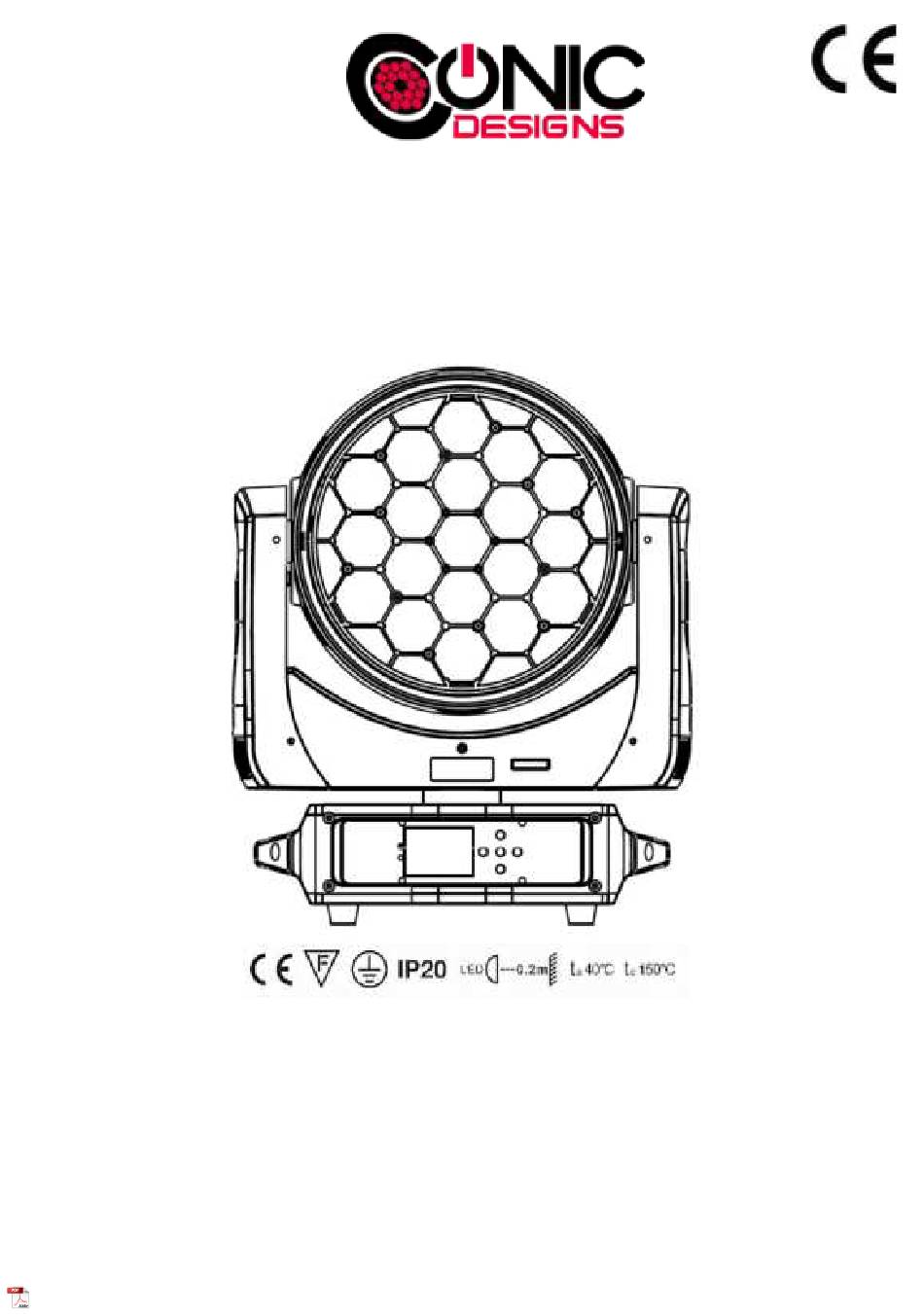

- Page 1 Conic > RIB1940Z ZOOM and Rotation 19pcs 40W 4-in-1 User Manual KEEP THIS MANUAL FOR FUTURE NEEDS 1 / 14...
- Page 2 1. Unpacking Thank you for choosing our fixture. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. This fixture is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook.
-
Page 3: Product Dimension
2. Product dimension 3 / 14... -
Page 4: Safety Instructions
3. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. -
Page 5: Mounting And Installation
4. Operation Instructions -The fixture is for beam wash and effect use. -Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. -This light should be keep away from strong shaking during any transportation or movement. - Page 6 Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.
-
Page 7: Dmx-512 Control Connections
6. DMX-512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving heads be connected together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. - Page 8 . DMX Channels 2 channels mode Function Details Pan movement control Pan fine 0-255 Pan fine control Tilt 0-255 Tilt movement control Tilt fine 0-255 Pan fine control Pan/Tilt speed 0-255 Speed from fast to slow ZOOM 0-255 Zoom 0-127 0 to 60 degree LENS rotation 128-191...
- Page 9 channels mode Function Details Pan movement control Pan fine 0-255 Pan fine control Tilt 0-255 Tilt movement control Tilt fine 0-255 Pan fine control Pan/Tilt speed 0-255 Speed from fast to slow ZOOM 0-255 Zoom 0-127 0 to 60 degree LENS rotation 128-191 Unlimited clockwise rotation from fast to slow...
- Page 10 36 Channels mode Function Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255 White fine control 0-255...
- Page 11 annels mode Function Details Value Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255 White fine control 0-255 Color temperature linear control...
- Page 12 8 . D i s p l a y i n s t r u c t i o n Addre 001-512 Sound System Run Mode Setup Auto 1 Auto 2 Channel 22CH 26CH 36CH mode 78CH Invert Pan Invert Tilt Hall Croct MENU Encoder Crct...
- Page 13 9. Key Features Voltage: AC100V～240V 50-60HZ Power: 320W LED Source: 19x40W high power RGBW 4 in 1 LEDs Zoom: 6-60° Strobe: 0-25Hz Control Mode: DMX512,Sound-actived,Master/slave DMX Channels: 22/26/36/78 four channel mode Dimmer: 0-100% linear dimmer Pan: 540°+16 bit fine Tilt: 220°+16 bit fine Display: LCD colorful display IP: IP20 Fixture dimension: 405*234*440mm...
- Page 14 10. Maintenance and Cleaning d u r i n g the inspection: The following points have to be considered and must not be corroded. 2. There must 1. All screws for installing the devices parts of the device have to be tightly and installation spots any deformations on the housing, color not be...
