Summary of Contents for Rongbai Precision Pump BT300S

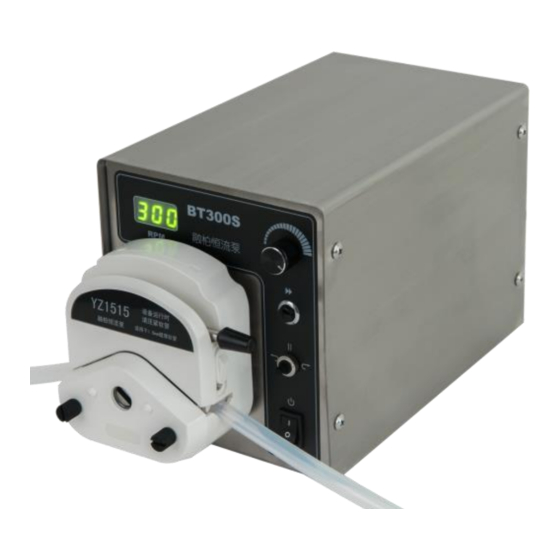

- Page 1 BT300S Operation manual peristaltic pump Baoding Rongbai Precision Pump Manufacturing Co.,Ltd. ! Please read the instructions carefully before operation.
- Page 2 Execution standard：Q/BRB01-2021 ！Important note: The hose may crack due to wear and tear, resulting in fluid leakage, which may cause damage to the equipment, so check and replace the hose frequently! If the power cable is worn or damaged, replace it in time! Turn off the power and unplug if: 1.
-
Page 3: Table Of Contents
Directory Product introduction ..........2 Basic operation ............3 Suitable for pump heads and hoses ......4 Pump head installed........... 5 External control interface .......... 6 Optional accessories ..........8 Technical indicators ........... 9 The main performance..........9 Product maintenance ..........10 The warranty ............ -
Page 4: Product Introduction
Execution standard：Q/BRB01-2021 Product introduction BT300S type peristaltic pump can be installed a variety of pump head: YZ1515, YZ2515, can provide 0.07 to 1330(mL/min) flow range. The speed can be adjusted manually or controlled externally through the external control interface. It can be combined with time loading controller to realize filling function. -
Page 5: Basic Operation
△ Before using the peristaltic pump, ensure that the ground wire of the power cable is reliably grounded to ensure personal safety in a damp environment. Basic operation 1. Digital tube display: three digital tube display speed. 2.Speed control knob: clockwise rotation, increasing speed; Counterclockwise rotation, decreasing speed. -
Page 6: Suitable For Pump Heads And Hoses
Execution standard：Q/BRB01-2021 pump stops running. 5. Power switch: Switch to "O" when the power is disconnected, switch to "1" when the power is closed. 6. Power socket (with fuse). 7.Heat dissipation fan. 8.Manual/external control: When the manual/external control key is placed on the "left", it is "hand control";... -
Page 7: Pump Head Installed
Pump head installed The pump head has been installed on the driver before delivery. In actual use, if users need to replace another type of pump head, they can refer to the following methods: 1. Remove the two screws connecting the pump head and the driver, and remove the pump head forward. -
Page 8: External Control Interface
Execution standard：Q/BRB01-2021 After the pump head is loaded with the hose, insert one end of the hose into the water, and inflate the hose from the other end. One end of the hose should not bubble when inserted into the water. If there are bubbles, it means that the tube wall is too thin and cannot be used. - Page 9 4-20mA, 0-5V, 0-10V, 0-10khz, 485 module terminal definition： Terminal Functional specifications number Analog input terminal, used to control pump speed. Or 485 - B External control start and stop control end: when disconnected from the common end, the pump runs; When shorted with the common end, the pump stops running.
-
Page 10: Optional Accessories
Execution standard：Q/BRB01-2021 Connecting cables to the 485 module: Optional accessories 1. Install the controller separately Plug in the external control interface, control pump operation and intermittent time, used to achieve quantitative distribution and filling. 2. Foot switch Plug in the external control interface, control pump start/stop. Foot switch, separate controller, only control pump start/stop state. -
Page 11: Technical Indicators
Technical indicators Applicable to pump YZ1515 YZ2515 head External control 4-20mA 0-5V 0-10V 0-10KHz RS485 control External control Speed control direction control start stop function control Full speed Emptying liquid Speed adjustment Rotary encoder Display function 3 LED display current speed Clockwise and counterclockwise Direction control invertible... -
Page 12: Product Maintenance
Execution standard：Q/BRB01-2021 Product maintenance When the pump does not work for a long time, loosen the pressure block to avoid deformation caused by long-term extrusion of the hose. Pump head rollers should be kept clean and dry, otherwise it will speed up hose wear, shorten hose service life and lead to premature roller damage. - Page 13 ●Original packaging or other reliable packaging methods should be adopted when returning to the factory for maintenance and transportation. ● The fault phenomenon and contact information should be clearly indicated when returning to the factory for maintenance.
- Page 14 Company name:Baoding Rongbai Precision Pump Manufacturing Co.,Ltd. Company address:Room 622, NO.4 Building, Diangu Science and Technology Center,NO.3088 Lekai North Street, Baoding City, Hebei Province, China. Sales Tel.: 0312-3155777 After sales service: 0312-3128777 Fax: 0312-5893777 Postal Code: 071000 Website: www.rongbaipump.com...
