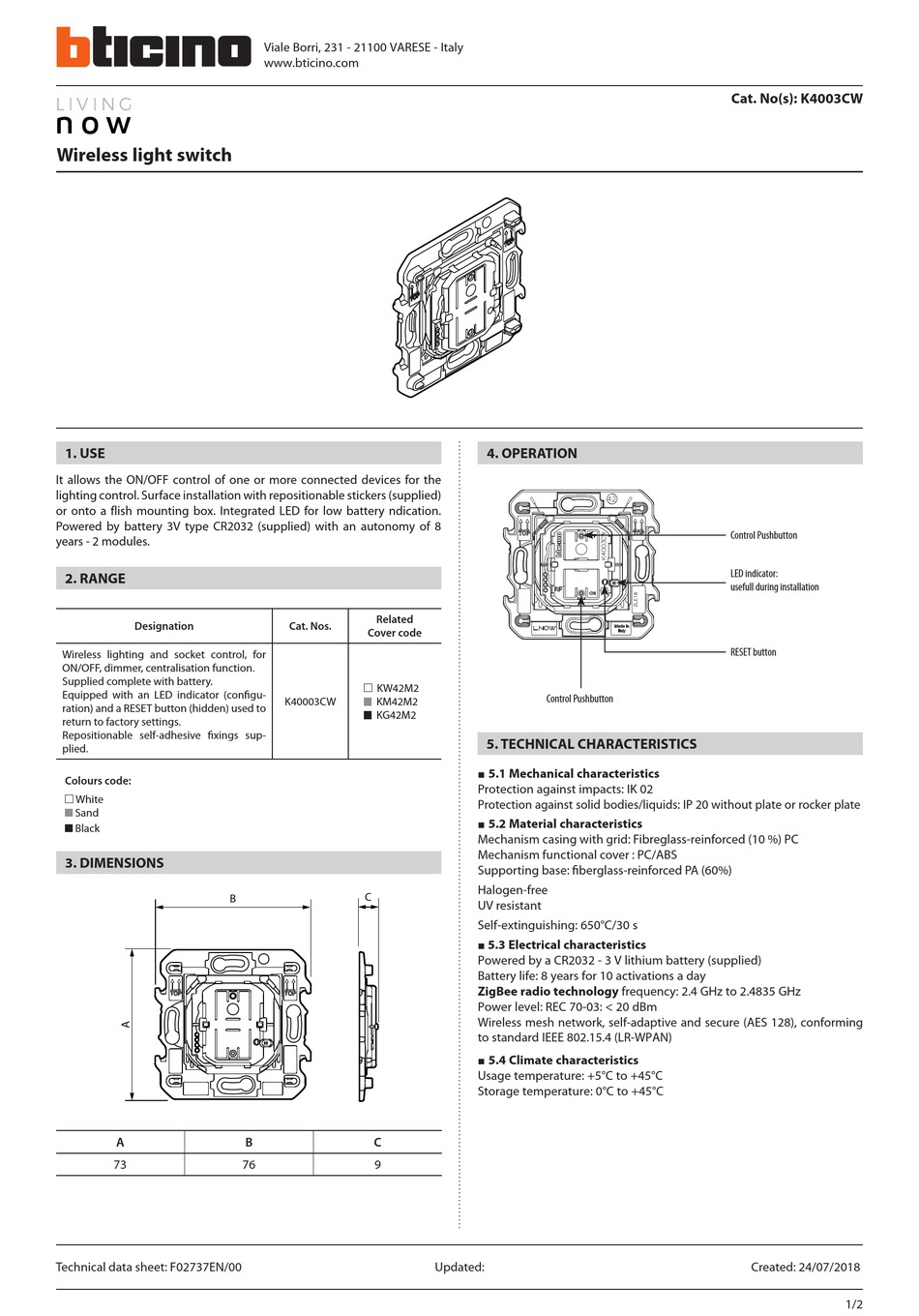

Bticino LIVING NOW K4003CW Instruction Manual

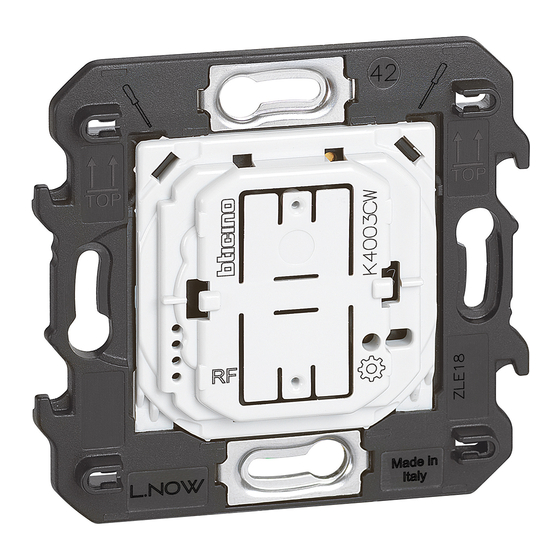

Wireless light switch
1. USE
It allows the ON/OFF control of one or more connected devices for the
lighting control. Surface installation with repositionable stickers (supplied)
or onto a flish mounting box. Integrated LED for low battery ndication.
Powered by battery 3V type CR2032 (supplied) with an autonomy of 8
years - 2 modules.
2. RANGE
Designation
Wireless lighting and socket control, for
ON/OFF, dimmer, centralisation function.
Supplied complete with battery.
Equipped with an LED indicator (configu-
ration) and a RESET button (hidden) used to
return to factory settings.
Repositionable self-adhesive fixings sup-
plied.
Colours code:
White
Sand
Black
3. DIMENSIONS
A
73
Technical data sheet: F02737EN/00
Viale Borri, 231 - 21100 VARESE - Italy
www.bticino.com
Related
Cat. Nos.
Cover code
KW42M2
K40003CW KM42M2
KG42M2
C
B
B C
76 9
4. OPERATION
Control Pushbutton
5. TECHNICAL CHARACTERISTICS
 5.1 Mechanical characteristics
Protection against impacts: IK 02
Protection against solid bodies/liquids: IP 20 without plate or rocker plate
 5.2 Material characteristics
Mechanism casing with grid: Fibreglass-reinforced (10 %) PC
Mechanism functional cover : PC/ABS
Supporting base: fiberglass-reinforced PA (60%)
Halogen-free
UV resistant
Self-extinguishing: 650°C/30 s
 5.3 Electrical characteristics
Powered by a CR2032 - 3 V lithium battery (supplied)
Battery life: 8 years for 10 activations a day
ZigBee radio technology frequency: 2.4 GHz to 2.4835 GHz
Power level: REC 70-03: < 20 dBm
Wireless mesh network, self-adaptive and secure (AES 128), conforming
to standard IEEE 802.15.4 (LR-WPAN)
 5.4 Climate characteristics
Usage temperature: +5°C to +45°C
Storage temperature: 0°C to +45°C
Updated:
Cat. No(s): K4003CW
Control Pushbutton
LED indicator:
usefull during installation
RESET button
Created: 24/07/2018
1/2
