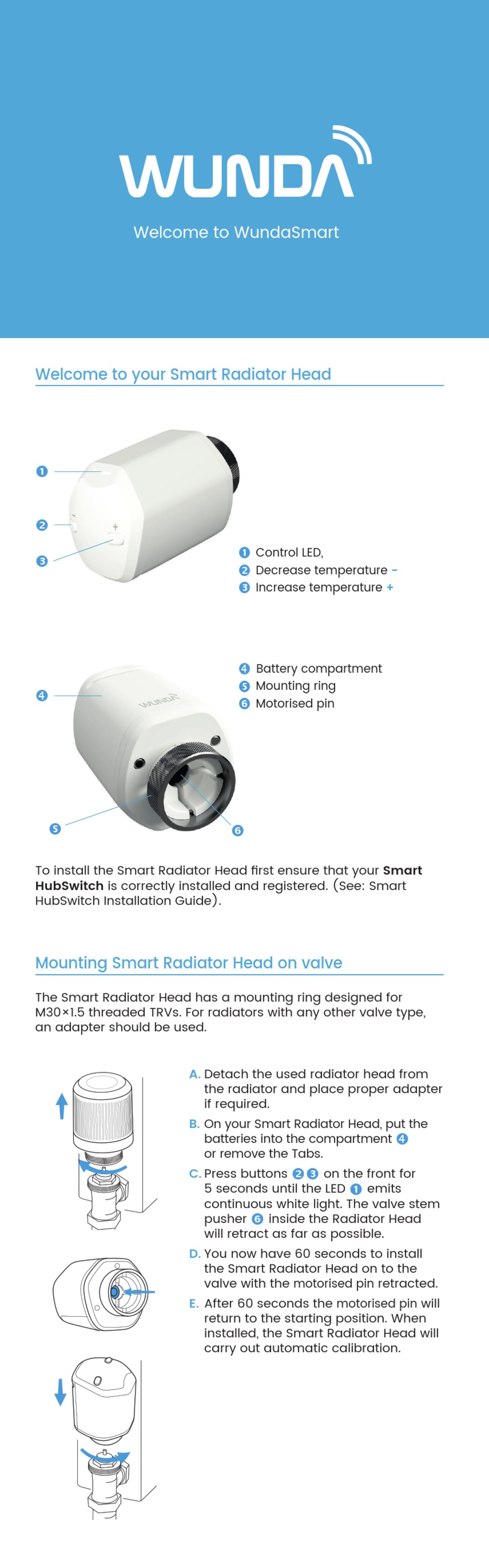

Wunda WundaSmart Radiator Head Instruction Manual

Welcome to your Smart Radiator Head





To install the Smart Radiator Head first ensure that your Smart
HubSwitch is correctly installed and registered. (See: Smart
HubSwitch Installation Guide).
Mounting Smart Radiator Head on valve
The Smart Radiator Head has a mounting ring designed for
M30×1.5 threaded TRVs. For radiators with any other valve type,
an adapter should be used.
Welcome to WundaSmart
A. Detach the used radiator head from
the radiator and place proper adapter
if required.
B. On your Smart Radiator Head, put the
batteries into the compartment
or remove the Tabs.
C.
Press buttons
5 seconds until the LED
continuous white light. The valve stem
pusher
will retract as far as possible.
D.
You now have 60 seconds to install
the Smart Radiator Head on to the
valve with the motorised pin retracted.
E.
After 60 seconds the motorised pin will
return to the starting position. When
installed, the Smart Radiator Head will
carry out automatic calibration.
Control LED,

Decrease temperature

Increase temperature

Battery compartment

Mounting ring

Motorised pin



inside the Radiator Head

-
+

on the front for
emits

