Electric lift kit

Advertisement

Model 19B70045100 electric lift kit is designed for use with Cub Cadet Z-Force models manufactured for 2014 and later. It is the
required electric lift kit for Z-Force models manufactured for 2016. Refer to your tractor's Operator's Manual to assure compatibility.
The following instructions were prepared for use by trained technicians who are experienced in the service and repair of Outdoor
Power Equipment. It is not intended for use by untrained or inexperienced individuals. Such individuals should seek the assistance of
an authorized service technician or Cub Cadet dealer.

Carton Contents

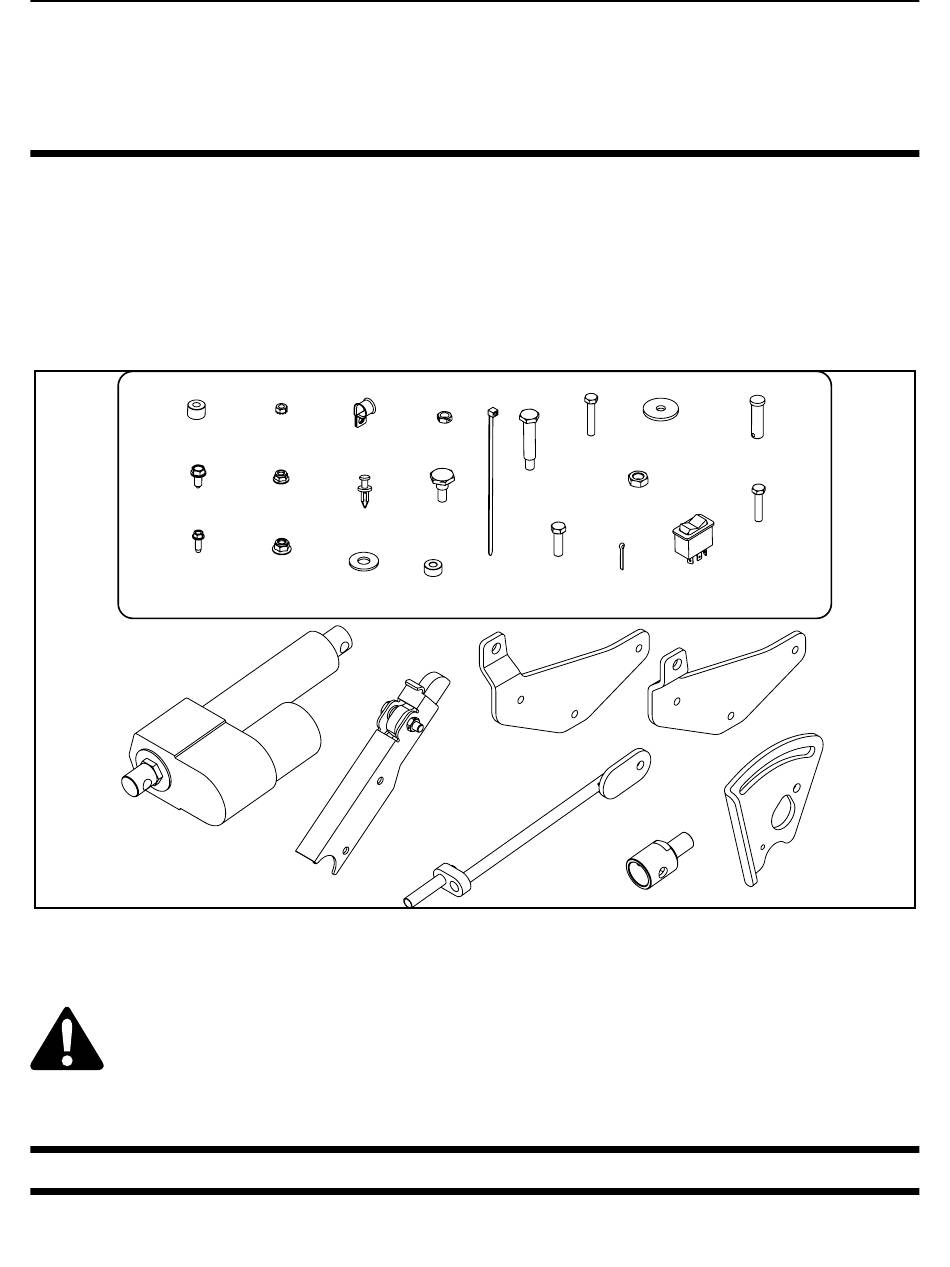

Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are shown (with
part numbers) in Figure 1-1.
750-0890
Qty. 2
710-04484
Qty. 1
710-0642
Qty. 1
725-04500

Preperation

WARNING:
Before beginning installation, place
the tractor on a firm and level surface, set the
parking brake, place the PTO in the disengaged
(OFF) position, stop the tractor's motor and remove
the ignition key to prevent unintended starting.
1.
Crack the lug nuts loose on the rear-right wheel.
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
I
nstallatIon
Electric Lift Kit — 19B70045100
712-0271
726-0272
Qty. 2
Qty. 1
712-04063
Qty. 4
728-0199
Qty. 2
712-04065
Qty. 3
736-0179
Qty. 1
603-05195
Figure 1-1
M
anual
Hardware Pack (Bag)
712-0266A
710-3180
Qty. 1
Qty. 2
738-0527
Qty. 1
738-0507B
Qty. 1
710-3005
725-0157
Qty. 1
Qty. 3
750-0258
Qty. 2
703-09485
603-05103
2.
Using a floor jack, raise the rear-end of the machine and
secure the rear-right side of the frame with a jack stand.
Note: Do not position the jackstand under the rear bumper,
as the bumper hardware will be removed in the following
steps.
3.
Place the deck lift handle in its top (fully raised) position
and insert wood blocks beneath the deck so that it is firmly
secured. Use shims, if necessary, to accurately maintain this
deck height.
736-0227
711-0231
Qty. 1
Qty. 1
712-3048
Qty. 1
710-0805
Qty. 2
725-04704
714-0115
Qty. 1
Qty. 1
703-09487
711-06168
703-09525A
Form No. 769-09676C
September 13, 2017
