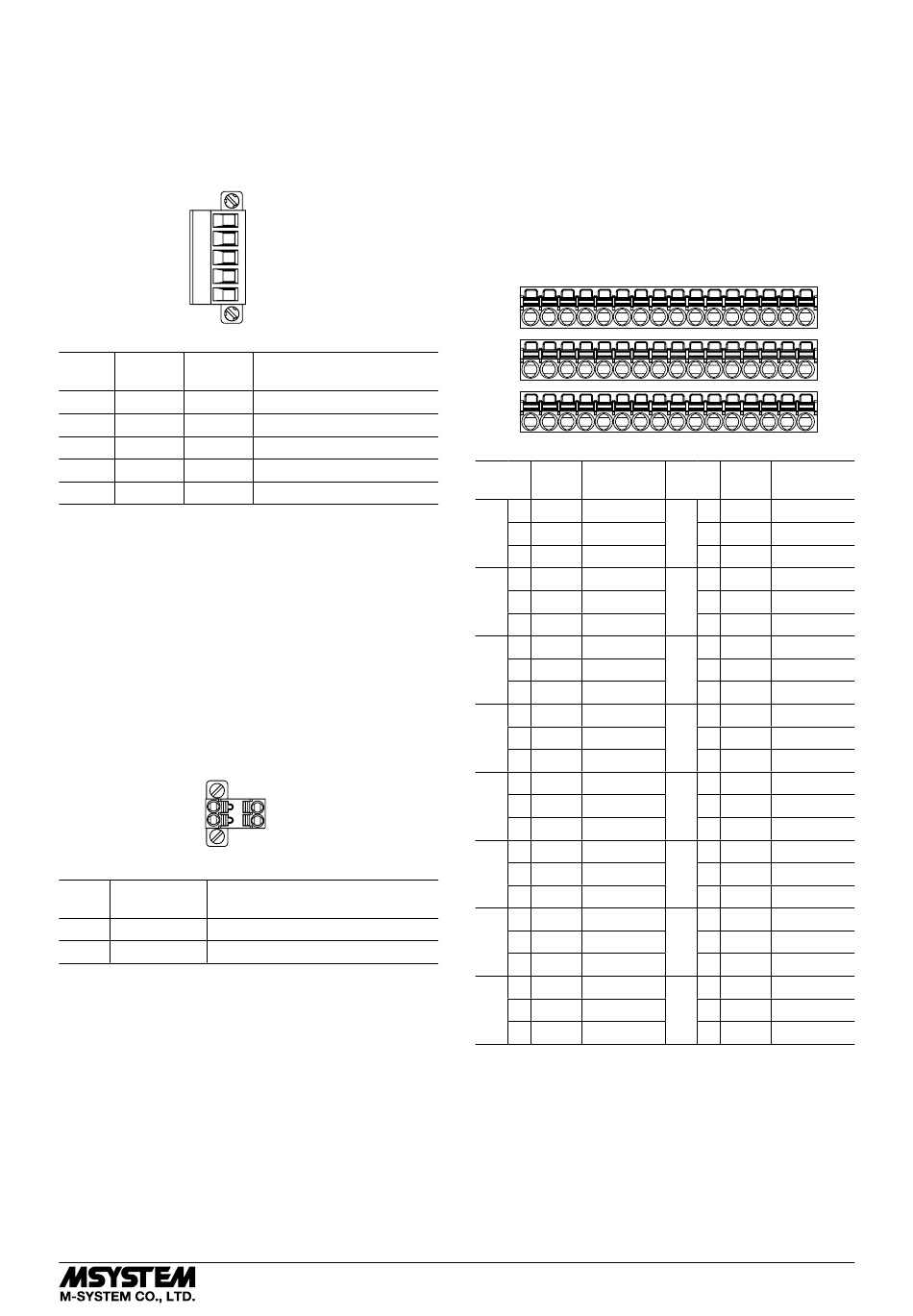

■ TERMINAL ASSIGNMENT
• Devicenet Terminal Assignment
Unit side connector: MSTB2,5/5-GF-5,08AU (Phoenix contact)
Cable side connector: MSTB2,5/5-STF-5,08AU (Phoenix contact)
Applicable wire size: 0.2 - 2.5mm
Stripped length: 7mm
PIN
COLOR ID
NO.
1 Red V+
2 White CAN_H
3 – Drain
4 Blue CAN_L
5 Black V–
• Exc. supply Termianl Assignment
Unit side connector: MCV1,5/2-GF-3,5 (Phoenix contact)
Cable side connector: TFMC1,5/2-STF-3,5 (Phoenix contact)
Applicable wire size: 0.2 - 1.5mm
Stripped length: 10mm
Recommended solderless terminal:
AI0,25-10YE 0.25mm (Phoenix contact)
2
AI0,34-10TQ 0.34mm 2 (Phoenix contact)
AI0,5-10WH 0.5mm (Phoenix contact)
2
AI0,75-10GY 0.75mm (Phoenix contact)
2
AI1-10 1.0mm 2 (Phoenix contact)
AI1,5-10 1.5mm (Phoenix contact)
2
2
1
PIN
ID
NO.
1 SNSR.EXC+ Exc. supply +
2 SNSR.EXC– Exc. supply –
2
1
2
3
4
5
FUNCTION
Network power supply (+)
Network data High
Shield
Network data Low
Network power supply (-)
2
FUNCTION
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
• Input Termianal Assignment
Unit side connector: MCV1,5/16-G-3,5 (Phoenix contact)
Cable side connector: FMC1,5/16-ST-3,5 (Phoenix contact)
Applicable wire size: 0.2 - 1.5mm
2
Stripped length: 10mm
Recommended Solderless Termianal:
AI0,25-10YE 0.25mm (Phoenix contact)
2
AI0,34-10TQ 0.34mm (Phoenix contact)
2
AI0,5-10WH 0.5mm (Phoenix contact)
2
AI0,75-10GY 0.75mm 2 (Phoenix contact)
AI1-10 1.0mm (Phoenix contact)
2
AI1,5-10 1.5mm 2 (Phoenix contact)
X0 X1 X2 X3 X4 X5 X6 X7
+24V
GND
PIN
ID FUNCTION
NO.
X0 1 X0 Input 0
2 +24V 24V DC
3 GND 0V
X1 1 X1 Input 1
2 +24V 24V DC
3 GND 0V
X2 1 X2 Input 2
2 +24V 24V DC
3 GND 0V
X3 1 X3 Input 3
2 +24V 24V DC
3 GND 0V
X4 1 X4 Input 4
2 +24V 24V DC
3 GND 0V
X5 1 X5 Input 5
2 +24V 24V DC
3 GND 0V
X6 1 X6 Input 6
2 +24V 24V DC
3 GND 0V
X7 1 X7 Input 7
2 +24V 24V DC
3 GND 0V
R7F4DD-DA16B-C
X8 X9 XA XB XC XD XE XF
+24V
GND
PIN
ID FUNCTION
NO.
X8 1 X8 Input 8
2 +24V 24V DC
3 GND 0V
X9 1 X9 Input 9
2 +24V 24V DC
3 GND 0V
XA 1 XA Input 10
2 +24V 24V DC
3 GND 0V
XB 1 XB Input 11
2 +24V 24V DC
3 GND 0V
XC 1 XC Input 12
2 +24V 24V DC
3 GND 0V
XD 1 XD Input 13
2 +24V 24V DC
3 GND 0V
XE 1 XE Input 14
2 +24V 24V DC
3 GND 0V
XF 1 XF Input 15
2 +24V 24V DC
3 GND 0V
