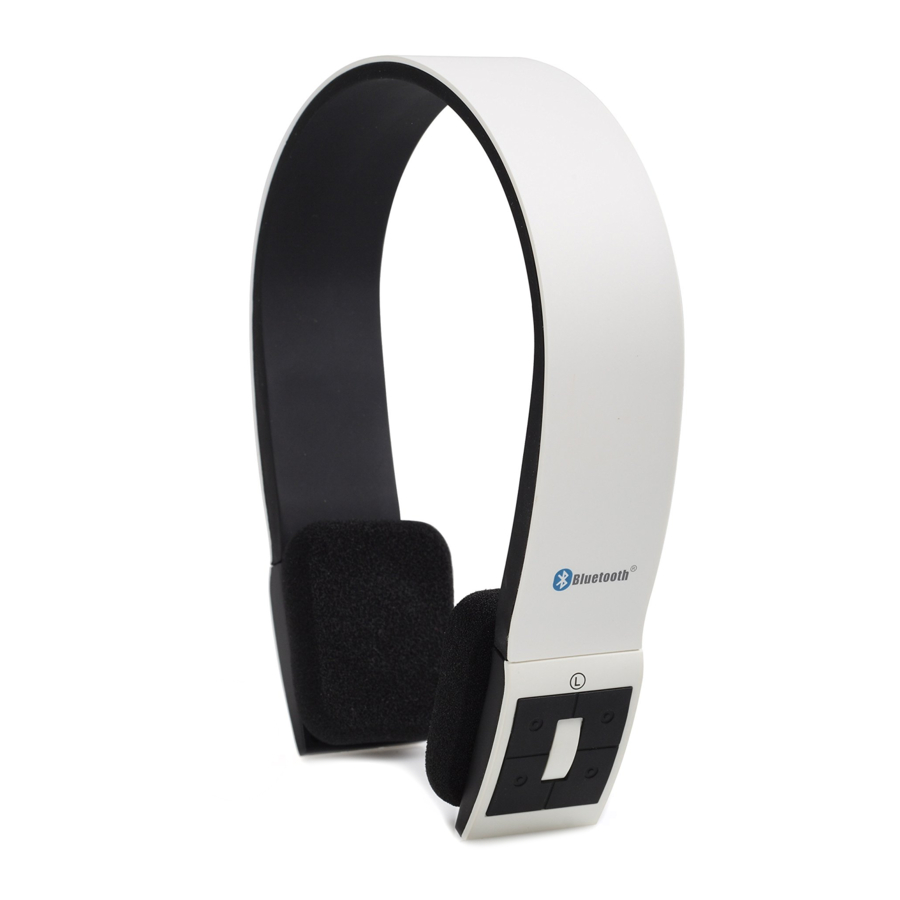

AudioSonic HP-1640, HP-1641, HP-1642 - Bluetooth Headphones Manual

PARTS DESCRIPTION

1. Previous key
2. Next key
3. Indicator light
4. Multifunction key
5. Volume down
6. Volume up
7. Charge input
8. Built in microphone
9. Aux- in Jack
10. Aux cable

BEFORE THE FIRST USE

Charge the headset

• Use the USB cable to connect the headset to your computer.
• Red light on: charging
• Red light off: fully charged
• Charge time will be about 2,5 hours.

USE

Pairing mode

Make sure the headset is switched off. Press and hold the multifunction key for about 5 seconds and release it until the indicator light flash red and blue light.

Switch on

Press and hold the multifunction key for about 3 seconds and release until the blue light flash.

Switch off

• Press and hold the multifunction key for about 5 seconds until the headset switches off.
• Note: in the pairing mode the headset is will automatically switch to the standby mode if no pair is made with any devices over 2 minutes.
• Note: if no connection is made for 5 minutes the headset will automatically be switched off.

Pair with a cell phone

• Make sure the distance between the headset and the cell phone is within 1 meter.
• Make the headset enter into the pairing mode.
• Activate the Bluetooth function on the cell phone and search for Bluetooth devices. Select "HP-164X" in the list.
• After a successful connection, the blue light of the headset will flash twice every four seconds.

Pair with the computer

• Make sure you use a computer with Bluetooth function.
• Make the headset enter into the pairing mode.
• Activate the Bluetooth option on the computer, select "add device" and select "HP-164X".
• After a successful connection, the blue light of the headset will flash twice every four seconds.
• Note: once paired, no pairing will be needed next time.
• Note: a Bluetooth version lower than V2.1 will require for the password "0000"

Make and receive calls through the headset

• Answering coming calls: press the multifunction key shortly
• Refuse coming calls: Press and hold the multifunction key for 2 seconds.
• Redial the last number: rapidly press the multifunction key twice.
• End call: press the multifunction key shortly.
• Call switching: press and hold the multifunction key for 2 seconds, and release it until hearing the warning tone.
• Microphone mute: fast press the multifunction key twice during calling.
• Cancel the mute: rapidly press the multifunction key twice when mute is activated.
• Voice dial: press and hold the multifunction key for 2 seconds and release it until you hear the warning tone.
• Note: some cell phones are not applicable for the functions listed above.

AUX IN

• Connect an external audio source to the device by plugging it in the aux in jack.
• Press the power button to turn on the device.
• Use the native controls on the external audio source to start playing music.
