M12
SIDEWINDER
OPERATING INSTRUCTIONS

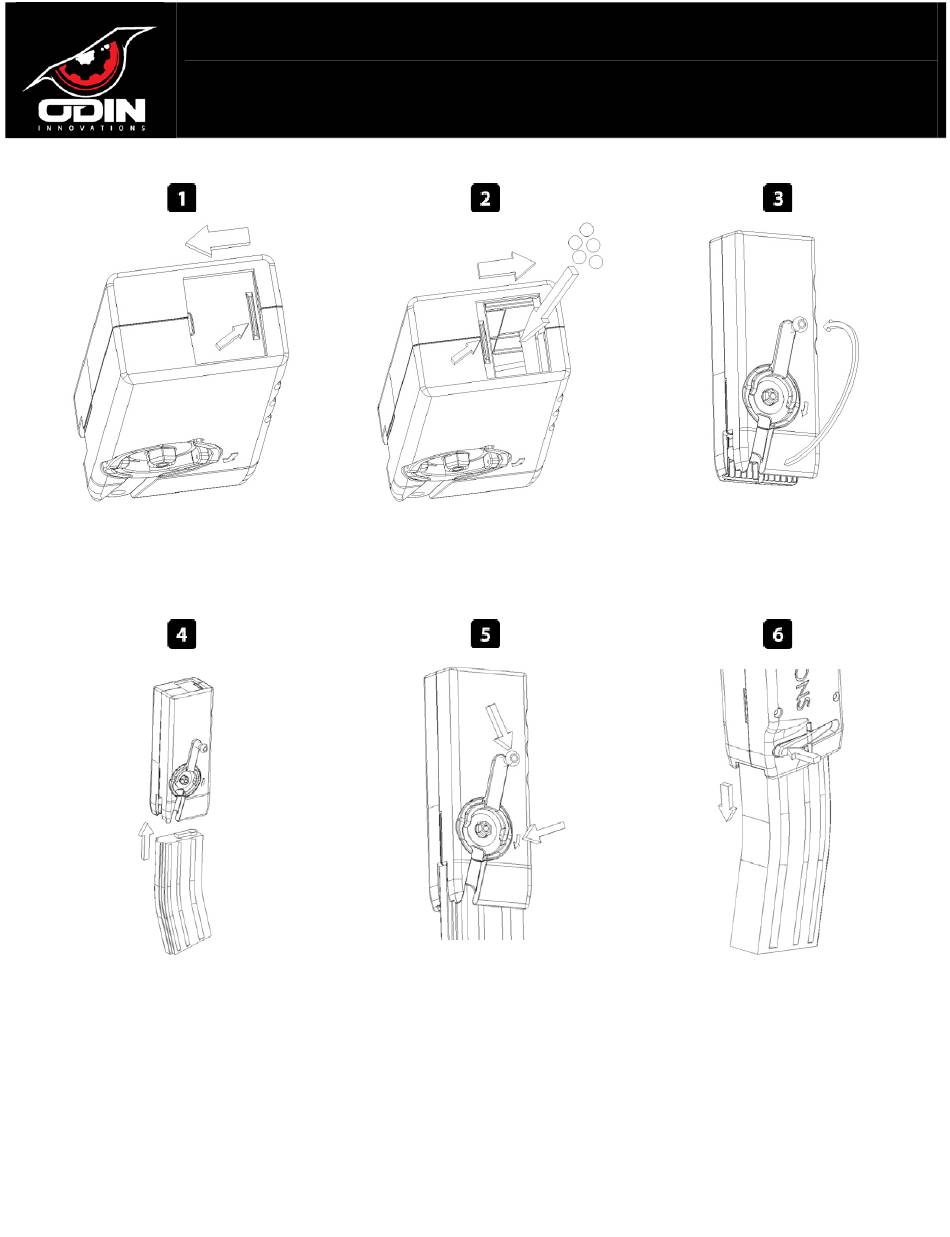

Slide the BB reservoir door open
Loud BBs into the BB reservoir. Once
Pivot the crank arm into the
the BB reservoir is full, slide the door
"open" position.
closed.
Insert your magazine into the
Hold the M12 Sidewinder in a vertical
Depress the magazine release
bottom of the M12 sidewinder. The
position with the loader on top, and
latch, and remove the magazine.
magazine should audibly "click"
rotate the crank arm in a clockwise
Repeat steps 1-6 to load
into place.
manner. Once the magazine is full,
additional magazines
the clutch will engage.
Advertisement
Summary of Contents for Odin M12 SIDEWINDER
- Page 1 BB reservoir is full, slide the door “open” position. closed. Insert your magazine into the Hold the M12 Sidewinder in a vertical Depress the magazine release bottom of the M12 sidewinder. The position with the loader on top, and latch, and remove the magazine.
- Page 2 Some magazines have stiffer springs than industry standard, and might require the adjustment of the clutch nut. If your magazines are not getting fully loaded, locate the clutch nut on your M12 Sidewinder, and using a 10mm wrench, rotate it clockwise 1/8 turn, and attempt to load the magazine again. Repeat...
- Page 3 TROUBLESHOOTING NOTE In most cases, malfunctions can be prevented by simply following the 6 steps outlined in the operating instructions. In the rare case that you encounter issues with your M12 Sidewinder, review the guide below. Problem Causes Solution My magazine...
- Page 4 M12 for repair or replacement. This warranty is null and void if it is found that the M12 Sidewinder has been modified, abused, or altered in such a way that the structural or individual component integrity has been compromised.
